Solve the Compressible Navier-Stokes and Euler equations. More...

#include <Cgcns.h>

Inheritance diagram for Cgcns:

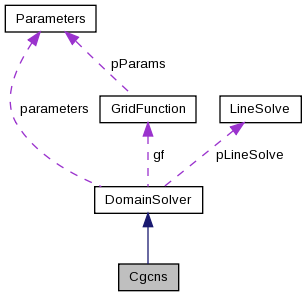

Collaboration diagram for Cgcns:

Public Member Functions
	Cgcns (CompositeGrid &cg, GenericGraphicsInterface ps=NULL, Ogshow show=NULL, const int &plotOption=1)
	Constructor for the Cgcns class.

virtual	~Cgcns ()
	Destructor.

virtual int	applyBoundaryConditions (const real &t, realMappedGridFunction &u, realMappedGridFunction &gridVelocity, const int &grid, const int &option=-1, realMappedGridFunction puOld=NULL, realMappedGridFunction pGridVelocityOld=NULL, const real &dt=-1.)
	Apply boundary conditions.

virtual int	applyBoundaryConditionsForImplicitTimeStepping (realMappedGridFunction &rhs, realMappedGridFunction &uL, realMappedGridFunction &gridVelocity, real t, int scalarSystem, int grid)
	Fill in the boundary conditions for the right-hand-side of the implicit time-stepping equations.

virtual int	addConstraintEquation (Parameters &parameters, Oges &solver, realCompositeGridFunction &coeff, realCompositeGridFunction &ucur, realCompositeGridFunction &rhs, const int &numberOfComponents)
	Add constraint equations to the implicit time-stepping matrix.

virtual void	addForcing (realMappedGridFunction &dvdt, const realMappedGridFunction &u, int iparam[], real rparam[], realMappedGridFunction &dvdtImplicit=Overture::nullRealMappedGridFunction(), realMappedGridFunction *referenceFrameVelocity=NULL)
	Add body forcing to du/dt.

virtual void	assignTestProblem (GridFunction &cgf)

virtual void	buildImplicitSolvers (CompositeGrid &cg)
	Allocate the appropriate number of implicit solvers (Oges objects)

virtual int	buildTimeSteppingDialog (DialogData &dialog)
	Build the dialog that shows the various options for time stepping.

virtual void	formMatrixForImplicitSolve (const real &dt0, GridFunction &cgf1, GridFunction &cgf0)
	Form the matrix for implicit time stepping.

virtual int	formImplicitTimeSteppingMatrix (realMappedGridFunction &coeff, const real &dt0, int scalarSystem, realMappedGridFunction &uL, const int &grid)

virtual realCompositeGridFunction &	getAugmentedSolution (GridFunction &gf0, realCompositeGridFunction &v)
	Return a grid function for plotting and for output that may contain extra variables, such as errors or such as the pressure for the compressible NS.

virtual int	getInterfaceDataOptions (GridFaceDescriptor &info, int &interfaceDataOptions) const
	Return the interface data required for a given type of interface.

virtual void	getTimeSteppingEigenvalue (MappedGrid &mg, realMappedGridFunction &u, realMappedGridFunction &gridVelocity, real &reLambda, real &imLambda, const int &grid)
	Determine the real and imaginary parts of the eigenvalue for time stepping.

virtual int	getTimeSteppingOption (const aString &answer, DialogData &dialog)
	Look for a time stepping option in the string "answer.

virtual int	getUt (const realMappedGridFunction &v, const realMappedGridFunction &gridVelocity, realMappedGridFunction &dvdt, int iparam[], real rparam[], realMappedGridFunction &dvdtImplicit=Overture::nullRealMappedGridFunction(), MappedGrid pmg2=NULL, const realMappedGridFunction pGridVelocity2=NULL)
	Evaluate du/dt for the Navier-Stokes or Euler equations.

virtual void	implicitSolve (const real &dt0, GridFunction &cgf1, GridFunction &cgf0)
	Solve the implicit time-stepping equations.

virtual int	initializeSolution ()
	Initialize the solution, project velocity if required.

virtual int	interfaceRightHandSide (InterfaceOptionsEnum option, int interfaceDataOptions, GridFaceDescriptor &info, GridFaceDescriptor &gfd, int gfIndex, real t)

virtual bool	isImplicitMatrixSingular (realCompositeGridFunction &uL)
	Return true if the implicit time-stepping matrix is singular.

virtual void	printTimeStepInfo (const int &step, const real &t, const real &cpuTime)
	Print time-step information about the current solution in a nicely formatted way.

virtual int	project (GridFunction &cgf)
	Project the initial conditions of a steady state newton solver on the linear solution.

virtual void	saveShowFileComments (Ogshow &show)
	Save comments to the show file that will appear as the top label when viewed with plotStuff.

virtual int	setPlotTitle (const real &t, const real &dt)
	Set the plot titles for interactive plotting.

virtual int	setupGridFunctions ()
	Perform initialization steps for Cgcns; build geometry arrays etc.

virtual int	setupPde (aString &reactionName, bool restartChosen, IntegerArray &originalBoundaryCondition)
	A virtual function to setup the PDE to be solved.

virtual int	updateGeometryArrays (GridFunction &cgf)
	Update geometry arrays when the grid has changed (called by adaptGrids for example).

virtual int	updateStateVariables (GridFunction &cgf, int stage=-1)
	Ths function is used to update state-variables. For example, the visco plastic viscosity.

virtual int	updateToMatchGrid (CompositeGrid &cg)
	Update the solver to match a new grid.

virtual void	writeParameterSummary (FILE *)
	Output parameter values to the header information that is printed near the start of the computation.

Public Member Functions inherited from DomainSolver
	DomainSolver (Parameters &par, CompositeGrid &cg, GenericGraphicsInterface ps=NULL, Ogshow show=NULL, const int &plotOption=1)
	This is the constructor for the base class DomainSolver.

virtual	~DomainSolver ()
	Destructor.

virtual int	adaptGrids (GridFunction &gf0, int numberOfGridFunctionsToUpdate=0, realCompositeGridFunction cgf=NULL, realCompositeGridFunction uWork=NULL)

virtual int	addArtificialDissipation (realCompositeGridFunction &u, real dt)

virtual int	addArtificialDissipation (realMappedGridFunction &u, real dt, int grid)

virtual int	addGrids ()

virtual int	advance (real &tFinal)

virtual void	advanceAdamsPredictorCorrector (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceAdamsPredictorCorrectorNew (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)
	Advance using an Adams predictor corrector method (new way)

virtual void	advanceADI (real &t, real &dt, int &numberOfSubSteps, int &init, int initialStep)

void	advanceForwardEulerNew (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)
	Advance using an "forward-Euler" method (new way)

virtual void	advanceImplicitMultiStep (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceImplicitMultiStepNew (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)
	Generic advance routine that uses the separate time sub-step functions.

virtual int	advanceLineSolve (LineSolve &lineSolve, const int grid, const int direction, realCompositeGridFunction &u0, realMappedGridFunction &f, realMappedGridFunction &residual, const bool refactor, const bool computeTheResidual=false)

virtual void	advanceMidPoint (real &t0, real &dt0, int &numberOfSubSteps, int initialStep)

virtual void	advanceNewton (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceSecondOrderSystem (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceSteadyStateRungeKutta (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceTrapezoidal (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceVariableTimeStepAdamsPredictorCorrector (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	allSpeedImplicitTimeStep (GridFunction &gf, real &t, real &dt0, int &numberOfTimeSteps, const real &nextTimeToPrint)

virtual int	applyBoundaryConditions (GridFunction &cgf, const int &option=-1, int grid_=-1, GridFunction *puOld=NULL, const real &dt=-1.)

virtual int	applyBoundaryConditionsForImplicitTimeStepping (GridFunction &cgf)

virtual int	assignInitialConditions (int gfIndex)
	Assign initial conditions.

virtual int	applyFilter (int gfIndex)
	This function applies a spatial filter to the solution in gf[gfIndex].

virtual int	assignInterfaceBoundaryConditions (GridFunction &cgf, const int &option=-1, int grid_=-1, GridFunction *puOld=NULL, const real &dt=-1.)

virtual void	bodyForcingCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	boundaryConditionPredictor (const BoundaryConditionPredictorEnum bcpOption, const AdamsPCData &adamsData, const int orderOfExtrapolation, const int mNew, const int mCur, const int mOld, realCompositeGridFunction puga=NULL, realCompositeGridFunction pugb=NULL, realCompositeGridFunction pugc=NULL, realCompositeGridFunction pugd=NULL)
	Apply operations required before applying the boundary conditions. E.g. extrapolate the pressure in time for fourth-order INS.

virtual int	buildAdaptiveGridOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various general options.

virtual int	buildAmrGridsForInitialConditions ()
	Build the AMR hierarchy of grids for the initial conditions.

virtual int	buildForcingOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various forcing options.

virtual int	buildGeneralOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various general options.

virtual int	buildGrid (Mapping *&newMapping, int newGridNumber, IntegerArray &sharedBoundaryCondition)

virtual int	buildOutputOptionsDialog (DialogData &dialog)
	Build the output options dialog.

virtual int	buildMovingGridOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various general options.

virtual int	buildPlotOptionsDialog (DialogData &dialog)
	Build the plot options dialog.

virtual int	buildRunTimeDialog ()
	Build the run time dialog. This dialog appears while a Domain solver is time stepping.

void	checkArrays (const aString &label)

void	checkSolution (const realGridCollectionFunction &u, const aString &title, bool printResults=false)

int	checkSolution (realMappedGridFunction &u, const aString &title, bool printResults, int grid, real &maxVal, bool printResultsOnFailure=false)

virtual void	cleanupInitialConditions ()
	Cleanup routines after the initial conditions have been assigned.

virtual int	computeBodyForcing (GridFunction &gf, const real &tForce)
	Compute the body forcing such as drag models, wake models and heat sources.

virtual void	computeNumberOfStepsAndAdjustTheTimeStep (const real &t, const real &tFinal, const real &nextTimeToPrint, int &numberOfSubSteps, real &dtNew, const bool &adjustTimeStep=true)

virtual void	correctMovingGrids (const real t1, const real t2, GridFunction &cgf1, GridFunction &cgf2)
	Corrector step for moving grids.

const int &	debug () const

virtual void	determineErrors (GridFunction &cgf, const aString &label=nullString)

virtual void	determineErrors (realCompositeGridFunction &u, realMappedGridFunction **gridVelocity, const real &t, const int options, RealArray &err, const aString &label=nullString)

virtual void	determineErrors (realMappedGridFunction &v, const real &t)

virtual void	displayBoundaryConditions (FILE *file=stdout)

virtual int	displayParameters (FILE *file=stdout)
	Display DomainSolver parameters.

virtual int	endTimeStep (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepFE (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepIM (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepPC (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepAF (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual void	eulerStep (const real &t1, const real &t2, const real &t3, const real &dt0, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3, realCompositeGridFunction &ut, realCompositeGridFunction &uti, int stepNumber, int &numberOfSubSteps)

void	extrapolateInterpolationNeighbours (GridFunction &gf, const Range &C)
	Extrapolate interpolation neighbours.

virtual int	fixupUnusedPoints (realCompositeGridFunction &u)

virtual int	getAmrErrorFunction (realCompositeGridFunction &u, real t, intCompositeGridFunction &errorFlag, realCompositeGridFunction &error)

virtual int	getAmrErrorFunction (realCompositeGridFunction &u, real t, realCompositeGridFunction &error, bool computeOnFinestLevel=false)

const aString &	getClassName () const

virtual int	getAdaptiveGridOption (const aString &answer, DialogData &dialog)
	: Look for a general option in the string "answer"

virtual int	getForcingOption (const aString &command, DialogData &dialog)
	: Look for a forcing option in the string "answer"

virtual int	getGeneralOption (const aString &answer, DialogData &dialog)
	: Look for a general option in the string "answer"

virtual void	getGridInfo (real &totalNumberOfGridPoints, real dsMin[3], real dsAve[3], real dsMax[3], real &maxMax, real &maxMin, real &minMin)
	Evaluate the min and max grid spacing, total number of grid points etc.

virtual void	getGridVelocity (GridFunction &gf0, const real &tGV)

virtual int	getInitialConditions (const aString &command=nullString, DialogData interface=NULL, GUIState guiState=NULL, DialogState *dialogState=NULL)
	Determine the type of initial conditions to assign.

int	getMaterialProperties (GridFunction &solution, realCompositeGridFunction &matProp)
	Evaluate the variable material parameters (for plotting for example).

real	getMovingGridMaximumRelativeCorrection ()
	Return the maximum relative change in the moving grid correction scheme. This is usually only an issue for "light" bodies.

bool	getMovingGridCorrectionHasConverged ()
	Return true if the correction steps for moving grids have converged. This is usually only an issue for "light" bodies.

virtual int	getMovingGridOption (const aString &answer, DialogData &dialog)
	: Look for a general option in the string "answer"

const aString &	getName () const

virtual int	getOutputOption (const aString &command, DialogData &dialog)
	: Look for an output option in the string "answer"

const aString &	getPdeName () const

virtual int	getPlotOption (const aString &answer, DialogData &dialog)
	: Look for a plot option in the string "answer"

virtual int	getResidual (real t, real dt, GridFunction &cgf, realCompositeGridFunction &residual)
	Compute the residual for "steady state" solvers.

int	getResidualInfo (real t0, const realCompositeGridFunction &residual, real &maximumResidual, real &maximuml2, FILE *file=NULL)
	Compute the max and l2 residuals and optionally output the info to a file.

virtual void	getSolutionBounds (const realMappedGridFunction &u, realArray &uMin, realArray &uMax, real &uvMax)

virtual int	getTimeDependentBoundaryConditions (MappedGrid &mg, real t, int grid=0, int side0=-1, int axis0=-1, ForcingTypeEnum forcingType=computeForcing)

virtual int	getTimeDerivativeOfBoundaryValues (GridFunction &gf0, const real &t, const int &grid, int side=-1, int axis=-1)

virtual real	getTimeStep (GridFunction &gf)

virtual real	getTimeStep (MappedGrid &mg, realMappedGridFunction &u, realMappedGridFunction &gridVelocity, const Parameters::TimeSteppingMethod &timeSteppingMethod, const int &grid)

int	getTimeStepAndNumberOfSubSteps (GridFunction &cgf, int stepNumber, int &numberOfSubSteps, real &dt)
	Compute a new time step and the number sub-steps to reach the next time to print.

virtual void	getUt (GridFunction &cgf, const real &t, RealCompositeGridFunction &ut, real tForce)

virtual int	initializeInterfaces (GridFunction &cgf)

virtual int	initializeTimeStepping (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingFE (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingIM (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingPC (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingAF (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTurbulenceModels (GridFunction &cgf)

virtual int	interpolate (GridFunction &cgf, const Range &R=nullRange)

virtual int	interpolateAndApplyBoundaryConditions (GridFunction &cgf, GridFunction *uOld=NULL, const real &dt=-1.)

virtual int	jetInflow (GridFunction &cgf)

virtual void	moveGrids (const real &t1, const real &t2, const real &t3, const real &dt0, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3)

virtual bool	movingGridProblem () const

virtual int	newAdaptiveGridBuilt (CompositeGrid &cg, realCompositeGridFunction &u, bool updateSolution)

const int &	numberOfComponents () const

virtual int	output (GridFunction &gf0, int stepNumber)

virtual void	outputHeader ()
	Output the main header banner that includes info about the grid and parameters.

virtual int	outputProbes (GridFunction &gf0, int stepNumber)
	output probe information at a given time

virtual void	outputSolution (realCompositeGridFunction &u, const real &t, const aString &label=nullString, int printOption=0)

virtual void	outputSolution (const realMappedGridFunction &u, const real &t)

virtual int	parabolicInflow (GridFunction &cgf)

virtual int	plot (const real &t, const int &optionIn, real &tFinal)

virtual int	printMemoryUsage (FILE *file=stdout)
	Output information about the memory usage.

void	printP (const char *format,...) const
	Domain solver print function with a prefix identifier string.

virtual int	printStatistics (FILE *file=stdout)
	Output timing statistics.

virtual int	readRestartFile (realCompositeGridFunction &v, real &t, const aString &restartFileName=nullString)

virtual int	readRestartFile (GridFunction &cgf, const aString &restartFileName=nullString)

virtual int	saveSequenceInfo (real t0, const realCompositeGridFunction &residual)
	Save sequence info (such as the norm of the residual) into the time history arrays.

virtual int	saveSequencesToShowFile ()
	Save sequence info to the show file.

virtual int	saveRestartFile (const GridFunction &cgf, const aString &restartFileName)

virtual void	saveShow (GridFunction &gf0)
	Save a solution in the show file.

virtual int	setBoundaryConditionsInteractively (const aString &answer, const IntegerArray &originalBoundaryCondition)

virtual int	setDefaultDataForBoundaryConditions ()

virtual int	setFinalTime (const real &tFinal)
	Set the time to integrate to.

virtual void	setInterfacesAtPastTimes (const real &t1, const real &t2, const real &t3, const real &dt0, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3)
	Assign interface positions for "negative" times.

virtual int	setInterfaceBoundaryCondition (GridFaceDescriptor &info)
	Setup an interface boundary condition.

void	setName (const aString &name)

void	setNameOfGridFile (const aString &name)
	Provide the name of the file from which the overlapping grid was read.

virtual int	setOgesBoundaryConditions (GridFunction &cgf, IntegerArray &boundaryConditions, RealArray &boundaryConditionData, const int imp)

virtual int	setParametersInteractively (bool runSetupOnExit=true)
	Assign run-time parameters for the DomainSolver.

virtual void	setSensitivity (GUIState &dialog, bool trueOrFalse)

virtual int	setSolverParameters (const aString &command=nullString, DialogData *interface=NULL)
	Prompt for changes in the solver parameters.

virtual void	setup (const real &time=0.)
	Setup routine.

virtual int	setupUserDefinedForcing ()

virtual int	setupUserDefinedInitialConditions ()

virtual int	setupUserDefinedMaterialProperties ()
	Interactively choose material properties (e.g. rho,mu,lambda for elasticity)

virtual int	setVariableBoundaryValues (const real &t, GridFunction &gf0, const int &grid, int side0=-1, int axis0=-1, ForcingTypeEnum forcingType=computeForcing)
	Assign the right-hand-side for variable boundary conditions.

virtual int	setVariableMaterialProperties (GridFunction &gf, const real &t)
	Assign variable material properties: user-defined or "body-force" regions.

virtual real	sizeOf (FILE *file=NULL) const

virtual void	smoothVelocity (GridFunction &cgf, const int numberOfSmooths)

virtual int	solve ()
	Solve equations to time tFinal,.

virtual void	solveForTimeIndependentVariables (GridFunction &cgf, bool updateSolutionDependentEquations=false)
	: Solve for the pressure given the velocity.

virtual int	startTimeStep (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepFE (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepIM (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepPC (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepAF (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function) for an approximate factorization method.

virtual void	takeOneStep (real &t, real &dt, int stepNumber, int &numberOfSubSteps)
	Advance one time-step. This function is used by the multi-physics solver Cgmp.

virtual int	takeTimeStep (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepFE (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepIM (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepPC (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepAF (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a time step using the approximate factored scheme.

virtual int	timeIndependentBoundaryConditions (GridFunction &cgf)

virtual void	initializeFactorization ()

virtual int	tracking (GridFunction &gf0, int stepNumber)

const bool &	twilightZoneFlow () const

virtual int	userDefinedBoundaryValues (const real &t, GridFunction &gf0, const int &grid, int side0=-1, int axis0=-1, ForcingTypeEnum forcingType=computeForcing)
	Assign user specific values for boundary conditions.

virtual void	userDefinedCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	userDefinedGrid (GridFunction &gfct, Mapping *&newMapping, int newGridNumber, IntegerArray &sharedBoundaryCondition)

virtual int	userDefinedForcing (realCompositeGridFunction &f, GridFunction &gf, const real &tForce)
	User defined forcing. Compute a user defined forcing that will be added to the right-hand side of the equations. This function is called to actually evaluate the user defined forcing The function setupUserDefinedForcing is first called to assign the option and parameters. Rewrite or add new options to this function and to setupUserDefinedForcing to supply your own forcing option.

virtual void	userDefinedForcingCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	userDefinedInitialConditions (CompositeGrid &cg, realCompositeGridFunction &u)

virtual void	userDefinedInitialConditionsCleanup ()

virtual int	userDefinedMaterialProperties (GridFunction &gf)
	Assign the user defined material properties.

virtual void	userDefinedMaterialPropertiesCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	userDefinedOutput (GridFunction &gf, int stepNumber)

virtual int	updateForAdaptiveGrids (CompositeGrid &cg)

virtual int	updateForMovingGrids (GridFunction &cgf)
	Update the DomainSolver after grids have moved or have been adapted.

virtual int	updateForNewTimeStep (GridFunction &gf, const real &dt)
	Update the geometry arrays.

virtual int	updateToMatchNewGrid (CompositeGrid &cgNew, IntegerArray &changes, IntegerArray &sharedBoundaryCondition, GridFunction &gf0)

virtual void	updateTimeIndependentVariables (CompositeGrid &cg0, GridFunction &cgf)

virtual int	updateVariableTimeInterpolation (int newGrid, GridFunction &cgf)

virtual int	updateWorkSpace (GridFunction &gf0)

virtual int	variableTimeStepBoundaryInterpolation (int grid, GridFunction &cgf)

realCompositeGridFunction &	p () const

realCompositeGridFunction &	px () const

realCompositeGridFunction &	rL () const

realCompositeGridFunction &	pL () const

realCompositeGridFunction &	rho () const

realCompositeGridFunction &	gam () const

Additional Inherited Members
Public Types inherited from DomainSolver
enum	{ defaultValue =-1234567 }

enum	ForcingTypeEnum { computeForcing, computeTimeDerivativeOfForcing }

enum	BoundaryConditionPredictorEnum { predictPressure, predictPressureAndVelocity }

enum	InterfaceOptionsEnum { getInterfaceRightHandSide, setInterfaceRightHandSide }

enum	Dimensions { maximumNumberOfGridFunctionsToUse =4, maximumNumberOfExtraFunctionsToUse =4 }

enum	ChangesEnum { gridWasAdded =1, gridWasChanged, gridWasRemoved, refinementWasAdded, refinementWasRemoved }

Static Public Member Functions inherited from DomainSolver
static int	getBounds (const realCompositeGridFunction &u, RealArray &uMin, RealArray &uMax, real &uvMax)

static int	getOriginalBoundaryConditions (CompositeGrid &cg, IntegerArray &originalBoundaryCondition)
	Save the original boundary conditions from the CompositeGrid.

Public Attributes inherited from DomainSolver
CompositeGrid &	cg

OgesParameters	pressureSolverParameters

OgesParameters	implicitTimeStepSolverParameters

CompositeGridOperators	finiteDifferenceOperators

real	dt

int	numberOfStepsTaken

Parameters &	parameters

GridFunction	gf [maximumNumberOfGridFunctionsToUse]

int	current

int	movieFrame

aString	movieFileName

int	numberOfGridFunctionsToUse

int	numberOfExtraFunctionsToUse

int	totalNumberOfArrays

realCompositeGridFunction	fn [maximumNumberOfExtraFunctionsToUse]

RealArray	variableDt

RealArray	variableTime

realArray *	ui

RealArray	tv

RealArray	tvb

RealArray	tv0

realCompositeGridFunction	coeff

int	numberOfImplicitSolvers

Oges *	implicitSolver

realCompositeGridFunction *	implicitCoeff

Oges *	poisson

realCompositeGridFunction	pressureRightHandSide

realCompositeGridFunction	poissonCoefficients

realCompositeGridFunction *	pp

realCompositeGridFunction *	ppx

realCompositeGridFunction *	prL

realCompositeGridFunction *	ppL

realCompositeGridFunction *	prho

realCompositeGridFunction *	pgam

realCompositeGridFunction *	pvIMS

realCompositeGridFunction *	pwIMS

realCompositeGridFunction *	previousPressure

realCompositeGridFunction *	puLinearized

realMappedGridFunction *	pGridVelocityLinearized

LineSolve *	pLineSolve

bool	gridHasMaterialInterfaces

realCompositeGridFunction *	pdtVar

std::vector< real >	hMin

std::vector< real >	hMax

std::vector< real >	numberOfGridPoints

std::vector< real >	dtv

std::vector< real >	realPartOfEigenvalue

std::vector< real >	imaginaryPartOfEigenvalue

int	numberSavedToShowFile

CG_ApproximateFactorization::FactorList	factors

Protected Attributes inherited from DomainSolver
aString	name

aString	className

aString	pdeName

int	restartNumber

DialogData *	pUniformFlowDialog

DialogData *	pStepFunctionDialog

DialogData *	pShowFileDialog

DialogData *	pTzOptionsDialog

int	chooseAComponentMenuItem

int	numberOfPushButtons

int	numberOfTextBoxes

int	itemsToPlot

Detailed Description

Solve the Compressible Navier-Stokes and Euler equations.

Cgcns can be used to solve the compressible Navier-Stokes and reactive Euler equations on moving grids with adaptive mesh refinement.

Constructor & Destructor Documentation

Cgcns::Cgcns	(	CompositeGrid &	cg_,
		GenericGraphicsInterface *	ps = `NULL`,
		Ogshow *	show = `NULL`,
		const int &	plotOption_ = `1`
	)

Constructor for the Cgcns class.

Parameters

cg_	(input) : use this CompositeGrid.
ps	(input) : pointer to a graphics object to use.
show	(input) : pointer to a show file to use.
plotOption_	(input) : plot option

Note: CnsParameters (passed to the DomainSolver constructor above) replaces the base class Parameters

References DomainSolver::cg, DomainSolver::className, DomainSolver::imaginaryPartOfEigenvalue, DomainSolver::name, and DomainSolver::realPartOfEigenvalue.

Cgcns::~Cgcns ( )

virtual

Destructor.

References DomainSolver::parameters.

Member Function Documentation

int Cgcns::addConstraintEquation	(	Parameters &	parameters,
		Oges &	solver,
		realCompositeGridFunction &	coeff,
		realCompositeGridFunction &	ucur,
		realCompositeGridFunction &	rhs,
		const int &	numberOfComponents
	)

virtual

Add constraint equations to the implicit time-stepping matrix.

Parameters

parameters	(input) :
solver	(input) :
coeff	(input) :
ucur	(input) :
rhs	(input) :
numberOfComponents	(input) :

Reimplemented from DomainSolver.

References a, all, assign(), c, DomainSolver::cg, Parameters::dbase, getIndex(), grid, I1, I2, I3, Parameters::isAxisymmetric(), mg, tc, uc, vc, and wc.

Referenced by formMatrixForImplicitSolve().

void Cgcns::addForcing	(	realMappedGridFunction &	dvdt,
		const realMappedGridFunction &	u,
		int	iparam[],
		real	rparam[],
		realMappedGridFunction &	dvdtImplicit = `Overture::nullRealMappedGridFunction()`,
		realMappedGridFunction *	referenceFrameVelocity = `NULL`
	)

virtual

Add body forcing to du/dt.

For flows in the twilight-zone, add twilight-zone forcing.

Parameters

dvdt	(input/output) : add the explicit body forcing here.
u	(input) : current solution.
iparam	(input) : integer parameters
rparam	(input) : real parameters
dvdtImplicit	(input/output) : add the implicit body forcing here.

Reimplemented from DomainSolver.

References all, assert(), CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeGodunov, CnsParameters::conservativeWithArtificialDissipation, Parameters::dbase, DomainSolver::debug(), display(), e, getIndex(), gm1, grid, Parameters::gridIsMoving(), h, I1, I2, I3, isRectangular, mg, mu, CnsParameters::multiComponentVersion, ok, OV_ABORT(), DomainSolver::parameters, printF(), rad, tc, u0, u0y, u0z, uc, ut(), uvt, uvxx, uvyy, uvzz, v0x, v0y, v0z, vc, w0x, w0y, wc, and x.

Referenced by getUt().

int Cgcns::applyBoundaryConditions	(	const real &	t,
		realMappedGridFunction &	u,
		realMappedGridFunction &	gridVelocity,
		const int &	grid,
		const int &	option = `-1`,
		realMappedGridFunction *	puOld = `NULL`,
		realMappedGridFunction *	pGridVelocityOld = `NULL`,
		const real &	dt = `-1.`
	)

virtual

Apply boundary conditions.

Most the methods implemented in Cgcns use this routine to assign boundary conditions.

Parameters

t	(input):
u	(input/output) : apply to this grid function.
gridVelocity	(input) : the grid velocity if gridIsMoving==true.
grid	(input) : the grid number if this MappedGridFunction is part of a CompositeGridFunction.
option	(input): not used here.
puOld	(input): pointer to the solution at an old time (only used for some BC's).
pGridVelocityOld	(input): pointer to the grid velocity at an old time (only used for some BC's).
dt	(input): time step.

Note: Note on the bcData array: Boundary condition parameter values are stored in the array bcData. Let nc=numberOfComponents, then the values
bcData(i,side,axis,grid) : i=0,1,...,nc-1
would normally represent the RHS values for dirichlet BC's on component i, such as
u(i1,i2,i3,i) = bcData(i,side,axis,grid)
For a Mixed-derivative boundary condition, the parameters (a0,a1,a2) in the mixed BC:
a1*u(i1,i2,i3,i) + a2*u(i1,i2,i3,i)_n = a0
are stored in
a_j = bcData(i+nc*(j),side,axis,grid), j=0,1,2
Thus bcData(i,side,axis,grid) still holds the RHS value for the mixed-derivative condition

Reimplemented from DomainSolver.

References a0, all, assert(), axis, SurfaceEquationFace::axis, Parameters::axisymmetric, boundaryCondition(), Parameters::checkForFloatingPointErrors, DomainSolver::checkSolution(), cnsFarFieldBC, cnsNoSlipBC, cnsNoSlipWallBC, cnsSlipWallBC, cnsSlipWallBC2, CnsParameters::compressibleMultiphase, CnsParameters::conservativeGodunov, Parameters::dbase, DomainSolver::debug(), dir, dirichlet, dirichletBoundaryCondition, Parameters::dirichletBoundaryCondition, display(), DomainSolver::dt, dx, e, SurfaceEquation::faceList, CnsParameters::farField, ForBoundary, Parameters::getBoundaryData(), getIndex(), Parameters::getKnownSolution(), DomainSolver::getTimeDependentBoundaryConditions(), BoundaryData::getVariableCoefficientBoundaryConditionArray(), SurfaceEquationFace::grid, grid, Parameters::gridIsMoving(), gridType, BoundaryData::hasVariableCoefficientBoundaryCondition(), i1, I1, i2, I2, i3, I3, Ig1, Ig2, Ig3, Parameters::implicit, inflowWithVelocityGiven, CnsParameters::inflowWithVelocityGiven, INOUTFLOWEXP, Parameters::isAxisymmetric(), isRectangular, J1, J2, J3, SurfaceEquation::kThermal, m, maskLocal, mg, mixedCoeff, mixedNormalCoeff, mixedRHS, mu, N(), nc, Parameters::neumannBoundaryCondition, Parameters::noInterface, Parameters::noKnownSolution, normal, noSlipWall, Parameters::noSlipWall, DomainSolver::numberOfComponents(), Parameters::numberOfGhostPointsNeeded(), Parameters::numberOfPredefinedBoundaryConditionTypes, ok, outflow, CnsParameters::outflow, OV_ABORT(), DomainSolver::parameters, printF(), DomainSolver::printP(), DomainSolver::px(), S, SurfaceEquationFace::side, side, slipWall, Parameters::slipWall, Parameters::steadyStateNewton, CnsParameters::subSonicInflow, CnsParameters::subSonicOutflow, CnsParameters::superSonicInflow, CnsParameters::superSonicOutflow, surfaceEquation, symmetry, Parameters::symmetry, tc, Parameters::tractionInterface, DomainSolver::twilightZoneFlow(), u, uc, ue, uex, uey, uLocal, ur, ux, uy, uz, V, BoundaryData::variableCoefficientTemperatureBC, vc, wc, and x.

int Cgcns::applyBoundaryConditionsForImplicitTimeStepping	(	realMappedGridFunction &	rhs,
		realMappedGridFunction &	uL,
		realMappedGridFunction &	gridVelocity,
		real	t,
		int	scalarSystem,
		int	grid
	)

virtual

Fill in the boundary conditions for the right-hand-side of the implicit time-stepping equations.

Parameters

rhs	(input/output) : assign right-hand-side values here
uL	(input) : holds the linearized solution.
gridVelocity	(input) : grid velocity
t	(input) : time
scalarSystem	(input) :
grid	(input) : grid number.

Reimplemented from DomainSolver.

References a, all, axis, Parameters::axisymmetric, CNSNOSLIPWALLBCCOEFF, d, Parameters::dbase, dirichlet, dirichletBoundaryCondition, Parameters::dirichletBoundaryCondition, CnsParameters::farField, Parameters::getBoundaryData(), getGhostIndex(), getIndex(), DomainSolver::getTimeDependentBoundaryConditions(), grid, Parameters::gridIsMoving(), I1, I2, I3, ICNSWALLBCCOEFF, inflowWithVelocityGiven, CnsParameters::inflowWithVelocityGiven, INOUTFLOWCOEFF, Parameters::isAxisymmetric(), maskLocal, mg, mu, Parameters::neumannBoundaryCondition, noSlipWall, Parameters::noSlipWall, DomainSolver::numberOfComponents(), Parameters::numberOfPredefinedBoundaryConditionTypes, oldbc, outflow, CnsParameters::outflow, DomainSolver::parameters, rhs(), rx, s, slipWall, Parameters::slipWall, CnsParameters::subSonicInflow, CnsParameters::subSonicOutflow, CnsParameters::superSonicInflow, CnsParameters::superSonicOutflow, symmetry, Parameters::symmetry, tc, theta, u, uc, uLocal, V, vc, and wc.

void Cgcns::assignTestProblem ( GridFunction & cgf )

virtual

void Cgcns::buildImplicitSolvers ( CompositeGrid & cg )

virtual

Allocate the appropriate number of implicit solvers (Oges objects)

Parameters

cg (input) :

Reimplemented from DomainSolver.

References Parameters::dbase, grid, DomainSolver::implicitSolver, Parameters::isAxisymmetric(), n, Parameters::noTurbulenceModel, DomainSolver::numberOfImplicitSolvers, DomainSolver::parameters, and printF().

Referenced by setupGridFunctions().

int Cgcns::buildTimeSteppingDialog ( DialogData & dialog )

virtual

Build the dialog that shows the various options for time stepping.

Parameters

dialog (input) :

Reimplemented from DomainSolver.

References assert(), DomainSolver::buildTimeSteppingDialog(), Parameters::dbase, Parameters::numberOfTimeSteppingMethods, and DomainSolver::parameters.

int Cgcns::formImplicitTimeSteppingMatrix	(	realMappedGridFunction &	coeff,
		const real &	dt0,
		int	scalarSystem,
		realMappedGridFunction &	uL,
		const int &	grid
	)

virtual

References a, all, axis, Parameters::axisymmetric, c, CNSNOSLIPWALLBCCOEFF, d, Parameters::dbase, dirichlet, dirichletBoundaryCondition, Parameters::dirichletBoundaryCondition, CnsParameters::farField, getGhostIndex(), getIndex(), grid, Parameters::gridIsMoving(), i, I1, I2, I3, ICNSCF, ICNSWALLBCCOEFF, inflowWithVelocityGiven, CnsParameters::inflowWithVelocityGiven, INOUTFLOWCOEFF, Parameters::isAxisymmetric(), maskLocal, mg, mu, n, Parameters::neumannBoundaryCondition, noSlipWall, Parameters::noSlipWall, DomainSolver::numberOfComponents(), Parameters::numberOfPredefinedBoundaryConditionTypes, oldbc, outflow, CnsParameters::outflow, DomainSolver::parameters, rx, s, slipWall, Parameters::slipWall, Parameters::steadyStateNewton, CnsParameters::subSonicInflow, CnsParameters::subSonicOutflow, CnsParameters::superSonicInflow, CnsParameters::superSonicOutflow, symmetry, Parameters::symmetry, tc, theta, u, uc, uLocal, V, vc, and wc.

Referenced by formMatrixForImplicitSolve().

void Cgcns::formMatrixForImplicitSolve	(	const real &	dt0,
		GridFunction &	cgf1,
		GridFunction &	cgf0
	)

virtual

Form the matrix for implicit time stepping.

Parameters

dt0	(input) : time step used to build the implicit matrix.
cgf1	(input) : holds the RHS
cgf0	(input) : holds the current state of the solution (used for linearization)

Note

This function was once part of implicitSolve. It was broken out to allow the construction of the matrix independently of the actual solve. Basically all the work is done to initialize the implicit time stepping. The implicit method can be optionally used on only some grids. To implement this approach we simply create a sparse matrix that is just the identity matrix on grids that are advanced explicitly but equal to the standard implicit matrix on grids that are advance implicitly:

///  I - \nu \alpha \dt \Delta on implicit grids
///  I on explicit grids
///

If the form of the boundary conditions for the different components of u are the same then we can build a single scalar matrix that can be used to advance each component, one after the other. If the boundary conditions are not of the same form then we build a matrix for a system of equations for the velocity components (u,v,w).

Note that originally cgf1 from implicitSolve was used to get the time, grid, and operators. We are now using whatever is passed in as "u" to this function. The operators should be the same (?) and the time is used in the debug output. What about the grid though? It can change due to AMR (used with implicit?) as well as from the grid velocity.

Reimplemented from DomainSolver.

References addConstraintEquation(), all, assert(), GridFunction::cg, DomainSolver::cg, DomainSolver::coeff, components, Parameters::dbase, DomainSolver::debug(), formImplicitTimeSteppingMatrix(), Parameters::getComponents(), grid, DomainSolver::implicitSolver, isImplicitMatrixSingular(), mg, n, nc, DomainSolver::numberOfComponents(), Parameters::numberOfGhostPointsNeeded(), DomainSolver::parameters, printF(), GridFunction::t, and GridFunction::u.

Referenced by implicitSolve().

realCompositeGridFunction & Cgcns::getAugmentedSolution	(	GridFunction &	gf0,
		realCompositeGridFunction &	v
	)

virtual

Return a grid function for plotting and for output that may contain extra variables, such as errors or such as the pressure for the compressible NS.

Parameters

gf0	(input) : input grid function.
v	(input) : grid function to hold the result, IF extra variables area added.

Returns: a realCompositeGridFunction holding the possibly augmented solution.

Reimplemented from DomainSolver.

References all, assert(), assign(), cc, GridFunction::cg, DomainSolver::cg, CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, DomainSolver::current, Parameters::dbase, dimension, ec, DomainSolver::fn, DomainSolver::getAmrErrorFunction(), Parameters::getDerivedFunction(), GridFunction::getGridVelocity(), getIndex(), Parameters::getKnownSolution(), DomainSolver::gf, grid, Parameters::gridIsMoving(), I1, I2, I3, includeGhost, Parameters::isAdaptiveGridProblem(), Parameters::isMovingGridProblem(), isRectangular, mask, maskLocal, mg, N(), n, Parameters::noKnownSolution, DomainSolver::numberOfComponents(), ok, OV_ABORT(), DomainSolver::parameters, pc, residual(), Parameters::steadyStateRungeKutta, GridFunction::t, tc, DomainSolver::twilightZoneFlow(), GridFunction::u, u, u0, uc, uLocal, v, vc, wc, and x.

int Cgcns::getInterfaceDataOptions	(	GridFaceDescriptor &	info,
		int &	interfaceDataOptions
	)		const

virtual

Return the interface data required for a given type of interface.

Parameters

info	(input) : the descriptor for the interface.
interfaceDataOptions	(output) : a list of items from Parameters::InterfaceDataEnum that define which data to get (or which data were set). Multiple items are chosen by bit-wise or of the different options

Note: : this function should be over-loaded.

Reimplemented from DomainSolver.

References axis, GridFaceDescriptor::axis, Parameters::dbase, DomainSolver::debug(), GridFaceDescriptor::grid, grid, Parameters::heatFluxInterface, Parameters::heatFluxInterfaceData, OV_ABORT(), DomainSolver::parameters, Parameters::positionInterfaceData, DomainSolver::printP(), side, GridFaceDescriptor::side, Parameters::tractionInterface, Parameters::tractionInterfaceData, and Parameters::velocityInterfaceData.

void Cgcns::getTimeSteppingEigenvalue	(	MappedGrid &	mg,
		realMappedGridFunction &	u0,
		realMappedGridFunction &	gridVelocity,
		real &	reLambda,
		real &	imLambda,
		const int &	grid
	)

virtual

Determine the real and imaginary parts of the eigenvalue for time stepping.

Parameters

mg	(input) : grid.
u	(input) : current solution.
gridVelocity	(input) : grid velocity.
reLambda	(output) : real part of the time-stepping eigenvalue.
imLambda	(output) : imaginary part of the time-stepping eigenvalue.
grid	(input) : grid number.

Reimplemented from DomainSolver.

References assert(), center, cnsdts, CnsParameters::compressibleMultiphase, Parameters::dbase, DomainSolver::debug(), dx, Parameters::getGridIsImplicit(), getIndex(), grid, Parameters::gridIsMoving(), gridType, I1, I2, I3, DomainSolver::imaginaryPartOfEigenvalue, Parameters::isAxisymmetric(), isRectangular, J1, J2, J3, maskLocal, mu, ok, orderOfAccuracy, DomainSolver::p(), DomainSolver::parameters, DomainSolver::pdtVar, printF(), DomainSolver::realPartOfEigenvalue, rx, tc, u, u0, uc, vc, wc, and xab.

int Cgcns::getTimeSteppingOption	(	const aString &	answer,
		DialogData &	dialog
	)

virtual

Look for a time stepping option in the string "answer.

Parameters

answer	(input) : check this command for a change to the time stepping options
dialog	(input) :

Reimplemented from DomainSolver.

References Parameters::adamsBashforth2, Parameters::adamsPredictorCorrector2, Parameters::adamsPredictorCorrector4, assert(), Parameters::backwardEuler, Parameters::crankNicolson, Parameters::dbase, Parameters::forwardEuler, DomainSolver::getTimeSteppingOption(), Parameters::implicit, Parameters::lineImplicit, Parameters::midPoint, Parameters::notImplicit, DomainSolver::parameters, printF(), Parameters::rKutta, Parameters::setGridIsImplicit(), Parameters::steadyStateNewton, Parameters::steadyStateRungeKutta, and Parameters::variableTimeStepAdamsPredictorCorrector.

int Cgcns::getUt	(	const realMappedGridFunction &	v,
		const realMappedGridFunction &	gridVelocity_,
		realMappedGridFunction &	dvdt,
		int	iparam[],
		real	rparam[],
		realMappedGridFunction &	dvdtImplicit = `Overture::nullRealMappedGridFunction()`,
		MappedGrid *	pmg2 = `NULL`,
		const realMappedGridFunction *	pGridVelocity2 = `NULL`
	)

virtual

Evaluate du/dt for the Navier-Stokes or Euler equations.

This function will call the appropriate lower level fortran kernel to evaluate the discretization of the equations.

Parameters

v	(input) : current solution.
gridVelocity	(input) : grid velocity (if this is a moving grid problem)
dvdt	(output) : du/dt
iparam	(input) : integer parameters.
rparam	(input) : real parameters.
dvdtImplicit	(output): for implicit methods this contains the ...
pmg2	(input) : for moving grids this points to a MappedGrid that holds the mask for the new time level. For non-moving grids this points to the same MappedGrid associated with v.
pGridVelocity2	(input) : for moving grids only, supply the grid velocity at time t+dt for moving grids.

Author: wdh.

Reimplemented from DomainSolver.

References addForcing(), all, assert(), AVJST2D, axis, Parameters::axisymmetric, Parameters::branching, c, CMFDU, CMPDU, CNSDU22, CNSDU22A, CNSDU23, CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeGodunov, CnsParameters::conservativeWithArtificialDissipation, d, Parameters::dbase, DomainSolver::debug(), display(), DomainSolver::dt, dudr2comp(), DUDR2D, DUDR2DOLD, DUDR3D, DUDR3DOLD, dx, e, eosUserDefined, getGhostIndex(), getIndex(), gm1, grid, Parameters::gridIsMoving(), i1, I1, i2, I2, i3, I3, ICNSRHS, Parameters::igDesensitization, Parameters::ignitionAndGrowth, DomainSolver::imaginaryPartOfEigenvalue, Parameters::implicit, Parameters::isAxisymmetric(), isRectangular, J1, J2, J3, CnsParameters::jwlEOS, k, m, maskLocal, mg, mr, mu, CnsParameters::multiComponentVersion, CnsParameters::multiFluidVersion, N(), CnsParameters::nonConservative, Parameters::noReactions, DomainSolver::numberOfComponents(), DomainSolver::numberOfStepsTaken, ok, Parameters::oneStep, Parameters::oneStepPress, DomainSolver::outputSolution(), OV_ABORT(), DomainSolver::parameters, printF(), DomainSolver::printP(), R, DomainSolver::realPartOfEigenvalue, rx, Parameters::showfileForcing, side, Parameters::steadyStateNewton, tc, theta, TZCOMMON, U, u, u0, uc, uLocal, ut(), UU, ux, UX, uxx, UXX, UXY, UXZ, UY, uy, UYY, UYZ, UZ, uz, UZZ, v, vc, and wc.

void Cgcns::implicitSolve	(	const real &	dt0,
		GridFunction &	cgf1,
		GridFunction &	cgf0
	)

virtual

Solve the implicit time-stepping equations.

Parameters

dt0	(input) : time step used to build the implicit matrix.
cgf1	(input) : holds the RHS
cgf0	(input) : holds the current state of the solution (used for linearization)

Reimplemented from DomainSolver.

References all, assert(), assign(), GridFunction::cg, DomainSolver::coeff, Parameters::dbase, DomainSolver::debug(), display(), DomainSolver::dt, formMatrixForImplicitSolve(), grid, DomainSolver::implicitSolver, n, DomainSolver::numberOfImplicitSolvers, DomainSolver::parameters, printF(), DomainSolver::pvIMS, DomainSolver::pwIMS, GridFunction::t, GridFunction::u, and v.

int Cgcns::initializeSolution ( )

virtual

Initialize the solution, project velocity if required.

Reimplemented from DomainSolver.

References CnsParameters::conservativeGodunov, GridFunction::conservativeToPrimitive(), DomainSolver::current, Parameters::dbase, DomainSolver::dt, e, DomainSolver::fn, DomainSolver::getTimeStep(), DomainSolver::getUt(), DomainSolver::gf, DomainSolver::initializeSolution(), and DomainSolver::parameters.

virtual int Cgcns::interfaceRightHandSide	(	InterfaceOptionsEnum	option,
		int	interfaceDataOptions,
		GridFaceDescriptor &	info,
		GridFaceDescriptor &	gfd,
		int	gfIndex,
		real	t
	)

virtual

Reimplemented from DomainSolver.

bool Cgcns::isImplicitMatrixSingular ( realCompositeGridFunction & uL )

virtual

Return true if the implicit time-stepping matrix is singular.

Parameters

uL	(input) : holds the linearized solution.

Reimplemented from DomainSolver.

References a, DomainSolver::cg, CnsParameters::compressibleNavierStokes, Parameters::dbase, grid, Parameters::interpolation, mg, Parameters::noSlipWall, DomainSolver::parameters, s, Parameters::slipWall, and Parameters::steadyStateNewton.

Referenced by formMatrixForImplicitSolve().

void Cgcns::printTimeStepInfo	(	const int &	step,
		const real &	t,
		const real &	cpuTime
	)

virtual

Print time-step information about the current solution in a nicely formatted way.

Parameters

step	(input) : current step number.
t	(input) : time.
cpuTime	(input) : current cpu time.

Reimplemented from DomainSolver.

References DomainSolver::checkArrays(), CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeGodunov, DomainSolver::current, Parameters::dbase, DomainSolver::debug(), DomainSolver::determineErrors(), DomainSolver::dt, DomainSolver::getBounds(), DomainSolver::gf, i, Parameters::isSteadyStateSolver(), n, Parameters::noKnownSolution, DomainSolver::numberOfComponents(), DomainSolver::outputSolution(), DomainSolver::parameters, and uc.

int Cgcns::project ( GridFunction & cgf )

virtual

Project the initial conditions of a steady state newton solver on the linear solution.

Parameters

cgf	(input) : project this grid function.

Author: kkc.

Reimplemented from DomainSolver.

References DomainSolver::advanceNewton(), DomainSolver::cg, DomainSolver::current, Parameters::dbase, DomainSolver::debug(), DomainSolver::dt, DomainSolver::gf, init, DomainSolver::outputSolution(), DomainSolver::parameters, printF(), s, Parameters::steadyStateNewton, GridFunction::u, and updateToMatchGrid().

void Cgcns::saveShowFileComments ( Ogshow & show )

virtual

Save comments to the show file that will appear as the top label when viewed with plotStuff.

Parameters

show	(input) : show file to use.

Reimplemented from DomainSolver.

References CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeGodunov, Parameters::dbase, i, mu, and DomainSolver::parameters.

int Cgcns::setPlotTitle	(	const real &	t,
		const real &	dt
	)

virtual

Set the plot titles for interactive plotting.

Parameters

t	(input) : current time
dt	(input) : current time step

Reimplemented from DomainSolver.

References CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeGodunov, Parameters::dbase, mu, CnsParameters::multiComponentVersion, CnsParameters::multiFluidVersion, DomainSolver::parameters, and Parameters::steadyStateNewton.

int Cgcns::setupGridFunctions ( )

virtual

Perform initialization steps for Cgcns; build geometry arrays etc.

Reimplemented from DomainSolver.

References assert(), buildImplicitSolvers(), DomainSolver::cg, CnsParameters::conservativeGodunov, CnsParameters::conservativeWithArtificialDissipation, DomainSolver::current, Parameters::dbase, DomainSolver::gf, grid, Parameters::implicit, mg, DomainSolver::parameters, DomainSolver::setupGridFunctions(), Parameters::steadyStateNewton, and GridFunction::u.

brief Setup the PDE to be solved param reactionName name of the reaction param restartChosen true if this is a restart param originalBoundaryCondition author wdh *int Cgcns::setupPde	(	aString &	reactionName,
		bool	restartChosen,
		IntegerArray &	originalBoundaryCondition
	)

virtual

A virtual function to setup the PDE to be solved.

This function is called at the very start in order to setup the equations to be solved etc.

Parameters

reactionName	(input) :
restartChosen	(input) :
originalBoundaryCondition	(input) :

Reimplemented from DomainSolver.

References assert(), Parameters::branching, DomainSolver::cg, Parameters::chemkinReaction, CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeGodunov, CnsParameters::conservativeWithArtificialDissipation, DomainSolver::current, Parameters::dbase, equationDomainList, CnsParameters::fortranVersion, Parameters::forwardEuler, DomainSolver::getName(), DomainSolver::getOriginalBoundaryConditions(), DomainSolver::gf, grid, ListOfEquationDomains::gridDomainNumberList, i, CnsParameters::idealGasEOS, Parameters::igDesensitization, Parameters::ignitionAndGrowth, Parameters::ignitionPressureReactionRate, Parameters::implicit, Parameters::interpolatePrimitiveAndPressure, CnsParameters::jwlEOS, CnsParameters::mieGruneisenEOS, CnsParameters::multiComponentVersion, CnsParameters::multiFluidVersion, DomainSolver::name, CnsParameters::nonConservative, Parameters::oneEquationMixtureFraction, Parameters::oneStep, Parameters::oneStepPress, DomainSolver::parameters, Parameters::pdeName, DomainSolver::pdeName, printF(), DomainSolver::readRestartFile(), Parameters::steadyStateNewton, CnsParameters::stiffenedGasEOS, CnsParameters::taitEOS, Parameters::trapezoidal, Parameters::twoEquationMixtureFractionAndExtentOfReaction, GridFunction::u, u, update(), SurfaceEquation::update(), Parameters::updateUserDefinedEOS(), and CnsParameters::userDefinedEOS.

int Cgcns::updateGeometryArrays ( GridFunction & cgf )

virtual

Update geometry arrays when the grid has changed (called by adaptGrids for example).

Parameters

cgf (input) :

Reimplemented from DomainSolver.

References GridFunction::cg, DomainSolver::cg, CnsParameters::compressibleMultiphase, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeWithArtificialDissipation, Parameters::dbase, DomainSolver::debug(), grid, DomainSolver::imaginaryPartOfEigenvalue, mg, DomainSolver::parameters, printF(), DomainSolver::realPartOfEigenvalue, and DomainSolver::updateGeometryArrays().

int Cgcns::updateStateVariables	(	GridFunction &	cgf,
		int	stage = `-1`
	)

virtual

Ths function is used to update state-variables. For example, the visco plastic viscosity.

Parameters

cgf	(input/output)
stage	(input) : -1, 0 or 1

If stage equals -1 then update state variables at all points.

This function is used at two different stages for each time step. In the first stage, (stage=0) the function is called after the solution has been advanced (but before boundary conditions have been applied) to update any equilibrium state variables (and to limit any reacting species variables). Update all points of state variables that may be needed to apply the boundary conditions.

In the second stage, (stage=1) the function is called after the boundary conditions have been applied. Make sure that the state variables have been updated at all points after this step.

Reimplemented from DomainSolver.

References GridFunction::cg, DomainSolver::cg, CnsParameters::compressibleNavierStokes, CnsParameters::conservativeGodunov, Parameters::dbase, DomainSolver::debug(), GridFunction::form, getIndex(), grid, I1, I2, I3, Parameters::igDesensitization, CnsParameters::jwlEOS, mask, mg, CnsParameters::multiComponentVersion, CnsParameters::multiFluidVersion, ok, DomainSolver::parameters, GridFunction::primitiveVariables, printF(), SETEOS, GridFunction::t, GridFunction::u, and u.
