Solve the incompressible Navier-Stokes equations. More...

#include <Cgins.h>

Inheritance diagram for Cgins:

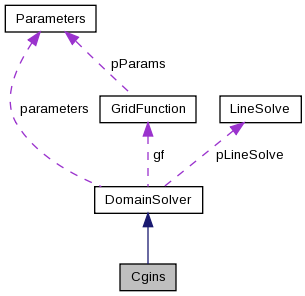

Collaboration diagram for Cgins:

Public Member Functions
	Cgins (CompositeGrid &cg, GenericGraphicsInterface ps=NULL, Ogshow show=NULL, const int &plotOption=1)
	Constructor for the Cgcns class.

virtual	~Cgins ()
	Destructor for the Cgins class.

virtual void	addForcing (realMappedGridFunction &dvdt, const realMappedGridFunction &u, int iparam[], real rparam[], realMappedGridFunction &dvdtImplicit=Overture::nullRealMappedGridFunction(), realMappedGridFunction *referenceFrameVelocity=NULL)

void	addForcingToPressureEquation (const int &grid, MappedGrid &c, realMappedGridFunction &f, realMappedGridFunction &gridVelocity, const real &t)

virtual int	advanceLineSolve (LineSolve &lineSolve, const int grid, const int direction, realCompositeGridFunction &u0, realMappedGridFunction &f, realMappedGridFunction &residual, const bool refactor, const bool computeTheResidual=false)
	INS Steady-State Line-Solver Routine : solve along lines in a given direction.

int	advanceLineSolveOld (LineSolve &lineSolve, const int grid, const int direction, realCompositeGridFunction &u0, realMappedGridFunction &f, realMappedGridFunction &residual, const bool refactor, const bool computeTheResidual=false)
	INS Steady-State Line-Solver Routine : solve along lines in a given direction.

int	advanceLineSolveNew (LineSolve &lineSolve, const int grid, const int direction, realCompositeGridFunction &u0, realMappedGridFunction &f, realMappedGridFunction &residual, const bool refactor, const bool computeTheResidual=false)

virtual int	applyBoundaryConditions (const real &t, realMappedGridFunction &u, realMappedGridFunction &gridVelocity, const int &grid, const int &option=-1, realMappedGridFunction puOld=NULL, realMappedGridFunction pGridVelocityOld=NULL, const real &dt=-1.)

virtual int	applyBoundaryConditionsForImplicitTimeStepping (realMappedGridFunction &u, realMappedGridFunction &uL, realMappedGridFunction &gridVelocity, real t, int scalarSystem, int grid)

void	applyFourthOrderBoundaryConditions (realMappedGridFunction &u0, real t, int grid, realMappedGridFunction &gridVelocity)

int	assignLineSolverBoundaryConditions (const int grid, const int direction, realMappedGridFunction &u, realMappedGridFunction &f, const int numberOfTimeDependentComponents, bool isPeriodic[3])

void	assignPressureRHS (GridFunction &gf0, realCompositeGridFunction &f)

void	assignPressureRHS (const int grid, GridFunction &gf0, realCompositeGridFunction &f0)

virtual int	buildTimeSteppingDialog (DialogData &dialog)
	Build the dialog that shows the various options for time stepping.

int	computeAxisymmetricDivergence (realArray &divergence, Index &I1, Index &I2, Index &I3, MappedGrid &c, const realArray &u0, const realArray &u0x, const realArray &v0y)

int	computeTurbulenceQuantities (GridFunction &gf0)
	Compute some turbulence quantities such as y+.

virtual void	determineErrors (GridFunction &cgf, const aString &label=nullString)

virtual void	determineErrors (realCompositeGridFunction &u, realMappedGridFunction **gridVelocity, const real &t, const int options, RealArray &err, const aString &label=nullString)

virtual void	formMatrixForImplicitSolve (const real &dt0, GridFunction &cgf1, GridFunction &cgf0)

virtual int	formImplicitTimeSteppingMatrix (realMappedGridFunction &coeff, const real &dt0, int scalarSystem, realMappedGridFunction &u0, const realMappedGridFunction &gridVelocity, const int &grid, const int &imp)

virtual int	getInterfaceDataOptions (GridFaceDescriptor &info, int &interfaceDataOptions) const
	Return the interface data required for a given type of interface.

virtual int	getResidual (real t, real dt, GridFunction &cgf, realCompositeGridFunction &residual)
	Compute the residual for "steady state" solvers.

virtual int	getTimeSteppingOption (const aString &answer, DialogData &dialog)

virtual void	getTimeSteppingEigenvalue (MappedGrid &mg, realMappedGridFunction &u, realMappedGridFunction &gridVelocity, real &reLambda, real &imLambda, const int &grid)

virtual int	getUt (const realMappedGridFunction &v, const realMappedGridFunction &gridVelocity, realMappedGridFunction &dvdt, int iparam[], real rparam[], realMappedGridFunction &dvdtImplicit=Overture::nullRealMappedGridFunction(), MappedGrid pmg2=NULL, const realMappedGridFunction pGridVelocity2=NULL)

void	gridAccelerationBC (const int &grid, const real &t0, GridFunction &gf0, realCompositeGridFunction &f0, int side, int axis)

virtual void	implicitSolve (const real &dt0, GridFunction &cgf1, GridFunction &cgf0)

virtual int	initializeTurbulenceModels (GridFunction &cgf)

int	insImplicitMatrix (InsParameters::InsImplicitMatrixOptionsEnum option, realMappedGridFunction &coeff, const real &dt0, const realMappedGridFunction &u0, realMappedGridFunction &fe, realMappedGridFunction &fi, const realMappedGridFunction &gridVelocity, const int &grid)
	build the implicit time stepping matrix or eval the RHS.

virtual int	interfaceRightHandSide (InterfaceOptionsEnum option, int interfaceDataOptions, GridFaceDescriptor &info, GridFaceDescriptor &gfd, int gfIndex, real t)

int	lineSolverBoundaryConditions (const int grid, const int direction, realMappedGridFunction &u, realMappedGridFunction &f, realMappedGridFunction &residual, Index Iv, Index Jv, Index Ixv, const int maxNumberOfSystems, int uSystem, const int numberOfTimeDependentComponents, IntegerArray &bc, IntegerArray &extra, IntegerArray &offset, bool &boundaryConditionsAreDifferent, bool isPeriodic[3])

int	getLineSolverBoundaryConditions (const int grid, const int direction, realMappedGridFunction &u, Index Ixv, const int maxNumberOfSystems, int uSystem, const int numberOfTimeDependentComponents, IntegerArray &bc, IntegerArray &numGhost, int &numberOfDifferentLineSolverBoundaryConditions)

virtual void	outputSolution (realCompositeGridFunction &u, const real &t, const aString &label=nullString, int printOption=0)

virtual void	printTimeStepInfo (const int &step, const real &t, const real &cpuTime)

virtual int	setup ()
	Perform setup operations. Determine the default order of accuracy.

virtual int	setupPde (aString &reactionName, bool restartChosen, IntegerArray &originalBoundaryCondition)
	Setup the PDE to be solved.

virtual void	updateDivergenceDamping (CompositeGrid &cg0, const int &geometryHasChanged)

virtual int	updateForNewTimeStep (GridFunction &gf, const real &dt)
	Update the geometry arrays.

virtual int	updateGeometryArrays (GridFunction &cgf)
	Update geometry arrays, solution at old times etc. after the time step has changed.

virtual void	updatePressureEquation (CompositeGrid &cg0, GridFunction &cgf)

virtual int	updateForMovingGrids (GridFunction &cgf)
	Update the DomainSolver after grids have moved or have been adapted.

virtual int	updateStateVariables (GridFunction &cgf, int stage=-1)
	Ths function is used to update state-variables. For example, the visco plastic viscosity.

virtual void	updateTimeIndependentVariables (CompositeGrid &cg0, GridFunction &cgf)

virtual int	updateToMatchGrid (CompositeGrid &cg)
	Update the solver to match a new grid.

virtual int	setSolverParameters (const aString &command=nullString, DialogData *interface=NULL)
	Prompt for changes in the solver parameters.

virtual int	setupGridFunctions ()
	Allocate and initialize grid functions, based on the time-stepping method.

virtual void	solveForTimeIndependentVariables (GridFunction &cgf, bool updateSolutionDependentEquations=false)
	: Solve for the pressure given the velocity.

virtual int	turbulenceModels (realArray &nuT, MappedGrid &mg, const realArray &u, const realArray &uu, const realArray &ut, const realArray &ux, const realArray &uy, const realArray &uz, const realArray &uxx, const realArray &uyy, const realArray &uzz, const Index &I1, const Index &I2, const Index &I3, Parameters &parameters, real nu, const int numberOfDimensions, const int grid, const real t)
	Add turbulence models to the incompressible Navier-Stokes.

int	turbulenceModelBoundaryConditions (const real &t, realMappedGridFunction &u, Parameters &parameters, int grid, RealArray *pBoundaryData[2][3])
	Apply boundary conditions for the turbulence models.

virtual realCompositeGridFunction &	getAugmentedSolution (GridFunction &gf0, realCompositeGridFunction &v)

virtual void	buildImplicitSolvers (CompositeGrid &cg)

virtual int	initializeSolution ()

virtual int	setPlotTitle (const real &t, const real &dt)
	Set the plot titles for interactive plotting.

virtual void	saveShowFileComments (Ogshow &show)
	: Set the titles and labels that go on the show file output

virtual void	writeParameterSummary (FILE *file)
	Output run-time parameters for the header.

virtual int	project (GridFunction &cgf)

virtual int	setOgesBoundaryConditions (GridFunction &cgf, IntegerArray &boundaryConditions, RealArray &boundaryConditionData, const int imp)
	Assign the boundaryCondition data for passing to Oges (predfined equations) when it builds the implicit system.

virtual void	initializeFactorization ()
	Create the factors for the approximate factorization time stepping method.

Public Member Functions inherited from DomainSolver
	DomainSolver (Parameters &par, CompositeGrid &cg, GenericGraphicsInterface ps=NULL, Ogshow show=NULL, const int &plotOption=1)
	This is the constructor for the base class DomainSolver.

virtual	~DomainSolver ()
	Destructor.

virtual int	adaptGrids (GridFunction &gf0, int numberOfGridFunctionsToUpdate=0, realCompositeGridFunction cgf=NULL, realCompositeGridFunction uWork=NULL)

virtual int	addArtificialDissipation (realCompositeGridFunction &u, real dt)

virtual int	addArtificialDissipation (realMappedGridFunction &u, real dt, int grid)

virtual int	addConstraintEquation (Parameters &parameters, Oges &solver, realCompositeGridFunction &coeff, realCompositeGridFunction &ucur, realCompositeGridFunction &rhs, const int &numberOfComponents)

virtual int	addGrids ()

virtual int	advance (real &tFinal)

virtual void	advanceAdamsPredictorCorrector (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceAdamsPredictorCorrectorNew (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)
	Advance using an Adams predictor corrector method (new way)

virtual void	advanceADI (real &t, real &dt, int &numberOfSubSteps, int &init, int initialStep)

void	advanceForwardEulerNew (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)
	Advance using an "forward-Euler" method (new way)

virtual void	advanceImplicitMultiStep (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceImplicitMultiStepNew (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)
	Generic advance routine that uses the separate time sub-step functions.

virtual void	advanceMidPoint (real &t0, real &dt0, int &numberOfSubSteps, int initialStep)

virtual void	advanceNewton (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceSecondOrderSystem (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceSteadyStateRungeKutta (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceTrapezoidal (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	advanceVariableTimeStepAdamsPredictorCorrector (real &t0, real &dt0, int &numberOfSubSteps, int &init, int initialStep)

virtual void	allSpeedImplicitTimeStep (GridFunction &gf, real &t, real &dt0, int &numberOfTimeSteps, const real &nextTimeToPrint)

virtual int	applyBoundaryConditions (GridFunction &cgf, const int &option=-1, int grid_=-1, GridFunction *puOld=NULL, const real &dt=-1.)

virtual int	applyBoundaryConditionsForImplicitTimeStepping (GridFunction &cgf)

virtual int	assignInitialConditions (int gfIndex)
	Assign initial conditions.

virtual int	applyFilter (int gfIndex)
	This function applies a spatial filter to the solution in gf[gfIndex].

virtual int	assignInterfaceBoundaryConditions (GridFunction &cgf, const int &option=-1, int grid_=-1, GridFunction *puOld=NULL, const real &dt=-1.)

virtual void	assignTestProblem (GridFunction &gf)

virtual void	bodyForcingCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	boundaryConditionPredictor (const BoundaryConditionPredictorEnum bcpOption, const AdamsPCData &adamsData, const int orderOfExtrapolation, const int mNew, const int mCur, const int mOld, realCompositeGridFunction puga=NULL, realCompositeGridFunction pugb=NULL, realCompositeGridFunction pugc=NULL, realCompositeGridFunction pugd=NULL)
	Apply operations required before applying the boundary conditions. E.g. extrapolate the pressure in time for fourth-order INS.

virtual int	buildAdaptiveGridOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various general options.

virtual int	buildAmrGridsForInitialConditions ()
	Build the AMR hierarchy of grids for the initial conditions.

virtual int	buildForcingOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various forcing options.

virtual int	buildGeneralOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various general options.

virtual int	buildGrid (Mapping *&newMapping, int newGridNumber, IntegerArray &sharedBoundaryCondition)

virtual int	buildOutputOptionsDialog (DialogData &dialog)
	Build the output options dialog.

virtual int	buildMovingGridOptionsDialog (DialogData &dialog)
	Build the dialog that shows the various general options.

virtual int	buildPlotOptionsDialog (DialogData &dialog)
	Build the plot options dialog.

virtual int	buildRunTimeDialog ()
	Build the run time dialog. This dialog appears while a Domain solver is time stepping.

void	checkArrays (const aString &label)

void	checkSolution (const realGridCollectionFunction &u, const aString &title, bool printResults=false)

int	checkSolution (realMappedGridFunction &u, const aString &title, bool printResults, int grid, real &maxVal, bool printResultsOnFailure=false)

virtual void	cleanupInitialConditions ()
	Cleanup routines after the initial conditions have been assigned.

virtual int	computeBodyForcing (GridFunction &gf, const real &tForce)
	Compute the body forcing such as drag models, wake models and heat sources.

virtual void	computeNumberOfStepsAndAdjustTheTimeStep (const real &t, const real &tFinal, const real &nextTimeToPrint, int &numberOfSubSteps, real &dtNew, const bool &adjustTimeStep=true)

virtual void	correctMovingGrids (const real t1, const real t2, GridFunction &cgf1, GridFunction &cgf2)
	Corrector step for moving grids.

const int &	debug () const

virtual void	determineErrors (realMappedGridFunction &v, const real &t)

virtual void	displayBoundaryConditions (FILE *file=stdout)

virtual int	displayParameters (FILE *file=stdout)
	Display DomainSolver parameters.

virtual int	endTimeStep (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepFE (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepIM (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepPC (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual int	endTimeStepAF (real &t0, real &dt0, AdvanceOptions &advanceOptions)
	End an individual time step (a time sub-step function).

virtual void	eulerStep (const real &t1, const real &t2, const real &t3, const real &dt0, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3, realCompositeGridFunction &ut, realCompositeGridFunction &uti, int stepNumber, int &numberOfSubSteps)

void	extrapolateInterpolationNeighbours (GridFunction &gf, const Range &C)
	Extrapolate interpolation neighbours.

virtual int	fixupUnusedPoints (realCompositeGridFunction &u)

virtual int	getAmrErrorFunction (realCompositeGridFunction &u, real t, intCompositeGridFunction &errorFlag, realCompositeGridFunction &error)

virtual int	getAmrErrorFunction (realCompositeGridFunction &u, real t, realCompositeGridFunction &error, bool computeOnFinestLevel=false)

const aString &	getClassName () const

virtual int	getAdaptiveGridOption (const aString &answer, DialogData &dialog)
	: Look for a general option in the string "answer"

virtual int	getForcingOption (const aString &command, DialogData &dialog)
	: Look for a forcing option in the string "answer"

virtual int	getGeneralOption (const aString &answer, DialogData &dialog)
	: Look for a general option in the string "answer"

virtual void	getGridInfo (real &totalNumberOfGridPoints, real dsMin[3], real dsAve[3], real dsMax[3], real &maxMax, real &maxMin, real &minMin)
	Evaluate the min and max grid spacing, total number of grid points etc.

virtual void	getGridVelocity (GridFunction &gf0, const real &tGV)

virtual int	getInitialConditions (const aString &command=nullString, DialogData interface=NULL, GUIState guiState=NULL, DialogState *dialogState=NULL)
	Determine the type of initial conditions to assign.

int	getMaterialProperties (GridFunction &solution, realCompositeGridFunction &matProp)
	Evaluate the variable material parameters (for plotting for example).

real	getMovingGridMaximumRelativeCorrection ()
	Return the maximum relative change in the moving grid correction scheme. This is usually only an issue for "light" bodies.

bool	getMovingGridCorrectionHasConverged ()
	Return true if the correction steps for moving grids have converged. This is usually only an issue for "light" bodies.

virtual int	getMovingGridOption (const aString &answer, DialogData &dialog)
	: Look for a general option in the string "answer"

const aString &	getName () const

virtual int	getOutputOption (const aString &command, DialogData &dialog)
	: Look for an output option in the string "answer"

const aString &	getPdeName () const

virtual int	getPlotOption (const aString &answer, DialogData &dialog)
	: Look for a plot option in the string "answer"

int	getResidualInfo (real t0, const realCompositeGridFunction &residual, real &maximumResidual, real &maximuml2, FILE *file=NULL)
	Compute the max and l2 residuals and optionally output the info to a file.

virtual void	getSolutionBounds (const realMappedGridFunction &u, realArray &uMin, realArray &uMax, real &uvMax)

virtual int	getTimeDependentBoundaryConditions (MappedGrid &mg, real t, int grid=0, int side0=-1, int axis0=-1, ForcingTypeEnum forcingType=computeForcing)

virtual int	getTimeDerivativeOfBoundaryValues (GridFunction &gf0, const real &t, const int &grid, int side=-1, int axis=-1)

virtual real	getTimeStep (GridFunction &gf)

virtual real	getTimeStep (MappedGrid &mg, realMappedGridFunction &u, realMappedGridFunction &gridVelocity, const Parameters::TimeSteppingMethod &timeSteppingMethod, const int &grid)

int	getTimeStepAndNumberOfSubSteps (GridFunction &cgf, int stepNumber, int &numberOfSubSteps, real &dt)
	Compute a new time step and the number sub-steps to reach the next time to print.

virtual void	getUt (GridFunction &cgf, const real &t, RealCompositeGridFunction &ut, real tForce)

virtual int	initializeInterfaces (GridFunction &cgf)

virtual int	initializeTimeStepping (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingFE (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingIM (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingPC (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	initializeTimeSteppingAF (real &t0, real &dt0)
	Initialize the time stepping (a time sub-step function).

virtual int	interpolate (GridFunction &cgf, const Range &R=nullRange)

virtual int	interpolateAndApplyBoundaryConditions (GridFunction &cgf, GridFunction *uOld=NULL, const real &dt=-1.)

virtual bool	isImplicitMatrixSingular (realCompositeGridFunction &uL)

virtual int	jetInflow (GridFunction &cgf)

virtual void	moveGrids (const real &t1, const real &t2, const real &t3, const real &dt0, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3)

virtual bool	movingGridProblem () const

virtual int	newAdaptiveGridBuilt (CompositeGrid &cg, realCompositeGridFunction &u, bool updateSolution)

const int &	numberOfComponents () const

virtual int	output (GridFunction &gf0, int stepNumber)

virtual void	outputHeader ()
	Output the main header banner that includes info about the grid and parameters.

virtual int	outputProbes (GridFunction &gf0, int stepNumber)
	output probe information at a given time

virtual void	outputSolution (const realMappedGridFunction &u, const real &t)

virtual int	parabolicInflow (GridFunction &cgf)

virtual int	plot (const real &t, const int &optionIn, real &tFinal)

virtual int	printMemoryUsage (FILE *file=stdout)
	Output information about the memory usage.

void	printP (const char *format,...) const
	Domain solver print function with a prefix identifier string.

virtual int	printStatistics (FILE *file=stdout)
	Output timing statistics.

virtual int	readRestartFile (realCompositeGridFunction &v, real &t, const aString &restartFileName=nullString)

virtual int	readRestartFile (GridFunction &cgf, const aString &restartFileName=nullString)

virtual int	saveSequenceInfo (real t0, const realCompositeGridFunction &residual)
	Save sequence info (such as the norm of the residual) into the time history arrays.

virtual int	saveSequencesToShowFile ()
	Save sequence info to the show file.

virtual int	saveRestartFile (const GridFunction &cgf, const aString &restartFileName)

virtual void	saveShow (GridFunction &gf0)
	Save a solution in the show file.

virtual int	setBoundaryConditionsInteractively (const aString &answer, const IntegerArray &originalBoundaryCondition)

virtual int	setDefaultDataForBoundaryConditions ()

virtual int	setFinalTime (const real &tFinal)
	Set the time to integrate to.

virtual void	setInterfacesAtPastTimes (const real &t1, const real &t2, const real &t3, const real &dt0, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3)
	Assign interface positions for "negative" times.

virtual int	setInterfaceBoundaryCondition (GridFaceDescriptor &info)
	Setup an interface boundary condition.

void	setName (const aString &name)

void	setNameOfGridFile (const aString &name)
	Provide the name of the file from which the overlapping grid was read.

virtual int	setParametersInteractively (bool runSetupOnExit=true)
	Assign run-time parameters for the DomainSolver.

virtual void	setSensitivity (GUIState &dialog, bool trueOrFalse)

virtual void	setup (const real &time=0.)
	Setup routine.

virtual int	setupUserDefinedForcing ()

virtual int	setupUserDefinedInitialConditions ()

virtual int	setupUserDefinedMaterialProperties ()
	Interactively choose material properties (e.g. rho,mu,lambda for elasticity)

virtual int	setVariableBoundaryValues (const real &t, GridFunction &gf0, const int &grid, int side0=-1, int axis0=-1, ForcingTypeEnum forcingType=computeForcing)
	Assign the right-hand-side for variable boundary conditions.

virtual int	setVariableMaterialProperties (GridFunction &gf, const real &t)
	Assign variable material properties: user-defined or "body-force" regions.

virtual real	sizeOf (FILE *file=NULL) const

virtual void	smoothVelocity (GridFunction &cgf, const int numberOfSmooths)

virtual int	solve ()
	Solve equations to time tFinal,.

virtual int	startTimeStep (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepFE (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepIM (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepPC (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function).

virtual int	startTimeStepAF (real &t0, real &dt0, int &currentGF, int &nextGF, AdvanceOptions &advanceOptions)
	Start an individual time step (a time sub-step function) for an approximate factorization method.

virtual void	takeOneStep (real &t, real &dt, int stepNumber, int &numberOfSubSteps)
	Advance one time-step. This function is used by the multi-physics solver Cgmp.

virtual int	takeTimeStep (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepFE (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepIM (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepPC (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a single time step (a time sub-step function).

virtual int	takeTimeStepAF (real &t0, real &dt0, int correction, AdvanceOptions &advanceOptions)
	Take a time step using the approximate factored scheme.

virtual int	timeIndependentBoundaryConditions (GridFunction &cgf)

virtual int	tracking (GridFunction &gf0, int stepNumber)

const bool &	twilightZoneFlow () const

virtual int	userDefinedBoundaryValues (const real &t, GridFunction &gf0, const int &grid, int side0=-1, int axis0=-1, ForcingTypeEnum forcingType=computeForcing)
	Assign user specific values for boundary conditions.

virtual void	userDefinedCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	userDefinedGrid (GridFunction &gfct, Mapping *&newMapping, int newGridNumber, IntegerArray &sharedBoundaryCondition)

virtual int	userDefinedForcing (realCompositeGridFunction &f, GridFunction &gf, const real &tForce)
	User defined forcing. Compute a user defined forcing that will be added to the right-hand side of the equations. This function is called to actually evaluate the user defined forcing The function setupUserDefinedForcing is first called to assign the option and parameters. Rewrite or add new options to this function and to setupUserDefinedForcing to supply your own forcing option.

virtual void	userDefinedForcingCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	userDefinedInitialConditions (CompositeGrid &cg, realCompositeGridFunction &u)

virtual void	userDefinedInitialConditionsCleanup ()

virtual int	userDefinedMaterialProperties (GridFunction &gf)
	Assign the user defined material properties.

virtual void	userDefinedMaterialPropertiesCleanup ()
	This routine is called when DomainSolver is finished and can be used to clean up memory.

virtual int	userDefinedOutput (GridFunction &gf, int stepNumber)

virtual int	updateForAdaptiveGrids (CompositeGrid &cg)

virtual int	updateToMatchNewGrid (CompositeGrid &cgNew, IntegerArray &changes, IntegerArray &sharedBoundaryCondition, GridFunction &gf0)

virtual int	updateVariableTimeInterpolation (int newGrid, GridFunction &cgf)

virtual int	updateWorkSpace (GridFunction &gf0)

virtual int	variableTimeStepBoundaryInterpolation (int grid, GridFunction &cgf)

realCompositeGridFunction &	p () const

realCompositeGridFunction &	px () const

realCompositeGridFunction &	rL () const

realCompositeGridFunction &	pL () const

realCompositeGridFunction &	rho () const

realCompositeGridFunction &	gam () const

Public Attributes
realCompositeGridFunction	divDampingWeight

Public Attributes inherited from DomainSolver
CompositeGrid &	cg

OgesParameters	pressureSolverParameters

OgesParameters	implicitTimeStepSolverParameters

CompositeGridOperators	finiteDifferenceOperators

real	dt

int	numberOfStepsTaken

Parameters &	parameters

GridFunction	gf [maximumNumberOfGridFunctionsToUse]

int	current

int	movieFrame

aString	movieFileName

int	numberOfGridFunctionsToUse

int	numberOfExtraFunctionsToUse

int	totalNumberOfArrays

realCompositeGridFunction	fn [maximumNumberOfExtraFunctionsToUse]

RealArray	variableDt

RealArray	variableTime

realArray *	ui

RealArray	tv

RealArray	tvb

RealArray	tv0

realCompositeGridFunction	coeff

int	numberOfImplicitSolvers

Oges *	implicitSolver

realCompositeGridFunction *	implicitCoeff

Oges *	poisson

realCompositeGridFunction	pressureRightHandSide

realCompositeGridFunction	poissonCoefficients

realCompositeGridFunction *	pp

realCompositeGridFunction *	ppx

realCompositeGridFunction *	prL

realCompositeGridFunction *	ppL

realCompositeGridFunction *	prho

realCompositeGridFunction *	pgam

realCompositeGridFunction *	pvIMS

realCompositeGridFunction *	pwIMS

realCompositeGridFunction *	previousPressure

realCompositeGridFunction *	puLinearized

realMappedGridFunction *	pGridVelocityLinearized

LineSolve *	pLineSolve

bool	gridHasMaterialInterfaces

realCompositeGridFunction *	pdtVar

std::vector< real >	hMin

std::vector< real >	hMax

std::vector< real >	numberOfGridPoints

std::vector< real >	dtv

std::vector< real >	realPartOfEigenvalue

std::vector< real >	imaginaryPartOfEigenvalue

int	numberSavedToShowFile

CG_ApproximateFactorization::FactorList	factors

Additional Inherited Members
Public Types inherited from DomainSolver
enum	{ defaultValue =-1234567 }

enum	ForcingTypeEnum { computeForcing, computeTimeDerivativeOfForcing }

enum	BoundaryConditionPredictorEnum { predictPressure, predictPressureAndVelocity }

enum	InterfaceOptionsEnum { getInterfaceRightHandSide, setInterfaceRightHandSide }

enum	Dimensions { maximumNumberOfGridFunctionsToUse =4, maximumNumberOfExtraFunctionsToUse =4 }

enum	ChangesEnum { gridWasAdded =1, gridWasChanged, gridWasRemoved, refinementWasAdded, refinementWasRemoved }

Static Public Member Functions inherited from DomainSolver
static int	getBounds (const realCompositeGridFunction &u, RealArray &uMin, RealArray &uMax, real &uvMax)

static int	getOriginalBoundaryConditions (CompositeGrid &cg, IntegerArray &originalBoundaryCondition)
	Save the original boundary conditions from the CompositeGrid.

Protected Attributes inherited from DomainSolver
aString	name

aString	className

aString	pdeName

int	restartNumber

DialogData *	pUniformFlowDialog

DialogData *	pStepFunctionDialog

DialogData *	pShowFileDialog

DialogData *	pTzOptionsDialog

int	chooseAComponentMenuItem

int	numberOfPushButtons

int	numberOfTextBoxes

int	itemsToPlot

Detailed Description

Solve the incompressible Navier-Stokes equations.

Cgins can be used to solve the incompressible Navier-Stokes with heat transfer.

Constructor & Destructor Documentation

Cgins::Cgins	(	CompositeGrid &	cg_,
		GenericGraphicsInterface *	ps = `NULL`,
		Ogshow *	show = `NULL`,
		const int &	plotOption_ = `1`
	)

Constructor for the Cgcns class.

Parameters

cg_	(input) : use this CompositeGrid.
ps	(input) : pointer to a graphics object to use.
show	(input) : pointer to a show file to use.
plotOption_	(input) : plot option

Note: InsParameters (passed to the DomainSolver constructor above) replaces the base class Parameters

References DomainSolver::className, DomainSolver::name, and setup().

Cgins::~Cgins ( )

virtual

Destructor for the Cgins class.

References i, and DomainSolver::parameters.

Member Function Documentation

void Cgins::addForcing	(	realMappedGridFunction &	dvdt,
		const realMappedGridFunction &	u,
		int	iparam[],
		real	rparam[],
		realMappedGridFunction &	dvdtImplicit = `Overture::nullRealMappedGridFunction()`,
		realMappedGridFunction *	referenceFrameVelocity = `NULL`
	)

virtual

The AFC scheme solves the time derivative of the BC:

Reimplemented from DomainSolver.

References ad21, adc4, Parameters::BCModifier::addPenaltyForcing(), ADTZ2, ADTZ4, all, Parameters::approximateFactorization, assert(), axis, Parameters::axisymmetric, Parameters::BaldwinLomax, Parameters::bcModifiers, InsParameters::BoussinesqModel, cb1, cb2, cc, cd22, DomainSolver::cg, d, Parameters::dbase, DomainSolver::debug(), Parameters::dirichletBoundaryCondition, display(), DomainSolver::dt, e, ec, Parameters::getGridIsImplicit(), getIndex(), getKEpsilonParameters, getSpalartAllmarasParameters, DomainSolver::gf, grid, Parameters::gridIsMoving(), I1, I2, I3, Ig1, Ig2, Ig3, IS_DIRICHLET, Parameters::isAxisymmetric(), Parameters::BCModifier::isPenaltyBC(), isRectangular, kappa, kc, Parameters::kEpsilon, Parameters::LargeEddySimulation, mg, N(), nc, Parameters::noSlipWall, Parameters::noTurbulenceModel, DomainSolver::numberOfStepsTaken, nuT, nuTd, nuTx, nuTy, ok, OV_ABORT(), OV_GET_LOCAL_ARRAY, OV_GET_LOCAL_ARRAY_CONDITIONAL, CG_ApproximateFactorization::parallelBC, DomainSolver::parameters, pc, printF(), R, r, DomainSolver::rho(), s, side, sigma, sigmai, Parameters::SpalartAllmaras, InsParameters::standardModel, Parameters::steadyStateRungeKutta, ta, tc, thermalExpansivity, InsParameters::twoPhaseFlowModel, GridFunction::u, u0, u0y, u0z, uc, ue, ut(), uv, uvt, uvx, uvxx, V, v0x, v0y, v0z, vc, InsParameters::viscoPlasticModel, w0x, w0y, wc, and x.

Referenced by advanceLineSolveNew(), advanceLineSolveOld(), getResidual(), and getUt().

void Cgins::addForcingToPressureEquation	(	const int &	grid,
		MappedGrid &	c,
		realMappedGridFunction &	f,
		realMappedGridFunction &	gridVelocity,
		const real &	t
	)

References a0, all, assert(), axis, Parameters::axisymmetric, Parameters::BaldwinLomax, boundaryCondition(), InsParameters::BoussinesqModel, cb1, cb2, InsParameters::convectiveOutflow, d, Parameters::dbase, DomainSolver::debug(), Parameters::dirichletBoundaryCondition, display(), e, ec, f, FB2N, FB3N, ForBoundary, getGhostIndex(), getIndex(), getSpalartAllmarasParameters, DomainSolver::gf, grid, Parameters::gridIsMoving(), I1, I2, I3, InsParameters::inflowWithPressureAndTangentialVelocityGiven, Parameters::isAxisymmetric(), kappa, kc, Parameters::kEpsilon, Parameters::LargeEddySimulation, mg, N(), nc, normal, Parameters::noTurbulenceModel, nuT, nuTd, nuTx, nuTxx, nuTxy, nuTy, InsParameters::outflow, P02N, P03N, DomainSolver::parameters, printF(), R, side, sigma, sigmai, Parameters::SpalartAllmaras, InsParameters::standardModel, Parameters::symmetry, ta, InsParameters::tractionFree, InsParameters::twoPhaseFlowModel, GridFunction::u, u0, u0y, u0z, ue, v0x, v0y, v0z, InsParameters::viscoPlasticModel, w0x, w0y, x, and y.

Referenced by assignPressureRHS().

int Cgins::advanceLineSolve	(	LineSolve &	lineSolve,
		const int	grid,
		const int	direction,
		realCompositeGridFunction &	u0,
		realMappedGridFunction &	f,
		realMappedGridFunction &	residual,
		const bool	refactor,
		const bool	computeTheResidual = `false`
	)

virtual

INS Steady-State Line-Solver Routine : solve along lines in a given direction.

Parameters

lineSolve	(input) :
direction	: solve along lines in this diresction

advanceLineSolve: o addForcing : assign body-forcing (e.g. TZ-forcing) to interior equations in f. o lineSolverBoundaryConditions : determine BC's for line solves, assign BC right-hand sides to f. o insLineBuildMatrix(Ksv,am,bm,cm,dm,em) : calls insLineSetup to fill in the tri-diagonal matrix am,b,,cm for a given equation. Optionally assign the RHS f for interior equations (all components) o insLineSolveBC : fill the matrix BC's into am,bm,cm and set dirichlet values for interpolation points on the boundary (for dirichlet) or ghost line (for neumann).

Reimplemented from DomainSolver.

References advanceLineSolveNew(), and advanceLineSolveOld().

int Cgins::advanceLineSolveNew	(	LineSolve &	lineSolve,
		const int	grid,
		const int	direction,
		realCompositeGridFunction &	u0,
		realMappedGridFunction &	f,
		realMappedGridFunction &	residual,
		const bool	refactor,
		const bool	computeTheResidual = `false`
	)

References a, addForcing(), all, assert(), assignLineSolverBoundaryConditions(), axis, Parameters::BaldwinLomax, InsParameters::BoussinesqModel, c, cc, DomainSolver::cg, computeResidualNew, computeTemperature, DomainSolver::current, d, Parameters::dbase, DomainSolver::debug(), determineErrors(), dir, dirichlet, display(), dtb, dx, e, em, f, F, FOR_3D, getGhostIndex(), Parameters::getGridIsImplicit(), getIndex(), getLineSolverBoundaryConditions(), DomainSolver::gf, grid, Parameters::gridIsMoving(), i, i1, I1, i2, I2, i3, I3, Ig1, Ig2, Ig3, includeGhost, insLineSetupNew, insLineSolveBC, DomainSolver::interpolate(), is2, is3, Parameters::isAxisymmetric(), isRectangular, J1, J2, J3, LineSolve::lineSolveIsInitialized, m, mask, MASK, maskDim0, maskDim1, maskLocal, maskp, LineSolve::maximumSizeAllocated, mg, N(), n, nc, normal, DomainSolver::numberOfComponents(), ok, omega, DomainSolver::parameters, pc, printF(), LineSolve::pTridiagonalSolvers, residual(), side, Parameters::slipWall, Parameters::SpalartAllmaras, tc, thermalExpansivity, tridiagonalSolver, DomainSolver::twilightZoneFlow(), u, U, uc, ue, uLocal, vc, InsParameters::viscoPlasticModel, wc, and x.

Referenced by advanceLineSolve().

int Cgins::advanceLineSolveOld	(	LineSolve &	lineSolve,
		const int	grid,
		const int	direction,
		realCompositeGridFunction &	u0,
		realMappedGridFunction &	f,
		realMappedGridFunction &	residual,
		const bool	refactor,
		const bool	computeTheResidual = `false`
	)

INS Steady-State Line-Solver Routine : solve along lines in a given direction.

Parameters

lineSolve	(input) :
direction	: solve along lines in this diresction

advanceLineSolve: o addForcing : assign body-forcing (e.g. TZ-forcing) to interior equations in f. o lineSolverBoundaryConditions : determine BC's for line solves, assign BC right-hand sides to f. o insLineSetupMacro(Ksv,am,bm,cm,dm,em) : calls insLineSetup to fill in the tri-diagonal matrix am,b,,cm for a given equation. Optionally assign the RHS f for interior equations (all components) o insLineSolveBC : fill the matrix BC's into am,bm,cm and set dirichlet values for interpolation points on the boundary (for dirichlet) or ghost line (for neumann).

References a, a2, addForcing(), all, assert(), axis, Parameters::BaldwinLomax, InsParameters::BoussinesqModel, c, c2, cc, DomainSolver::cg, computeResidualNew, computeTemperature, DomainSolver::current, d, Parameters::dbase, DomainSolver::debug(), determineErrors(), dir, dirichlet, display(), dtb, dx, e, em, f, F, FOR_3D, getGhostIndex(), Parameters::getGridIsImplicit(), getIndex(), DomainSolver::gf, grid, Parameters::gridIsMoving(), i, i1, I1, i2, I2, i3, I3, Ig1, Ig2, Ig3, insLineSetup, insLineSetupNew, insLineSolveBC, DomainSolver::interpolate(), Parameters::isAxisymmetric(), isRectangular, J1, J2, J3, LineSolve::lineSolveIsInitialized, lineSolverBoundaryConditions(), m, mask, MASK, maskDim0, maskDim1, maskLocal, maskp, LineSolve::maximumSizeAllocated, mg, N(), n, nc, normal, DomainSolver::numberOfComponents(), ok, omega, DomainSolver::parameters, pc, printF(), LineSolve::pTridiagonalSolvers, residual(), side, Parameters::slipWall, Parameters::SpalartAllmaras, tc, thermalExpansivity, tridiagonalSolver, DomainSolver::twilightZoneFlow(), u, U, uc, ue, uLocal, vc, InsParameters::viscoPlasticModel, wc, and x.

Referenced by advanceLineSolve().

int Cgins::applyBoundaryConditions	(	const real &	t,
		realMappedGridFunction &	u,
		realMappedGridFunction &	gridVelocity,
		const int &	grid,
		const int &	option = `-1`,
		realMappedGridFunction *	puOld = `NULL`,
		realMappedGridFunction *	pGridVelocityOld = `NULL`,
		const real &	dt = `-1.`
	)

virtual

Reimplemented from DomainSolver.

References a0, Parameters::BCModifier::applyBC(), applyFourthOrderBoundaryConditions(), assert(), axis, Parameters::axisymmetric, Parameters::bcModifiers, Parameters::bcType(), Parameters::blasiusProfile, InsParameters::BoussinesqModel, DomainSolver::cg, Parameters::dbase, DomainSolver::debug(), dirichlet, dirichletBoundaryCondition, Parameters::dirichletBoundaryCondition, display(), e, ForBoundary, Parameters::getBoundaryData(), getGhostIndex(), getIndex(), BoundaryData::getVariableCoefficientBoundaryConditionArray(), Parameters::gridIsMoving(), BoundaryData::hasVariableCoefficientBoundaryCondition(), I1, I2, I3, Ig1, Ig2, Ig3, InsParameters::inflowOutflow, InsParameters::inflowWithPressureAndTangentialVelocityGiven, inflowWithVelocityGiven, InsParameters::inflowWithVelocityGiven, Parameters::interfaceBoundaryCondition, Parameters::isAxisymmetric(), isRectangular, mask, mg, mixedCoeff, mixedNormalCoeff, mixedRHS, N(), n, nc, Parameters::neumannBoundaryCondition, Parameters::noInterface, normal, noSlipWall, Parameters::noSlipWall, Parameters::noTurbulenceModel, DomainSolver::numberOfComponents(), Parameters::numberOfGhostPointsNeeded(), ok, orderOfAccuracy, outflow, InsParameters::outflow, OV_ABORT(), DomainSolver::parameters, Parameters::penaltyBoundaryCondition, printF(), DomainSolver::printP(), Parameters::rKutta, side, slipWall, Parameters::slipWall, Parameters::steadyStateRungeKutta, symmetry, Parameters::symmetry, tc, tractionFree, InsParameters::tractionFree, turbulenceModelBoundaryConditions(), DomainSolver::twilightZoneFlow(), InsParameters::twoPhaseFlowModel, u, uc, ue, uex, uey, uLocal, ux, uy, uz, V, BoundaryData::variableCoefficientTemperatureBC, vc, InsParameters::viscoPlasticModel, wc, and x.

int Cgins::applyBoundaryConditionsForImplicitTimeStepping	(	realMappedGridFunction &	u,
		realMappedGridFunction &	uL,
		realMappedGridFunction &	gridVelocity,
		real	t,
		int	scalarSystem,
		int	grid
	)

virtual

Reimplemented from DomainSolver.

References a0, assert(), axis, Parameters::axisymmetric, InsParameters::BoussinesqModel, c, InsParameters::convectiveOutflow, d, Parameters::dbase, DomainSolver::debug(), dir, dirichlet, dirichletBoundaryCondition, Parameters::dirichletBoundaryCondition, Parameters::dirichletInterface, display(), e, ec, ForBoundary, Parameters::getBoundaryData(), getGhostIndex(), Parameters::getGridIsImplicit(), Parameters::gridIsMoving(), Ig1, Ig2, Ig3, includeGhost, InsParameters::inflowWithPressureAndTangentialVelocityGiven, inflowWithVelocityGiven, InsParameters::inflowWithVelocityGiven, Parameters::interfaceBoundaryCondition, Parameters::isAxisymmetric(), isRectangular, kc, Parameters::kEpsilon, Parameters::kOmega, m, mask, mg, mixedCoeff, mixedNormalCoeff, mixedRHS, N(), n, nc, Parameters::neumannInterface, Parameters::noInterface, normal, noSlipWall, Parameters::noSlipWall, ok, orderOfAccuracy, outflow, InsParameters::outflow, OV_ABORT(), DomainSolver::parameters, printF(), DomainSolver::printP(), side, slipWall, Parameters::slipWall, symmetry, Parameters::symmetry, tc, InsParameters::tractionFree, DomainSolver::twilightZoneFlow(), InsParameters::twoPhaseFlowModel, u, uc, ue, uex, uey, uLocal, V, vc, InsParameters::viscoPlasticModel, wc, and x.

Referenced by getResidual().

void Cgins::applyFourthOrderBoundaryConditions	(	realMappedGridFunction &	u0,
		real	t,
		int	grid,
		realMappedGridFunction &	gridVelocity
	)

int Cgins::assignLineSolverBoundaryConditions	(	const int	grid,
		const int	direction,
		realMappedGridFunction &	u,
		realMappedGridFunction &	f,
		const int	numberOfTimeDependentComponents,
		bool	isPeriodic[3]
	)

void Cgins::assignPressureRHS	(	GridFunction &	gf0,
		realCompositeGridFunction &	f
	)

References all, GridFunction::cg, DomainSolver::cg, Parameters::dbase, DomainSolver::debug(), DomainSolver::getName(), grid, DomainSolver::parameters, pc, DomainSolver::poisson, printF(), GridFunction::t, and ue.

Referenced by solveForTimeIndependentVariables().

void Cgins::assignPressureRHS	(	const int	grid,
		GridFunction &	gf0,
		realCompositeGridFunction &	f0
	)

References a0, ad21, ad22, adcBoussinesq, addForcingToPressureEquation(), assert(), assignPressureRHSOpt, axis, Parameters::axisymmetric, c, GridFunction::cg, InsParameters::convectiveOutflow, Parameters::dbase, DomainSolver::debug(), Parameters::dirichletBoundaryCondition, display(), divDampingWeight, dx, e, equationDomainList, f, ForBoundary, get< int >(), getGhostIndex(), GridFunction::getGridVelocity(), getIndex(), EquationDomain::getPDE(), grid, gridAccelerationBC(), ListOfEquationDomains::gridDomainNumberList, Parameters::gridIsMoving(), I1, I2, I3, includeGhost, InsParameters::inflowWithPressureAndTangentialVelocityGiven, Parameters::interfaceBoundaryCondition, Parameters::isAxisymmetric(), isRectangular, Parameters::noSlipWall, DomainSolver::numberOfComponents(), ok, orderOfAccuracy, InsParameters::outflow, DomainSolver::parameters, pc, Parameters::penaltyBoundaryCondition, printF(), side, Parameters::slipWall, InsParameters::standardModel, Parameters::symmetry, GridFunction::t, tc, thermalExpansivity, InsParameters::tractionFree, GridFunction::u, u, u0, uc, uLocal, vc, wc, and x.

void Cgins::buildImplicitSolvers ( CompositeGrid & cg )

virtual

int Cgins::buildTimeSteppingDialog ( DialogData & dialog )

virtual

Build the dialog that shows the various options for time stepping.

Parameters

dialog (input) : graphics dialog to use.

Dialog Menu Options:

method
- the list time stepping methods depends on the PDE being solved.
accuracy
- second order accurate : solve the problem to 2nd order accuracy in space.
- fourth order accurate : solve the problem to 4th order accuracy in space.
time accuracy
- solve for steady state :
- second order accurate in time :
- fourth order accurate in time :
choose grids for implicit : choose a list of grids that should be treated implicitly.
use local time stepping (toggle) :

Reimplemented from DomainSolver.

References assert(), DomainSolver::buildTimeSteppingDialog(), Parameters::dbase, Parameters::numberOfTimeSteppingMethods, and DomainSolver::parameters.

int Cgins::computeAxisymmetricDivergence	(	realArray &	divergence,
		Index &	I1,
		Index &	I2,
		Index &	I3,
		MappedGrid &	c,
		const realArray &	u0,
		const realArray &	u0x,
		const realArray &	v0y
	)

References axis, Parameters::axisymmetric, Parameters::dbase, DomainSolver::parameters, side, u0, v0y, and vc.

int Cgins::computeTurbulenceQuantities ( GridFunction & gf0 )

Compute some turbulence quantities such as y+.

References axis, GridFunction::cg, DomainSolver::cg, Parameters::dbase, eps, FOR_3D, ForBoundary, grid, i1, i2, i3, includeGhost, is2, is3, mask, maskLocal, mg, normal, Parameters::noSlipWall, ok, DomainSolver::parameters, printF(), DomainSolver::rho(), side, GridFunction::t, GridFunction::u, uc, uLocal, ux, uy, uz, V, vc, and wc.

Referenced by printTimeStepInfo().

void Cgins::determineErrors	(	GridFunction &	cgf,
		const aString &	label = `nullString`
	)

virtual

Reimplemented from DomainSolver.

References GridFunction::conservativeToPrimitive(), GridFunction::conservativeVariables, Parameters::dbase, GridFunction::form, form, GridFunction::gridVelocity, DomainSolver::parameters, GridFunction::primitiveToConservative(), GridFunction::t, and GridFunction::u.

Referenced by advanceLineSolveNew(), advanceLineSolveOld(), printTimeStepInfo(), and solveForTimeIndependentVariables().

void Cgins::determineErrors	(	realCompositeGridFunction &	u,
		realMappedGridFunction **	gridVelocity,
		const real &	t,
		const int	options,
		RealArray &	err,
		const aString &	label = `nullString`
	)

virtual

These next loops need to be fixed for parallel

Reimplemented from DomainSolver.

References assert(), c, DomainSolver::cg, Parameters::dbase, DomainSolver::debug(), display(), e, ee, DomainSolver::getBounds(), getIndex(), Parameters::getKnownSolution(), grid, Parameters::gridIsMoving(), i1, I1, i2, I2, i3, I3, isRectangular, lpNorm(), mask, maskLocal, maxNorm(), n, DomainSolver::numberOfComponents(), outputSolution(), DomainSolver::parameters, r, tc, u, uc, uLocal, Parameters::useConservativeVariables(), ut(), ux, uy, uz, v, vc, vt, wc, x, and xv.

int Cgins::formImplicitTimeSteppingMatrix	(	realMappedGridFunction &	coeff,
		const real &	dt0,
		int	scalarSystem,
		realMappedGridFunction &	u0,
		const realMappedGridFunction &	gridVelocity,
		const int &	grid,
		const int &	imp
	)

virtual

References InsParameters::BoussinesqModel, InsParameters::buildMatrix, Parameters::dbase, insImplicitMatrix(), mg, and DomainSolver::parameters.

Referenced by formMatrixForImplicitSolve().

void Cgins::formMatrixForImplicitSolve	(	const real &	dt0,
		GridFunction &	cgf1,
		GridFunction &	cgf0
	)

virtual

Reimplemented from DomainSolver.

References DomainSolver::addConstraintEquation(), all, assert(), InsParameters::BoussinesqModel, GridFunction::cg, DomainSolver::cg, DomainSolver::coeff, Parameters::dbase, DomainSolver::debug(), display(), formImplicitTimeSteppingMatrix(), Parameters::getGridIsImplicit(), GridFunction::getGridVelocity(), grid, Parameters::gridIsMoving(), DomainSolver::implicitCoeff, DomainSolver::implicitSolver, Parameters::isAxisymmetric(), DomainSolver::isImplicitMatrixSingular(), Parameters::isMovingGridProblem(), Parameters::LargeEddySimulation, mg, n, Parameters::noTurbulenceModel, nuDt, Parameters::numberOfGhostPointsNeededForImplicitMatrix(), DomainSolver::numberOfImplicitSolvers, DomainSolver::parameters, DomainSolver::pGridVelocityLinearized, printF(), DomainSolver::puLinearized, Parameters::saveLinearizedSolution(), setOgesBoundaryConditions(), GridFunction::t, and GridFunction::u.

realCompositeGridFunction & Cgins::getAugmentedSolution	(	GridFunction &	gf0,
		realCompositeGridFunction &	v
	)

virtual

Reimplemented from DomainSolver.

References all, Parameters::approximateFactorization, assign(), axis, Parameters::axisymmetric, boundaryCondition(), GridFunction::cg, DomainSolver::cg, DomainSolver::current, Parameters::dbase, dimension, DomainSolver::dt, ec, DomainSolver::fn, DomainSolver::getAmrErrorFunction(), Parameters::getDerivedFunction(), getIndex(), getResidual(), DomainSolver::getResidualInfo(), DomainSolver::gf, grid, I1, I2, I3, Parameters::implicit, includeGhost, Parameters::isAdaptiveGridProblem(), Parameters::isAxisymmetric(), Parameters::isMovingGridProblem(), isRectangular, mask, maskLocal, mg, N(), n, DomainSolver::numberOfComponents(), ok, OV_ABORT(), DomainSolver::parameters, printF(), residual(), side, Parameters::steadyStateRungeKutta, GridFunction::t, GridFunction::u, u, u0, uc, uLocal, ur, ux, vc, InsParameters::viscoPlasticModel, wc, and x.

int Cgins::getInterfaceDataOptions	(	GridFaceDescriptor &	info,
		int &	interfaceDataOptions
	)		const

virtual

Return the interface data required for a given type of interface.

Parameters

info	(input) : the descriptor for the interface.
interfaceDataOptions	(output) : a list of items from Parameters::InterfaceDataEnum that define which data to get (or which data were set). Multiple items are chosen by bit-wise or of the different options

Note: : this function should be over-loaded.

Reimplemented from DomainSolver.

References axis, GridFaceDescriptor::axis, Parameters::dbase, DomainSolver::debug(), GridFaceDescriptor::grid, grid, Parameters::heatFluxInterface, Parameters::heatFluxInterfaceData, OV_ABORT(), DomainSolver::parameters, Parameters::positionInterfaceData, DomainSolver::printP(), side, GridFaceDescriptor::side, Parameters::tractionInterface, Parameters::tractionInterfaceData, and Parameters::velocityInterfaceData.

int Cgins::getLineSolverBoundaryConditions	(	const int	grid,
		const int	direction,
		realMappedGridFunction &	u,
		Index *	Ixv,
		const int	maxNumberOfSystems,
		int *	uSystem,
		const int	numberOfTimeDependentComponents,
		IntegerArray &	bc,
		IntegerArray &	numGhost,
		int &	numberOfDifferentLineSolverBoundaryConditions
	)

int Cgins::getResidual	(	real	t,
		real	dt,
		GridFunction &	cgf,
		realCompositeGridFunction &	residual
	)

virtual

Compute the residual for "steady state" solvers.

Parameters

t	(input): current time
dt	(input): current global time step – is this used ?
cgf	(input): holds solution to compute the residual from
residual	(output): residual

Reimplemented from DomainSolver.

References addForcing(), applyBoundaryConditionsForImplicitTimeStepping(), assign(), GridFunction::cg, DomainSolver::cg, DomainSolver::coeff, Parameters::dbase, InsParameters::evalResidual, InsParameters::evalResidualForBoundaryConditions, f, GridFunction::getGridVelocity(), grid, Parameters::gridIsMoving(), insImplicitMatrix(), DomainSolver::parameters, GridFunction::t, GridFunction::u, and u0.

Referenced by getAugmentedSolution().

void Cgins::getTimeSteppingEigenvalue	(	MappedGrid &	mg,
		realMappedGridFunction &	u,
		realMappedGridFunction &	gridVelocity,
		real &	reLambda,
		real &	imLambda,
		const int &	grid
	)

virtual

int Cgins::getTimeSteppingOption	(	const aString &	answer,
		DialogData &	dialog
	)

virtual

Reimplemented from DomainSolver.

References Parameters::adamsBashforth2, Parameters::adamsPredictorCorrector2, Parameters::adamsPredictorCorrector4, Parameters::approximateFactorization, assert(), Parameters::backwardEuler, InsParameters::compactDifference, Parameters::crankNicolson, Parameters::dbase, Parameters::doNotComputeImplicitTerms, Parameters::forwardEuler, DomainSolver::getTimeSteppingOption(), Parameters::implicit, InsParameters::implicitAdvectionAndViscous, InsParameters::implicitFullLinearized, InsParameters::implicitViscous, Parameters::lineImplicit, Parameters::midPoint, Parameters::notImplicit, DomainSolver::parameters, printF(), Parameters::rKutta, Parameters::setGridIsImplicit(), InsParameters::standardFiniteDifference, Parameters::steadyStateNewton, Parameters::steadyStateRungeKutta, and Parameters::variableTimeStepAdamsPredictorCorrector.

int Cgins::getUt	(	const realMappedGridFunction &	v,
		const realMappedGridFunction &	gridVelocity,
		realMappedGridFunction &	dvdt,
		int	iparam[],
		real	rparam[],
		realMappedGridFunction &	dvdtImplicit = `Overture::nullRealMappedGridFunction()`,
		MappedGrid *	pmg2 = `NULL`,
		const realMappedGridFunction *	pGridVelocity2 = `NULL`
	)

virtual

Reimplemented from DomainSolver.

References adcBoussinesq, addForcing(), Parameters::approximateFactorization, assert(), axis, Parameters::axisymmetric, InsParameters::BoussinesqModel, GridMaterialProperties::constantMaterialProperties, Parameters::dbase, DomainSolver::debug(), display(), dw, dx, InsParameters::evalRightHandSide, Parameters::getGridIsImplicit(), getIndex(), GridMaterialProperties::getMaterialFormat(), grid, Parameters::gridIsMoving(), gridType, I1, I2, I3, Parameters::implicit, insdt, insImplicitMatrix(), Parameters::isAxisymmetric(), isRectangular, Parameters::LargeEddySimulation, materialFormat, matIndexPtr, matValPtr, mg, ndMatProp, Parameters::noTurbulenceModel, DomainSolver::numberOfStepsTaken, ok, orderOfAccuracy, OV_ABORT(), DomainSolver::parameters, Parameters::pdeName, GridMaterialProperties::piecewiseConstantMaterialProperties, printF(), DomainSolver::printP(), side, Parameters::SpalartAllmaras, InsParameters::standardModel, thermalExpansivity, u, uLocal, ut(), and v.

void Cgins::gridAccelerationBC	(	const int &	grid,
		const real &	t0,
		GridFunction &	gf0,
		realCompositeGridFunction &	f0,
		int	side,
		int	axis
	)

References axis, Parameters::bcIsTimeDependent(), c, GridFunction::cg, Parameters::dbase, f, Parameters::getBoundaryData(), getGhostIndex(), GridFunction::getGridVelocity(), DomainSolver::getTimeDerivativeOfBoundaryValues(), grid, Parameters::gridIsMoving(), I1, I2, I3, normal, DomainSolver::parameters, side, GridFunction::u, u, uc, vc, and wc.

Referenced by assignPressureRHS().

void Cgins::implicitSolve	(	const real &	dt0,
		GridFunction &	cgf1,
		GridFunction &	cgf0
	)

virtual

void Cgins::initializeFactorization ( )

virtual

Create the factors for the approximate factorization time stepping method.

Reimplemented from DomainSolver.

References GridFunction::cg, DomainSolver::current, d, Parameters::dbase, CGINS_ApproximateFactorization::Diagonal_Factor, DomainSolver::factors, DomainSolver::gf, DomainSolver::initializeFactorization(), CGINS_ApproximateFactorization::Merged_Factor, InsParameters::outflow, DomainSolver::parameters, and CGINS_ApproximateFactorization::R_Factor.

int Cgins::initializeSolution ( )

virtual

Reimplemented from DomainSolver.

References DomainSolver::cg, DomainSolver::computeBodyForcing(), DomainSolver::correctMovingGrids(), DomainSolver::current, Parameters::dbase, DomainSolver::dt, DomainSolver::getTimeStep(), DomainSolver::gf, DomainSolver::initializeSolution(), DomainSolver::movingGridProblem(), DomainSolver::parameters, printF(), solveForTimeIndependentVariables(), GridFunction::t, and updateDivergenceDamping().

int Cgins::initializeTurbulenceModels ( GridFunction & cgf )

virtual

Reimplemented from DomainSolver.

References DomainSolver::cg, Parameters::dbase, DomainSolver::debug(), Parameters::getBoundaryData(), getIndex(), grid, I1, I2, I3, DomainSolver::interpolate(), N(), DomainSolver::parameters, printF(), Parameters::SpalartAllmaras, turbulenceModelBoundaryConditions(), GridFunction::u, u, and v.

int Cgins::insImplicitMatrix	(	InsParameters::InsImplicitMatrixOptionsEnum	option,
		realMappedGridFunction &	coeff,
		const real &	dt0,
		const realMappedGridFunction &	u0,
		realMappedGridFunction &	fe,
		realMappedGridFunction &	fi,
		const realMappedGridFunction &	gridVelocity,
		const int &	grid
	)

build the implicit time stepping matrix or eval the RHS.

Parameters

option,: buildMatrix, evalRightHandSide, evalResidual, evalResidualForBoundaryConditions

References adcBoussinesq, assert(), axis, Parameters::axisymmetric, InsParameters::BoussinesqModel, InsParameters::buildMatrix, DomainSolver::coeff, computeTemperature, GridMaterialProperties::constantMaterialProperties, Parameters::dbase, DomainSolver::debug(), display(), DomainSolver::dt, dx, InsParameters::evalResidual, InsParameters::evalResidualForBoundaryConditions, InsParameters::evalRightHandSide, Parameters::getGridIsImplicit(), getIndex(), GridMaterialProperties::getMaterialFormat(), grid, Parameters::gridIsMoving(), I1, I2, I3, includeGhost, insimp, Parameters::isAxisymmetric(), isRectangular, maskLocal, materialFormat, matIndexPtr, matValPtr, mg, n, ndMatProp, DomainSolver::numberOfComponents(), ok, DomainSolver::parameters, DomainSolver::pGridVelocityLinearized, GridMaterialProperties::piecewiseConstantMaterialProperties, printF(), DomainSolver::puLinearized, Parameters::saveLinearizedSolution(), side, thermalExpansivity, u0, uc, vc, InsParameters::viscoPlasticModel, and wc.

Referenced by formImplicitTimeSteppingMatrix(), getResidual(), and getUt().

virtual int Cgins::interfaceRightHandSide	(	InterfaceOptionsEnum	option,
		int	interfaceDataOptions,
		GridFaceDescriptor &	info,
		GridFaceDescriptor &	gfd,
		int	gfIndex,
		real	t
	)

virtual

Reimplemented from DomainSolver.

int Cgins::lineSolverBoundaryConditions	(	const int	grid,
		const int	direction,
		realMappedGridFunction &	u,
		realMappedGridFunction &	f,
		realMappedGridFunction &	residual,
		Index *	Iv,
		Index *	Jv,
		Index *	Ixv,
		const int	maxNumberOfSystems,
		int *	uSystem,
		const int	numberOfTimeDependentComponents,
		IntegerArray &	bc,
		IntegerArray &	extra,
		IntegerArray &	offset,
		bool &	boundaryConditionsAreDifferent,
		bool	isPeriodic[3]
	)

References a0, all, assert(), axis, InsParameters::BoussinesqModel, DomainSolver::cg, computeTemperature, Parameters::dbase, DomainSolver::debug(), dir, dirichlet, Parameters::dirichletBoundaryCondition, display(), dx, e, f, getGhostIndex(), getIndex(), I1, I2, I3, Ig1, Ig2, Ig3, InsParameters::inflowWithVelocityGiven, DomainSolver::interpolate(), is2, is3, isRectangular, J1, J2, J3, mask, maskLocal, mg, mixedCoeff, mixedNormalCoeff, mixedRHS, N(), nc, normal, Parameters::noSlipWall, Parameters::noTurbulenceModel, DomainSolver::numberOfComponents(), ok, InsParameters::outflow, DomainSolver::parameters, pc, printF(), residual(), rhs(), RSXY, S, side, Parameters::slipWall, Parameters::SpalartAllmaras, tc, DomainSolver::twilightZoneFlow(), u, uc, ue, uex, uey, uLocal, ur, ux, uy, V, vc, InsParameters::viscoPlasticModel, wc, and x.

Referenced by advanceLineSolveOld().

void Cgins::outputSolution	(	realCompositeGridFunction &	u,
		const real &	t,
		const aString &	label = `nullString`,
		int	printOption = `0`
	)

virtual

Reimplemented from DomainSolver.

References axis, c, DomainSolver::cg, Parameters::dbase, getIndex(), grid, i1, I1, i2, I2, i3, I3, mask, n, ok, DomainSolver::parameters, and x.

Referenced by determineErrors(), printTimeStepInfo(), and project().

void Cgins::printTimeStepInfo	(	const int &	step,
		const real &	t,
		const real &	cpuTime
	)

virtual

int Cgins::project ( GridFunction & cgf )

virtual

Reimplemented from DomainSolver.

References all, DomainSolver::applyBoundaryConditions(), Parameters::approximateFactorization, assert(), axis, GridFunction::cg, DomainSolver::cg, Parameters::checkForFloatingPointErrors, DomainSolver::checkSolution(), ProjectVelocity::computeDivergence(), Parameters::dbase, DomainSolver::debug(), display(), DomainSolver::dt, DomainSolver::fixupUnusedPoints(), DomainSolver::fn, getIndex(), DomainSolver::gf, grid, I1, I2, I3, Parameters::implicit, DomainSolver::interpolate(), Parameters::isAxisymmetric(), Parameters::noSlipWall, DomainSolver::numberOfExtraFunctionsToUse, ok, orderOfAccuracy, InsParameters::outflow, outputSolution(), DomainSolver::p(), DomainSolver::parameters, Parameters::penaltyBoundaryCondition, DomainSolver::poisson, printF(), projector, DomainSolver::px(), ProjectVelocity::setCompare3Dto2D(), ProjectVelocity::setIsAxisymmetric(), ProjectVelocity::setNumberOfSmoothsPerProjectionIteration(), ProjectVelocity::setPoissonSolver(), ProjectVelocity::setVelocityComponent(), side, DomainSolver::smoothVelocity(), solveForTimeIndependentVariables(), GridFunction::u, u, uc, updateToMatchGrid(), V, vc, and wc.

void Cgins::saveShowFileComments ( Ogshow & show )

virtual

: Set the titles and labels that go on the show file output

Reimplemented from DomainSolver.

References InsParameters::BoussinesqModel, Parameters::dbase, declareViscoPlasticParameters, i, Parameters::isAxisymmetric(), DomainSolver::parameters, and InsParameters::viscoPlasticModel.

int Cgins::setOgesBoundaryConditions	(	GridFunction &	cgf,
		IntegerArray &	boundaryConditions,
		RealArray &	boundaryConditionData,
		const int	imp
	)

virtual

Assign the boundaryCondition data for passing to Oges (predfined equations) when it builds the implicit system.

This function is called by DomainSolver::formMatrixForImplicitSolve

Parameters

cgf	(input) : A grid function holding the current grid.
boundaryConditions	(output) : boundary conditions for Oges
boundaryConditionData	(output) : boundary condition data for Oges
imp	(input) : the number of the implicit system being solved

Reimplemented from DomainSolver.

References a0, assert(), axis, Parameters::axisymmetric, InsParameters::BoussinesqModel, GridFunction::cg, DomainSolver::cg, InsParameters::convectiveOutflow, Parameters::dbase, DomainSolver::debug(), dirichlet, Parameters::dirichletBoundaryCondition, Parameters::dirichletInterface, ForBoundary, grid, InsParameters::inflowWithPressureAndTangentialVelocityGiven, InsParameters::inflowWithVelocityGiven, mg, mixedCoeff, mixedNormalCoeff, nc, Parameters::neumannInterface, Parameters::noInterface, Parameters::noSlipWall, DomainSolver::numberOfImplicitSolvers, InsParameters::outflow, OV_ABORT(), DomainSolver::parameters, printF(), DomainSolver::printP(), side, Parameters::slipWall, Parameters::symmetry, tc, and InsParameters::tractionFree.

Referenced by formMatrixForImplicitSolve().

int Cgins::setPlotTitle	(	const real &	t,
		const real &	dt
	)

virtual

Set the plot titles for interactive plotting.

Parameters

t	(input) : current time
dt	(input) : current time step

Reimplemented from DomainSolver.

References Parameters::approximateFactorization, Parameters::BaldwinLomax, InsParameters::compactDifference, Parameters::dbase, declareViscoPlasticParameters, Parameters::implicit, Parameters::isAxisymmetric(), Parameters::isSteadyStateSolver(), Parameters::kEpsilon, Parameters::kOmega, Parameters::LargeEddySimulation, DomainSolver::name, Parameters::noTurbulenceModel, orderOfAccuracy, DomainSolver::parameters, InsParameters::PDEModelName, Parameters::SpalartAllmaras, InsParameters::standardModel, and InsParameters::viscoPlasticModel.

int Cgins::setSolverParameters	(	const aString &	command = `nullString`,
		DialogData *	interface = `NULL`
	)

virtual

Prompt for changes in the solver parameters.

This dialog is available at start-up and also during run-time.

Parameters

command	(input) : optionally supply a command to execute. Attempt to execute the command and then return. The return value is 0 if the command was executed, 1 otherwise.
interface	(input) : use this dialog. If command=="build dialog", fill in the dialog and return.

Reimplemented from DomainSolver.

References addPrefix(), assert(), DomainSolver::current, Parameters::dbase, DomainSolver::displayParameters(), DomainSolver::gf, i, if(), DomainSolver::implicitSolver, DomainSolver::numberOfImplicitSolvers, DomainSolver::parameters, DomainSolver::poisson, and printF().

int Cgins::setup ( )

virtual

Perform setup operations. Determine the default order of accuracy.

References DomainSolver::cg, Parameters::dbase, dw, grid, mg, DomainSolver::parameters, printF(), DomainSolver::printP(), and R.

Referenced by Cgins().

int Cgins::setupGridFunctions ( )

virtual

Allocate and initialize grid functions, based on the time-stepping method.

This function is called by setup

Reimplemented from DomainSolver.

References all, Parameters::approximateFactorization, assert(), buildImplicitSolvers(), DomainSolver::cg, DomainSolver::current, Parameters::dbase, DomainSolver::gf, grid, Parameters::implicit, init, Parameters::isAxisymmetric(), DomainSolver::parameters, DomainSolver::poisson, DomainSolver::pressureRightHandSide, DomainSolver::setupGridFunctions(), Parameters::steadyStateNewton, DomainSolver::twilightZoneFlow(), GridFunction::u, and InsParameters::viscoPlasticModel.

int Cgins::setupPde	(	aString &	reactionName,
		bool	restartChosen,
		IntegerArray &	originalBoundaryCondition
	)

virtual

Setup the PDE to be solved.

Parameters

reactionName	(input) :
restartChosen	(input) :
originalBoundaryCondition	(input) :

Reimplemented from DomainSolver.

References assert(), Parameters::BaldwinLomax, InsParameters::BoussinesqModel, DomainSolver::cg, GridMaterialProperties::constantMaterialProperties, DomainSolver::current, Parameters::dbase, equationDomainList, DomainSolver::getName(), DomainSolver::getOriginalBoundaryConditions(), DomainSolver::gf, grid, ListOfEquationDomains::gridDomainNumberList, i, Parameters::kEpsilon, Parameters::kOmega, Parameters::LargeEddySimulation, DomainSolver::name, OV_ABORT(), DomainSolver::parameters, InsParameters::PDEModelName, DomainSolver::pdeName, printF(), DomainSolver::readRestartFile(), Parameters::SpalartAllmaras, InsParameters::standardModel, InsParameters::twoPhaseFlowModel, GridFunction::u, u, update(), SurfaceEquation::update(), GridMaterialProperties::variableMaterialProperties, and InsParameters::viscoPlasticModel.

void Cgins::solveForTimeIndependentVariables	(	GridFunction &	cgf,
		bool	updateSolutionDependentEquations = `false`
	)

virtual

: Solve for the pressure given the velocity.

Parameters

updateSolutionDependentEquations (input) : update the equations as needed if they depend on the current solution.

Reimplemented from DomainSolver.

References all, assert(), assign(), assignPressureRHS(), GridFunction::cg, DomainSolver::cg, DomainSolver::checkArrays(), Parameters::checkForFloatingPointErrors, DomainSolver::checkSolution(), Parameters::dbase, DomainSolver::debug(), determineErrors(), dimension, display(), DomainSolver::dt, getIndex(), grid, I1, I2, I3, ok, outputCompositeGrid(), DomainSolver::p(), DomainSolver::parameters, pc, DomainSolver::poisson, DomainSolver::pp, DomainSolver::pressureRightHandSide, printF(), GridFunction::t, InsParameters::twoPhaseFlowModel, GridFunction::u, u, updatePressureEquation(), and updateTimeIndependentVariables().

Referenced by initializeSolution(), and project().

int Cgins::turbulenceModelBoundaryConditions	(	const real &	t,
		realMappedGridFunction &	u,
		Parameters &	parameters,
		int	grid,
		RealArray *	pBoundaryData[2][3]
	)

Apply boundary conditions for the turbulence models.

This function is called by applyBoundaryConditionsINS

References assert(), Parameters::dbase, dirichlet, InsParameters::inflowWithVelocityGiven, kc, Parameters::kEpsilon, Parameters::kOmega, nc, Parameters::noSlipWall, InsParameters::outflow, Parameters::slipWall, Parameters::SpalartAllmaras, and Parameters::steadyStateRungeKutta.

Referenced by applyBoundaryConditions(), and initializeTurbulenceModels().

int Cgins::turbulenceModels	(	realArray &	nuT,
		MappedGrid &	mg,
		const realArray &	u,
		const realArray &	uu,
		const realArray &	ut,
		const realArray &	ux,
		const realArray &	uy,
		const realArray &	uz,
		const realArray &	uxx,
		const realArray &	uyy,
		const realArray &	uzz,
		const Index &	I1,
		const Index &	I2,
		const Index &	I3,
		Parameters &	parameters,
		real	nu,
		const int	numberOfDimensions,
		const int	grid,
		const real	t
	)

virtual

Add turbulence models to the incompressible Navier-Stokes.

/param nuT (output) : the turbulent viscosity /param ut (output) :

References assert(), cb1, cb2, d, Parameters::dbase, getSpalartAllmarasParameters, grid, gt, i, i1, i2, i3, kappa, kc, Parameters::kEpsilon, Parameters::kOmega, mask, nc, Parameters::noTurbulenceModel, nuT, pc, r, s, sigma, sigmai, Parameters::SpalartAllmaras, U, u, uc, ut(), UU, ux, UX, UXX, UY, uy, UYY, UZ, UZZ, vc, wc, and x.

void Cgins::updateDivergenceDamping	(	CompositeGrid &	cg0,
		const int &	geometryHasChanged
	)

virtual

References assert(), center, DAI1, DAI3, Parameters::dbase, DomainSolver::debug(), dimension, divDampingWeight, DomainSolver::dt, DomainSolver::dtv, dx, getIndex(), grid, DomainSolver::hMin, I1, I2, I3, Parameters::isAxisymmetric(), isRectangular, ok, DomainSolver::parameters, POW2, printF(), and realSmall.

Referenced by initializeSolution(), updateForNewTimeStep(), and updatePressureEquation().

int Cgins::updateForMovingGrids ( GridFunction & cgf )

virtual

Update the DomainSolver after grids have moved or have been adapted.

Reimplemented from DomainSolver.

References GridFunction::cg, Parameters::dbase, Parameters::isAdaptiveGridProblem(), Parameters::isMovingGridProblem(), DomainSolver::movingGridProblem(), DomainSolver::parameters, GridFunction::u, updateGeometryArrays(), GridFunction::updateGridVelocityArrays(), and updatePressureEquation().

int Cgins::updateForNewTimeStep	(	GridFunction &	gf,
		const real &	dt
	)

virtual

Update the geometry arrays.

Reimplemented from DomainSolver.

References GridFunction::cg, and updateDivergenceDamping().

int Cgins::updateGeometryArrays ( GridFunction & cgf )

virtual

Update geometry arrays, solution at old times etc. after the time step has changed.

Reimplemented from DomainSolver.

References GridFunction::cg, DomainSolver::cg, Parameters::dbase, DomainSolver::debug(), grid, Parameters::gridIsMoving(), DomainSolver::imaginaryPartOfEigenvalue, Parameters::isAxisymmetric(), DomainSolver::parameters, printF(), DomainSolver::realPartOfEigenvalue, DomainSolver::twilightZoneFlow(), and DomainSolver::updateGeometryArrays().

Referenced by updateForMovingGrids().

void Cgins::updatePressureEquation	(	CompositeGrid &	cg0,
		GridFunction &	cgf
	)

virtual

References a, a0, assert(), axis, Parameters::axisymmetric, c, DomainSolver::cg, DomainSolver::checkArrays(), DomainSolver::coeff, InsParameters::convectiveOutflow, Parameters::dbase, DomainSolver::debug(), dimension, dirichlet, Parameters::dirichletBoundaryCondition, display(), DomainSolver::dt, equationDomainList, ForBoundary, getIndex(), EquationDomain::getPDE(), grid, ListOfEquationDomains::gridDomainNumberList, Parameters::gridIsMoving(), I1, I2, I3, InsParameters::inflowWithPressureAndTangentialVelocityGiven, InsParameters::inflowWithVelocityGiven, Parameters::interfaceBoundaryCondition, Parameters::isAxisymmetric(), Parameters::isMovingGridProblem(), m, mixedCoeff, mixedNormalCoeff, Parameters::neumannBoundaryCondition, Parameters::noSlipWall, Parameters::numberOfBCNames, DomainSolver::numberOfComponents(), ok, InsParameters::outflow, OV_ABORT(), DomainSolver::parameters, pc, Parameters::penaltyBoundaryCondition, DomainSolver::poisson, DomainSolver::pressureRightHandSide, printF(), Parameters::rKutta, side, Parameters::slipWall, Parameters::symmetry, GridFunction::t, InsParameters::tractionFree, InsParameters::twoPhaseFlowModel, GridFunction::u, u, uLocal, updateDivergenceDamping(), and updateTimeIndependentVariables().

Referenced by solveForTimeIndependentVariables(), updateForMovingGrids(), updateTimeIndependentVariables(), and updateToMatchGrid().

int Cgins::updateStateVariables	(	GridFunction &	cgf,
		int	stage = `-1`
	)

virtual

Ths function is used to update state-variables. For example, the visco plastic viscosity.

Parameters

cgf	(input/output)
stage	(input) : -1, 0 or 1

If stage equals -1 then update state variables at all points.

This function is used at two different stages for each time step. In the first stage, (stage=0) the function is called after the solution has been advanced (but before boundary conditions have been applied) to update any equilibrium state variables (and to limit any reacting species variables). Update all points of state variables that may be needed to apply the boundary conditions.

In the second stage, (stage=1) the function is called after the boundary conditions have been applied. Make sure that the state variables have been updated at all points after this step.

Reimplemented from DomainSolver.

References assert(), Parameters::BaldwinLomax, Parameters::dbase, DomainSolver::debug(), Parameters::kEpsilon, Parameters::kOmega, Parameters::LargeEddySimulation, Parameters::noTurbulenceModel, DomainSolver::parameters, printF(), Parameters::SpalartAllmaras, GridFunction::t, InsParameters::twoPhaseFlowModel, GridFunction::u, and InsParameters::viscoPlasticModel.
