GridFunctionFilter.C File Reference

#include "GridFunctionFilter.h"
#include "ParallelUtility.h"
#include "ParallelGridUtility.h"
#include "PlotStuff.h"

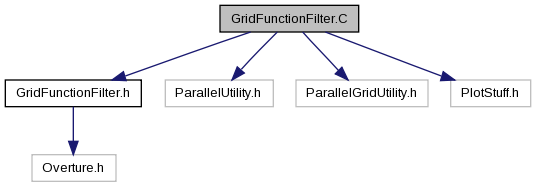

Include dependency graph for GridFunctionFilter.C:

Macros
#define	cgFilter   EXTERN_C_NAME(cgfilter)
#define	FD4A_2D(u, i1, i2, i3, c)
#define	FD4A_3D(u, i1, i2, i3, c)
#define	FD4V_2D(u, i1, i2, i3, c)
#define	FD4V_3D(u, i1, i2, i3, c)

Functions
void	cgFilter (const int &nd, const int &nd1a, const int &nd1b, const int &nd2a, const int &nd2b, const int &nd3a, const int &nd3b, const int &gridIndexRange, const real &u, const real &d, const int &mask, const int &boundaryCondition, const int &ipar, const real &rpar, int &ierr)

Macro Definition Documentation

#define cgFilter   EXTERN_C_NAME(cgfilter)

Referenced by GridFunctionFilter::applyFilter().

#define FD4A_2D	(		u,
			i1,
			i2,
			i3,
			c
	)

Value:

(     ( u(i1-2,i2,i3,c)+u(i1+2,i2,i3,c)+u(i1,i2-2,i3,c)+u(i1,i2+2,i3,c) )   \
        -4.*( u(i1-1,i2,i3,c)+u(i1+1,i2,i3,c)+u(i1,i2-1,i3,c)+u(i1,i2+1,i3,c) ) \
       +12.*u(i1,i2,i3,c) )

Referenced by GridFunctionFilter::applyFilter().

#define FD4A_3D	(		u,
			i1,
			i2,
			i3,
			c
	)

Value:

(     ( u(i1-2,i2,i3,c)+u(i1+2,i2,i3,c)+u(i1,i2-2,i3,c)+u(i1,i2+2,i3,c)+u(i1,i2,i3-2,c)+u(i1,i2,i3+2,c) )   \
        -4.*( u(i1-1,i2,i3,c)+u(i1+1,i2,i3,c)+u(i1,i2-1,i3,c)+u(i1,i2+1,i3,c)+u(i1,i2,i3-1,c)+u(i1,i2,i3+1,c) ) \
       +18.*u(i1,i2,i3,c) )

Referenced by GridFunctionFilter::applyFilter().

#define FD4V_2D	(		u,
			i1,
			i2,
			i3,
			c
	)

Value:

(     ax*( u(i1-2,i2,i3,c)+u(i1+2,i2,i3,c) )  \
           +ay*( u(i1,i2-2,i3,c)+u(i1,i2+2,i3,c) )   \
          -ax4*( u(i1-1,i2,i3,c)+u(i1+1,i2,i3,c) ) \
          -ay4*( u(i1,i2-1,i3,c)+u(i1,i2+1,i3,c) ) \
       + axy12*u(i1,i2,i3,c) )

#define FD4V_3D	(		u,
			i1,
			i2,
			i3,
			c
	)

Value:

(     ax*( u(i1-2,i2,i3,c)+u(i1+2,i2,i3,c) )\
           +ay*( u(i1,i2-2,i3,c)+u(i1,i2+2,i3,c) )\
           +az*( u(i1,i2,i3-2,c)+u(i1,i2,i3+2,c) ) \
          -ax4*( u(i1-1,i2,i3,c)+u(i1+1,i2,i3,c) ) \
          -ay4*( u(i1,i2-1,i3,c)+u(i1,i2+1,i3,c) ) \
          -az4*( u(i1,i2,i3-1,c)+u(i1,i2,i3+1,c) ) \
          +axyz18*u(i1,i2,i3,c) )

Function Documentation

void cgFilter	(	const int &	nd,
		const int &	nd1a,
		const int &	nd1b,
		const int &	nd2a,
		const int &	nd2b,
		const int &	nd3a,
		const int &	nd3b,
		const int &	gridIndexRange,
		const real &	u,
		const real &	d,
		const int &	mask,
		const int &	boundaryCondition,
		const int &	ipar,
		const real &	rpar,
		int &	ierr
	)
