CompositeSurface Class Reference

#include <CompositeSurface.h>

Inheritance diagram for CompositeSurface:
Inheritance graph
[legend]

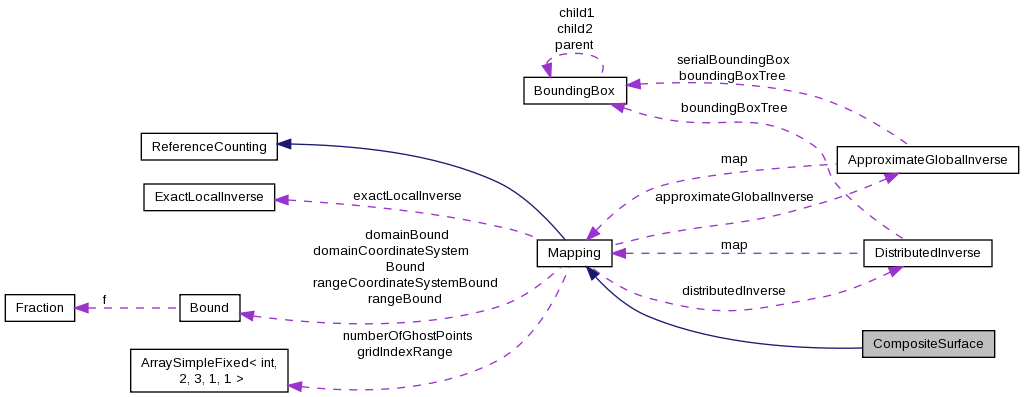

Collaboration diagram for CompositeSurface:
Collaboration graph
[legend]

Public Types

enum  DisplayListProperty { boundary =0, gridLines, shadedSurface, numberOfDLProperties }

- Public Types inherited from Mapping
enum  mappingSpace { parameterSpace, cartesianSpace }

enum  coordinateSystem {
  cartesian, spherical, cylindrical, polar,
  toroidal, numberOfCoordinateSystems
}

enum  coordinateSingularity { noCoordinateSingularity, polarSingularity }

enum  mappingCoordinateSystem { rectangular, conformal, orthogonal, general }

enum  periodicType { notPeriodic, derivativePeriodic, functionPeriodic }

enum  topologyEnum { topologyIsNotPeriodic =0, topologyIsPeriodic, topologyIsPartiallyPeriodic }

enum  mappingItemName {
  mappingName, domainName, rangeName, domainAxis1Name,
  domainAxis2Name, domainAxis3Name, rangeAxis1Name, rangeAxis2Name,
  rangeAxis3Name, numberOfMappingItemNames
}

enum  basicInverseOptions { canDoNothing, canDetermineOutside, canInvert, canInvertWithGoodGuess }

typedef ArraySimpleFixed< int, 2, 3, 1, 1 > IndexRangeType


Public Member Functions

 CompositeSurface ()

 CompositeSurface (const CompositeSurface &, const CopyType copyType=DEEP)

 ~CompositeSurface ()

CompositeSurface & operator= (const CompositeSurface &X0)

Mapping & operator[] (const int &subSurfaceIndex)

int add (Mapping &surface, const int &surfaceID=-1)

int findBoundaryCurves (int &numberOfBoundaryCurves, Mapping **&boundaryCurves)

virtual int get (const GenericDataBase &dir, const aString &name)

aString getClassName () const

aString getColour (const int &surfaceNumber) const

CompositeTopology * getCompositeTopology (bool alloc=false)

int getNormals (const intArray &subSurfaceIndex, const realArray &xr, realArray &normal) const

int & getSignForNormal (int s) const

real getTolerance () const

int insideOrOutside (realArray &x, IntegerArray &inside)

int isVisible (const int &surfaceNumber) const

Mapping * make (const aString &mappingClassName)

virtual void map (const realArray &r, realArray &x, realArray &xr=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

int numberOfSubSurfaces () const

int printStatistics (FILE *file=stdout)

void oldProject (intArray &subSurfaceIndex, realArray &x, realArray &rProject, realArray &xProject, realArray &xrProject, realArray &normal=Overture::nullRealDistributedArray(), const intArray &ignoreThisSubSurface=Overture::nullIntegerDistributedArray())

int project (realArray &x, MappingProjectionParameters &mpParameters)

void project (intArray &subSurfaceIndex, realArray &x, realArray &rProject, realArray &xProject, realArray &xrProject, realArray &normal=Overture::nullRealDistributedArray(), const intArray &ignoreThisSubSurface=Overture::nullIntegerDistributedArray(), bool invertUntrimmedSurface=false)

virtual int put (GenericDataBase &dir, const aString &name) const

int refineSubSurface (const int s)
 Refine the grid spacing or triangulation of a sub-surface. This is.

int remove (const int &surfaceNumber)

void recomputeBoundingBox ()

int setColour (const int &surfaceNumber, const aString &colour)

int setIsVisible (const int &surfaceNumber, const bool &trueOrFalse=TRUE)

int setTolerance (real tol)

int update (MappingInformation &mapInfo)

void updateTopology ()

void eraseCompositeSurface (GenericGraphicsInterface &gi, int surface=-1)

bool isTopologyDetermined () const

bool computeTopology (GenericGraphicsInterface &gi)

int getSurfaceID (int s) const

- Public Member Functions inherited from Mapping
 Mapping (int domainDimension=3, int rangeDimension=3, mappingSpace domainSpace=parameterSpace, mappingSpace rangeSpace=cartesianSpace, coordinateSystem domainCoordinateSystem=cartesian, coordinateSystem rangeCoordinateSystem=cartesian)

 Mapping (const Mapping &, const CopyType copyType=DEEP)

Mapping & operator= (const Mapping &X)

virtual ~Mapping ()

void reference (const Mapping &map)

void breakReference ()

virtual void inverseMap (const realArray &x, realArray &r, realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void basicInverse (const realArray &x, realArray &r, realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void mapC (const realArray &r, const realArray &x, const realArray &xr=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void inverseMapC (const realArray &x, const realArray &r, const realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void mapGrid (const realArray &r, realArray &x, realArray &xr=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual int intersects (Mapping &map2, const int &side1=-1, const int &axis1=-1, const int &side2=-1, const int &axis2=-1, const real &tol=0.) const

virtual void inverseMapGrid (const realArray &x, realArray &r, realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void mapS (const RealArray &r, RealArray &x, RealArray &xr=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void inverseMapS (const RealArray &x, RealArray &r, RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void basicInverseS (const RealArray &x, RealArray &r, RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void mapCS (const RealArray &r, const RealArray &x, const RealArray &xr=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void inverseMapCS (const RealArray &x, const RealArray &r, const RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void mapGridS (const RealArray &r, RealArray &x, RealArray &xr=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void inverseMapGridS (const RealArray &x, RealArray &r, RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual int projectS (RealArray &x, MappingProjectionParameters &mpParams)

virtual real sizeOf (FILE *file=NULL) const

virtual bool updateWithCommand (MappingInformation &mapInfo, const aString &command)

virtual int interactiveUpdate (GenericGraphicsInterface &gi)

virtual void display (const aString &label=blankString) const

int checkMapping ()

void reinitialize ()

int determineResolution (int numberOfGridPoints[], bool collapsedEdge[2][3], real averageArclength[], real elementDensityTolerance=.05)

void secondOrderDerivative (const Index &I, const realArray &r, realArray &xrr, const int axis, const int &rAxis)

int findNearestGridPoint (RealArray &x, RealArray &r, RealArray &dista, RealArray &xa)
 Find the nearest grid point to each of a given set of points x(i,.)

real getArcLength ()

basicInverseOptions getBasicInverseOption () const

int getBoundaryCondition (const int side, const int axis) const

virtual RealArray getBoundingBox (const int &side=-1, const int &axis=-1) const

virtual int getBoundingBox (const IntegerArray &indexRange, const IntegerArray &gridIndexRange, RealArray &xBounds, bool local=false) const

virtual int getBoundingBox (const RealArray &rBounds, RealArray &xBounds) const

const BoundingBox & getBoundingBoxTree (const int &side, const int &axis) const

int getCoordinateEvaluationType (const coordinateSystem type) const

Bound getDomainBound (const int side, const int axis) const

int getDomainDimension () const

coordinateSystem getDomainCoordinateSystem () const

Bound getDomainCoordinateSystemBound (const int side, const int axis) const

mappingSpace getDomainSpace () const

int getGridDimensions (const int axis) const

virtual const realArray & getGrid (MappingParameters &params=Overture::nullMappingParameters(), bool includeGhost=false)

virtual const RealArray & getGridSerial (MappingParameters &params=Overture::nullMappingParameters(), bool includeGhost=false)

int getID () const

int getInvertible () const

periodicType getIsPeriodic (const int axis) const

mappingCoordinateSystem getMappingCoordinateSystem () const

aString getName (const mappingItemName item) const

int getGridIndexRange (int side, int axis)

int getNumberOfGhostPoints (int side, int axis)

real getParameter (const MappingParameters::realParameter &param) const

int getParameter (const MappingParameters::intParameter &param) const

real getPeriodVector (const int axis, const int direction) const

Bound getRangeBound (const int side, const int axis) const

coordinateSystem getRangeCoordinateSystem () const

Bound getRangeCoordinateSystemBound (const int side, const int axis) const

int getRangeDimension () const

mappingSpace getRangeSpace () const

int getShare (const int side, const int axis) const

real getSignForJacobian () const

topologyEnum getTopology (const int side, const int axis) const

coordinateSingularity getTypeOfCoordinateSingularity (const int side, const int axis) const

bool gridIsValid () const

int hasACoordinateSingularity () const

intArray & topologyMask ()

void setArcLength (real length)

virtual void setBasicInverseOption (const basicInverseOptions option)

virtual void setBoundaryCondition (const int side, const int axis, const int bc)

virtual void setCoordinateEvaluationType (const coordinateSystem type, const int trueOrFalse)

virtual void setDomainBound (const int side, const int axis, const Bound domainBound)

virtual void setDomainCoordinateSystem (const coordinateSystem domainCoordinateSystem)

virtual void setDomainCoordinateSystemBound (const int side, const int axis, const Bound domainCoordinateSystemBound)

virtual void setDomainDimension (const int domainDimension)

virtual void setDomainSpace (const mappingSpace domainSpace)

virtual void setGrid (realArray &grid, IntegerArray &gridIndexRange)

virtual void setGridDimensions (const int axis, const int dim)

virtual void setInvertible (const int invertible)

void setID ()

virtual void setIsPeriodic (const int axis, const periodicType isPeriodic)

virtual void setMappingCoordinateSystem (const mappingCoordinateSystem mappingCoordinateSystem0)

virtual void setName (const mappingItemName item, const aString &name)

void setGridIndexRange (int side, int axis, int num)

void setNumberOfGhostPoints (int side, int axis, int numGhost)

virtual void setParameter (const MappingParameters::realParameter &param, const real &value)

virtual void setParameter (const MappingParameters::intParameter &param, const int &value)

void setPartition (Partitioning_Type &partition)

virtual void setPeriodVector (const int axis, const int direction, const real periodVectorComponent)

virtual void setRangeBound (const int side, const int axis, const Bound rangeBound)

virtual void setRangeCoordinateSystem (const coordinateSystem rangeCoordinateSystem)

virtual void setRangeCoordinateSystemBound (const int side, const int axis, const Bound rangeCoordinateSystemBound)

virtual void setRangeDimension (const int rangeDimension)

virtual void setRangeSpace (const mappingSpace rangeSpace)

virtual void setShare (const int side, const int axis, const int share)

void setSignForJacobian (const real signForJac)

virtual void setTopology (const int side, const int axis, const topologyEnum topo)

virtual void setTypeOfCoordinateSingularity (const int side, const int axis, const coordinateSingularity)

bool usesDistributedInverse () const

bool usesDistributedMap () const

virtual void useRobustInverse (const bool trueOrFalse=TRUE)

bool usingRobustInverse () const
 Return true if the robust inverse is used.

virtual int outside (const realArray &x)

virtual int setNumberOfGhostLines (IndexRangeType &numberOfGhostLinesNew)

void setNumberOfDistributedGhostLines (int numGhost)

void periodicShift (realArray &r, const Index &I)

Index getIndex (const realArray &r, realArray &x, const realArray &xr, int &base, int &bound, int &computeMap, int &computeMapDerivative)

- Public Member Functions inherited from ReferenceCounting
 ReferenceCounting ()

 ReferenceCounting (const ReferenceCounting &x, const CopyType ct=DEEP)

virtual ~ReferenceCounting ()

Integer incrementReferenceCount ()

Integer decrementReferenceCount ()

Integer getReferenceCount () const

Logical uncountedReferencesMayExist ()

Integer getGlobalID () const

void setGlobalID (int id)

virtual void consistencyCheck () const


Public Attributes

IntegerArray dList

bool plotGhostLines

- Public Attributes inherited from Mapping
int computeMap

int computeMapDerivative

int base

int bound

real signForJacobian

ApproximateGlobalInverse * approximateGlobalInverse

ExactLocalInverse * exactLocalInverse

DistributedInverse * distributedInverse


Protected Types

enum  TimingEnum {
  totalTime, timeToProject, timeToProjectInvertMapping, timeToProjectEvaluateMapping,
  numberOfTimings
}


Protected Member Functions

void initialize ()

void findNearbySurfaces (const int &s, realArray &r, const bool &doubleCheck, IntegerArray &consistent, IntegerArray &inconsistent)

int findOutwardTangent (Mapping &map, const realArray &r, const realArray &x, realArray &outwardTangent)

- Protected Member Functions inherited from Mapping
int buildMappingParametersDialog (DialogData &dialog)

int getMappingParametersOption (const aString &answer, DialogData &dialog, GenericGraphicsInterface &gi)
 : Look for a change to one of the mapping parameters.

int updateMappingParametersDialog (DialogData &dialog)

void initializePartition ()

int mappingHasChanged ()

void setGridIsValid ()

void setDefaultMappingBounds (const mappingSpace ms, Bound mappingBound[3][2])

void setDefaultCoordinateSystemBounds (const coordinateSystem cs, Bound csBound[3][2])

int validSide (const int side) const

int validAxis (const int axis) const

void mappingError (const aString &subName, const int side, const int axis) const


Protected Attributes

IntegerArray visible

IntegerArray surfaceIdentifier

aString * surfaceColour

real tolerance

real timing [numberOfTimings]

- Protected Attributes inherited from Mapping
int dataBaseID

aString className

int domainDimension

int rangeDimension

int bc [2][3]

int share [2][3]

periodicType isPeriodic [3]

real periodVector [3][3]

int invertible

basicInverseOptions basicInverseOption

int periodicityOfSpace

coordinateSingularity typeOfCoordinateSingularity [2][3]

int coordinateEvaluationType [numberOfCoordinateSystems]

IndexRangeType gridIndexRange

IndexRangeType numberOfGhostPoints

realArray grid

bool inverseIsDistributed

bool mapIsDistributed

int numberOfDistributedGhostLines

bool partitionInitialized

Partitioning_Type partition

mappingSpace domainSpace

mappingSpace rangeSpace

coordinateSystem domainCoordinateSystem

coordinateSystem rangeCoordinateSystem

mappingCoordinateSystem mappingCoordinateSystem0

Bound domainBound [3][2]

Bound rangeBound [3][2]

Bound domainCoordinateSystemBound [3][2]

Bound rangeCoordinateSystemBound [3][2]

topologyEnum topology [3][2]

intArray * topologyMaskPointer

real arcLength

bool remakeGrid

bool remakeGridSerial


Additional Inherited Members

- Static Public Member Functions inherited from Mapping
static void openDebugFiles ()

static void closeDebugFiles ()

static real epsilon ()

static void setMinimumNumberOfDistributedGhostLines (int numGhost)

static int getGridMinAndMax (const realArray &u, const Range &R1, const Range &R2, const Range &R3, real uMin[3], real uMax[3], bool local=false)

static Mapping * makeMapping (const aString &mappingClassName)

static MappingLinkedList & staticMapList ()

- Static Public Attributes inherited from Mapping
static int useInitialGuessForInverse =TRUE

static int debug =0

static FILE * debugFile =NULL

static FILE * pDebugFile =NULL

static const real bogus =10.

- Static Protected Attributes inherited from Mapping
static int defaultNumberOfGhostPoints =0

static int minimumNumberOfDistributedGhostLines =1


Member Enumeration Documentation

enum CompositeSurface::DisplayListProperty
Enumerator
boundary
gridLines
shadedSurface
numberOfDLProperties
enum CompositeSurface::TimingEnum
protected
Enumerator
totalTime
timeToProject
timeToProjectInvertMapping
timeToProjectEvaluateMapping
numberOfTimings

Constructor & Destructor Documentation

CompositeSurface::CompositeSurface ( )

References FALSE, Mapping::mappingName, NULL, numberOfTimings, plotGhostLines, Mapping::setName(), surfaceColour, timing, and tolerance.

Referenced by make().

CompositeSurface::CompositeSurface ( const CompositeSurface &  X0,
const CopyType  copyType = DEEP
)
CompositeSurface::~CompositeSurface ( )

References surfaceColour.

Member Function Documentation

int CompositeSurface::add ( Mapping &  surface,
const int &  surfaceID = -1
)

References ListOfMappingRC::addElement(), aString, boundary, dList, End, FALSE, Mapping::getClassName(), Mapping::getGrid(), Mapping::getRangeBound(), Mapping::getRangeDimension(), TrimmedMapping::getTriangulation(), Bound::isFinite(), Mapping::mappingHasChanged(), max(), min(), numberOfDLProperties, R, Mapping::rangeDimension, s, Mapping::setRangeBound(), Start, TrimmedMapping::surface, surfaceColour, surfaceIdentifier, TrimmedMapping::trimmingIsValid(), TRUE, and visible.

Referenced by MappingBuilder::build(), MappingBuilder::buildBoxGrid(), MappingBuilder::buildSurfacePatch(), rapOpenModel(), MappingsFromCAD::readMappings(), MappingsFromCAD::readSomeNurbs(), and update().

bool CompositeSurface::computeTopology ( GenericGraphicsInterface &  gi)

References CompositeTopology::computeTopology(), CompositeTopology::getSignForNormal(), and CompositeTopology::invalidateTopology().

void CompositeSurface::eraseCompositeSurface ( GenericGraphicsInterface &  gi,
int  surface = -1
)

References boundary, GenericGraphicsInterface::deleteList(), dList, gridLines, GenericGraphicsInterface::isGraphicsWindowOpen(), numberOfSubSurfaces(), GenericGraphicsInterface::redraw(), s, and shadedSurface.

Referenced by MappingBuilder::assignBoundaryConditions(), MappingBuilder::build(), MappingBuilder::buildBoxGrid(), MappingBuilder::buildSurfacePatch(), TrimmedMappingBuilder::buildTrimmedMapping(), and update().

int CompositeSurface::findBoundaryCurves ( int &  numberOfBoundaryCurves,
Mapping **&  boundaryCurves
)

References CompositeTopology::findBoundaryCurves(), and NULL.

void CompositeSurface::findNearbySurfaces ( const int &  s,
realArray &  r,
const bool &  doubleCheck,
IntegerArray &  consistent,
IntegerArray &  inconsistent
)
protected

References abs(), Mapping::approximateGlobalInverse, boundingBox, Mapping::debug, End, fabs(), findOutwardTangent(), ApproximateGlobalInverse::getBoundingBox(), getNormals(), map(), Mapping::map(), max(), normal, project(), r, Mapping::rangeDimension, s, Start, TRUE, x, and xr.

int CompositeSurface::findOutwardTangent ( Mapping &  map,
const realArray &  r,
const realArray &  x,
realArray &  outwardTangent
)
protected

References c, Mapping::debug, evaluate(), fabs(), TrimmedMapping::findClosestCurve(), Mapping::getClassName(), TrimmedMapping::innerCurve, TrimmedMapping::insideOrOutside(), Mapping::map(), min(), TrimmedMapping::outerCurve, r, SQR, and SQRT.

Referenced by findNearbySurfaces().

int CompositeSurface::get ( const GenericDataBase &  dir,
const aString &  name
)
virtual

Reimplemented from Mapping.

References ListOfMappingRC::addElement(), aString, boundary, ReferenceCounting::decrementReferenceCount(), dList, End, CompositeTopology::get(), GenericDataBase::get(), Mapping::get(), Mapping::getRangeBound(), Mapping::getRangeDimension(), ReferenceCounting::incrementReferenceCount(), Bound::isFinite(), GenericDataBase::locate(), Mapping::makeMapping(), max(), min(), NULL, numberOfDLProperties, REAL_MAX, SC, GenericDataBase::setMode(), Mapping::setRangeBound(), Start, GenericDataBase::streamInputMode, surfaceColour, surfaceIdentifier, tolerance, GenericDataBase::virtualConstructor(), and visible.

Referenced by createMappings(), and rapOpenModel().

aString CompositeSurface::getClassName ( void  ) const
inlinevirtual

Reimplemented from Mapping.

Referenced by UnstructuredMapping::buildFromACompositeSurface(), CurveSegment::get(), improveTriangulation(), oldProject(), project(), CurveSegment::put(), and splitFace2().

aString CompositeSurface::getColour ( const int &  surfaceNumber) const

References surfaceColour.

Referenced by PlotIt::plotCompositeSurface().

CompositeTopology * CompositeSurface::getCompositeTopology ( bool  alloc = false)

Referenced by HyperbolicMapping::buildCurve(), MappingBuilder::buildSurfacePatch(), HyperbolicMapping::correctProjectionOfInitialCurve(), HyperbolicMapping::createCurveOnSurface(), HyperbolicMapping::drawBoundariesAndCurves(), HyperbolicMapping::drawReferenceSurface(), evaluateDeviation(), main(), MappingBuilder::plot(), refineVisibleSurfaces(), HyperbolicMapping::update(), and HyperbolicMapping::updateBoundaryConditionMappings().

int CompositeSurface::getNormals ( const intArray &  subSurfaceIndex,
const realArray &  xr,
realArray &  normal
) const

References l2Norm(), max(), normal, R, SQR, SQRT, and xr.

Referenced by findNearbySurfaces(), oldProject(), PlotIt::plotSubSurfaceNormals(), and project().

int & CompositeSurface::getSignForNormal ( int  s) const

Referenced by project(), and HyperbolicMapping::project().

int CompositeSurface::getSurfaceID ( int  s) const
inline

References surfaceIdentifier.

Referenced by rapOpenModel().

real CompositeSurface::getTolerance ( ) const

References tolerance.

Referenced by CompositeTopology::initializeTopology().

void CompositeSurface::initialize ( )
protected

References Mapping::getClassName(), map(), and s.

int CompositeSurface::insideOrOutside ( realArray &  x,
IntegerArray &  inside
)

References CompositeTopology::getTriangulation(), UnstructuredMapping::insideOrOutside(), and NULL.

bool CompositeSurface::isTopologyDetermined ( ) const
inline

Referenced by evaluateDeviation(), main(), and PlotIt::plotSubSurfaceNormals().

int CompositeSurface::isVisible ( const int &  surfaceNumber) const

Referenced by CompositeTopology::buildTriangulationForVisibleSurfaces(), IntersectionMapping::intersectWithCompositeSurface(), PlotIt::plotCompositeSurface(), and project().

Mapping * CompositeSurface::make ( const aString &  mappingClassName)
virtual

Reimplemented from Mapping.

References CompositeSurface().

void CompositeSurface::map ( const realArray &  r,
realArray &  x,
realArray &  xr = Overture::nullRealDistributedArray(),
MappingParameters &  params = Overture::nullMappingParameters()
)
virtual

Reimplemented from Mapping.

Referenced by findNearbySurfaces(), initialize(), splitElement(), and splitFace().

int CompositeSurface::numberOfSubSurfaces ( ) const

Referenced by CompositeTopology::adjustEndPoints(), MappingBuilder::build(), MappingBuilder::buildBoxGrid(), HyperbolicMapping::buildCurve(), CompositeTopology::buildEdgeCurveBoundaryNodes(), CompositeTopology::buildEdgeCurves(), buildEdgeCurves(), CompositeTopology::buildEdgeCurveSearchTree(), UnstructuredMapping::buildFromACompositeSurface(), TrimmedMappingBuilder::buildTrimmedMapping(), CompositeTopology::checkConsistency(), HyperbolicMapping::correctProjectionOfInitialCurve(), HyperbolicMapping::createCurveOnSurface(), createMappings(), CompositeTopology::edgeFromNumber(), eraseCompositeSurface(), CompositeTopology::findBoundaryCurves(), CompositeTopology::get(), CompositeTopology::getAnotherEdge(), improveTriangulation(), CompositeTopology::initializeTopology(), IntersectionMapping::intersectWithCompositeSurface(), PlotIt::plotCompositeSurface(), PlotIt::plotSubSurfaceNormals(), plotSurfaceAndEdges(), CompositeTopology::printEdgeCurveInfo(), project(), HyperbolicMapping::project(), rapOpenModel(), refineSubSurface(), refineVisibleSurfaces(), CompositeTopology::setupAllEdges(), CompositeTopology::splitAndMergeEdgeCurves(), splitElement(), splitFace(), splitFace2(), CompositeTopology::triangulateCompositeSurface(), CompositeTopology::update(), update(), HyperbolicMapping::update(), and UnstructuredMapping::update().

void CompositeSurface::oldProject ( intArray &  subSurfaceIndex,
realArray &  x,
realArray &  rProject,
realArray &  xProject,
realArray &  xrProject,
realArray &  normal = Overture::nullRealDistributedArray(),
const intArray &  ignoreThisSubSurface = Overture::nullIntegerDistributedArray()
)

References boundingBox, Mapping::debug, TrimmedMapping::distanceToBoundary, End, fabs(), FALSE, getClassName(), getNormals(), Mapping::inverseMapC(), MappingParameters::mask, mask, max(), min(), R, Mapping::rangeDimension, REAL_MAX, SQR, Start, TrimmedMapping::surface, TRUE, and xr.

CompositeSurface & CompositeSurface::operator= ( const CompositeSurface &  X0)

References aString, dList, NULL, s, surfaceColour, surfaceIdentifier, tolerance, and visible.

Mapping & CompositeSurface::operator[] ( const int &  subSurfaceIndex)
int CompositeSurface::printStatistics ( FILE *  file = stdout)

References aString, CompositeTopology::getTriangulation(), max(), NULL, numberOfTimings, UnstructuredMapping::printStatistics(), REAL_MIN, timing, and totalTime.

int CompositeSurface::project ( realArray &  x,
MappingProjectionParameters &  mpParameters
)
virtual

Reimplemented from Mapping.

References assert, axis1, axis2, axis3, Mapping::debug, Mapping::domainDimension, fabs(), getClassName(), MappingProjectionParameters::getIntArray(), MappingProjectionParameters::getMatchNormals(), UnstructuredMapping::getNumberOfElements(), MappingProjectionParameters::getRealArray(), getSignForNormal(), UnstructuredMapping::getTags(), CompositeTopology::getTriangulation(), Mapping::inverseMap(), Mapping::map(), max(), normal, NULL, numberOfSubSurfaces(), printF(), UnstructuredMapping::project(), MappingProjectionParameters::projectOntoReferenceSurface(), r, R, Mapping::rangeDimension, REAL_MIN, s, SQR, and SQRT.

Referenced by AdvancingFront::advanceFront(), equiGridSmoother(), evaluateDeviation(), findNearbySurfaces(), EllipticGridGenerator::projectBoundaryPoints(), and update().

void CompositeSurface::project ( intArray &  subSurfaceIndex,
realArray &  x,
realArray &  rProject,
realArray &  xProject,
realArray &  xrProject,
realArray &  normal = Overture::nullRealDistributedArray(),
const intArray &  ignoreThisSubSurface = Overture::nullIntegerDistributedArray(),
bool  invertUntrimmedSurface = false
)

References assert, Mapping::bogus, Mapping::debug, End, Mapping::epsilon(), evaluate(), fabs(), FALSE, ReferenceCounting::getClassName(), getCPU(), getNormals(), Mapping::getRangeBound(), Mapping::inverseMapC(), isVisible(), Mapping::mapC(), MappingParameters::mask, mask, max(), min(), Overture::nullRealDistributedArray(), R, Mapping::rangeDimension, REAL_EPSILON, REAL_MAX, SQR, SQRT, Start, timeToProject, timeToProjectEvaluateMapping, timeToProjectInvertMapping, timing, totalTime, TRUE, TrimmedMapping::untrimmedSurface(), and xr.

int CompositeSurface::put ( GenericDataBase &  dir,
const aString &  name
) const
virtual

Reimplemented from Mapping.

References aString, GenericDataBase::create(), ReferenceCounting::getClassName(), getCPU(), NULL, CompositeTopology::put(), GenericDataBase::put(), Mapping::put(), GenericDataBase::setMode(), GenericDataBase::streamOutputMode, surfaceColour, surfaceIdentifier, tolerance, GenericDataBase::virtualConstructor(), and visible.

void CompositeSurface::recomputeBoundingBox ( )

References End, Bound::isFinite(), max(), min(), Mapping::rangeDimension, REAL_MAX, s, Mapping::setRangeBound(), and Start.

int CompositeSurface::refineSubSurface ( const int  s)

Refine the grid spacing or triangulation of a sub-surface. This is.

Parameters
s(input) : sub-surface to refine

References Mapping::domainDimension, Mapping::getClassName(), Mapping::getDomainDimension(), Mapping::getGridDimensions(), UnstructuredMapping::getNumberOfElements(), TrimmedMapping::getTriangulation(), TrimmedMapping::getTriangulationParameters(), Mapping::map(), numberOfSubSurfaces(), printF(), s, TrimmedMapping::setElementDensityToleranceForTriangulation(), Mapping::setGridDimensions(), TrimmedMapping::setMaxAreaForTriangulation(), SQR, TrimmedMapping::triangulate(), TrimmedMapping::trimmingIsValid(), and TrimmedMapping::untrimmedSurface().

Referenced by update().

int CompositeSurface::remove ( const int &  surfaceNumber)

References boundary, ListOfMappingRC::deleteElement(), dList, Mapping::mappingHasChanged(), numberOfDLProperties, s, S, surfaceColour, surfaceIdentifier, and visible.

Referenced by MappingBuilder::build(), and MappingBuilder::buildBoxGrid().

int CompositeSurface::setColour ( const int &  surfaceNumber,
const aString &  colour
)

References surfaceColour.

Referenced by MappingBuilder::build(), MappingBuilder::buildBoxGrid(), TrimmedMappingBuilder::buildTrimmedMapping(), PlotIt::plotCompositeSurface(), plotSurfaceAndEdges(), MappingsFromCAD::readMappings(), MappingsFromCAD::readSomeNurbs(), and update().

int CompositeSurface::setIsVisible ( const int &  surfaceNumber,
const bool &  trueOrFalse = TRUE
)

References visible.

Referenced by MappingBuilder::assignBoundaryConditions(), and HyperbolicMapping::update().

int CompositeSurface::setTolerance ( real  tol)

References tolerance.

Referenced by MappingsFromCAD::readMappings().

int CompositeSurface::update ( MappingInformation &  mapInfo)
virtual

Reimplemented from Mapping.

References add(), addPrefix(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, GUIState::buildPopup(), GenericGraphicsInterface::chooseAColour(), GraphicsParameters::colourByGrid, MappingInformation::command, MappingInformation::commandOption, Mapping::debug, GraphicsParameters::defaultColour, End, GenericGraphicsInterface::erase(), eraseCompositeSurface(), fabs(), FALSE, GraphicsParameters::get(), GenericGraphicsInterface::getAnswer(), MappingRC::getClassName(), Mapping::getClassName(), GenericGraphicsInterface::getColourName(), MappingRC::getDomainDimension(), ReferenceCounting::getGlobalID(), MappingProjectionParameters::getIntArray(), ListOfMappingRC::getLength(), MappingRC::getName(), Mapping::getName(), UnstructuredMapping::getNumberOfElements(), Mapping::getRangeBound(), MappingRC::getRangeDimension(), TrimmedMapping::getTriangulation(), GI_GRID_LINE_COLOUR_OPTION, GI_LABEL_GRIDS_AND_BOUNDARIES, GI_PLOT_LABELS, GI_PLOT_LINES_ON_MAPPING_BOUNDARIES, GI_PLOT_MAPPING_EDGES, GI_PLOT_MAPPING_NORMALS, GI_PLOT_SHADED_MAPPING_BOUNDARIES, GI_PLOT_THE_OBJECT_AND_EXIT, GI_POINT_SIZE, GI_TOP_LABEL, SelectionInfo::globalID, MappingInformation::gp_, MappingInformation::graphXInterface, TrimmedMapping::hasTriangulation(), GenericGraphicsInterface::inputString(), MappingInformation::interactive, MappingInformation::interface, Mapping::inverseMap(), Mapping::map(), MappingInformation::mappingList, Mapping::mappingName, MappingRC::mapPointer, max(), min(), SelectionInfo::nSelect, NULL, numberOfSubSurfaces(), OptionMenu::optionList, GenericGraphicsInterface::outputString(), GenericGraphicsInterface::outputToCommandFile(), PlotIt::plot(), GenericGraphicsInterface::plotPoints(), GenericGraphicsInterface::popGUI(), printF(), project(), GenericGraphicsInterface::pushGUI(), q, r, SelectionInfo::r, Mapping::rangeDimension, MappingInformation::readOneCommand, REAL_MAX, REAL_MIN, refineSubSurface(), s, GenericGraphicsInterface::savePickCommands(), SC, SelectionInfo::selection, MappingInformation::selectPtr, GraphicsParameters::set(), GenericGraphicsInterface::setAxesDimension(), setColour(), OptionMenu::setCurrentChoice(), DialogData::setExitCommand(), Mapping::setName(), Mapping::setRangeBound(), PushButton::setSensitive(), DialogData::setWindowTitle(), sPrintF(), SQR, sScanF(), Start, GenericGraphicsInterface::stopReadingCommandFile(), MappingProjectionParameters::subSurfaceIndex, surfaceColour, surfaceIdentifier, DialogData::textBoxWidget, TrimmedMapping::trimmingIsValid(), TRUE, GenericGraphicsInterface::unAppendTheDefaultPrompt(), Mapping::update(), updateTopology(), visible, SelectionInfo::x, x, and xr.

Referenced by MappingsFromCAD::readMappings(), and CompositeTopology::update().

void CompositeSurface::updateTopology ( )

References CompositeTopology::getSignForNormal(), NULL, CompositeTopology::topologyDetermined(), and CompositeTopology::update().

Referenced by evaluateDeviation(), main(), and update().

Member Data Documentation

IntegerArray CompositeSurface::dList

Referenced by add(), eraseCompositeSurface(), get(), operator=(), PlotIt::plotCompositeSurface(), and remove().

bool CompositeSurface::plotGhostLines

Referenced by CompositeSurface(), MappingBuilder::MappingBuilder(), and PlotIt::plotCompositeSurface().

aString* CompositeSurface::surfaceColour
protected

Referenced by add(), CompositeSurface(), get(), getColour(), operator=(), put(), remove(), setColour(), update(), and ~CompositeSurface().

IntegerArray CompositeSurface::surfaceIdentifier
protected

Referenced by add(), get(), getSurfaceID(), operator=(), put(), remove(), and update().

real CompositeSurface::timing[numberOfTimings]
protected

Referenced by CompositeSurface(), printStatistics(), and project().

real CompositeSurface::tolerance
protected

Referenced by CompositeSurface(), get(), getTolerance(), operator=(), put(), and setTolerance().

IntegerArray CompositeSurface::visible
protected

Referenced by add(), get(), operator=(), put(), remove(), setIsVisible(), and update().

The documentation for this class was generated from the following files:
Generated on Fri Jan 4 2013 10:18:07 for Overture by   doxygen 1.8.3
