operatorAveraging.C File Reference

#include "Ogmg.h"
#include "SparseRep.h"
#include "ParallelUtility.h"

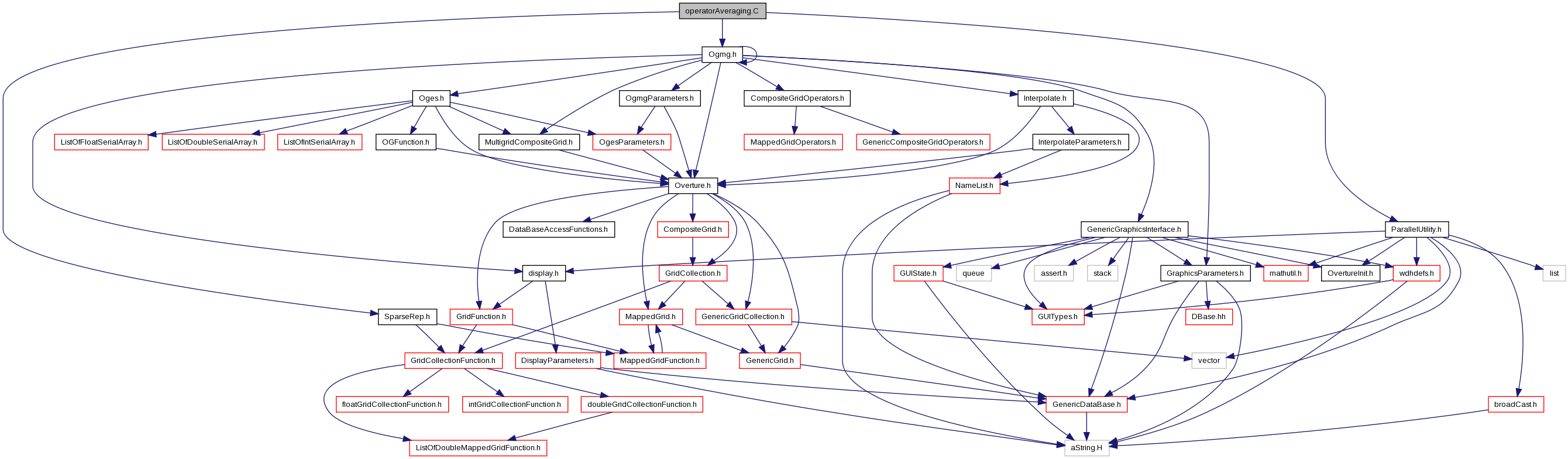

Include dependency graph for operatorAveraging.C:

Macros
#define	ForBoundary(side, axis)
#define	FOR_3(i1, i2, i3, I1, I2, I3)
#define	FOR_3D(i1, i2, i3, I1, I2, I3)
#define	M123(m1, m2, m3)   (m1+halfWidth1+width*(m2+halfWidth2+width*(m3+halfWidth3)))
#define	CE(c, e)   (stencilSize*((c)+numberOfComponentsForCoefficients*(e)))
#define	M123CE(m1, m2, m3, c, e)   (M123(m1,m2,m3)+CE(c,e))
#define	ForStencil(m1, m2, m3)
#define	averageOpt   EXTERN_C_NAME(averageopt)
#define	FW0_1D_0(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m0,I1-1,I2,I3)+.5*F(m1,I1-1,I2,I3)+F(m0,I1 ,I2,I3)) )
#define	FW0_1D_1(F, m0, m1, m2, I1, I2, I3)
#define	FW0_1D_2(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m2,I1 ,I2,I3)+.5*F(m1,I1+1,I2,I3)+F(m2,I1+1,I2,I3)) )
#define	FW1_1D_0(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m0,I1,I2-1,I3)+.5*F(m1,I1,I2-1,I3)+F(m0,I1,I2 ,I3)) )
#define	FW1_1D_1(F, m0, m1, m2, I1, I2, I3)
#define	FW1_1D_2(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m2,I1 ,I2,I3)+.5*F(m1,I1,I2+1,I3)+F(m2,I1,I2+1,I3)) )
#define	FW2_1D_0(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m0,I1,I2,I3-1)+.5*F(m1,I1,I2,I3-1)+F(m0,I1,I2 ,I3)) )
#define	FW2_1D_1(F, m0, m1, m2, I1, I2, I3)
#define	FW2_1D_2(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m2,I1 ,I2,I3)+.5*F(m1,I1,I2,I3+1)+F(m2,I1,I2,I3+1)) )
#define	INJECTION_1D_0(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m0,I1,I2,I3)+.5*F(m1,I1,I2,I3)+F(m0,I1,I2,I3)) )
#define	INJECTION_1D_1(F, m0, m1, m2, I1, I2, I3)
#define	INJECTION_1D_2(F, m0, m1, m2, I1, I2, I3)   (.25*(F(m2,I1,I2,I3)+.5*F(m1,I1,I2,I3)+F(m2,I1,I2,I3)) )

Functions
void	averageOpt (const int &nd, const int &nd1a, const int &nd1b, const int &nd2a, const int &nd2b, const int &nd3a, const int &nd3b, const int &md1a, const int &md1b, const int &md2a, const int &md2b, const int &md3a, const int &md3b, const int &j1a, const int &j1b, const int &j2a, const int &j2b, const int &j3a, const int &j3b, const int &i1a, const int &i1b, const int &i1c, const int &i2a, const int &i2b, const int &i2c, const int &i3a, const int &i3b, const int &i3c, const int &i1pa, const int &i1pb, const int &i2pa, const int &i2pb, const int &i3pa, const int &i3pb, const int &ndc, const real &cFine, real &cCoarse, const int &ndc0, real &c0, real &c1, const int &option, const int &orderOfAccuracy, const int &ipar)

Macro Definition Documentation

#define averageOpt   EXTERN_C_NAME(averageopt)

Referenced by Ogmg::averageCoefficients().

#define CE	(		c,
			e
	)		(stencilSize*((c)+numberOfComponentsForCoefficients*(e)))

#define FOR_3	(		i1,
			i2,
			i3,
			I1,
			I2,
			I3
	)

Value:

I1Base=I1.getBase(); I2Base=I2.getBase(); I3Base=I3.getBase();\
  I1Bound=I1.getBound(); I2Bound=I2.getBound(); I3Bound=I3.getBound();\
  for( int i3=I3Base; i3<=I3Bound; i3++ )  \
  for( int i2=I2Base; i2<=I2Bound; i2++ )  \
  for( int i1=I1Base; i1<=I1Bound; i1++ )

Referenced by Ogmg::operatorAveraging().

#define FOR_3D	(		i1,
			i2,
			i3,
			I1,
			I2,
			I3
	)

Value:

int I1Base=I1.getBase(), I2Base=I2.getBase(), I3Base=I3.getBase(),\
  I1Bound=I1.getBound(), I2Bound=I2.getBound(), I3Bound=I3.getBound();\
  for( int i3=I3Base; i3<=I3Bound; i3++ )  \
  for( int i2=I2Base; i2<=I2Bound; i2++ )  \
  for( int i1=I1Base; i1<=I1Bound; i1++ )

Referenced by Ogmg::operatorAveraging().

#define ForBoundary	(		side,
			axis
	)

Value:

for( axis=0; axis<numberOfDimensions; axis++ ) \
                                 for( side=0; side<=1; side++ )

#define ForStencil	(		m1,
			m2,
			m3
	)

Value:

for( m3=-halfWidth3; m3<=halfWidth3; m3++) \
        for( m2=-halfWidth2; m2<=halfWidth2; m2++) \
        for( m1=-halfWidth1; m1<=halfWidth1; m1++)

Referenced by Ogmg::operatorAveraging().

#define FW0_1D_0	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m0,I1-1,I2,I3)+.5*F(m1,I1-1,I2,I3)+F(m0,I1 ,I2,I3)) )

Referenced by Ogmg::averageCoefficients().

#define FW0_1D_1	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)

Value:

(.5*F(m1,I1  ,I2,I3)+.125*(F(m1,I1-1,I2,I3)+F(m1,I1+1,I2,I3))+ \
                                     .25*(F(m2,I1-1,I2,I3)+F(m2,I1  ,I2,I3)+ \
                                          F(m0,I1  ,I2,I3)+F(m0,I1+1,I2,I3)) )

Referenced by Ogmg::averageCoefficients().

#define FW0_1D_2	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m2,I1 ,I2,I3)+.5*F(m1,I1+1,I2,I3)+F(m2,I1+1,I2,I3)) )

Referenced by Ogmg::averageCoefficients().

#define FW1_1D_0	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m0,I1,I2-1,I3)+.5*F(m1,I1,I2-1,I3)+F(m0,I1,I2 ,I3)) )

Referenced by Ogmg::averageCoefficients().

#define FW1_1D_1	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)

Value:

(.5*F(m1,I1  ,I2,I3)+.125*(F(m1,I1,I2-1,I3)+F(m1,I1,I2+1,I3))+ \
                                     .25*(F(m2,I1,I2-1,I3)+F(m2,I1  ,I2,I3)+ \
                                          F(m0,I1  ,I2,I3)+F(m0,I1,I2+1,I3)) )

Referenced by Ogmg::averageCoefficients().

#define FW1_1D_2	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m2,I1 ,I2,I3)+.5*F(m1,I1,I2+1,I3)+F(m2,I1,I2+1,I3)) )

Referenced by Ogmg::averageCoefficients().

#define FW2_1D_0	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m0,I1,I2,I3-1)+.5*F(m1,I1,I2,I3-1)+F(m0,I1,I2 ,I3)) )

Referenced by Ogmg::averageCoefficients().

#define FW2_1D_1	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)

Value:

(.5*F(m1,I1  ,I2,I3)+.125*(F(m1,I1,I2,I3-1)+F(m1,I1,I2,I3+1))+ \
                                     .25*(F(m2,I1,I2,I3-1)+F(m2,I1  ,I2,I3)+ \
                                          F(m0,I1  ,I2,I3)+F(m0,I1,I2,I3+1)) )

Referenced by Ogmg::averageCoefficients().

#define FW2_1D_2	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m2,I1 ,I2,I3)+.5*F(m1,I1,I2,I3+1)+F(m2,I1,I2,I3+1)) )

Referenced by Ogmg::averageCoefficients().

#define INJECTION_1D_0	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m0,I1,I2,I3)+.5*F(m1,I1,I2,I3)+F(m0,I1,I2,I3)) )

Referenced by Ogmg::averageCoefficients().

#define INJECTION_1D_1	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)

Value:

(.5*F(m1,I1,I2,I3)+.125*(F(m1,I1,I2,I3)+F(m1,I1,I2,I3))+ \
                                     .25*(F(m2,I1,I2,I3)+F(m2,I1,I2,I3)+ \
                                          F(m0,I1,I2,I3)+F(m0,I1,I2,I3)) )

Referenced by Ogmg::averageCoefficients().

#define INJECTION_1D_2	(		F,
			m0,
			m1,
			m2,
			I1,
			I2,
			I3
	)		(.25*(F(m2,I1,I2,I3)+.5*F(m1,I1,I2,I3)+F(m2,I1,I2,I3)) )

Referenced by Ogmg::averageCoefficients().

#define M123	(		m1,
			m2,
			m3
	)		(m1+halfWidth1+width*(m2+halfWidth2+width*(m3+halfWidth3)))

#define M123CE	(		m1,
			m2,
			m3,
			c,
			e
	)		(M123(m1,m2,m3)+CE(c,e))

Referenced by Ogmg::operatorAveraging().

Function Documentation

void averageOpt	(	const int &	nd,
		const int &	nd1a,
		const int &	nd1b,
		const int &	nd2a,
		const int &	nd2b,
		const int &	nd3a,
		const int &	nd3b,
		const int &	md1a,
		const int &	md1b,
		const int &	md2a,
		const int &	md2b,
		const int &	md3a,
		const int &	md3b,
		const int &	j1a,
		const int &	j1b,
		const int &	j2a,
		const int &	j2b,
		const int &	j3a,
		const int &	j3b,
		const int &	i1a,
		const int &	i1b,
		const int &	i1c,
		const int &	i2a,
		const int &	i2b,
		const int &	i2c,
		const int &	i3a,
		const int &	i3b,
		const int &	i3c,
		const int &	i1pa,
		const int &	i1pb,
		const int &	i2pa,
		const int &	i2pb,
		const int &	i3pa,
		const int &	i3pb,
		const int &	ndc,
		const real &	cFine,
		real &	cCoarse,
		const int &	ndc0,
		real &	c0,
		real &	c1,
		const int &	option,
		const int &	orderOfAccuracy,
		const int &	ipar
	)
