GL_GraphicsInterface Class Reference

#include <GL_GraphicsInterface.h>

Inheritance diagram for GL_GraphicsInterface:

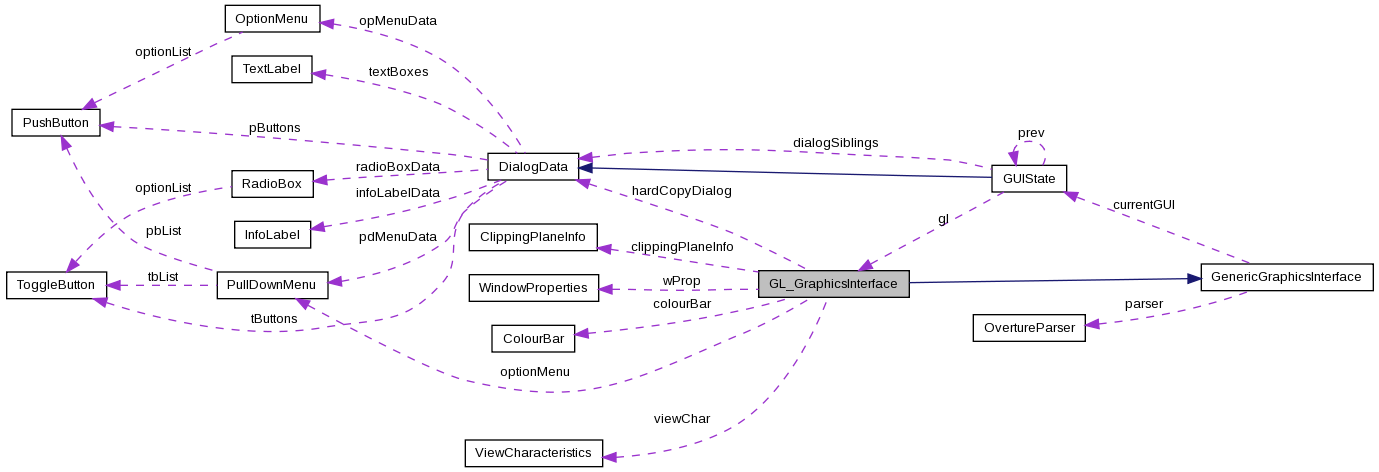

Collaboration diagram for GL_GraphicsInterface:

Public Types
enum	{ maximumNumberOfClippingPlanes =6, maximumNumberOfTextStrings =25 }
Public Types inherited from GenericGraphicsInterface
enum	HardCopyRenderingEnum { offScreenRender, frameBuffer }
enum	{ defaultOrigin =-(INT_MAX/2) }
enum	ItemColourEnum { backGroundColour =0, textColour, numberOfItemColours }
enum	{ numberOfColourNames =25 }
enum	ViewParameters {   xAxisAngle, yAxisAngle, zAxisAngle, xTranslation,   yTranslation, zTranslation, magnification }
enum	displayListProperty { lightDL = 1, plotDL = 2, hideableDL = 4, interactiveDL = 8 }

Public Member Functions
	GL_GraphicsInterface (const aString &windowTitle="Your Slogan Here")
	GL_GraphicsInterface (int &argc, char *argv[], const aString &windowTitle="Your Slogan Here")
	GL_GraphicsInterface (const bool initialize, const aString &windowTitle="Your Slogan Here")
virtual	~GL_GraphicsInterface ()
virtual int	createWindow (const aString &windowTitle=nullString, int argc=0, char *argv[]=NULL)
virtual bool	displayHelp (const aString &topic)
virtual int	destroyWindow (int win_number)
virtual int	getMenuItem (const aString *menu, aString &answer, const aString &prompt=nullString)
virtual void	erase ()
virtual void	erase (const int win_number, bool forceDelete=false)
virtual void	erase (const IntegerArray &displayList)
virtual void	inputFileName (aString &answer, const aString &prompt=nullString, const aString &extension=nullString)
virtual void	inputString (aString &answer, const aString &prompt=nullString)
virtual void	outputString (const aString &message, int messageLevel=2)
virtual void	redraw (bool immediate=FALSE)
virtual void	initView (int win_number=-1)
virtual void	resetView (int win_number=-1)
virtual void	stopReadingCommandFile ()
virtual int	normalizedToWorldCoordinates (const RealArray &r, RealArray &x) const
virtual int	worldToNormalizedCoordinates (const RealArray &x, RealArray &r) const
virtual void	setGlobalBound (const RealArray &xBound)
virtual RealArray	getGlobalBound () const
virtual void	resetGlobalBound (const int win_number)
virtual int	setKeepAspectRatio (bool trueOrFalse=true)
virtual bool	getKeepAspectRatio ()
virtual void	plotPoints (const realArray &points, GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int dList=0)
virtual void	plotPoints (const realArray &points, const realArray &value, GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int dList=0)
virtual void	plotLines (const realArray &arrows, GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int dList=0)
virtual aString	chooseAColour ()
virtual aString	getColour (ItemColourEnum item)
virtual int	setColour (const aString &colourName)
virtual int	setColour (ItemColourEnum item)
virtual void	setColourFromTable (const GUITypes::real value, GraphicsParameters &parameters=Overture::defaultGraphicsParameters())
virtual void	setColourName (int i, aString newColourName) const
virtual aString	getColourName (int i) const
virtual void	drawColouredSquares (const IntegerArray &numberList, GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), const int &numberOfColourNames=-1, aString *colourNames=NULL)
virtual void	displayColourBar (const int &numberOfContourLevels, RealArray &contourLevels, GUITypes::real uMin, GUITypes::real uMax, GraphicsParameters &parameters)
virtual void	eraseColourBar ()
virtual int	hardCopy (const aString &fileName=nullString, GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int win_number=-1)
virtual void	setView (ViewLocation &loc, int win_number=-1)
virtual void	getView (ViewLocation &loc, int win_number=-1)
virtual int	generateNewDisplayList (bool lit=false, bool plotIt=true, bool hideable=false, bool interactive=true)
virtual int	getNewLabelList (int win=-1)
virtual void	deleteList (int dList)
virtual void	setLighting (int list, bool lit)
virtual void	setPlotDL (int list, bool plot)
virtual void	setInteractiveDL (int list, bool interactive)
virtual int	getFirstDL (const int win)
virtual int	getFirstFixedDL (const int win)
virtual int	getTopLabelDL (const int win)
virtual int	getTopLabel1DL (const int win)
virtual int	getTopLabel2DL (const int win)
virtual int	getTopLabel3DL (const int win)
virtual int	getBottomLabelDL (const int win)
virtual int	getBottomLabel1DL (const int win)
virtual int	getBottomLabel2DL (const int win)
virtual int	getBottomLabel3DL (const int win)
virtual int	getColouredSquaresDL (const int win)
virtual int	getColourBarDL (const int win)
virtual int	getFirstUserLabelDL (const int win)
virtual int	getLastUserLabelDL (const int win)
virtual int	getLastFixedDL (const int win)
virtual int	getFirstRotableDL (const int win)
virtual int	getAxesDL (const int win)
virtual int	getFirstUserRotableDL (const int win)
virtual int	getLastUserRotableDL (const int win)
virtual int	getLastRotableDL (const int win)
virtual int	getLastDL (const int win)
virtual int	getMaxNOfDL (const int win)
virtual int	getCurrentWindow ()
virtual void	setCurrentWindow (const int &w)
virtual void	setPlotTheAxes (bool newState, int win_number=-1)
virtual bool	getPlotTheAxes (int win_number=-1)
virtual void	setAxesDimension (int dim, int win_number=-1)
virtual void	setPlotTheLabels (bool newState, int win_number=-1)
virtual bool	getPlotTheLabels (int win_number=-1)
virtual void	setPlotTheRotationPoint (bool newState, int win_number=-1)
virtual bool	getPlotTheRotationPoint (int win_number=-1)
virtual void	setPlotTheColourBar (bool newState, int win_number=-1)
virtual bool	getPlotTheColourBar (int win_number=-1)
virtual void	setPlotTheColouredSquares (bool newState, int win_number=-1)
virtual bool	getPlotTheColouredSquares (int win_number=-1)
virtual void	setPlotTheBackgroundGrid (bool newState, int win_number=-1)
virtual bool	getPlotTheBackgroundGrid (int win_number=-1)
virtual void	pollEvents ()
virtual int	getAnswer (aString &answer, const aString &prompt)
virtual int	getAnswer (aString &answer, const aString &prompt, SelectionInfo &selection)
virtual int	getAnswerNoBlock (aString &answer, const aString &prompt)
virtual int	pickPoints (RealArray &x, bool plotPoints=TRUE, int win_number=-1)
virtual void	setUserButtonSensitive (int btn, int trueOrFalse)
virtual void	pushGUI (GUIState &newState)
virtual void	popGUI ()
virtual int	beginRecordDisplayLists (IntegerArray &displayLists)
virtual int	endRecordDisplayLists (IntegerArray &displayLists)
virtual void	createMessageDialog (aString msg, MessageTypeEnum type)
virtual int	pause ()
virtual void	appendCommandHistory (const aString &answer)
virtual int	processSpecialMenuItems (aString &answer)
virtual void	plotLabels (GraphicsParameters &parameters, const GUITypes::real &labelSize=-1., const GUITypes::real &topLabelHeight=.925, const GUITypes::real &bottomLabelHeight=-.925, int win_number=-1)
virtual void	eraseLabels (GraphicsParameters &parameters, int win_number=-1)
virtual int	setAxesLabels (const aString &xAxisLabel=blankString, const aString &yAxisLabel=blankString, const aString &zAxisLabel=blankString)
virtual aString	getXAxisLabel ()
virtual aString	getYAxisLabel ()
virtual aString	getZAxisLabel ()
virtual void	setXAxisLabel (const aString &xAxisLabel_=blankString)
virtual void	setYAxisLabel (const aString &yAxisLabel_=blankString)
virtual void	setZAxisLabel (const aString &zAxisLabel_=blankString)
virtual int	setAxesOrigin (const GUITypes::real x0=defaultOrigin, const GUITypes::real y0=defaultOrigin, const GUITypes::real z0=defaultOrigin)
virtual void	getAxesOrigin (GUITypes::real &x0, GUITypes::real &y0, GUITypes::real &z0)
virtual GUITypes::real	getAspectRatio (const int win=0)
virtual void	setLineWidthScaleFactor (const GUITypes::real &lineWidthScaleFactor=1, int win_number=-1)
virtual GUITypes::real	getLineWidthScaleFactor (int window=-1)
virtual int	psToRaster (const aString &fileName, const aString &ppmFileName)
virtual void	label (const aString &string, GUITypes::real xPosition, GUITypes::real yPosition, GUITypes::real size=.1, int centering=0, GUITypes::real angle=0., GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), const aString &colour=nullString, GUITypes::real zOffset=.99)
virtual void	xLabel (const aString &string, const GUITypes::real xPosition, const GUITypes::real yPosition, const GUITypes::real size=.1, const int centering=0, const GUITypes::real angle=0., GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int win_number=-1)
virtual void	xLabel (const aString &string, const RealArray &x, const GUITypes::real size=.1, const int centering=0, const GUITypes::real angle=0., GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int win_number=-1)
virtual void	xLabel (const aString &string, const GUITypes::real x[3], const GUITypes::real size=.1, const int centering=0, const GUITypes::real angle=0., GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int win_number=-1)
virtual void	xLabel (const aString &string, const RealArray &x, const GUITypes::real size, const int centering, const RealArray &rightVector, const RealArray &upVector, GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int win_number=-1)
virtual void	xLabel (const aString &string, const GUITypes::real x[3], const GUITypes::real size, const int centering, const GUITypes::real rightVector[3], const GUITypes::real upVector[3], GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int win_number=-1)
virtual void	drawColourBar (const int &numberOfContourLevels, RealArray &contourLevels, GUITypes::real uMin=0., GUITypes::real uMax=1., GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), GUITypes::real xLeft=.775, GUITypes::real xRight=.825, GUITypes::real yBottom=-.75, GUITypes::real yTop=.75)
virtual void	updateColourBar (GraphicsParameters &parameters, int window=0)
void	init (const int &win_number)
void	changeView (const int &win_number, const real &dx, const real &dy, const real &dz, const real &dThetaX=0., const real &dThetaY=0., const real &dThetaZ=0., const real &magnify=1.)
void	display (const int &win_number)
void	setProjection (const int &win_number)
void	annotate (const aString &answer)
void	constructor ()
bool	readOvertureRC ()
int	getAnswerSelectPick (aString &answer, const aString &prompt, SelectionInfo *selection_=NULL, int blocking=1)
int	interactiveAnswer (aString &answer, const aString &prompt, SelectionInfo *selection_, int blocking=1)
void	parseCommandLine (const aString &line, aString &command, int &windowNumber, aString &arg) const
void	pickNew (PickInfo &xPick, SelectionInfo &select)
int	selectNew (PickInfo &xPick, SelectionInfo *select)
int	offScreenRender (const char *fileName, GraphicsParameters &parameters=Overture::defaultGraphicsParameters())
int	offScreenRenderX (const char *fileName, GraphicsParameters &parameters=Overture::defaultGraphicsParameters())
int	offScreenRenderMesa (const char *fileName, GraphicsParameters &parameters=Overture::defaultGraphicsParameters())
int	saveRasterInAFile (const aString &fileName, void *buffer, const GLint &width, const GLint &height, const int &rgbType=0, GraphicsParameters &parameters=Overture::defaultGraphicsParameters())
void	rleCompress (const int num, GLubyte *xBuffer, FILE *outFile, const int numPerLine=30)
void	setMaterialProperties (float ambr, float ambg, float ambb, float difr, float difg, float difb, float specr, float specg, float specb, float shine)
void	setupHardCopy (DialogData &hcd, int win)
void	hardcopyCommands (aString &longAnswer, int win_number)
void	optionCommands (aString &answer, int win_number)
void	openGUI ()
void	disableGUI ()
Public Member Functions inherited from GenericGraphicsInterface
	GenericGraphicsInterface ()
	GenericGraphicsInterface (int &argc, char *argv[])
virtual	~GenericGraphicsInterface ()
void	abortIfCommandFileEnds (bool trueOrFalse=true)
int	appendToTheDefaultPrompt (const aString &appendage)
int	buildCascadingMenu (aString *&menu, int startCascade, int endCascade) const
int	getInfoLevel () const
const aString &	getDefaultPrompt ()
int	getMatch (const aString *menu, aString &answer)
int	getProcessorForGraphics ()
FILE *	getReadCommandFile () const
FILE *	getSaveCommandFile () const
int	getValues (const aString &prompt, IntegerArray &values, const int minimunValue=INT_MIN, const int maximumValue=INT_MAX, const int sort=0)
int	getValues (const aString &prompt, RealArray &values, const GUITypes::real minimunValue=-REAL_MAX, const GUITypes::real maximumValue=REAL_MAX, const int sort=0)
bool	graphicsIsOn ()
int	indexInCascadingMenu (int &index, const int startCascade, const int endCascade) const
bool	isGraphicsWindowOpen ()
bool	isInteractiveGraphicsOn ()
void	outputToCommandFile (const aString &line)
int	popDefaultPrompt ()
int	pushDefaultPrompt (const aString &prompt)
FILE *	readCommandFile (const aString &commandFileName=nullString)
int	readCommandsFromStrings (const aString *commands)
bool	readingFromCommandFile () const
FILE *	saveCommandFile (const aString &commandFileName=nullString)
int	savePickCommands (bool trueOrFalse=TRUE)
int	setDefaultPrompt (const aString &prompt)
FILE *	saveEchoFile (const aString &fileName=nullString)
void	setInfoLevel (int value)
void	setIgnorePause (bool trueOrFalse=true)
void	setSingleProcessorGraphicsMode (bool mode)
void	stopSavingCommandFile ()
void	stopSavingEchoFile ()
void	turnOnGraphics ()
void	turnOffGraphics ()
int	unAppendTheDefaultPrompt ()
int	parseAnswer (aString &answer)

Public Attributes
aString *	colourNames
aString *	fileMenuItems
aString *	helpMenuItems
aString *	graphicsFileMenuItems
aString *	graphicsHelpMenuItems
aString *	menuBarItems
bool	keepAspectRatio [MAX_WINDOWS]
bool	viewHasChanged [MAX_WINDOWS]
RealArray	globalBound [MAX_WINDOWS]
GUITypes::real	rotationCenter [MAX_WINDOWS][3]
GUITypes::real	magnificationFactor [MAX_WINDOWS]
GUITypes::real	magnificationIncrement [MAX_WINDOWS]
GUITypes::real	aspectRatio [MAX_WINDOWS]
GUITypes::real	fractionOfScreen [MAX_WINDOWS]
aString	wTitle [MAX_WINDOWS]
aString	defaultWindowTitle
GraphicsParameters::HardCopyType	hardCopyType [MAX_WINDOWS]
GraphicsParameters::OutputFormat	outputFormat [MAX_WINDOWS]
aString	hardCopyFile [MAX_WINDOWS]
int	rasterResolution [MAX_WINDOWS]
int	horizontalRasterResolution [MAX_WINDOWS]
DialogData	hardCopyDialog [MAX_WINDOWS]
PullDownMenu	optionMenu [MAX_WINDOWS]
int	userLabel [MAX_WINDOWS]
int	labelsPlotted [MAX_WINDOWS]
GUITypes::real	xEyeCoordinate
GUITypes::real	yEyeCoordinate
GUITypes::real	zEyeCoordinate
GUITypes::real	dtx [MAX_WINDOWS]
GUITypes::real	dty [MAX_WINDOWS]
GUITypes::real	dtz [MAX_WINDOWS]
GUITypes::real	xShift [MAX_WINDOWS]
GUITypes::real	yShift [MAX_WINDOWS]
GUITypes::real	zShift [MAX_WINDOWS]
GUITypes::real	deltaX [MAX_WINDOWS]
GUITypes::real	deltaY [MAX_WINDOWS]
GUITypes::real	deltaZ [MAX_WINDOWS]
GUITypes::real	deltaAngle [MAX_WINDOWS]
GUITypes::real	defaultNear [MAX_WINDOWS]
GUITypes::real	defaultFar [MAX_WINDOWS]
GUITypes::real	leftSide [MAX_WINDOWS]
GUITypes::real	rightSide [MAX_WINDOWS]
GUITypes::real	bottom [MAX_WINDOWS]
GUITypes::real	top [MAX_WINDOWS]
GUITypes::real	near [MAX_WINDOWS]
GUITypes::real	far [MAX_WINDOWS]
RealArray	rotationMatrix [MAX_WINDOWS]
RealArray	matrix [MAX_WINDOWS]
Index	I4
GUITypes::real	windowScaleFactor [MAX_WINDOWS][3]
bool	userDefinedRotationPoint [MAX_WINDOWS]
int	axesOriginOption [MAX_WINDOWS]
RealArray	axesOrigin [MAX_WINDOWS]
aString	xAxisLabel [MAX_WINDOWS]
aString	yAxisLabel [MAX_WINDOWS]
aString	zAxisLabel [MAX_WINDOWS]
GUITypes::real	shiftCorrection [MAX_WINDOWS][3]
GUITypes::real	backGround [MAX_WINDOWS][4]
GUITypes::real	foreGround [MAX_WINDOWS][4]
aString	backGroundName [MAX_WINDOWS]
aString	foreGroundName [MAX_WINDOWS]
bool	saveTransformationInfo
GLdouble	modelMatrix [MAX_WINDOWS][16]
GLdouble	projectionMatrix [MAX_WINDOWS][16]
GLint	viewPort [MAX_WINDOWS][4]
GUITypes::real	homeViewParameters [MAX_WINDOWS][14]
int	lightIsOn [MAX_WINDOWS][numberOfLights]
GLfloat	ambient [MAX_WINDOWS][numberOfLights][4]
GLfloat	diffuse [MAX_WINDOWS][numberOfLights][4]
GLfloat	specular [MAX_WINDOWS][numberOfLights][4]
GLfloat	position [MAX_WINDOWS][numberOfLights][4]
GLfloat	globalAmbient [MAX_WINDOWS][4]
GLfloat	materialAmbient [MAX_WINDOWS][4]
GLfloat	materialDiffuse [MAX_WINDOWS][4]
GLfloat	materialSpecular [MAX_WINDOWS][4]
GLfloat	materialShininess [MAX_WINDOWS]
GLfloat	materialScaleFactor [MAX_WINDOWS]
ViewCharacteristics	viewChar [MAX_WINDOWS]
int	lighting [MAX_WINDOWS]
bool	plotTheAxes [MAX_WINDOWS]
bool	plotBackGroundGrid [MAX_WINDOWS]
int	axesDimension [MAX_WINDOWS]
bool	plotTheRotationPoint [MAX_WINDOWS]
bool	plotTheLabels [MAX_WINDOWS]
bool	plotTheColouredSquares [MAX_WINDOWS]
bool	plotTheColourBar [MAX_WINDOWS]
GUITypes::real	lineWidthScaleFactor [MAX_WINDOWS]
int	numberOfClippingPlanes [MAX_WINDOWS]
int	clippingPlaneIsOn [MAX_WINDOWS][maximumNumberOfClippingPlanes]
double	clippingPlaneEquation [MAX_WINDOWS][maximumNumberOfClippingPlanes][4]
GLenum	clip [MAX_WINDOWS][maximumNumberOfClippingPlanes]
ClippingPlaneInfo	clippingPlaneInfo [MAX_WINDOWS]
int	textIsOn [maximumNumberOfTextStrings]
ColourBar	colourBar
Public Attributes inherited from GenericGraphicsInterface
int	gridCoarseningFactor

Protected Member Functions
void	resetRotationPoint (int win_number=-1)
void	setNormalizedCoordinates ()
void	unsetNormalizedCoordinates ()
int	pickToWorldCoordinates (const RealArray &r, RealArray &x, const int &win_number) const
void	setRotationCenter (GUITypes::real rotationPoint[3], int win_number=-1)
void	plotAxes (const RealArray &xBound, const int numberOfDimensions, GraphicsParameters &parameters=Overture::defaultGraphicsParameters(), int win_number=-1)
void	eraseAxes (int win_number)
void	labelR (const aString &string, const GUITypes::real xPosition, const GUITypes::real yPosition, const GUITypes::real size=.1, const int centering=0, const GUITypes::real angle=0., GraphicsParameters &parameters=Overture::defaultGraphicsParameters())
int	renderPS (const char *fileName, GraphicsParameters &parameters=Overture::defaultGraphicsParameters())
void	setRotationTransformation (int win_number)
virtual void	setView (const ViewParameters &viewParameter, const GUITypes::real &value)
void	getWindowShape (int window, GUITypes::real &leftSide, GUITypes::real &rightSide, GUITypes::real &top, GUITypes::real &bottom) const
GUIState *	getCurrentGUI ()
void	setModelViewMatrix ()
void	setFractionOfScreen (const GUITypes::real &fraction=.75, int win_number=-1)
void	lightsOn (int win_number)
void	lightsOff (int win_number)
Protected Member Functions inherited from GenericGraphicsInterface
void	constructor (int &argc, char *argv[])
int	readLineFromCommandFile (aString &answer)
int	fileAnswer (aString &answer, const aString &prompt, SelectionInfo *selection_)
int	promptAnswerSelectPick (aString &answer, const aString &prompt, SelectionInfo *selection_)
int	promptAnswer (aString &answer, const aString &prompt=nullString)

Protected Attributes
WindowProperties	wProp
int	currentWindow
int	topLabelList [MAX_WINDOWS]
int	topLabel1List [MAX_WINDOWS]
int	topLabel2List [MAX_WINDOWS]
int	topLabel3List [MAX_WINDOWS]
int	bottomLabelList [MAX_WINDOWS]
int	bottomLabel1List [MAX_WINDOWS]
int	bottomLabel2List [MAX_WINDOWS]
int	bottomLabel3List [MAX_WINDOWS]
int	colouredSquaresList [MAX_WINDOWS]
int	colourBarList [MAX_WINDOWS]
int	firstUserLabelList [MAX_WINDOWS]
int	lastUserLabelList [MAX_WINDOWS]
int	axesList [MAX_WINDOWS]
int	firstUserRotableList [MAX_WINDOWS]
int	lastUserRotableList [MAX_WINDOWS]
int	maximumNumberOfDisplayLists [MAX_WINDOWS]
IntegerArray	plotInfo [MAX_WINDOWS]
Protected Attributes inherited from GenericGraphicsInterface
aString	readFileName
aString	saveFileName
aString	echoFileName
FILE *	readFile
FILE *	saveFile
FILE *	echoFile
std::stack< FILE * >	readFileStack
std::queue< aString >	stringCommands
bool	getInteractiveResponse
bool	readCommands
bool	saveCommands
bool	savePick
OvertureParser *	parser
bool	useParser
bool	singleProcessorGraphicsMode
int	processorForGraphics
bool	graphicsPlottingIsOn
GUIState *	currentGUI
aString	defaultPrompt
aString	indentBlanks
aString *	defaultPromptStack
int	maxNumberOfDefaultPrompts
int	topOfDefaultPromptStack
int	saveFileCount
bool	graphicsWindowIsOpen
bool	interactiveGraphicsIsOn
bool	ignorePause
bool	preferDirectRendering
HardCopyRenderingEnum	hardCopyRenderingType
int	numberRecorded
IntegerArray *	recordDisplayLists
int	simplifyPlotWhenRotating
int	infoLevel
int	abortProgramIfCommandFileEnds

Friends
class	ColourBar

Additional Inherited Members
Protected Types inherited from GenericGraphicsInterface
enum	Sizes {   lineWidth =GraphicsParameters::lineWidth, axisNumberSize =GraphicsParameters::axisNumberSize, axisLabelSize =GraphicsParameters::axisLabelSize, axisMinorTickSize =GraphicsParameters::axisMinorTickSize,   axisMajorTickSize =GraphicsParameters::axisMajorTickSize, topLabelSize =GraphicsParameters::topLabelSize, topSubLabelSize =GraphicsParameters::topSubLabelSize, bottomLabelSize =GraphicsParameters::bottomLabelSize,   bottomSubLabelSize =GraphicsParameters::bottomSubLabelSize, minorContourWidth =GraphicsParameters::minorContourWidth, majorContourWidth =GraphicsParameters::majorContourWidth, streamLineWidth =GraphicsParameters::streamLineWidth,   labelLineWidth =GraphicsParameters::labelLineWidth, curveLineWidth =GraphicsParameters::curveLineWidth, extraSize1, extraSize2,   extraSize3, numberOfSizes }

Member Enumeration Documentation

anonymous enum

Enumerator
maximumNumberOfClippingPlanes
maximumNumberOfTextStrings

Constructor & Destructor Documentation

GL_GraphicsInterface::GL_GraphicsInterface

(

const aString &

windowTitle = "Your Slogan Here"

)

References constructor(), createWindow(), defaultWindowTitle, and GenericGraphicsInterface::graphicsWindowIsOpen.

GL_GraphicsInterface::GL_GraphicsInterface	(	int &	argc,
		char *	argv[],
		const aString &	windowTitle = "Your Slogan Here"
	)

References GenericGraphicsInterface::abortIfCommandFileEnds(), aString, GenericDataBase::collectiveIO, constructor(), createWindow(), GenericDataBase::multipleFileIO, GenericGraphicsInterface::preferDirectRendering, printF(), GenericGraphicsInterface::setIgnorePause(), GenericDataBase::setParallelReadMode(), GenericDataBase::setParallelWriteMode(), and GenericGraphicsInterface::turnOffGraphics().

GL_GraphicsInterface::GL_GraphicsInterface	(	const bool	initialize,
		const aString &	windowTitle = "Your Slogan Here"
	)

References constructor(), createWindow(), defaultWindowTitle, and GenericGraphicsInterface::graphicsWindowIsOpen.

GL_GraphicsInterface::~GL_GraphicsInterface ( )

virtual

References colourNames, fileMenuItems, graphicsFileMenuItems, graphicsHelpMenuItems, helpMenuItems, and menuBarItems.

Member Function Documentation

void GL_GraphicsInterface::annotate

(

const aString &

answer

)

References aString, currentWindow, firstUserLabelList, label(), max(), maximumNumberOfTextStrings, printF(), setColour(), sScanF(), GenericGraphicsInterface::textColour, textIsOn, TRUE, userLabel, and x.

Referenced by processSpecialMenuItems().

void GL_GraphicsInterface::appendCommandHistory ( const aString &  answer )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::isGraphicsWindowOpen(), and moglAppendCommandHistory().

Referenced by getAnswerSelectPick(), interactiveAnswer(), pickNew(), pickPoints(), processSpecialMenuItems(), and selectNew().

int GL_GraphicsInterface::beginRecordDisplayLists ( IntegerArray &  displayLists )

virtual

Implements GenericGraphicsInterface.

References NULL, GenericGraphicsInterface::numberRecorded, and GenericGraphicsInterface::recordDisplayLists.

void GL_GraphicsInterface::changeView	(	const int &	win_number,
		const real &	dx,
		const real &	dy,
		const real &	dz,
		const real &	dThetaX = 0.,
		const real &	dThetaY = 0.,
		const real &	dThetaZ = 0.,
		const real &	magnify = 1.
	)

References dtx, dty, dtz, magnificationFactor, setProjection(), setRotationTransformation(), TRUE, viewHasChanged, xShift, yShift, and zShift.

Referenced by changeView(), and createWindow().

aString GL_GraphicsInterface::chooseAColour ( )

virtual

Implements GenericGraphicsInterface.

References aString, and getMenuItem().

Referenced by plotPoints().

void GL_GraphicsInterface::constructor

(

)

References ViewCharacteristics::ambient, ambient, aspectRatio, aString, axesDimension, axesList, axesOrigin, axesOriginOption, ViewCharacteristics::axesOriginOption_, ViewCharacteristics::backGround, backGround, WindowProperties::backgroundColour, backGroundName, blankString, bottom, bottomLabel1List, bottomLabel2List, bottomLabel3List, bottomLabelList, clip, ClippingPlaneInfo::clippingPlaneEquation, clippingPlaneEquation, clippingPlaneInfo, ClippingPlaneInfo::clippingPlaneIsOn, clippingPlaneIsOn, GraphicsParameters::colour8Bit, colourBarList, colouredSquaresList, colourNames, CS, GenericGraphicsInterface::currentGUI, currentWindow, defaultFar, defaultNear, GenericGraphicsInterface::defaultOrigin, deltaAngle, deltaX, deltaY, deltaZ, ViewCharacteristics::diffuse, diffuse, dtx, dty, dtz, far, fileMenuItems, firstUserLabelList, firstUserRotableList, ViewCharacteristics::foreGround, foreGround, WindowProperties::foregroundColour, foreGroundName, fractionOfScreen, ViewCharacteristics::fractionOfScreen_, getXColour(), GI_TOGGLEBUTTON, ViewCharacteristics::globalAmbient, globalAmbient, globalBound, graphicsFileMenuItems, graphicsHelpMenuItems, GenericGraphicsInterface::graphicsWindowIsOpen, hardCopyFile, hardCopyType, helpMenuItems, homeViewParameters, horizontalRasterResolution, I4, GenericGraphicsInterface::interactiveDL, keepAspectRatio, labelsPlotted, lastUserLabelList, lastUserRotableList, leftSide, lighting, ViewCharacteristics::lighting_, ViewCharacteristics::lightIsOn, lightIsOn, ViewCharacteristics::lineScaleFactor_, lineWidthScaleFactor, magnificationFactor, magnificationIncrement, ViewCharacteristics::materialAmbient, materialAmbient, ViewCharacteristics::materialDiffuse, materialDiffuse, materialScaleFactor, ViewCharacteristics::materialScaleFactor_, materialShininess, ViewCharacteristics::materialShininess_, ViewCharacteristics::materialSpecular, materialSpecular, matrix, MAX_WINDOWS, ClippingPlaneInfo::maximumNumberOfClippingPlanes, maximumNumberOfClippingPlanes, maximumNumberOfDisplayLists, menuBarItems, moglMakeCurrent(), near, NULL, numberOfClippingPlanes, GenericGraphicsInterface::numberOfColourNames, numberOfLights, optionCommands(), optionMenu, outputFormat, plotBackGroundGrid, GenericGraphicsInterface::plotDL, plotInfo, plotTheAxes, plotTheColourBar, plotTheColouredSquares, plotTheLabels, plotTheRotationPoint, ViewCharacteristics::position, position, GraphicsParameters::postScript, printF(), q, rasterResolution, GenericGraphicsInterface::readFile, readOvertureRC(), resetGlobalBound(), rightSide, ViewCharacteristics::rotationCenter, rotationCenter, rotationMatrix, GenericGraphicsInterface::saveFile, saveTransformationInfo, PullDownMenu::setPullDownMenu(), shiftCorrection, GenericGraphicsInterface::simplifyPlotWhenRotating, ViewCharacteristics::specular, specular, sPrintF(), SQRT, top, topLabel1List, topLabel2List, topLabel3List, topLabelList, TRUE, userDefinedRotationPoint, userLabel, viewChar, viewHasChanged, windowScaleFactor, wProp, xAxisLabel, xEyeCoordinate, xShift, yAxisLabel, yEyeCoordinate, yShift, zAxisLabel, zEyeCoordinate, and zShift.

Referenced by GL_GraphicsInterface().

void GL_GraphicsInterface::createMessageDialog ( aString  msg, MessageTypeEnum  type  )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::isGraphicsWindowOpen(), moglCreateMessageDialog(), outputString(), and GenericGraphicsInterface::readFile.

int GL_GraphicsInterface::createWindow ( const aString &  windowTitle = nullString, int  argc = 0, char *  argv[] = NULL  )

virtual

Implements GenericGraphicsInterface.

References aString, changeView(), clippingPlaneInfo, defaultWindowTitle, display(), fileMenuItems, GenericGraphicsInterface::getProcessorForGraphics(), graphicsFileMenuItems, graphicsHelpMenuItems, GenericGraphicsInterface::graphicsWindowIsOpen, hardCopyDialog, helpMenuItems, initView(), GenericGraphicsInterface::interactiveGraphicsIsOn, makeGraphicsWindow(), moglGetNWindows(), moglInit(), moglPollEvents(), moglSetFunctions(), moglSetViewFunction(), NULL, nullString, optionMenu, GenericGraphicsInterface::preferDirectRendering, setCurrentWindow(), setRotationTransformation(), setupHardCopy(), TRUE, viewChar, wProp, and wTitle.

Referenced by GL_GraphicsInterface(), and processSpecialMenuItems().

void GL_GraphicsInterface::deleteList ( int  dList )

virtual

Implements GenericGraphicsInterface.

int GL_GraphicsInterface::destroyWindow ( int  win_number )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::graphicsWindowIsOpen.

void GL_GraphicsInterface::disableGUI

(

)

References GenericGraphicsInterface::currentGUI, GUIState::dialogSiblings, GUIState::nDialogSiblings, NULL, GUIState::prev, and DialogData::setSensitive().

Referenced by processSpecialMenuItems().

void GL_GraphicsInterface::display

(

const int &

win_number

)

References axesDimension, backGround, bottom, checkGLError(), clip, clippingPlaneEquation, clippingPlaneIsOn, colourBar, currentWindow, Overture::defaultGraphicsParameters(), End, eraseAxes(), fractionOfScreen, gBound, getBottomLabel3DL(), getBottomLabelDL(), getColourBarDL(), getColouredSquaresDL(), getFirstRotableDL(), getFirstUserLabelDL(), getLastRotableDL(), getLastUserLabelDL(), getTopLabel3DL(), getTopLabelDL(), glDisable, glEnable, glMultMatrix, globalBound, glScale, glTranslate, GenericGraphicsInterface::interactiveDL, keepAspectRatio, leftSide, GenericGraphicsInterface::lightDL, lighting, lightsOff(), lightsOn(), magnificationFactor, max(), maximumNumberOfClippingPlanes, min(), modelMatrix, moglRotationKeysPressed(), NULL, plotAxes(), GenericGraphicsInterface::plotDL, plotInfo, plotTheAxes, plotTheColourBar, plotTheColouredSquares, plotTheLabels, plotTheRotationPoint, ColourBar::positionInWindow(), printF(), projectionMatrix, rightSide, rotationCenter, rotationMatrix, saveTransformationInfo, setColour(), shiftCorrection, GenericGraphicsInterface::simplifyPlotWhenRotating, Start, top, TRUE, userDefinedRotationPoint, viewPort, windowScaleFactor, xEyeCoordinate, GraphicsParameters::xScaleFactor, xShift, yEyeCoordinate, GraphicsParameters::yScaleFactor, yShift, zEyeCoordinate, GraphicsParameters::zScaleFactor, and zShift.

Referenced by createWindow(), renderPS(), and selectNew().

void GL_GraphicsInterface::displayColourBar ( const int &  numberOfContourLevels, RealArray &  contourLevels, GUITypes::real  uMin, GUITypes::real  uMax, GraphicsParameters &  parameters  )

virtual

Implements GenericGraphicsInterface.

References colourBar, ColourBar::draw(), ColourBar::setGraphicsInterface(), and ColourBar::setGraphicsParameters().

Referenced by MeshQualityMetrics::plot().

bool GL_GraphicsInterface::displayHelp ( const aString &  topic )

virtual

Implements GenericGraphicsInterface.

References helpOverture(), and printF().

Referenced by processSpecialMenuItems().

void GL_GraphicsInterface::drawColourBar ( const int &  numberOfContourLevels, RealArray &  contourLevels, GUITypes::real  uMin = 0., GUITypes::real  uMax = 1., GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), GUITypes::real  xLeft = .775, GUITypes::real  xRight = .825, GUITypes::real  yBottom = -.75, GUITypes::real  yTop = .75  )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::axisNumberSize, GenericGraphicsInterface::backGroundColour, currentWindow, delta, fabs(), getColourBarDL(), glLineWidth, glVertex3, label(), GraphicsParameters::labelColourBar, GenericGraphicsInterface::lineWidth, lineWidthScaleFactor, GenericGraphicsInterface::majorContourWidth, max(), GenericGraphicsInterface::minorContourWidth, setColour(), setColourFromTable(), GraphicsParameters::size, sPrintF(), and GenericGraphicsInterface::textColour.

Referenced by ColourBar::draw(), and plotPoints().

void GL_GraphicsInterface::drawColouredSquares ( const IntegerArray &  numberList, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), const int &  numberOfColourNames = -1, aString *  colourNames = NULL  )

virtual

Implements GenericGraphicsInterface.

References aString, colourNames, currentWindow, getColouredSquaresDL(), glColor3, glVertex3, GenericGraphicsInterface::isGraphicsWindowOpen(), label(), max(), min(), NULL, GenericGraphicsInterface::numberOfColourNames, q, setXColour(), and sPrintF().

int GL_GraphicsInterface::endRecordDisplayLists ( IntegerArray &  displayLists )

virtual

Implements GenericGraphicsInterface.

References NULL, GenericGraphicsInterface::numberRecorded, and GenericGraphicsInterface::recordDisplayLists.

void GL_GraphicsInterface::erase ( )

virtual

Implements GenericGraphicsInterface.

References currentWindow.

Referenced by main(), MeshQualityMetrics::plot(), plotPoints(), and processSpecialMenuItems().

void GL_GraphicsInterface::erase ( const int  win_number, bool  forceDelete = false  )

virtual

Implements GenericGraphicsInterface.

References getFirstDL(), getFirstUserRotableDL(), getLastFixedDL(), getLastUserRotableDL(), GenericGraphicsInterface::graphicsWindowIsOpen, GenericGraphicsInterface::hideableDL, moglPostDisplay(), plotInfo, printF(), resetGlobalBound(), setPlotDL(), and userLabel.

void GL_GraphicsInterface::erase ( const IntegerArray &  displayList )

virtual

Implements GenericGraphicsInterface.

References currentWindow, GenericGraphicsInterface::graphicsWindowIsOpen, and moglPostDisplay().

void GL_GraphicsInterface::eraseAxes ( int  win_number )

protected

References getAxesDL().

Referenced by display().

void GL_GraphicsInterface::eraseColourBar ( )

virtual

Implements GenericGraphicsInterface.

References currentWindow, and getColourBarDL().

void GL_GraphicsInterface::eraseLabels ( GraphicsParameters &  parameters, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, FALSE, getBottomLabel1DL(), getBottomLabel2DL(), getBottomLabel3DL(), getBottomLabelDL(), getTopLabel1DL(), getTopLabel2DL(), getTopLabel3DL(), getTopLabelDL(), and labelsPlotted.

Referenced by plotPoints().

int GL_GraphicsInterface::generateNewDisplayList ( bool  lit = false, bool  plotIt = true, bool  hideable = false, bool  interactive = true  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, getFirstUserRotableDL(), getMaxNOfDL(), GenericGraphicsInterface::hideableDL, GenericGraphicsInterface::interactiveDL, lastUserRotableList, GenericGraphicsInterface::lightDL, max(), maximumNumberOfDisplayLists, NULL, GenericGraphicsInterface::numberRecorded, GenericGraphicsInterface::plotDL, plotInfo, printF(), q, and GenericGraphicsInterface::recordDisplayLists.

Referenced by pickPoints(), MeshQualityMetrics::plot(), plotLines(), and plotPoints().

int GL_GraphicsInterface::getAnswer ( aString &  answer, const aString &  prompt  )

virtual

Implements GenericGraphicsInterface.

References getAnswerSelectPick(), and NULL.

Referenced by getMenuItem(), main(), pause(), pickPoints(), MeshQualityMetrics::plot(), and ColourBar::update().

int GL_GraphicsInterface::getAnswer ( aString &  answer, const aString &  prompt, SelectionInfo &  selection  )

virtual

Implements GenericGraphicsInterface.

References getAnswerSelectPick().

int GL_GraphicsInterface::getAnswerNoBlock ( aString &  answer, const aString &  prompt  )

virtual

Implements GenericGraphicsInterface.

References getAnswerSelectPick(), and NULL.

int GL_GraphicsInterface::getAnswerSelectPick	(	aString &	answer,
		const aString &	prompt,
		SelectionInfo *	selection_ = NULL,
		int	blocking = 1
	)

References SelectionInfo::active, GUIState::allCommands, appendCommandHistory(), assert, aString, broadCast(), GenericGraphicsInterface::currentGUI, GenericGraphicsInterface::echoFile, FALSE, GenericGraphicsInterface::fileAnswer(), fPrintF(), GenericGraphicsInterface::getInteractiveResponse, GenericGraphicsInterface::getMatch(), SelectionInfo::globalID, GenericGraphicsInterface::graphicsPlottingIsOn, GenericGraphicsInterface::indentBlanks, interactiveAnswer(), GenericGraphicsInterface::isGraphicsWindowOpen(), GenericGraphicsInterface::isInteractiveGraphicsOn(), max(), MPI_COMM_WORLD, MPI_Real, SelectionInfo::nSelect, NULL, openGUI(), GenericGraphicsInterface::parseAnswer(), GenericGraphicsInterface::processorForGraphics, processSpecialMenuItems(), GenericGraphicsInterface::promptAnswerSelectPick(), SelectionInfo::r, GenericGraphicsInterface::readFile, GenericGraphicsInterface::readingFromCommandFile(), s, GenericGraphicsInterface::saveFile, GenericGraphicsInterface::saveFileCount, GenericGraphicsInterface::savePick, SelectionInfo::selection, GenericGraphicsInterface::setSingleProcessorGraphicsMode(), GenericGraphicsInterface::singleProcessorGraphicsMode, stopReadingCommandFile(), GenericGraphicsInterface::stringCommands, TRUE, GenericGraphicsInterface::useParser, SelectionInfo::winNumber, SelectionInfo::x, and SelectionInfo::zbMin.

Referenced by getAnswer(), and getAnswerNoBlock().

virtual GUITypes::real GL_GraphicsInterface::getAspectRatio ( const int  win = 0 )

inlinevirtual

Implements GenericGraphicsInterface.

References aspectRatio.

virtual int GL_GraphicsInterface::getAxesDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References axesList.

Referenced by eraseAxes().

virtual void GL_GraphicsInterface::getAxesOrigin ( GUITypes::real &  x0, GUITypes::real &  y0, GUITypes::real &  z0  )

inlinevirtual

Implements GenericGraphicsInterface.

References axesOrigin, and currentWindow.

virtual int GL_GraphicsInterface::getBottomLabel1DL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References bottomLabel1List.

Referenced by eraseLabels(), and plotLabels().

virtual int GL_GraphicsInterface::getBottomLabel2DL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References bottomLabel2List.

Referenced by eraseLabels(), and plotLabels().

virtual int GL_GraphicsInterface::getBottomLabel3DL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References bottomLabel3List.

Referenced by display(), eraseLabels(), and plotLabels().

virtual int GL_GraphicsInterface::getBottomLabelDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References bottomLabelList.

Referenced by display(), eraseLabels(), and plotLabels().

aString GL_GraphicsInterface::getColour ( ItemColourEnum  item )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::backGroundColour, backGroundName, currentWindow, foreGroundName, printF(), and GenericGraphicsInterface::textColour.

virtual int GL_GraphicsInterface::getColourBarDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References colourBarList.

Referenced by display(), ColourBar::draw(), drawColourBar(), and eraseColourBar().

virtual int GL_GraphicsInterface::getColouredSquaresDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References colouredSquaresList.

Referenced by display(), and drawColouredSquares().

aString GL_GraphicsInterface::getColourName ( int  i ) const

virtual

Implements GenericGraphicsInterface.

References colourNames, and GenericGraphicsInterface::numberOfColourNames.

GUIState* GL_GraphicsInterface::getCurrentGUI ( )

inlineprotected

References GenericGraphicsInterface::currentGUI.

int GL_GraphicsInterface::getCurrentWindow ( )

virtual

Implements GenericGraphicsInterface.

References currentWindow.

Referenced by ColourBar::draw(), getPlotTheAxes(), getPlotTheBackgroundGrid(), getPlotTheColourBar(), getPlotTheColouredSquares(), getPlotTheLabels(), getPlotTheRotationPoint(), getView(), initView(), resetRotationPoint(), resetView(), setAxesDimension(), setPlotTheAxes(), setPlotTheBackgroundGrid(), setPlotTheColourBar(), setPlotTheColouredSquares(), setPlotTheLabels(), setPlotTheRotationPoint(), setUserButtonSensitive(), and setView().

virtual int GL_GraphicsInterface::getFirstDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References topLabelList.

Referenced by erase().

virtual int GL_GraphicsInterface::getFirstFixedDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References topLabelList.

virtual int GL_GraphicsInterface::getFirstRotableDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References axesList.

Referenced by display().

virtual int GL_GraphicsInterface::getFirstUserLabelDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References firstUserLabelList.

Referenced by display(), and getNewLabelList().

virtual int GL_GraphicsInterface::getFirstUserRotableDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References firstUserRotableList.

Referenced by erase(), generateNewDisplayList(), setInteractiveDL(), and setPlotDL().

RealArray GL_GraphicsInterface::getGlobalBound ( ) const

virtual

Implements GenericGraphicsInterface.

References currentWindow, and globalBound.

virtual bool GL_GraphicsInterface::getKeepAspectRatio ( )

inlinevirtual

Implements GenericGraphicsInterface.

References currentWindow, and keepAspectRatio.

virtual int GL_GraphicsInterface::getLastDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References lastUserRotableList.

virtual int GL_GraphicsInterface::getLastFixedDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References lastUserLabelList.

Referenced by erase().

virtual int GL_GraphicsInterface::getLastRotableDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References lastUserRotableList.

Referenced by display().

virtual int GL_GraphicsInterface::getLastUserLabelDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References lastUserLabelList.

Referenced by display(), and getNewLabelList().

virtual int GL_GraphicsInterface::getLastUserRotableDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References lastUserRotableList.

Referenced by erase().

real GL_GraphicsInterface::getLineWidthScaleFactor ( int  window = -1 )

virtual

Implements GenericGraphicsInterface.

References currentWindow, and lineWidthScaleFactor.

virtual int GL_GraphicsInterface::getMaxNOfDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References maximumNumberOfDisplayLists.

Referenced by generateNewDisplayList(), setInteractiveDL(), setLighting(), and setPlotDL().

int GL_GraphicsInterface::getMenuItem ( const aString *  menu, aString &  answer, const aString &  prompt = nullString  )

virtual

Implements GenericGraphicsInterface.

References GUIState::buildPopup(), getAnswer(), popGUI(), and pushGUI().

Referenced by chooseAColour(), inputFileName(), inputString(), main(), and plotPoints().

int GL_GraphicsInterface::getNewLabelList ( int  win = -1 )

virtual

Implements GenericGraphicsInterface.

References currentWindow, getFirstUserLabelDL(), getLastUserLabelDL(), and printF().

bool GL_GraphicsInterface::getPlotTheAxes ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), and plotTheAxes.

bool GL_GraphicsInterface::getPlotTheBackgroundGrid ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), and plotBackGroundGrid.

bool GL_GraphicsInterface::getPlotTheColourBar ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), and plotTheColourBar.

bool GL_GraphicsInterface::getPlotTheColouredSquares ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), and plotTheColouredSquares.

bool GL_GraphicsInterface::getPlotTheLabels ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), and plotTheLabels.

bool GL_GraphicsInterface::getPlotTheRotationPoint ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), and plotTheRotationPoint.

virtual int GL_GraphicsInterface::getTopLabel1DL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References topLabel1List.

Referenced by eraseLabels(), and plotLabels().

virtual int GL_GraphicsInterface::getTopLabel2DL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References topLabel2List.

Referenced by eraseLabels(), and plotLabels().

virtual int GL_GraphicsInterface::getTopLabel3DL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References topLabel3List.

Referenced by display(), eraseLabels(), and plotLabels().

virtual int GL_GraphicsInterface::getTopLabelDL ( const int  win )

inlinevirtual

Implements GenericGraphicsInterface.

References topLabelList.

Referenced by display(), eraseLabels(), and plotLabels().

void GL_GraphicsInterface::getView ( ViewLocation &  loc, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), ViewLocation::globalBound, globalBound, ViewLocation::magnificationFactor, magnificationFactor, ViewLocation::rotationCenter, rotationCenter, ViewLocation::rotationMatrix, rotationMatrix, ViewLocation::shift, ViewLocation::shiftCorrection, shiftCorrection, ViewLocation::userDefinedRotationPoint, userDefinedRotationPoint, xShift, yShift, and zShift.

void GL_GraphicsInterface::getWindowShape ( int  window, GUITypes::real &  leftSide, GUITypes::real &  rightSide, GUITypes::real &  top, GUITypes::real &  bottom  ) const

protected

References bottom, leftSide, rightSide, and top.

virtual aString GL_GraphicsInterface::getXAxisLabel ( )

inlinevirtual

Implements GenericGraphicsInterface.

References currentWindow, and xAxisLabel.

virtual aString GL_GraphicsInterface::getYAxisLabel ( )

inlinevirtual

Implements GenericGraphicsInterface.

References currentWindow, and yAxisLabel.

virtual aString GL_GraphicsInterface::getZAxisLabel ( )

inlinevirtual

Implements GenericGraphicsInterface.

References currentWindow, and zAxisLabel.

int GL_GraphicsInterface::hardCopy ( const aString &  fileName = nullString, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References aString, blankString, currentWindow, GraphicsParameters::encapsulatedPostScript, GenericGraphicsInterface::hardCopyRenderingType, GraphicsParameters::hardCopyType, hardCopyType, inputFileName(), GraphicsParameters::isDefault(), moglGetWindowSize(), moglMakeCurrent(), GenericGraphicsInterface::offScreenRender, offScreenRender(), GraphicsParameters::postScript, GraphicsParameters::postScriptRaster, printF(), GenericGraphicsInterface::processorForGraphics, saveRasterInAFile(), sPrintF(), and x.

Referenced by hardcopyCommands().

void GL_GraphicsInterface::hardcopyCommands	(	aString &	longAnswer,
		int	win_number
	)

References aString, Overture::defaultGraphicsParameters(), GraphicsParameters::encapsulatedPostScript, GenericGraphicsInterface::frameBuffer, hardCopy(), hardCopyDialog, hardCopyFile, GenericGraphicsInterface::hardCopyRenderingType, hardCopyType, DialogData::hideSibling(), horizontalRasterResolution, inputFileName(), max(), min(), NULL, GenericGraphicsInterface::offScreenRender, outputFormat, outputString(), parseCommandLine(), GraphicsParameters::postScript, GraphicsParameters::postScriptRaster, GraphicsParameters::ppm, rasterResolution, SC, DialogData::setTextLabel(), sPrintF(), and str_matches().

Referenced by processSpecialMenuItems().

void GL_GraphicsInterface::init

(

const int &

win_number

)

References aspectRatio, bottom, far, glDisable, glEnable, graphics_setOrthoKeepAspectRatio(), GenericGraphicsInterface::graphicsWindowIsOpen, leftSide, magnificationFactor, near, resetGlobalBound(), rightSide, top, and viewPort.

Referenced by renderPS(), and resetView().

void GL_GraphicsInterface::initView ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), resetView(), and userDefinedRotationPoint.

Referenced by createWindow(), and processSpecialMenuItems().

void GL_GraphicsInterface::inputFileName ( aString &  answer, const aString &  prompt = nullString, const aString &  extension = nullString  )

virtual

Implements GenericGraphicsInterface.

References aString, CS, getMenuItem(), GenericGraphicsInterface::graphicsWindowIsOpen, moglCloseFileSB(), moglOpenFileSB(), and GenericGraphicsInterface::readFile.

Referenced by hardCopy(), and hardcopyCommands().

void GL_GraphicsInterface::inputString ( aString &  answer, const aString &  prompt = nullString  )

virtual

Reimplemented from GenericGraphicsInterface.

References aString, and getMenuItem().

Referenced by main(), plotPoints(), and processSpecialMenuItems().

int GL_GraphicsInterface::interactiveAnswer	(	aString &	answer,
		const aString &	prompt,
		SelectionInfo *	selection_,
		int	blocking = 1
	)

References appendCommandHistory(), assert, aString, GenericGraphicsInterface::currentGUI, GUIState::dialogSiblings, FALSE, fPrintF(), GenericGraphicsInterface::getDefaultPrompt(), GenericGraphicsInterface::graphicsWindowIsOpen, GenericGraphicsInterface::indentBlanks, GenericGraphicsInterface::isGraphicsWindowOpen(), magnificationFactor, moglGetAnswer(), moglGetNWindows(), GUIState::nDialogSiblings, NULL, pickNew(), PickInfo::pickType, DialogData::pointerCursor, rotationMatrix, GenericGraphicsInterface::saveFile, DialogData::setCursor(), sPrintF(), viewHasChanged, DialogData::watchCursor, xShift, yShift, and zShift.

Referenced by getAnswerSelectPick().

void GL_GraphicsInterface::label ( const aString &  string, GUITypes::real  xPosition, GUITypes::real  yPosition, GUITypes::real  size = .1, int  centering = 0, GUITypes::real  angle = 0., GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), const aString &  colour = nullString, GUITypes::real  zOffset = .99  )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::backGroundColour, currentWindow, delta, glLineWidth, glRotate, glScale, glTranslate, GenericGraphicsInterface::labelLineWidth, GenericGraphicsInterface::lineWidth, lineWidthScaleFactor, nullString, setColour(), GraphicsParameters::size, strokeCharacter(), and GenericGraphicsInterface::textColour.

Referenced by annotate(), drawColourBar(), drawColouredSquares(), and plotLabels().

void GL_GraphicsInterface::labelR ( const aString &  string, const GUITypes::real  xPosition, const GUITypes::real  yPosition, const GUITypes::real  size = .1, const int  centering = 0, const GUITypes::real  angle = 0., GraphicsParameters &  parameters = Overture::defaultGraphicsParameters()  )

protected

void GL_GraphicsInterface::lightsOff ( int  win_number )

protected

References glDisable, and lightIsOn.

Referenced by display().

void GL_GraphicsInterface::lightsOn ( int  win_number )

protected

References ambient, diffuse, glDisable, glEnable, globalAmbient, lightIsOn, numberOfLights, position, and specular.

Referenced by display().

int GL_GraphicsInterface::normalizedToWorldCoordinates ( const RealArray &  r, RealArray &  x  ) const

virtual

Implements GenericGraphicsInterface.

References assert, currentWindow, modelMatrix, projectionMatrix, r, R, viewPort, and x.

int GL_GraphicsInterface::offScreenRender	(	const char *	fileName,
		GraphicsParameters &	parameters = Overture::defaultGraphicsParameters()
	)

References offScreenRenderMesa(), and offScreenRenderX().

Referenced by hardCopy().

int GL_GraphicsInterface::offScreenRenderMesa	(	const char *	fileName,
		GraphicsParameters &	parameters = Overture::defaultGraphicsParameters()
	)

Referenced by offScreenRender().

int GL_GraphicsInterface::offScreenRenderX	(	const char *	fileName,
		GraphicsParameters &	parameters = Overture::defaultGraphicsParameters()
	)

Referenced by offScreenRender().

void GL_GraphicsInterface::openGUI

(

)

References GenericGraphicsInterface::currentGUI, currentWindow, GUIState::dialogSiblings, moglBuildPopup(), moglBuildUserButtons(), moglBuildUserMenu(), moglGetNWindows(), moglSetSensitive(), GUIState::nDialogSiblings, NULL, DialogData::openDialog(), GUIState::popupMenu, GUIState::prev, GUIState::pulldownCommand, GUIState::pulldownTitle, DialogData::setSensitive(), GUIState::windowButtonCommands, and GUIState::windowButtonLabels.

Referenced by getAnswerSelectPick(), pause(), processSpecialMenuItems(), and stopReadingCommandFile().

void GL_GraphicsInterface::optionCommands	(	aString &	answer,
		int	win_number
	)

References aString, parseCommandLine(), setPlotTheAxes(), setPlotTheBackgroundGrid(), setPlotTheColourBar(), setPlotTheColouredSquares(), setPlotTheLabels(), setPlotTheRotationPoint(), GenericGraphicsInterface::simplifyPlotWhenRotating, sScanF(), and str_matches().

Referenced by constructor(), and processSpecialMenuItems().

void GL_GraphicsInterface::outputString ( const aString &  message, int  messageLevel = 2  )

virtual

Reimplemented from GenericGraphicsInterface.

References GenericGraphicsInterface::echoFile, fPrintF(), GenericGraphicsInterface::graphicsWindowIsOpen, GenericGraphicsInterface::infoLevel, moglSetPrompt(), and printF().

Referenced by createMessageDialog(), hardcopyCommands(), main(), pickPoints(), plotPoints(), and processSpecialMenuItems().

void GL_GraphicsInterface::parseCommandLine	(	const aString &	line,
		aString &	command,
		int &	windowNumber,
		aString &	arg
	)		const

References sScanF().

Referenced by hardcopyCommands(), optionCommands(), and processSpecialMenuItems().

int GL_GraphicsInterface::pause ( )

virtual

Implements GenericGraphicsInterface.

References aString, getAnswer(), GenericGraphicsInterface::getInteractiveResponse, GenericGraphicsInterface::graphicsWindowIsOpen, GenericGraphicsInterface::ignorePause, openGUI(), popGUI(), pushGUI(), DialogData::setExitCommand(), DialogData::setPushButtons(), DialogData::setWindowTitle(), and stopReadingCommandFile().

Referenced by processSpecialMenuItems().

void GL_GraphicsInterface::pickNew	(	PickInfo &	xPick,
		SelectionInfo &	select
	)

References SelectionInfo::active, appendCommandHistory(), aString, fPrintF(), SelectionInfo::globalID, GenericGraphicsInterface::indentBlanks, modelMatrix, SelectionInfo::nSelect, PickInfo::pickBox, PickInfo::pickWindow, pow(), projectionMatrix, SelectionInfo::r, GenericGraphicsInterface::saveFile, GenericGraphicsInterface::savePick, SC, SelectionInfo::selection, selectNew(), sPrintF(), viewPort, SelectionInfo::winNumber, SelectionInfo::x, and SelectionInfo::zbMin.

Referenced by interactiveAnswer().

int GL_GraphicsInterface::pickPoints ( RealArray &  x, bool  plotPoints = TRUE, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References SelectionInfo::active, appendCommandHistory(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, GUIState::buildPopup(), currentWindow, FALSE, fPrintF(), generateNewDisplayList(), getAnswer(), glPointSize, glVertex3, GenericGraphicsInterface::graphicsWindowIsOpen, GenericGraphicsInterface::indentBlanks, moglMakeCurrent(), moglPostDisplay(), SelectionInfo::nSelect, outputString(), pickToWorldCoordinates(), pointSize, popGUI(), pow(), pushGUI(), q, r, SelectionInfo::r, GenericGraphicsInterface::readFile, GenericGraphicsInterface::readLineFromCommandFile(), GenericGraphicsInterface::saveFile, GenericGraphicsInterface::savePick, GenericGraphicsInterface::savePickCommands(), setColour(), GUIState::setUserButtons(), sPrintF(), sScanF(), stopReadingCommandFile(), GenericGraphicsInterface::textColour, GenericGraphicsInterface::unAppendTheDefaultPrompt(), and SelectionInfo::x.

Referenced by processSpecialMenuItems().

int GL_GraphicsInterface::pickToWorldCoordinates ( const RealArray &  r, RealArray &  x, const int &  win_number  ) const

protected

References assert, modelMatrix, pow(), projectionMatrix, r, R, viewPort, and x.

Referenced by pickPoints().

void GL_GraphicsInterface::plotAxes ( const RealArray &  xBound, const int  numberOfDimensions, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  win_number = -1  )

protected

References aspectRatio, aString, axesOrigin, axesOriginOption, axis1, axis2, axis3, GraphicsParameters::axisMajorTickSize, GraphicsParameters::axisMinorTickSize, GenericGraphicsInterface::axisNumberSize, blankString, currentWindow, GenericGraphicsInterface::defaultOrigin, dx, End, fabs(), FALSE, fmod(), glColor3, glLineWidth, glVertex3, keepAspectRatio, GenericGraphicsInterface::lineWidth, lineWidthScaleFactor, log10(), magnificationFactor, max(), min(), moglGetNWindows(), plotBackGroundGrid, pow(), REAL_EPSILON, REAL_MIN, rotationCenter, setColour(), GraphicsParameters::size, sPrintF(), Start, GenericGraphicsInterface::textColour, xAxisLabel, xLabel(), GraphicsParameters::xScaleFactor, yAxisLabel, GraphicsParameters::yScaleFactor, zAxisLabel, and GraphicsParameters::zScaleFactor.

Referenced by display().

void GL_GraphicsInterface::plotLabels ( GraphicsParameters &  parameters, const GUITypes::real &  labelSize = -1., const GUITypes::real &  topLabelHeight = .925, const GUITypes::real &  bottomLabelHeight = -.925, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References aString, GraphicsParameters::bottomLabel, GraphicsParameters::bottomLabel1, GraphicsParameters::bottomLabel2, GraphicsParameters::bottomLabel3, GenericGraphicsInterface::bottomLabelSize, GenericGraphicsInterface::bottomSubLabelSize, currentWindow, getBottomLabel1DL(), getBottomLabel2DL(), getBottomLabel3DL(), getBottomLabelDL(), getTopLabel1DL(), getTopLabel2DL(), getTopLabel3DL(), getTopLabelDL(), label(), labelsPlotted, min(), nullString, setColour(), GraphicsParameters::size, GenericGraphicsInterface::textColour, GraphicsParameters::topLabel, GraphicsParameters::topLabel1, GraphicsParameters::topLabel2, GraphicsParameters::topLabel3, GenericGraphicsInterface::topLabelSize, GenericGraphicsInterface::topSubLabelSize, and TRUE.

Referenced by plotLines(), and plotPoints().

void GL_GraphicsInterface::plotLines ( const realArray &  arrows, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  dList = 0  )

virtual

Implements GenericGraphicsInterface.

References assert, aString, currentWindow, GraphicsParameters::curveLineWidth, End, fabs(), FALSE, generateNewDisplayList(), GraphicsParameters::get(), glLineWidth, glVertex3, GenericGraphicsInterface::graphicsWindowIsOpen, GraphicsParameters::isDefault(), GraphicsParameters::lineColour, lineWidthScaleFactor, max(), min(), GraphicsParameters::plotBound, GraphicsParameters::plotBoundsChanged, plotLabels(), GraphicsParameters::plotTitleLabels, GenericGraphicsInterface::processorForGraphics, q, redraw(), GraphicsParameters::relativeChangeForPlotBounds, setAxesDimension(), setColour(), setGlobalBound(), Start, TRUE, GraphicsParameters::usePlotBounds, and GraphicsParameters::usePlotBoundsOrLarger.

void GL_GraphicsInterface::plotPoints ( const realArray &  points, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  dList = 0  )

virtual

Implements GenericGraphicsInterface.

References Overture::nullRealArray(), and Overture::nullRealDistributedArray().

Referenced by ErrorEstimator::plotErrorPoints().

void GL_GraphicsInterface::plotPoints ( const realArray &  points, const realArray &  value, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  dList = 0  )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, chooseAColour(), currentWindow, drawColourBar(), End, erase(), eraseLabels(), fabs(), FALSE, generateNewDisplayList(), getMenuItem(), glPointSize, glTranslate, glVertex3, GenericGraphicsInterface::graphicsIsOn(), inputString(), ip, GraphicsParameters::isDefault(), GenericGraphicsInterface::isGraphicsWindowOpen(), lineWidthScaleFactor, max(), min(), Overture::nullRealArray(), outputString(), GraphicsParameters::plotBound, GraphicsParameters::plotBoundsChanged, GraphicsParameters::plotColourBar, plotLabels(), GraphicsParameters::plotObject, GraphicsParameters::plotObjectAndExit, GraphicsParameters::plotTitleLabels, GraphicsParameters::pointColour, points(), pointSize, GraphicsParameters::pointSize, GenericGraphicsInterface::processorForGraphics, q, redraw(), GraphicsParameters::relativeChangeForPlotBounds, setAxesDimension(), setColour(), setColourFromTable(), setGlobalBound(), sPrintF(), sScanF(), Start, TRUE, GenericGraphicsInterface::unAppendTheDefaultPrompt(), GraphicsParameters::usePlotBounds, and GraphicsParameters::usePlotBoundsOrLarger.

void GL_GraphicsInterface::pollEvents ( )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::graphicsWindowIsOpen, and moglPollEvents().

void GL_GraphicsInterface::popGUI ( )

virtual

Implements GenericGraphicsInterface.

References GUIState::allCommands, DialogData::closeDialog(), GenericGraphicsInterface::currentGUI, currentWindow, GUIState::dialogSiblings, GenericGraphicsInterface::isGraphicsWindowOpen(), moglBuildPopup(), moglBuildUserButtons(), moglBuildUserMenu(), moglGetNWindows(), moglSetSensitive(), GUIState::nAllCommands, GUIState::nDialogSiblings, NULL, GUIState::popupMenu, GUIState::prev, printF(), GUIState::pulldownCommand, GUIState::pulldownTitle, GenericGraphicsInterface::readFile, DialogData::setSensitive(), GUIState::windowButtonCommands, and GUIState::windowButtonLabels.

Referenced by getMenuItem(), main(), pause(), pickPoints(), MeshQualityMetrics::plot(), and ColourBar::update().

int GL_GraphicsInterface::processSpecialMenuItems ( aString &  answer )

virtual

Reimplemented from GenericGraphicsInterface.

References ambient, annotate(), appendCommandHistory(), aString, axesOriginOption, backGround, backGroundName, clippingPlaneEquation, clippingPlaneIsOn, createWindow(), GenericGraphicsInterface::currentGUI, currentWindow, deltaAngle, deltaX, deltaY, deltaZ, diffuse, disableGUI(), displayHelp(), dtx, dty, dtz, erase(), FALSE, foreGround, foreGroundName, fPrintF(), fraction, fractionOfScreen, GenericGraphicsInterface::getMatch(), getXColour(), hardcopyCommands(), homeViewParameters, GenericGraphicsInterface::indentBlanks, initView(), inputString(), GenericGraphicsInterface::isGraphicsWindowOpen(), lighting, lightIsOn, lineWidthScaleFactor, magnificationFactor, magnificationIncrement, materialAmbient, materialDiffuse, materialScaleFactor, materialShininess, materialSpecular, maximumNumberOfClippingPlanes, menuBarItems, moglBuildPopup(), moglBuildUserButtons(), moglBuildUserMenu(), moglGetNWindows(), moglPostDisplay(), moglPrintFractionOfScreen(), moglPrintLineWidth(), moglPrintRotPnt(), moglSetSensitive(), nullString, numberOfClippingPlanes, openGUI(), optionCommands(), outputString(), parseCommandLine(), pause(), pickPoints(), plotTheRotationPoint, GUIState::popupMenu, position, printF(), GUIState::pulldownCommand, GUIState::pulldownTitle, r, GenericGraphicsInterface::readCommandFile(), GenericGraphicsInterface::readFile, redraw(), resetView(), rotationMatrix, s, GenericGraphicsInterface::saveCommandFile(), GenericGraphicsInterface::saveFile, SC, GUIState::setAllCommands(), setCurrentWindow(), setFractionOfScreen(), setLineWidthScaleFactor(), setProjection(), setRotationCenter(), setRotationTransformation(), specular, SQR, SQRT, sScanF(), str_matches(), TRUE, GenericGraphicsInterface::turnOffGraphics(), GenericGraphicsInterface::turnOnGraphics(), GenericGraphicsInterface::useParser, userDefinedRotationPoint, viewChar, GUIState::windowButtonCommands, GUIState::windowButtonLabels, x, xShift, yShift, and zShift.

Referenced by getAnswerSelectPick().

int GL_GraphicsInterface::psToRaster ( const aString &  fileName, const aString &  ppmFileName  )

virtual

Implements GenericGraphicsInterface.

References assert, aString, currentWindow, FALSE, getLineFromFile(), hardCopyType, GraphicsParameters::ppm, r, saveRasterInAFile(), sScanF(), and TRUE.

Referenced by main().

void GL_GraphicsInterface::pushGUI ( GUIState &  newState )

virtual

Implements GenericGraphicsInterface.

References GenericGraphicsInterface::currentGUI, currentWindow, GUIState::dialogSiblings, GUIState::gl, GenericGraphicsInterface::isGraphicsWindowOpen(), moglBuildPopup(), moglBuildUserButtons(), moglBuildUserMenu(), moglGetNWindows(), moglSetSensitive(), GUIState::nDialogSiblings, DialogData::openDialog(), GUIState::popupMenu, GUIState::prev, GUIState::pulldownCommand, GUIState::pulldownTitle, GenericGraphicsInterface::readFile, GUIState::setAllCommands(), DialogData::setSensitive(), GUIState::windowButtonCommands, and GUIState::windowButtonLabels.

Referenced by getMenuItem(), main(), pause(), pickPoints(), MeshQualityMetrics::plot(), and ColourBar::update().

bool GL_GraphicsInterface::readOvertureRC

(

)

References WindowProperties::backgroundColour, WindowProperties::commandWindowHeight, WindowProperties::commandWindowWidth, CS, WindowProperties::foregroundColour, WindowProperties::graphicsWindowHeight, WindowProperties::graphicsWindowWidth, printF(), WindowProperties::showCommandHistory, WindowProperties::showPrompt, WindowProperties::showRubberBandBox, sScanF(), and wProp.

Referenced by constructor().

void GL_GraphicsInterface::redraw ( bool  immediate = FALSE )

virtual

Implements GenericGraphicsInterface.

References currentWindow, GenericGraphicsInterface::graphicsWindowIsOpen, moglDisplay(), and moglPostDisplay().

Referenced by main(), plotLines(), plotPoints(), processSpecialMenuItems(), setPlotTheAxes(), setPlotTheBackgroundGrid(), setPlotTheColourBar(), setPlotTheColouredSquares(), setPlotTheLabels(), setPlotTheRotationPoint(), and ColourBar::update().

int GL_GraphicsInterface::renderPS ( const char *  fileName, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters()  )

protected

References currentWindow, display(), FALSE, init(), GraphicsParameters::isDefault(), GraphicsParameters::outputFormat, outputFormat, printBuffer(), spewWireFrameEPS(), and TRUE.

void GL_GraphicsInterface::resetGlobalBound ( const int  win_number )

virtual

Implements GenericGraphicsInterface.

References End, globalBound, REAL_MAX, and Start.

Referenced by constructor(), erase(), and init().

void GL_GraphicsInterface::resetRotationPoint ( int  win_number = -1 )

protected

References End, getCurrentWindow(), globalBound, setRotationCenter(), and Start.

void GL_GraphicsInterface::resetView ( int  win_number = -1 )

virtual

Implements GenericGraphicsInterface.

References defaultFar, defaultNear, deltaAngle, deltaX, deltaY, deltaZ, dtx, dty, dtz, far, getCurrentWindow(), init(), magnificationFactor, magnificationIncrement, near, rotationMatrix, setRotationTransformation(), shiftCorrection, xShift, yShift, and zShift.

Referenced by initView(), and processSpecialMenuItems().

void GL_GraphicsInterface::rleCompress	(	const int	num,
		GLubyte *	xBuffer,
		FILE *	outFile,
		const int	numPerLine = 30
	)

References fPrintF(), getCPU(), printF(), and r.

Referenced by saveRasterInAFile().

int GL_GraphicsInterface::saveRasterInAFile	(	const aString &	fileName,
		void *	buffer,
		const GLint &	width,
		const GLint &	height,
		const int &	rgbType = 0,
		GraphicsParameters &	parameters = Overture::defaultGraphicsParameters()
	)

References C, GraphicsParameters::colour24Bit, GraphicsParameters::colour8Bit, currentWindow, GraphicsParameters::encapsulatedPostScript, fPrintF(), getCPU(), GraphicsParameters::grayScale, GraphicsParameters::hardCopyType, hardCopyType, ig, ir, GraphicsParameters::isDefault(), max(), min(), NULL, GraphicsParameters::outputFormat, outputFormat, GraphicsParameters::ppm, printF(), r, rleCompress(), and x.

Referenced by hardCopy(), and psToRaster().

int GL_GraphicsInterface::selectNew	(	PickInfo &	xPick,
		SelectionInfo *	select
	)

printf("select: near=%e, far=%e \n",near,far);

printf("select: near=%e, far=%e \n",near,far);

References appendCommandHistory(), aString, bottom, debug, display(), fabs(), far, fPrintF(), GenericGraphicsInterface::indentBlanks, leftSide, magnificationFactor, max(), near, SelectionInfo::nSelect, PickInfo::pickBox, PickInfo::pickWindow, rightSide, GenericGraphicsInterface::saveFile, GenericGraphicsInterface::savePick, SelectionInfo::selection, sPrintF(), top, and viewPort.

Referenced by pickNew().

void GL_GraphicsInterface::setAxesDimension ( int  dim, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References axesDimension, getCurrentWindow(), max(), and min().

Referenced by MeshQualityMetrics::plot(), plotLines(), and plotPoints().

int GL_GraphicsInterface::setAxesLabels ( const aString &  xAxisLabel = blankString, const aString &  yAxisLabel = blankString, const aString &  zAxisLabel = blankString  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, xAxisLabel, yAxisLabel, and zAxisLabel.

int GL_GraphicsInterface::setAxesOrigin ( const GUITypes::real  x0 = defaultOrigin, const GUITypes::real  y0 = defaultOrigin, const GUITypes::real  z0 = defaultOrigin  )

virtual

Implements GenericGraphicsInterface.

References axesOrigin, and currentWindow.

int GL_GraphicsInterface::setColour ( const aString &  colourName )

virtual

Implements GenericGraphicsInterface.

References aString, currentWindow, glEnable, materialShininess, materialSpecular, setMaterialProperties(), and setXColour().

Referenced by annotate(), display(), drawColourBar(), label(), pickPoints(), plotAxes(), plotLabels(), plotLines(), and plotPoints().

int GL_GraphicsInterface::setColour ( ItemColourEnum  item )

virtual

Implements GenericGraphicsInterface.

References backGroundName, currentWindow, foreGroundName, getXColour(), glColor3, and GenericGraphicsInterface::textColour.

void GL_GraphicsInterface::setColourFromTable ( const GUITypes::real  value, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters()  )

virtual

Implements GenericGraphicsInterface.

References assert, GraphicsParameters::blue, colourTable, GraphicsParameters::colourTable, GraphicsParameters::colourTableFunction, GraphicsParameters::gray, GraphicsParameters::green, max(), min(), NULL, GraphicsParameters::rainbow, GraphicsParameters::red, and GraphicsParameters::userDefined.

Referenced by drawColourBar(), MeshQualityMetrics::plot(), and plotPoints().

void GL_GraphicsInterface::setColourName ( int  i, aString  newColourName  ) const

virtual

Implements GenericGraphicsInterface.

References colourNames, and GenericGraphicsInterface::numberOfColourNames.

void GL_GraphicsInterface::setCurrentWindow ( const int &  w )

virtual

Implements GenericGraphicsInterface.

References aString, currentWindow, moglGetNWindows(), moglMakeCurrent(), moglSetSensitive(), moglSetTitle(), printF(), and wTitle.

Referenced by createWindow(), and processSpecialMenuItems().

void GL_GraphicsInterface::setFractionOfScreen ( const GUITypes::real &  fraction = .75, int  win_number = -1  )

protected

References currentWindow, fraction, and fractionOfScreen.

Referenced by processSpecialMenuItems().

void GL_GraphicsInterface::setGlobalBound ( const RealArray &  xBound )

virtual

Implements GenericGraphicsInterface.

References currentWindow, End, fractionOfScreen, globalBound, magnificationFactor, max(), min(), REAL_MIN, Start, and windowScaleFactor.

Referenced by plotLines(), and plotPoints().

void GL_GraphicsInterface::setInteractiveDL ( int  list, bool  interactive  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, getFirstUserRotableDL(), getMaxNOfDL(), GenericGraphicsInterface::interactiveDL, and plotInfo.

int GL_GraphicsInterface::setKeepAspectRatio ( bool  trueOrFalse = true )

virtual

Implements GenericGraphicsInterface.

References currentWindow, and keepAspectRatio.

void GL_GraphicsInterface::setLighting ( int  list, bool  lit  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, getMaxNOfDL(), GenericGraphicsInterface::lightDL, and plotInfo.

void GL_GraphicsInterface::setLineWidthScaleFactor ( const GUITypes::real &  lineWidthScaleFactor = 1, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, and lineWidthScaleFactor.

Referenced by processSpecialMenuItems().

void GL_GraphicsInterface::setMaterialProperties	(	float	ambr,
		float	ambg,
		float	ambb,
		float	difr,
		float	difg,
		float	difb,
		float	specr,
		float	specg,
		float	specb,
		float	shine
	)

References glDisable.

Referenced by setColour().

void GL_GraphicsInterface::setModelViewMatrix ( )

protected

void GL_GraphicsInterface::setNormalizedCoordinates ( )

protected

void GL_GraphicsInterface::setPlotDL ( int  list, bool  plot  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, getFirstUserRotableDL(), getMaxNOfDL(), GenericGraphicsInterface::plotDL, and plotInfo.

Referenced by erase().

void GL_GraphicsInterface::setPlotTheAxes ( bool  newState, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), optionMenu, plotTheAxes, redraw(), setPlotTheBackgroundGrid(), and PullDownMenu::setToggleState().

Referenced by optionCommands(), and setPlotTheBackgroundGrid().

void GL_GraphicsInterface::setPlotTheBackgroundGrid ( bool  newState, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), optionMenu, plotBackGroundGrid, redraw(), setPlotTheAxes(), and PullDownMenu::setToggleState().

Referenced by optionCommands(), and setPlotTheAxes().

void GL_GraphicsInterface::setPlotTheColourBar ( bool  newState, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), optionMenu, plotTheColourBar, redraw(), and PullDownMenu::setToggleState().

Referenced by optionCommands().

void GL_GraphicsInterface::setPlotTheColouredSquares ( bool  newState, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), optionMenu, plotTheColouredSquares, redraw(), and PullDownMenu::setToggleState().

Referenced by optionCommands().

void GL_GraphicsInterface::setPlotTheLabels ( bool  newState, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), optionMenu, plotTheLabels, redraw(), and PullDownMenu::setToggleState().

Referenced by optionCommands().

void GL_GraphicsInterface::setPlotTheRotationPoint ( bool  newState, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), optionMenu, plotTheRotationPoint, redraw(), and PullDownMenu::setToggleState().

Referenced by optionCommands().

void GL_GraphicsInterface::setProjection

(

const int &

win_number

)

References aspectRatio, bottom, currentWindow, far, graphics_setOrthoKeepAspectRatio(), GenericGraphicsInterface::isGraphicsWindowOpen(), leftSide, magnificationFactor, moglMakeCurrent(), near, rightSide, and top.

Referenced by changeView(), processSpecialMenuItems(), and setView().

void GL_GraphicsInterface::setRotationCenter ( GUITypes::real  rotationPoint[3], int  win_number = -1  )

protected

References currentWindow, End, globalBound, rotationCenter, rotationMatrix, shiftCorrection, Start, TRUE, and userDefinedRotationPoint.

Referenced by processSpecialMenuItems(), and resetRotationPoint().

void GL_GraphicsInterface::setRotationTransformation ( int  win_number )

protected

References dtx, dty, dtz, I4, matrix, Pi, and rotationMatrix.

Referenced by changeView(), createWindow(), processSpecialMenuItems(), and resetView().

void GL_GraphicsInterface::setupHardCopy	(	DialogData &	hcd,
		int	win
	)

References DialogData::addOptionMenu(), DialogData::addRadioBox(), aString, cc, hardCopyFile, GenericGraphicsInterface::hardCopyRenderingType, hardCopyType, horizontalRasterResolution, DialogData::openDialog(), outputFormat, q, rasterResolution, DialogData::setBuiltInDialog(), DialogData::setExitCommand(), DialogData::setOptionMenuColumns(), DialogData::setPushButtons(), DialogData::setTextBoxes(), DialogData::setWindowTitle(), and sPrintF().

Referenced by createWindow().

void GL_GraphicsInterface::setUserButtonSensitive ( int  btn, int  trueOrFalse  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), GenericGraphicsInterface::isGraphicsWindowOpen(), moglSetButtonSensitive(), and GenericGraphicsInterface::readFile.

void GL_GraphicsInterface::setView ( ViewLocation &  loc, int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References getCurrentWindow(), ViewLocation::globalBound, globalBound, ViewLocation::magnificationFactor, magnificationFactor, ViewLocation::rotationCenter, rotationCenter, ViewLocation::rotationMatrix, rotationMatrix, setProjection(), ViewLocation::shift, ViewLocation::shiftCorrection, shiftCorrection, ViewLocation::userDefinedRotationPoint, userDefinedRotationPoint, xShift, yShift, and zShift.

void GL_GraphicsInterface::setView ( const ViewParameters &  viewParameter, const GUITypes::real &  value  )

protectedvirtual

Implements GenericGraphicsInterface.

References currentWindow, dtx, dty, dtz, GenericGraphicsInterface::magnification, magnificationFactor, rotationMatrix, setProjection(), GenericGraphicsInterface::xAxisAngle, xShift, GenericGraphicsInterface::xTranslation, GenericGraphicsInterface::yAxisAngle, yShift, GenericGraphicsInterface::yTranslation, GenericGraphicsInterface::zAxisAngle, zShift, and GenericGraphicsInterface::zTranslation.

virtual void GL_GraphicsInterface::setXAxisLabel ( const aString &  xAxisLabel_ = blankString )

inlinevirtual

Implements GenericGraphicsInterface.

References currentWindow, and xAxisLabel.

virtual void GL_GraphicsInterface::setYAxisLabel ( const aString &  yAxisLabel_ = blankString )

inlinevirtual

Implements GenericGraphicsInterface.

References currentWindow, and yAxisLabel.

virtual void GL_GraphicsInterface::setZAxisLabel ( const aString &  zAxisLabel_ = blankString )

inlinevirtual

Implements GenericGraphicsInterface.

References currentWindow, and zAxisLabel.

void GL_GraphicsInterface::stopReadingCommandFile ( )

virtual

Reimplemented from GenericGraphicsInterface.

References GenericGraphicsInterface::abortProgramIfCommandFileEnds, GenericGraphicsInterface::graphicsWindowIsOpen, NULL, openGUI(), OV_ABORT, printF(), GenericGraphicsInterface::readFile, GenericGraphicsInterface::readFileStack, and GenericGraphicsInterface::stringCommands.

Referenced by getAnswerSelectPick(), main(), pause(), pickPoints(), and ColourBar::update().

void GL_GraphicsInterface::unsetNormalizedCoordinates ( )

protected

void GL_GraphicsInterface::updateColourBar ( GraphicsParameters &  parameters, int  window = 0  )

virtual

Implements GenericGraphicsInterface.

References colourBar, ColourBar::setGraphicsInterface(), ColourBar::setGraphicsParameters(), and ColourBar::update().

int GL_GraphicsInterface::worldToNormalizedCoordinates ( const RealArray &  x, RealArray &  r  ) const

virtual

Implements GenericGraphicsInterface.

References assert, currentWindow, max(), modelMatrix, projectionMatrix, q, r, R, REAL_MIN, viewPort, and x.

void GL_GraphicsInterface::xLabel ( const aString &  string, const GUITypes::real  xPosition, const GUITypes::real  yPosition, const GUITypes::real  size = .1, const int  centering = 0, const GUITypes::real  angle = 0., GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, Pi, and x.

Referenced by plotAxes(), and xLabel().

void GL_GraphicsInterface::xLabel ( const aString &  string, const RealArray &  x, const GUITypes::real  size = .1, const int  centering = 0, const GUITypes::real  angle = 0., GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, Pi, and xLabel().

void GL_GraphicsInterface::xLabel ( const aString &  string, const GUITypes::real  x[3], const GUITypes::real  size = .1, const int  centering = 0, const GUITypes::real  angle = 0., GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References currentWindow, Pi, and xLabel().

void GL_GraphicsInterface::xLabel ( const aString &  string, const RealArray &  x, const GUITypes::real  size, const int  centering, const RealArray &  rightVector, const RealArray &  upVector, GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References crossProductAndAngle(), currentWindow, glLineWidth, glRotate, glScale, glTranslate, GenericGraphicsInterface::labelLineWidth, GenericGraphicsInterface::lineWidth, lineWidthScaleFactor, Pi, rot3d(), GraphicsParameters::size, strokeCharacter(), and windowScaleFactor.

void GL_GraphicsInterface::xLabel ( const aString &  string, const GUITypes::real  x[3], const GUITypes::real  size, const int  centering, const GUITypes::real  rightVector[3], const GUITypes::real  upVector[3], GraphicsParameters &  parameters = Overture::defaultGraphicsParameters(), int  win_number = -1  )

virtual

Implements GenericGraphicsInterface.

References crossProductAndAngle(), currentWindow, glLineWidth, glRotate, glScale, glTranslate, GenericGraphicsInterface::labelLineWidth, GenericGraphicsInterface::lineWidth, lineWidthScaleFactor, Pi, rot3d(), GraphicsParameters::size, strokeCharacter(), and windowScaleFactor.

Friends And Related Function Documentation

friend class ColourBar

friend

Member Data Documentation

GLfloat GL_GraphicsInterface::ambient[MAX_WINDOWS][numberOfLights][4]

Referenced by constructor(), lightsOn(), and processSpecialMenuItems().

GUITypes::real GL_GraphicsInterface::aspectRatio[MAX_WINDOWS]

Referenced by constructor(), getAspectRatio(), init(), plotAxes(), and setProjection().

int GL_GraphicsInterface::axesDimension[MAX_WINDOWS]

Referenced by constructor(), display(), and setAxesDimension().

int GL_GraphicsInterface::axesList[MAX_WINDOWS]

protected

Referenced by constructor(), getAxesDL(), and getFirstRotableDL().

RealArray GL_GraphicsInterface::axesOrigin[MAX_WINDOWS]

Referenced by constructor(), getAxesOrigin(), plotAxes(), and setAxesOrigin().

int GL_GraphicsInterface::axesOriginOption[MAX_WINDOWS]

Referenced by constructor(), plotAxes(), and processSpecialMenuItems().

GUITypes::real GL_GraphicsInterface::backGround[MAX_WINDOWS][4]

Referenced by constructor(), display(), and processSpecialMenuItems().

aString GL_GraphicsInterface::backGroundName[MAX_WINDOWS]

Referenced by constructor(), getColour(), processSpecialMenuItems(), and setColour().

GUITypes::real GL_GraphicsInterface::bottom[MAX_WINDOWS]

Referenced by constructor(), display(), getWindowShape(), init(), selectNew(), and setProjection().

int GL_GraphicsInterface::bottomLabel1List[MAX_WINDOWS]

protected

Referenced by constructor(), and getBottomLabel1DL().

int GL_GraphicsInterface::bottomLabel2List[MAX_WINDOWS]

protected

Referenced by constructor(), and getBottomLabel2DL().

int GL_GraphicsInterface::bottomLabel3List[MAX_WINDOWS]

protected

Referenced by constructor(), and getBottomLabel3DL().

int GL_GraphicsInterface::bottomLabelList[MAX_WINDOWS]

protected

Referenced by constructor(), and getBottomLabelDL().

GLenum GL_GraphicsInterface::clip[MAX_WINDOWS][maximumNumberOfClippingPlanes]

Referenced by constructor(), and display().

double GL_GraphicsInterface::clippingPlaneEquation[MAX_WINDOWS][maximumNumberOfClippingPlanes][4]

Referenced by constructor(), display(), and processSpecialMenuItems().

ClippingPlaneInfo GL_GraphicsInterface::clippingPlaneInfo[MAX_WINDOWS]

Referenced by constructor(), and createWindow().

int GL_GraphicsInterface::clippingPlaneIsOn[MAX_WINDOWS][maximumNumberOfClippingPlanes]

Referenced by constructor(), display(), and processSpecialMenuItems().

ColourBar GL_GraphicsInterface::colourBar

Referenced by display(), displayColourBar(), and updateColourBar().

int GL_GraphicsInterface::colourBarList[MAX_WINDOWS]

protected

Referenced by constructor(), and getColourBarDL().

int GL_GraphicsInterface::colouredSquaresList[MAX_WINDOWS]

protected

Referenced by constructor(), and getColouredSquaresDL().

aString* GL_GraphicsInterface::colourNames

Referenced by constructor(), drawColouredSquares(), getColourName(), setColourName(), and ~GL_GraphicsInterface().

int GL_GraphicsInterface::currentWindow

protected

Referenced by annotate(), constructor(), display(), drawColourBar(), drawColouredSquares(), erase(), eraseColourBar(), eraseLabels(), generateNewDisplayList(), getAxesOrigin(), getColour(), getCurrentWindow(), getGlobalBound(), getKeepAspectRatio(), getLineWidthScaleFactor(), getNewLabelList(), getXAxisLabel(), getYAxisLabel(), getZAxisLabel(), hardCopy(), label(), normalizedToWorldCoordinates(), openGUI(), pickPoints(), plotAxes(), plotLabels(), plotLines(), plotPoints(), popGUI(), processSpecialMenuItems(), psToRaster(), pushGUI(), redraw(), renderPS(), saveRasterInAFile(), setAxesLabels(), setAxesOrigin(), setColour(), setCurrentWindow(), setFractionOfScreen(), setGlobalBound(), setInteractiveDL(), setKeepAspectRatio(), setLighting(), setLineWidthScaleFactor(), setPlotDL(), setProjection(), setRotationCenter(), setView(), setXAxisLabel(), setYAxisLabel(), setZAxisLabel(), worldToNormalizedCoordinates(), and xLabel().

GUITypes::real GL_GraphicsInterface::defaultFar[MAX_WINDOWS]

Referenced by constructor(), and resetView().

GUITypes::real GL_GraphicsInterface::defaultNear[MAX_WINDOWS]

Referenced by constructor(), and resetView().

aString GL_GraphicsInterface::defaultWindowTitle

Referenced by createWindow(), and GL_GraphicsInterface().

GUITypes::real GL_GraphicsInterface::deltaAngle[MAX_WINDOWS]

Referenced by constructor(), processSpecialMenuItems(), and resetView().

GUITypes::real GL_GraphicsInterface::deltaX[MAX_WINDOWS]

Referenced by constructor(), processSpecialMenuItems(), and resetView().

GUITypes::real GL_GraphicsInterface::deltaY[MAX_WINDOWS]

Referenced by constructor(), processSpecialMenuItems(), and resetView().

GUITypes::real GL_GraphicsInterface::deltaZ[MAX_WINDOWS]

Referenced by constructor(), processSpecialMenuItems(), and resetView().

GLfloat GL_GraphicsInterface::diffuse[MAX_WINDOWS][numberOfLights][4]

Referenced by constructor(), lightsOn(), and processSpecialMenuItems().

GUITypes::real GL_GraphicsInterface::dtx[MAX_WINDOWS]

Referenced by changeView(), constructor(), processSpecialMenuItems(), resetView(), setRotationTransformation(), and setView().

GUITypes::real GL_GraphicsInterface::dty[MAX_WINDOWS]

Referenced by changeView(), constructor(), processSpecialMenuItems(), resetView(), setRotationTransformation(), and setView().

GUITypes::real GL_GraphicsInterface::dtz[MAX_WINDOWS]

Referenced by changeView(), constructor(), processSpecialMenuItems(), resetView(), setRotationTransformation(), and setView().

GUITypes::real GL_GraphicsInterface::far[MAX_WINDOWS]

Referenced by constructor(), init(), resetView(), selectNew(), and setProjection().

aString* GL_GraphicsInterface::fileMenuItems

Referenced by constructor(), createWindow(), and ~GL_GraphicsInterface().

int GL_GraphicsInterface::firstUserLabelList[MAX_WINDOWS]

protected

Referenced by annotate(), constructor(), and getFirstUserLabelDL().

int GL_GraphicsInterface::firstUserRotableList[MAX_WINDOWS]

protected

Referenced by constructor(), and getFirstUserRotableDL().

GUITypes::real GL_GraphicsInterface::foreGround[MAX_WINDOWS][4]

Referenced by constructor(), and processSpecialMenuItems().

aString GL_GraphicsInterface::foreGroundName[MAX_WINDOWS]

Referenced by constructor(), getColour(), processSpecialMenuItems(), and setColour().

GUITypes::real GL_GraphicsInterface::fractionOfScreen[MAX_WINDOWS]

Referenced by constructor(), display(), processSpecialMenuItems(), setFractionOfScreen(), and setGlobalBound().

GLfloat GL_GraphicsInterface::globalAmbient[MAX_WINDOWS][4]

Referenced by constructor(), and lightsOn().

RealArray GL_GraphicsInterface::globalBound[MAX_WINDOWS]

Referenced by constructor(), display(), PlotIt::drawAStreamLine(), getGlobalBound(), getView(), resetGlobalBound(), resetRotationPoint(), setGlobalBound(), setRotationCenter(), and setView().

aString* GL_GraphicsInterface::graphicsFileMenuItems

Referenced by constructor(), createWindow(), and ~GL_GraphicsInterface().

aString* GL_GraphicsInterface::graphicsHelpMenuItems

Referenced by constructor(), createWindow(), and ~GL_GraphicsInterface().

DialogData GL_GraphicsInterface::hardCopyDialog[MAX_WINDOWS]

Referenced by createWindow(), and hardcopyCommands().

aString GL_GraphicsInterface::hardCopyFile[MAX_WINDOWS]

Referenced by constructor(), hardcopyCommands(), and setupHardCopy().

GraphicsParameters::HardCopyType GL_GraphicsInterface::hardCopyType[MAX_WINDOWS]

Referenced by constructor(), hardCopy(), hardcopyCommands(), psToRaster(), saveRasterInAFile(), and setupHardCopy().

aString* GL_GraphicsInterface::helpMenuItems

Referenced by constructor(), createWindow(), and ~GL_GraphicsInterface().

GUITypes::real GL_GraphicsInterface::homeViewParameters[MAX_WINDOWS][14]

Referenced by constructor(), and processSpecialMenuItems().

int GL_GraphicsInterface::horizontalRasterResolution[MAX_WINDOWS]

Referenced by constructor(), hardcopyCommands(), and setupHardCopy().

Index GL_GraphicsInterface::I4

Referenced by constructor(), and setRotationTransformation().

bool GL_GraphicsInterface::keepAspectRatio[MAX_WINDOWS]

Referenced by constructor(), display(), getKeepAspectRatio(), plotAxes(), and setKeepAspectRatio().

int GL_GraphicsInterface::labelsPlotted[MAX_WINDOWS]

Referenced by constructor(), eraseLabels(), and plotLabels().

int GL_GraphicsInterface::lastUserLabelList[MAX_WINDOWS]

protected

Referenced by constructor(), getLastFixedDL(), and getLastUserLabelDL().

int GL_GraphicsInterface::lastUserRotableList[MAX_WINDOWS]

protected

Referenced by constructor(), generateNewDisplayList(), getLastDL(), getLastRotableDL(), and getLastUserRotableDL().

GUITypes::real GL_GraphicsInterface::leftSide[MAX_WINDOWS]

Referenced by constructor(), display(), getWindowShape(), init(), selectNew(), and setProjection().

int GL_GraphicsInterface::lighting[MAX_WINDOWS]

Referenced by constructor(), display(), and processSpecialMenuItems().

int GL_GraphicsInterface::lightIsOn[MAX_WINDOWS][numberOfLights]

Referenced by constructor(), lightsOff(), lightsOn(), and processSpecialMenuItems().

GUITypes::real GL_GraphicsInterface::lineWidthScaleFactor[MAX_WINDOWS]

Referenced by constructor(), drawColourBar(), getLineWidthScaleFactor(), label(), plotAxes(), plotLines(), plotPoints(), processSpecialMenuItems(), setLineWidthScaleFactor(), and xLabel().

GUITypes::real GL_GraphicsInterface::magnificationFactor[MAX_WINDOWS]

Referenced by changeView(), constructor(), display(), getView(), init(), interactiveAnswer(), plotAxes(), processSpecialMenuItems(), resetView(), selectNew(), setGlobalBound(), setProjection(), and setView().

GUITypes::real GL_GraphicsInterface::magnificationIncrement[MAX_WINDOWS]

Referenced by constructor(), processSpecialMenuItems(), and resetView().

GLfloat GL_GraphicsInterface::materialAmbient[MAX_WINDOWS][4]

Referenced by constructor(), and processSpecialMenuItems().

GLfloat GL_GraphicsInterface::materialDiffuse[MAX_WINDOWS][4]

Referenced by constructor(), and processSpecialMenuItems().

GLfloat GL_GraphicsInterface::materialScaleFactor[MAX_WINDOWS]

Referenced by constructor(), and processSpecialMenuItems().

GLfloat GL_GraphicsInterface::materialShininess[MAX_WINDOWS]

Referenced by constructor(), processSpecialMenuItems(), and setColour().

GLfloat GL_GraphicsInterface::materialSpecular[MAX_WINDOWS][4]

Referenced by constructor(), processSpecialMenuItems(), and setColour().

RealArray GL_GraphicsInterface::matrix[MAX_WINDOWS]

Referenced by constructor(), and setRotationTransformation().

int GL_GraphicsInterface::maximumNumberOfDisplayLists[MAX_WINDOWS]

protected

Referenced by constructor(), generateNewDisplayList(), and getMaxNOfDL().

aString* GL_GraphicsInterface::menuBarItems

Referenced by constructor(), processSpecialMenuItems(), and ~GL_GraphicsInterface().

GLdouble GL_GraphicsInterface::modelMatrix[MAX_WINDOWS][16]

Referenced by display(), normalizedToWorldCoordinates(), pickNew(), pickToWorldCoordinates(), and worldToNormalizedCoordinates().

GUITypes::real GL_GraphicsInterface::near[MAX_WINDOWS]

Referenced by constructor(), init(), resetView(), selectNew(), and setProjection().

int GL_GraphicsInterface::numberOfClippingPlanes[MAX_WINDOWS]

Referenced by constructor(), and processSpecialMenuItems().

PullDownMenu GL_GraphicsInterface::optionMenu[MAX_WINDOWS]

Referenced by constructor(), createWindow(), setPlotTheAxes(), setPlotTheBackgroundGrid(), setPlotTheColourBar(), setPlotTheColouredSquares(), setPlotTheLabels(), and setPlotTheRotationPoint().

GraphicsParameters::OutputFormat GL_GraphicsInterface::outputFormat[MAX_WINDOWS]

Referenced by constructor(), hardcopyCommands(), renderPS(), saveRasterInAFile(), and setupHardCopy().

bool GL_GraphicsInterface::plotBackGroundGrid[MAX_WINDOWS]

Referenced by constructor(), getPlotTheBackgroundGrid(), plotAxes(), and setPlotTheBackgroundGrid().

IntegerArray GL_GraphicsInterface::plotInfo[MAX_WINDOWS]

protected

Referenced by constructor(), display(), erase(), generateNewDisplayList(), setInteractiveDL(), setLighting(), and setPlotDL().

bool GL_GraphicsInterface::plotTheAxes[MAX_WINDOWS]

Referenced by constructor(), display(), getPlotTheAxes(), and setPlotTheAxes().

bool GL_GraphicsInterface::plotTheColourBar[MAX_WINDOWS]

Referenced by constructor(), display(), getPlotTheColourBar(), and setPlotTheColourBar().

bool GL_GraphicsInterface::plotTheColouredSquares[MAX_WINDOWS]

Referenced by constructor(), display(), getPlotTheColouredSquares(), and setPlotTheColouredSquares().

bool GL_GraphicsInterface::plotTheLabels[MAX_WINDOWS]

Referenced by constructor(), display(), getPlotTheLabels(), and setPlotTheLabels().

bool GL_GraphicsInterface::plotTheRotationPoint[MAX_WINDOWS]

Referenced by constructor(), display(), getPlotTheRotationPoint(), processSpecialMenuItems(), and setPlotTheRotationPoint().

GLfloat GL_GraphicsInterface::position[MAX_WINDOWS][numberOfLights][4]

Referenced by constructor(), lightsOn(), and processSpecialMenuItems().

GLdouble GL_GraphicsInterface::projectionMatrix[MAX_WINDOWS][16]

Referenced by display(), normalizedToWorldCoordinates(), pickNew(), pickToWorldCoordinates(), and worldToNormalizedCoordinates().

int GL_GraphicsInterface::rasterResolution[MAX_WINDOWS]

Referenced by constructor(), hardcopyCommands(), and setupHardCopy().

GUITypes::real GL_GraphicsInterface::rightSide[MAX_WINDOWS]

Referenced by constructor(), display(), getWindowShape(), init(), selectNew(), and setProjection().

GUITypes::real GL_GraphicsInterface::rotationCenter[MAX_WINDOWS][3]

Referenced by constructor(), display(), PlotIt::drawAStreamLine(), getView(), plotAxes(), setRotationCenter(), and setView().

RealArray GL_GraphicsInterface::rotationMatrix[MAX_WINDOWS]

Referenced by constructor(), display(), getView(), interactiveAnswer(), processSpecialMenuItems(), resetView(), setRotationCenter(), setRotationTransformation(), and setView().

bool GL_GraphicsInterface::saveTransformationInfo

Referenced by constructor(), and display().

GUITypes::real GL_GraphicsInterface::shiftCorrection[MAX_WINDOWS][3]

Referenced by constructor(), display(), getView(), resetView(), setRotationCenter(), and setView().

GLfloat GL_GraphicsInterface::specular[MAX_WINDOWS][numberOfLights][4]

Referenced by constructor(), lightsOn(), and processSpecialMenuItems().

int GL_GraphicsInterface::textIsOn[maximumNumberOfTextStrings]

Referenced by annotate().

GUITypes::real GL_GraphicsInterface::top[MAX_WINDOWS]

Referenced by constructor(), display(), getWindowShape(), init(), selectNew(), and setProjection().

int GL_GraphicsInterface::topLabel1List[MAX_WINDOWS]

protected

Referenced by constructor(), and getTopLabel1DL().

int GL_GraphicsInterface::topLabel2List[MAX_WINDOWS]

protected

Referenced by constructor(), and getTopLabel2DL().

int GL_GraphicsInterface::topLabel3List[MAX_WINDOWS]

protected

Referenced by constructor(), and getTopLabel3DL().

int GL_GraphicsInterface::topLabelList[MAX_WINDOWS]

protected

Referenced by constructor(), getFirstDL(), getFirstFixedDL(), and getTopLabelDL().

bool GL_GraphicsInterface::userDefinedRotationPoint[MAX_WINDOWS]

Referenced by constructor(), display(), getView(), initView(), processSpecialMenuItems(), setRotationCenter(), and setView().

int GL_GraphicsInterface::userLabel[MAX_WINDOWS]

Referenced by annotate(), constructor(), and erase().

ViewCharacteristics GL_GraphicsInterface::viewChar[MAX_WINDOWS]

Referenced by constructor(), createWindow(), and processSpecialMenuItems().

bool GL_GraphicsInterface::viewHasChanged[MAX_WINDOWS]

Referenced by changeView(), constructor(), and interactiveAnswer().

GLint GL_GraphicsInterface::viewPort[MAX_WINDOWS][4]

Referenced by display(), init(), normalizedToWorldCoordinates(), pickNew(), pickToWorldCoordinates(), selectNew(), and worldToNormalizedCoordinates().

GUITypes::real GL_GraphicsInterface::windowScaleFactor[MAX_WINDOWS][3]

Referenced by constructor(), display(), setGlobalBound(), and xLabel().

WindowProperties GL_GraphicsInterface::wProp

protected

Referenced by constructor(), createWindow(), and readOvertureRC().

aString GL_GraphicsInterface::wTitle[MAX_WINDOWS]

Referenced by createWindow(), and setCurrentWindow().

aString GL_GraphicsInterface::xAxisLabel[MAX_WINDOWS]

Referenced by constructor(), getXAxisLabel(), plotAxes(), setAxesLabels(), and setXAxisLabel().

GUITypes::real GL_GraphicsInterface::xEyeCoordinate

Referenced by constructor(), and display().

GUITypes::real GL_GraphicsInterface::xShift[MAX_WINDOWS]

Referenced by changeView(), constructor(), display(), getView(), interactiveAnswer(), processSpecialMenuItems(), resetView(), and setView().

aString GL_GraphicsInterface::yAxisLabel[MAX_WINDOWS]

Referenced by constructor(), getYAxisLabel(), plotAxes(), setAxesLabels(), and setYAxisLabel().

GUITypes::real GL_GraphicsInterface::yEyeCoordinate

Referenced by constructor(), and display().

GUITypes::real GL_GraphicsInterface::yShift[MAX_WINDOWS]

Referenced by changeView(), constructor(), display(), getView(), interactiveAnswer(), processSpecialMenuItems(), resetView(), and setView().

aString GL_GraphicsInterface::zAxisLabel[MAX_WINDOWS]

Referenced by constructor(), getZAxisLabel(), plotAxes(), setAxesLabels(), and setZAxisLabel().

GUITypes::real GL_GraphicsInterface::zEyeCoordinate

Referenced by constructor(), and display().

GUITypes::real GL_GraphicsInterface::zShift[MAX_WINDOWS]

Referenced by changeView(), constructor(), display(), getView(), interactiveAnswer(), processSpecialMenuItems(), resetView(), and setView().

---

The documentation for this class was generated from the following files:

• GL_GraphicsInterface.h
• ColourBar.C
• colourTable.C
• getAnswer.C
• GL_GraphicsInterface.C
• label.C
• osRender.C
• plotAxes.C
• plotPoints.C
• render.C
