ShowFilePlotter Class Reference

#include <ShowFilePlotter.h>

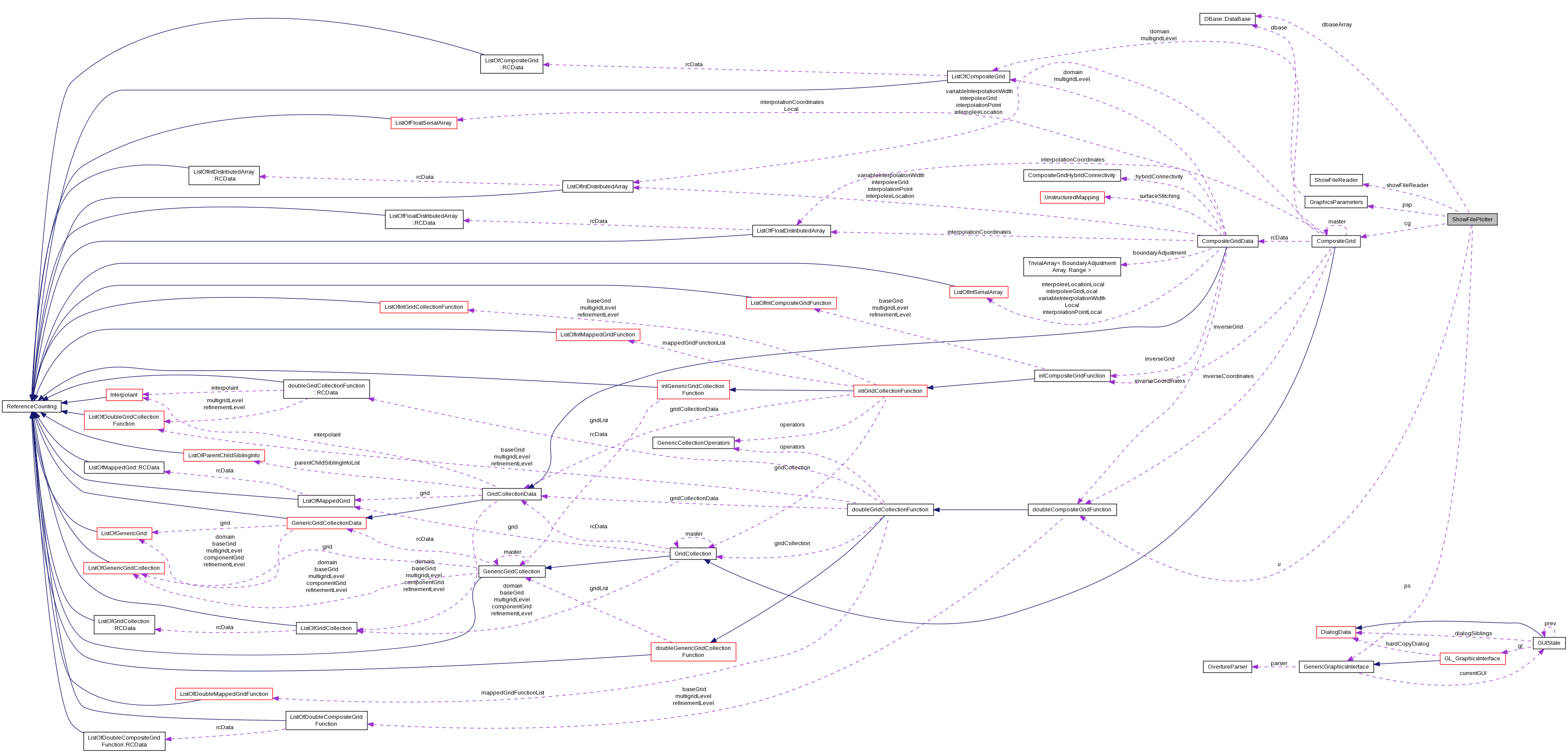

Collaboration diagram for ShowFilePlotter:

Public Member Functions
	ShowFilePlotter (const aString &nameOfShowFile, GenericGraphicsInterface &ps)
	~ShowFilePlotter ()
int	plot ()

Protected Member Functions
int	buildPlotStuffDialog (DialogData &dialog, realCompositeGridFunction &u0, const int cfs)
int	getHeaderComments (int cfs)
	: make a copy of the header comments for a given frame series
int	plotAll (DialogData &dialog)
bool	setFrameSeriesTitles (int cfs)
int	setPlotTitles (int cfs, bool useFrameSeriesTitles=true)
void	setSensitivity (GUIState &dialog, bool trueOrFalse)
int	updatePlotStuffDialog (DialogData &dialog, realCompositeGridFunction &u0, const int component, const int cfs)

Protected Attributes
aString	nameOfShowFile
ShowFileReader	showFileReader
GenericGraphicsInterface &	ps
int	numberOfFrameSeries
bool	applyCommandsToAllSeries
int	numberOfMovieFrames
int	frameStride
aString	movieFileName
bool	saveMovieFiles
int	maximumNumberOfHeaderComments
aString *	sequenceName
aString **	headerComment
CompositeGrid *	cg
realCompositeGridFunction *	u
PlotStuffParameters *	psp
int *	component
int *	solutionNumber
int *	plotOptions
int *	numberOfSolutions
int *	numberOfFrames
int *	numberOfComponents
int *	numberOfComponents0
int *	numberOfSequences
DataBase *	dbaseArray

Constructor & Destructor Documentation

ShowFilePlotter::ShowFilePlotter	(	const aString &	nameOfShowFile,
		GenericGraphicsInterface &	ps
	)

References applyCommandsToAllSeries, cg, component, dbaseArray, frameStride, headerComment, maximumNumberOfHeaderComments, movieFileName, nameOfShowFile, NULL, numberOfComponents, numberOfComponents0, numberOfFrames, numberOfFrameSeries, numberOfMovieFrames, numberOfSequences, numberOfSolutions, ShowFileReader::open(), plotOptions, psp, saveMovieFiles, sequenceName, showFileReader, solutionNumber, and u.

ShowFilePlotter::~ShowFilePlotter

(

)

References cg, component, dbaseArray, headerComment, NULL, numberOfComponents, numberOfComponents0, numberOfFrames, numberOfFrameSeries, numberOfSequences, numberOfSolutions, plotOptions, psp, sequenceName, solutionNumber, and u.

Member Function Documentation

int ShowFilePlotter::buildPlotStuffDialog ( DialogData &  dialog, realCompositeGridFunction &  u0, const int  cfs  )

protected

References DialogData::addInfoLabel(), DialogData::addOptionMenu(), applyCommandsToAllSeries, assert, aString, frameStride, doubleGridCollectionFunction::getComponentBase(), doubleGridCollectionFunction::getComponentBound(), ShowFileReader::getFrameSeriesName(), doubleGridCollectionFunction::getName(), ShowFileReader::getNumberOfFrameSeries(), movieFileName, numberOfFrameSeries, numberOfMovieFrames, numberOfSequences, numberOfSolutions, saveMovieFiles, sequenceName, DialogData::setExitCommand(), DialogData::setOptionMenuColumns(), DialogData::setPushButtons(), DialogData::setTextBoxes(), DialogData::setToggleButtons(), DialogData::setWindowTitle(), showFileReader, solutionNumber, and sPrintF().

Referenced by plot().

int ShowFilePlotter::getHeaderComments ( int  cfs )

protected

: make a copy of the header comments for a given frame series

References aString, ShowFileReader::getHeaderComments(), headerComment, maximumNumberOfHeaderComments, min(), printF(), and showFileReader.

Referenced by plot().

int ShowFilePlotter::plot

(

)

References GenericGraphicsInterface::appendToTheDefaultPrompt(), applyCommandsToAllSeries, assert, aString, buildPlotStuffDialog(), GUIState::buildPopup(), cfs, cg, checkArrays(), component, PlotIt::contour(), dbaseArray, PlotIt::displacement(), display(), GenericGraphicsInterface::erase(), fileOutput(), frameStride, BodyForce::get(), HDF_DataBase::get(), DBase::DataBase::get(), GraphicsParameters::get(), GenericGraphicsInterface::getAnswer(), GenericGraphicsInterface::getAnswerNoBlock(), ShowFileReader::getASolution(), DerivedFunctions::getASolution(), doubleGridCollectionFunction::getComponentBase(), doubleGridCollectionFunction::getComponentDimension(), GenericGraphicsInterface::getCurrentWindow(), ShowFileReader::getFrame(), ShowFileReader::getFrameSeriesName(), getHeaderComments(), GenericGraphicsInterface::getMenuItem(), doubleGridCollectionFunction::getName(), ShowFileReader::getNumberOfFrames(), ShowFileReader::getNumberOfFrameSeries(), ShowFileReader::getNumberOfSequences(), DialogData::getOptionMenu(), ShowFileReader::getSequence(), ShowFileReader::getSequenceNames(), DialogData::getTextValue(), DialogData::getToggleValue(), GI_COLOUR_LINE_CONTOURS, GI_COMPONENT_FOR_CONTOURS, GI_HARD_COPY_TYPE, GI_PLOT_BOUNDS, GI_PLOT_THE_OBJECT_AND_EXIT, GI_TOP_LABEL, GI_TOP_LABEL_SUB_1, GI_TOP_LABEL_SUB_2, GI_USE_PLOT_BOUNDS, GenericGraphicsInterface::hardCopy(), DBase::DataBase::has_key(), headerComment, GenericGraphicsInterface::inputString(), GenericGraphicsInterface::isGraphicsWindowOpen(), log10(), max(), maximumNumberOfHeaderComments, min(), movieFileName, NULL, GenericGridCollection::numberOfComponentGrids(), numberOfComponents, numberOfComponents0, DerivedFunctions::numberOfDerivedTypes(), numberOfFrames, numberOfFrameSeries, numberOfMovieFrames, numberOfSequences, numberOfSolutions, GenericGraphicsInterface::outputString(), PlotIt::plot(), plotAll(), BodyForce::plotForcingRegions(), plotOptions, GenericGraphicsInterface::popGUI(), GraphicsParameters::postScript, GraphicsParameters::ppm, printF(), Overture::printMemoryUsage(), ps, psp, GenericGraphicsInterface::pushGUI(), DBase::DataBase::put(), GenericGraphicsInterface::readingFromCommandFile(), GenericGraphicsInterface::redraw(), GenericGraphicsInterface::resetGlobalBound(), saveMovieFiles, saveOvertureTextFile(), sequenceName, GraphicsParameters::set(), OptionMenu::setCurrentChoice(), ShowFileReader::setCurrentFrameSeries(), GenericGraphicsInterface::setGlobalBound(), ShowFileReader::setMaximumNumberOfOpenShowFiles(), setPlotTitles(), setSensitivity(), DialogData::setTextLabel(), showFileReader, GraphicsParameters::showFileReader, GraphicsParameters::showFileSolutionNumber, solutionNumber, sPrintF(), sScanF(), GenericGraphicsInterface::stopReadingCommandFile(), PlotIt::streamLines(), u, GenericGraphicsInterface::unAppendTheDefaultPrompt(), DerivedFunctions::update(), updatePlotStuffDialog(), PlotIt::userDefinedOutput(), and DataFormats::writePlot3d().

Referenced by plotStuff().

int ShowFilePlotter::plotAll ( DialogData &  dialog )

protected

References aString, cg, PlotIt::contour(), dbaseArray, PlotIt::displacement(), End, GenericGraphicsInterface::erase(), GraphicsParameters::get(), ShowFileReader::getFrameSeriesName(), PlotIt::getGridBounds(), GI_CONTOUR_SURFACE_SPATIAL_BOUND, GI_LABEL_COLOUR_BAR, GI_LABEL_COMPONENT, GI_LABEL_MIN_MAX, GI_PLOT_THE_OBJECT_AND_EXIT, GI_TOP_LABEL_SUB_1, max(), numberOfFrameSeries, PlotIt::plot(), BodyForce::plotForcingRegions(), plotOptions, ps, psp, GraphicsParameters::set(), DialogData::setInfoLabel(), showFileReader, GraphicsParameters::showFileSolutionNumber, solutionNumber, sPrintF(), Start, and PlotIt::streamLines().

Referenced by plot().

bool ShowFilePlotter::setFrameSeriesTitles ( int  cfs )

protected

References aString, ShowFileParameter::get(), ShowFileParameter::getName(), ShowFileReader::getParameters(), ShowFileParameter::getType(), GI_TOP_LABEL, GI_TOP_LABEL_SUB_1, GI_TOP_LABEL_SUB_2, numberOfFrameSeries, printF(), psp, GraphicsParameters::set(), showFileReader, solutionNumber, sPrintF(), and ShowFileParameter::stringParameter.

Referenced by setPlotTitles().

int ShowFilePlotter::setPlotTitles ( int  cfs, bool  useFrameSeriesTitles = true  )

protected

References GI_TOP_LABEL, GI_TOP_LABEL_SUB_1, GI_TOP_LABEL_SUB_2, headerComment, numberOfFrameSeries, plotOptions, psp, GraphicsParameters::set(), and setFrameSeriesTitles().

Referenced by plot().

void ShowFilePlotter::setSensitivity ( GUIState &  dialog, bool  trueOrFalse  )

protected

References DialogData::getOptionMenu(), DialogData::pushButtonWidget, OptionMenu::setSensitive(), DialogData::setSensitive(), and DialogData::textBoxWidget.

Referenced by plot().

int ShowFilePlotter::updatePlotStuffDialog ( DialogData &  dialog, realCompositeGridFunction &  u0, const int  component, const int  cfs  )

protected

References aString, DialogData::changeOptionMenu(), doubleGridCollectionFunction::getComponentBase(), doubleGridCollectionFunction::getComponentBound(), doubleGridCollectionFunction::getName(), numberOfSequences, and sequenceName.

Referenced by plot().

Member Data Documentation

bool ShowFilePlotter::applyCommandsToAllSeries

protected

Referenced by buildPlotStuffDialog(), plot(), and ShowFilePlotter().

CompositeGrid* ShowFilePlotter::cg

protected

Referenced by plot(), plotAll(), ShowFilePlotter(), and ~ShowFilePlotter().

int* ShowFilePlotter::component

protected

Referenced by plot(), ShowFilePlotter(), and ~ShowFilePlotter().

DataBase* ShowFilePlotter::dbaseArray

mutableprotected

Referenced by plot(), plotAll(), ShowFilePlotter(), and ~ShowFilePlotter().

int ShowFilePlotter::frameStride

protected

Referenced by buildPlotStuffDialog(), plot(), and ShowFilePlotter().

aString** ShowFilePlotter::headerComment

protected

Referenced by getHeaderComments(), plot(), setPlotTitles(), ShowFilePlotter(), and ~ShowFilePlotter().

int ShowFilePlotter::maximumNumberOfHeaderComments

protected

Referenced by getHeaderComments(), plot(), and ShowFilePlotter().

aString ShowFilePlotter::movieFileName

protected

Referenced by buildPlotStuffDialog(), plot(), and ShowFilePlotter().

aString ShowFilePlotter::nameOfShowFile

protected

Referenced by ShowFilePlotter().

int* ShowFilePlotter::numberOfComponents

protected

Referenced by plot(), ShowFilePlotter(), and ~ShowFilePlotter().

int* ShowFilePlotter::numberOfComponents0

protected

Referenced by plot(), ShowFilePlotter(), and ~ShowFilePlotter().

int* ShowFilePlotter::numberOfFrames

protected

Referenced by plot(), ShowFilePlotter(), and ~ShowFilePlotter().

int ShowFilePlotter::numberOfFrameSeries

protected

Referenced by buildPlotStuffDialog(), plot(), plotAll(), setFrameSeriesTitles(), setPlotTitles(), ShowFilePlotter(), and ~ShowFilePlotter().

int ShowFilePlotter::numberOfMovieFrames

protected

Referenced by buildPlotStuffDialog(), plot(), and ShowFilePlotter().

int* ShowFilePlotter::numberOfSequences

protected

Referenced by buildPlotStuffDialog(), plot(), ShowFilePlotter(), updatePlotStuffDialog(), and ~ShowFilePlotter().

int* ShowFilePlotter::numberOfSolutions

protected

Referenced by buildPlotStuffDialog(), plot(), ShowFilePlotter(), and ~ShowFilePlotter().

int* ShowFilePlotter::plotOptions

protected

Referenced by plot(), plotAll(), setPlotTitles(), ShowFilePlotter(), and ~ShowFilePlotter().

GenericGraphicsInterface& ShowFilePlotter::ps

protected

Referenced by plot(), and plotAll().

PlotStuffParameters* ShowFilePlotter::psp

protected

Referenced by plot(), plotAll(), setFrameSeriesTitles(), setPlotTitles(), ShowFilePlotter(), and ~ShowFilePlotter().

bool ShowFilePlotter::saveMovieFiles

protected

Referenced by buildPlotStuffDialog(), plot(), and ShowFilePlotter().

aString* ShowFilePlotter::sequenceName

protected

Referenced by buildPlotStuffDialog(), plot(), ShowFilePlotter(), updatePlotStuffDialog(), and ~ShowFilePlotter().

ShowFileReader ShowFilePlotter::showFileReader

protected

Referenced by buildPlotStuffDialog(), getHeaderComments(), plot(), plotAll(), setFrameSeriesTitles(), and ShowFilePlotter().

int* ShowFilePlotter::solutionNumber

protected

Referenced by buildPlotStuffDialog(), plot(), plotAll(), setFrameSeriesTitles(), ShowFilePlotter(), and ~ShowFilePlotter().

realCompositeGridFunction* ShowFilePlotter::u

protected

Referenced by plot(), ShowFilePlotter(), and ~ShowFilePlotter().

---

The documentation for this class was generated from the following files:

• ShowFilePlotter.h
• ShowFilePlotter.C
