GraphicsParameters.h File Reference

#include "GenericDataBase.h"
#include "GUITypes.h"
#include "DBase.hh"
#include "aString.H"

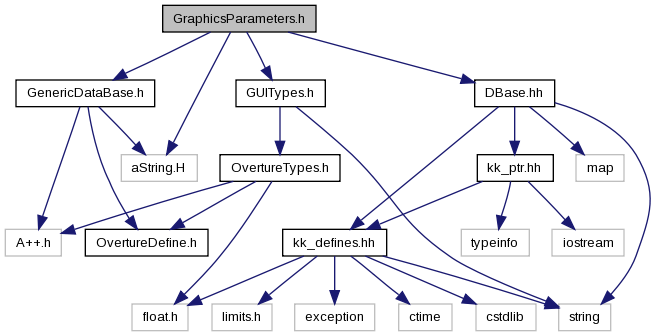

Include dependency graph for GraphicsParameters.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GraphicsParameters

Macros
#define	KK_DEBUG

Typedefs
typedef void(*	ColourTableFunctionPointer )(const GUITypes::real &value, GUITypes::real &red, GUITypes::real &green, GUITypes::real &blue)

Enumerations
enum	GraphicsOptions {   GI_ADJUST_GRID_FOR_DISPLACEMENT, GI_AXES_ORIGIN, GI_BOUNDARY_COLOUR_OPTION, GI_BACK_GROUND_GRID_FOR_STREAM_LINES,   GI_BLOCK_BOUNDARY_COLOUR_OPTION, GI_BOTTOM_LABEL, GI_BOTTOM_LABEL_SUP_1, GI_BOTTOM_LABEL_SUP_2,   GI_BOTTOM_LABEL_SUP_3, GI_COLOUR_INTERPOLATION_POINTS, GI_COLOUR_LINE_CONTOURS, GI_COMPUTE_COARSENING_FACTOR,   GI_CONTOUR_ON_GRID_FACE, GI_CONTOUR_SURFACE_VERTICAL_SCALE_FACTOR, GI_CONTOUR_SURFACE_SPATIAL_BOUND, GI_CONTOUR3D_MIN_MAX_OPTION,   GI_COLOUR_TABLE, GI_COMPONENT_FOR_CONTOURS, GI_COMPONENT_FOR_SURFACE_CONTOURS, GI_COMPONENTS_TO_PLOT,   GI_CONTOUR_LEVELS, GI_COORDINATE_PLANES, GI_DISPLACEMENT_SCALE_FACTOR, GI_DISPLACEMENT_U_COMPONENT,   GI_DISPLACEMENT_V_COMPONENT, GI_DISPLACEMENT_W_COMPONENT, GI_FLAT_SHADING, GI_GRID_COORDINATE_PLANES,   GI_GRID_BOUNDARY_CONDITION_OPTIONS, GI_GRID_OPTIONS, GI_GRID_LINES, GI_GRID_LINE_COLOUR_OPTION,   GI_GRIDS_TO_PLOT, GI_HARD_COPY_TYPE, GI_ISO_SURFACE_VALUES, GI_KEEP_ASPECT_RATIO,   GI_LABEL_COMPONENT, GI_LABEL_COLOUR_BAR, GI_LABEL_GRIDS_AND_BOUNDARIES, GI_LABEL_MIN_MAX,   GI_LINE_OFFSET, GI_LINE_COLOUR, GI_MAPPING_COLOUR, GI_MINIMUM_CONTOUR_SPACING,   GI_MIN_AND_MAX_CONTOUR_LEVELS, GI_MIN_AND_MAX_STREAM_LINES, GI_MULTIGRID_LEVEL_TO_PLOT, GI_NUMBER_OF_CONTOUR_LEVELS,   GI_NUMBER_OF_GHOST_LINES_TO_PLOT, GI_OUTPUT_FORMAT, GI_PLOT_BOUNDS, GI_PLOT_BACK_GROUND_GRID,   GI_PLOT_BACKUP_INTERPOLATION_POINTS, GI_PLOT_BLOCK_BOUNDARIES, GI_PLOT_COLOUR_BAR, GI_PLOT_CONTOUR_LINES,   GI_PLOT_LABELS, GI_PLOT_LINES_ON_GRID_BOUNDARIES, GI_PLOT_LINES_ON_MAPPING_BOUNDARIES, GI_PLOT_MAPPING_EDGES,   GI_PLOT_MAPPING_NORMALS, GI_PLOT_GRID_BOUNDARIES_ON_CONTOUR_PLOTS, GI_PLOT_GRID_LINES, GI_PLOT_GRID_POINTS_ON_CURVES,   GI_PLOT_END_POINTS_ON_CURVES, GI_PLOT_HIDDEN_REFINEMENT_POINTS, GI_PLOT_INTERIOR_BOUNDARY_POINTS, GI_PLOT_INTERPOLATION_POINTS,   GI_PLOT_INTERPOLATION_CELLS, GI_PLOT_NON_PHYSICAL_BOUNDARIES, GI_PLOT_NURBS_CURVES_AS_SUBCURVES, GI_PLOT_REFINEMENT_GRIDS,   GI_PLOT_SHADED_MAPPING_BOUNDARIES, GI_PLOT_SHADED_SURFACE, GI_PLOT_SHADED_SURFACE_GRIDS, GI_PLOT_THE_OBJECT,   GI_PLOT_THE_OBJECT_AND_EXIT, GI_PLOT_WIRE_FRAME, GI_POINT_COLOUR, GI_POINT_OFFSET,   GI_POINT_SIZE, GI_POINT_SYMBOL, GI_RASTER_RESOLUTION, GI_REFINEMENT_LEVEL_TO_PLOT,   GI_SURFACE_OFFSET, GI_STREAM_LINE_TOLERANCE, GI_STREAM_LINE_ARROW_SIZE, GI_U_COMPONENT_FOR_STREAM_LINES,   GI_V_COMPONENT_FOR_STREAM_LINES, GI_W_COMPONENT_FOR_STREAM_LINES, GI_TOP_LABEL, GI_TOP_LABEL_SUB_1,   GI_TOP_LABEL_SUB_2, GI_TOP_LABEL_SUB_3, GI_USE_PLOT_BOUNDS, GI_USE_PLOT_BOUNDS_OR_LARGER,   GI_PLOT_2D_CONTOURS_ON_COORDINATE_PLANES, GI_NORMAL_AXIS_FOR_2D_CONTOURS_ON_COORDINATE_PLANES, GI_X_SCALE_FACTOR, GI_Y_SCALE_FACTOR,   GI_Z_SCALE_FACTOR, GI_Y_LEVEL_FOR_1D_GRIDS, GI_Z_LEVEL_FOR_2D_GRIDS, GI_PLOT_UNS_NODES,   GI_PLOT_UNS_FACES, GI_PLOT_UNS_EDGES, GI_PLOT_UNS_BOUNDARY_EDGES, GI_UNS_USE_CUT_PLANE,   GI_UNS_CUT_PLANE_NORMAL, GI_UNS_CUT_PLANE_VERTEX, GI_UNS_FLAT_SHADING }

Functions
int	viewMappings (MappingInformation &mapInfo)
int	plotAListOfMappings (MappingInformation &mapInfo, const int &mapNumberToPlot, int &numberOfMapsPlotted, IntegerArray &listOfMapsToPlot, aString *localColourNames, const int &numberOfColourNames, const bool &plotTheAxes, GraphicsParameters &params)
int	readMappings (MappingInformation &mapInfo)

Macro Definition Documentation

#define KK_DEBUG

Typedef Documentation

typedef void(* ColourTableFunctionPointer)(const GUITypes::real &value, GUITypes::real &red, GUITypes::real &green, GUITypes::real &blue)

Enumeration Type Documentation

enum GraphicsOptions

Enumerator
GI_ADJUST_GRID_FOR_DISPLACEMENT
GI_AXES_ORIGIN
GI_BOUNDARY_COLOUR_OPTION
GI_BACK_GROUND_GRID_FOR_STREAM_LINES
GI_BLOCK_BOUNDARY_COLOUR_OPTION
GI_BOTTOM_LABEL
GI_BOTTOM_LABEL_SUP_1
GI_BOTTOM_LABEL_SUP_2
GI_BOTTOM_LABEL_SUP_3
GI_COLOUR_INTERPOLATION_POINTS
GI_COLOUR_LINE_CONTOURS
GI_COMPUTE_COARSENING_FACTOR
GI_CONTOUR_ON_GRID_FACE
GI_CONTOUR_SURFACE_VERTICAL_SCALE_FACTOR
GI_CONTOUR_SURFACE_SPATIAL_BOUND
GI_CONTOUR3D_MIN_MAX_OPTION
GI_COLOUR_TABLE
GI_COMPONENT_FOR_CONTOURS
GI_COMPONENT_FOR_SURFACE_CONTOURS
GI_COMPONENTS_TO_PLOT
GI_CONTOUR_LEVELS
GI_COORDINATE_PLANES
GI_DISPLACEMENT_SCALE_FACTOR
GI_DISPLACEMENT_U_COMPONENT
GI_DISPLACEMENT_V_COMPONENT
GI_DISPLACEMENT_W_COMPONENT
GI_FLAT_SHADING
GI_GRID_COORDINATE_PLANES
GI_GRID_BOUNDARY_CONDITION_OPTIONS
GI_GRID_OPTIONS
GI_GRID_LINES
GI_GRID_LINE_COLOUR_OPTION
GI_GRIDS_TO_PLOT
GI_HARD_COPY_TYPE
GI_ISO_SURFACE_VALUES
GI_KEEP_ASPECT_RATIO
GI_LABEL_COMPONENT
GI_LABEL_COLOUR_BAR
GI_LABEL_GRIDS_AND_BOUNDARIES
GI_LABEL_MIN_MAX
GI_LINE_OFFSET
GI_LINE_COLOUR
GI_MAPPING_COLOUR
GI_MINIMUM_CONTOUR_SPACING
GI_MIN_AND_MAX_CONTOUR_LEVELS
GI_MIN_AND_MAX_STREAM_LINES
GI_MULTIGRID_LEVEL_TO_PLOT
GI_NUMBER_OF_CONTOUR_LEVELS
GI_NUMBER_OF_GHOST_LINES_TO_PLOT
GI_OUTPUT_FORMAT
GI_PLOT_BOUNDS
GI_PLOT_BACK_GROUND_GRID
GI_PLOT_BACKUP_INTERPOLATION_POINTS
GI_PLOT_BLOCK_BOUNDARIES
GI_PLOT_COLOUR_BAR
GI_PLOT_CONTOUR_LINES
GI_PLOT_LABELS
GI_PLOT_LINES_ON_GRID_BOUNDARIES
GI_PLOT_LINES_ON_MAPPING_BOUNDARIES
GI_PLOT_MAPPING_EDGES
GI_PLOT_MAPPING_NORMALS
GI_PLOT_GRID_BOUNDARIES_ON_CONTOUR_PLOTS
GI_PLOT_GRID_LINES
GI_PLOT_GRID_POINTS_ON_CURVES
GI_PLOT_END_POINTS_ON_CURVES
GI_PLOT_HIDDEN_REFINEMENT_POINTS
GI_PLOT_INTERIOR_BOUNDARY_POINTS
GI_PLOT_INTERPOLATION_POINTS
GI_PLOT_INTERPOLATION_CELLS
GI_PLOT_NON_PHYSICAL_BOUNDARIES
GI_PLOT_NURBS_CURVES_AS_SUBCURVES
GI_PLOT_REFINEMENT_GRIDS
GI_PLOT_SHADED_MAPPING_BOUNDARIES
GI_PLOT_SHADED_SURFACE
GI_PLOT_SHADED_SURFACE_GRIDS
GI_PLOT_THE_OBJECT
GI_PLOT_THE_OBJECT_AND_EXIT
GI_PLOT_WIRE_FRAME
GI_POINT_COLOUR
GI_POINT_OFFSET
GI_POINT_SIZE
GI_POINT_SYMBOL
GI_RASTER_RESOLUTION
GI_REFINEMENT_LEVEL_TO_PLOT
GI_SURFACE_OFFSET
GI_STREAM_LINE_TOLERANCE
GI_STREAM_LINE_ARROW_SIZE
GI_U_COMPONENT_FOR_STREAM_LINES
GI_V_COMPONENT_FOR_STREAM_LINES
GI_W_COMPONENT_FOR_STREAM_LINES
GI_TOP_LABEL
GI_TOP_LABEL_SUB_1
GI_TOP_LABEL_SUB_2
GI_TOP_LABEL_SUB_3
GI_USE_PLOT_BOUNDS
GI_USE_PLOT_BOUNDS_OR_LARGER
GI_PLOT_2D_CONTOURS_ON_COORDINATE_PLANES
GI_NORMAL_AXIS_FOR_2D_CONTOURS_ON_COORDINATE_PLANES
GI_X_SCALE_FACTOR
GI_Y_SCALE_FACTOR
GI_Z_SCALE_FACTOR
GI_Y_LEVEL_FOR_1D_GRIDS
GI_Z_LEVEL_FOR_2D_GRIDS
GI_PLOT_UNS_NODES
GI_PLOT_UNS_FACES
GI_PLOT_UNS_EDGES
GI_PLOT_UNS_BOUNDARY_EDGES
GI_UNS_USE_CUT_PLANE
GI_UNS_CUT_PLANE_NORMAL
GI_UNS_CUT_PLANE_VERTEX
GI_UNS_FLAT_SHADING

Function Documentation

int plotAListOfMappings	(	MappingInformation &	mapInfo,
		const int &	mapNumberToPlot,
		int &	numberOfMapsPlotted,
		IntegerArray &	listOfMapsToPlot,
		aString *	localColourNames,
		const int &	numberOfColourNames,
		const bool &	plotTheAxes,
		GraphicsParameters &	params
	)

int readMappings

(

MappingInformation &

mapInfo

)

int viewMappings

(

MappingInformation &

mapInfo

)

References abs(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, GenericGraphicsInterface::buildCascadingMenu(), GenericGraphicsInterface::chooseAColour(), GraphicsParameters::colourByBoundaryCondition, GraphicsParameters::colourByGrid, GraphicsParameters::colourByShare, GenericGraphicsInterface::drawColouredSquares(), End, GenericGraphicsInterface::erase(), FALSE, GraphicsParameters::getBoundaryColourOption(), Mapping::getBoundaryCondition(), Mapping::getDomainDimension(), GraphicsParameters::getLabelGridsAndBoundaries(), ListOfMappingRC::getLength(), GraphicsParameters::getMappingColour(), GenericGraphicsInterface::getMenuItem(), Mapping::getName(), GraphicsParameters::getNumberOfGhostLinesToPlot(), GraphicsParameters::getPlotGridPointsOnCurves(), GraphicsParameters::getPlotLinesOnMappingBoundaries(), GraphicsParameters::getPlotNonPhysicalBoundaries(), GraphicsParameters::getPlotShadedSurface(), Mapping::getShare(), GI_LABEL_GRIDS_AND_BOUNDARIES, GI_MAPPING_COLOUR, GI_PLOT_MAPPING_EDGES, GI_PLOT_SHADED_MAPPING_BOUNDARIES, GI_PLOT_THE_OBJECT_AND_EXIT, MappingInformation::graphXInterface, GenericGraphicsInterface::indexInCascadingMenu(), GenericGraphicsInterface::inputString(), GenericGraphicsInterface::isGraphicsWindowOpen(), MappingInformation::mappingList, Mapping::mappingName, NULL, GenericGraphicsInterface::outputString(), PlotIt::plot(), GenericGraphicsInterface::redraw(), GraphicsParameters::set(), sPrintF(), sScanF(), Start, GenericGraphicsInterface::stopReadingCommandFile(), TRUE, and GenericGraphicsInterface::unAppendTheDefaultPrompt().

Referenced by UserDefinedMapping1::bladeSetup(), MappingsFromCAD::createCompositeCurve(), and createMappings().
