MappingsFromCAD Class Reference

#include <MappingsFromCAD.h>

Inheritance diagram for MappingsFromCAD:

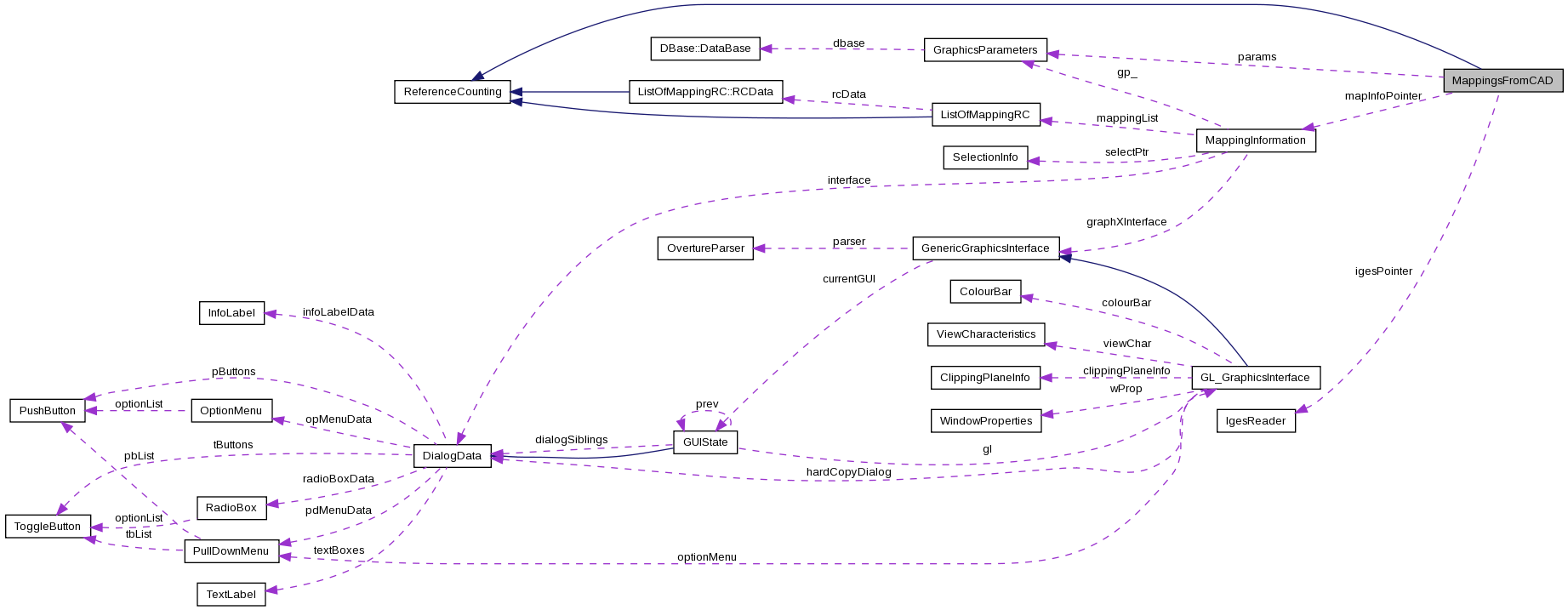

Collaboration diagram for MappingsFromCAD:

Public Member Functions
	MappingsFromCAD ()
	~MappingsFromCAD ()
int	readMappings (MappingInformation &mapInfo, aString fName=nullString, bool chooseAll=FALSE)
void	fileContents (aString fileName, IgesReader *&iges_, int &numberOfNurbs, int &numberOfFiniteElements, int &numberOfNodes, int &status)
CompositeSurface *	readSomeNurbs (MappingInformation &mapInfo, IgesReader *iges_, int startMap, int endMap, int numberOfNurbs, int &status)
Public Member Functions inherited from ReferenceCounting
	ReferenceCounting ()
	ReferenceCounting (const ReferenceCounting &x, const CopyType ct=DEEP)
virtual	~ReferenceCounting ()
virtual ReferenceCounting &	operator= (const ReferenceCounting &x)
virtual void	reference (const ReferenceCounting &x)
virtual void	breakReference ()
virtual ReferenceCounting *	virtualConstructor (const CopyType ct=DEEP) const
Integer	incrementReferenceCount ()
Integer	decrementReferenceCount ()
Integer	getReferenceCount () const
Logical	uncountedReferencesMayExist ()
virtual aString	getClassName () const
Integer	getGlobalID () const
void	setGlobalID (int id)
virtual void	consistencyCheck () const

Static Public Member Functions
static int	getTransformationMatrix (const int &item, IgesReader &iges, RealArray &rotation, RealArray &translation)

Protected Types
enum	LineTypes { general =0, horizontal, vertical }
enum	BoundaryTypes {   generalBoundary =0, simpleReparameterization, coons13LeftRight, coons13BottomTop,   coons24LeftRight, coons24BottomTop, coons }

Protected Member Functions
int	createCompositeCurve (const int &item, IgesReader &iges, int &maximumNumberOfSubCurves, int &numberOfSubCurves, Mapping **&mapPointer, Mapping *surf, RealArray &surfaceParameterScale, bool scaleTheCurve=true, bool expectPhysicalSpaceCurve=false)
int	createCurveOnAParametricSurface (const int &item, IgesReader &iges, Mapping *surf, Mapping *&mapPointer, int &maximumNumberOfSubCurves, Mapping **&subCurve, RealArray &surfaceParameterScale)
int	createIgesReader (GenericGraphicsInterface &gi, aString &fileName, IgesReader *&iges, FILE *&fp, bool useGivenFileName=FALSE)
int	createSurface (int surface, IgesReader &iges, Mapping *&mapPointer, RealArray &surfaceParameterScale=Overture::nullRealArray())
int	createTrimmedSurface (const int &item, IgesReader &iges, Mapping *&mapPointer)
int	isUntrimmedSurface (IgesReader &iges, int item)
int	readFiniteElements (IgesReader &iges)
int	readOneCurve (int curve, IgesReader &iges, Mapping *&mapPointer, RealArray &curveParameterScale)
int	scaleCurve (Mapping &mapping, Mapping &surf, RealArray &surfaceParameterScale)
int	createBoundaryEntity (const int &item, IgesReader &iges, const int &untrimmedSurfSeq, NurbsMapping *&mapPointer, RealArray &curveParameterScale)
int	readOneCurveAsNURBS (int curve, IgesReader &iges, NurbsMapping *&mapPointer, RealArray &curveParameterScale)
int	createBoundedSurface (int entity, IgesReader &iges, Mapping *&mapPointer)
int	createManifoldSolidBRepObject (int entity, IgesReader &iges, MappingInformation &mapInfo, IntegerArray &mapNumber, int &numberOfMapsCreated, int &visibleItem)

Protected Attributes
enum MappingsFromCAD::BoundaryTypes	boundaryType
IgesReader *	igesPointer
MappingInformation *	mapInfoPointer
GraphicsParameters	params
int *	lineType
real *	subCurveBound [2]
real	curveBound [2][2]
int	revCount
int	revCurveCount
int	axisLineCount

Member Enumeration Documentation

enum MappingsFromCAD::BoundaryTypes

protected

Enumerator
generalBoundary
simpleReparameterization
coons13LeftRight
coons13BottomTop
coons24LeftRight
coons24BottomTop
coons

enum MappingsFromCAD::LineTypes

protected

Enumerator
general
horizontal
vertical

Constructor & Destructor Documentation

MappingsFromCAD::MappingsFromCAD

(

)

References axisLineCount, igesPointer, lineType, mapInfoPointer, NULL, revCount, revCurveCount, and subCurveBound.

MappingsFromCAD::~MappingsFromCAD

(

)

References lineType, NULL, and subCurveBound.

Member Function Documentation

int MappingsFromCAD::createBoundaryEntity ( const int &  item, IgesReader &  iges, const int &  untrimmedSurfSeq, NurbsMapping *&  mapPointer, RealArray &  curveParameterScale  )

protected

References c, Mapping::debug, ReferenceCounting::decrementReferenceCount(), ReferenceCounting::incrementReferenceCount(), NurbsMapping::merge(), NULL, IgesReader::readData(), readOneCurveAsNURBS(), NurbsMapping::reparameterize(), IgesReader::sequenceToItem(), and NurbsMapping::truncateToDomainBounds().

Referenced by createBoundedSurface().

int MappingsFromCAD::createBoundedSurface ( int  entity, IgesReader &  iges, Mapping *&  mapPointer  )

protected

References axis1, axis2, createBoundaryEntity(), createSurface(), Mapping::debug, ReferenceCounting::decrementReferenceCount(), IgesReader::entity(), IgesReader::entityName(), Mapping::getBoundingBox(), ReferenceCounting::getClassName(), NurbsMapping::getClassName(), Mapping::getClassName(), Mapping::getGridDimensions(), ReferenceCounting::incrementReferenceCount(), max(), min(), NULL, Mapping::parameterSpace, NurbsMapping::parametricCurve(), IgesReader::readData(), REAL_MAX, IgesReader::sequenceToItem(), Mapping::setDomainSpace(), Mapping::setGridDimensions(), and Mapping::setRangeSpace().

Referenced by createSurface().

int MappingsFromCAD::createCompositeCurve ( const int &  item, IgesReader &  iges, int &  maximumNumberOfSubCurves, int &  numberOfSubCurves, Mapping **&  mapPointer, Mapping *  surf, RealArray &  surfaceParameterScale, bool  scaleTheCurve = true, bool  expectPhysicalSpaceCurve = false  )

protected

References ListOfMappingRC::addElement(), assert, axis1, axis2, boundaryType, IgesReader::circularArc, coons, coons13BottomTop, coons13LeftRight, coons24BottomTop, coons24LeftRight, curveBound, Mapping::debug, End, IgesReader::entity(), IgesReader::entityName(), GenericGraphicsInterface::erase(), fabs(), FALSE, general, generalBoundary, Mapping::getArcLength(), getCPU(), ReferenceCounting::getGlobalID(), Mapping::getGridDimensions(), GI_PLOT_THE_OBJECT_AND_EXIT, GI_TOP_LABEL, MappingInformation::graphXInterface, horizontal, ReferenceCounting::incrementReferenceCount(), ip1, NurbsMapping::isSubCurveOriginal(), IgesReader::line, lineType, Mapping::map(), mapInfoPointer, MappingInformation::mappingList, Mapping::mappingName, max(), min(), NULL, NurbsMapping::numberOfSubCurvesInList(), IgesReader::parametricSplineCurve, params, Pi, PlotIt::plot(), q, r, R, IgesReader::rationalBSplineCurve, IgesReader::readData(), s, scaleCurve(), IgesReader::sequenceToItem(), GraphicsParameters::set(), Mapping::setGridDimensions(), Mapping::setName(), simpleReparameterization, sPrintF(), SQR, SQRT, Start, subCurveBound, NurbsMapping::subCurveFromList(), TRUE, vertical, viewMappings(), and x.

Referenced by createCurveOnAParametricSurface().

int MappingsFromCAD::createCurveOnAParametricSurface ( const int &  item, IgesReader &  iges, Mapping *  surf, Mapping *&  mapPointer, int &  maximumNumberOfSubCurves, Mapping **&  subCurve, RealArray &  surfaceParameterScale  )

protected

References applyMatrixTransform(), assert, axis1, axis2, IgesReader::circularArc, IgesReader::compositeCurve, IgesReader::copiusData, createCompositeCurve(), Mapping::debug, ReferenceCounting::decrementReferenceCount(), display(), End, IgesReader::entity(), IgesReader::entityName(), GenericGraphicsInterface::erase(), fabs(), IgesReader::formData(), Mapping::functionPeriodic, getCPU(), NurbsMapping::getGrid(), Mapping::getGrid(), Mapping::getIsPeriodic(), Mapping::getRangeBound(), getTransformationMatrix(), GI_TOP_LABEL, MappingInformation::graphXInterface, ia, ReferenceCounting::incrementReferenceCount(), NurbsMapping::interpolate(), Mapping::inverseMap(), Mapping::map(), mapInfoPointer, IgesReader::matrix(), max(), NurbsMapping::merge(), Mapping::notPeriodic, NULL, Mapping::parameterSpace, NurbsMapping::parametricCurve(), IgesReader::parametricSplineCurve, params, PlotIt::plot(), r, R, IgesReader::rationalBSplineCurve, IgesReader::readData(), readOneCurve(), GenericGraphicsInterface::redraw(), scaleCurve(), IgesReader::sequenceToItem(), GraphicsParameters::set(), Mapping::setDomainSpace(), Mapping::setIsPeriodic(), Mapping::setRangeSpace(), sPrintF(), Start, TRUE, and x.

Referenced by createTrimmedSurface().

int MappingsFromCAD::createIgesReader ( GenericGraphicsInterface &  gi, aString &  fileName, IgesReader *&  iges, FILE *&  fp, bool  useGivenFileName = FALSE  )

protected

References aString, IgesReader::fp, GenericGraphicsInterface::inputFileName(), GenericGraphicsInterface::inputString(), NULL, GenericGraphicsInterface::outputString(), IgesReader::readIgesFile(), GenericGraphicsInterface::readingFromCommandFile(), and GenericGraphicsInterface::stopReadingCommandFile().

Referenced by readMappings().

int MappingsFromCAD::createManifoldSolidBRepObject ( int  entity, IgesReader &  iges, MappingInformation &  mapInfo, IntegerArray &  mapNumber, int &  numberOfMapsCreated, int &  visibleItem  )

protected

References ListOfMappingRC::addElement(), NurbsMapping::addSubCurve(), assert, axis1, buildParameterCurveFromSpaceCurve(), c, IgesReader::circularArc, createSurfaceForAFace(), Mapping::debug, ReferenceCounting::decrementReferenceCount(), IgesReader::entity(), IgesReader::entityName(), FALSE, GI_PLOT_THE_OBJECT_AND_EXIT, GI_TOP_LABEL, MappingInformation::graphXInterface, ReferenceCounting::incrementReferenceCount(), IgesReader::line, MappingInformation::mappingList, NurbsMapping::merge(), NULL, params, PlotIt::plot(), IgesReader::readData(), NurbsMapping::readFromIgesFile(), IgesReader::sequenceToItem(), GraphicsParameters::set(), Mapping::setGridDimensions(), sPrintF(), TRUE, and NurbsMapping::update().

Referenced by readMappings().

int MappingsFromCAD::createSurface ( int  surface, IgesReader &  iges, Mapping *&  mapPointer, RealArray &  surfaceParameterScale = Overture::nullRealArray()  )

protected

References A, Overture::abort(), assert, aString, axisLineCount, B, IgesReader::boundedSurface, C, createBoundedSurface(), createTrimmedSurface(), D, Mapping::debug, ReferenceCounting::decrementReferenceCount(), display(), IgesReader::entity(), IgesReader::entityName(), GenericGraphicsInterface::erase(), FALSE, IgesReader::formData(), NurbsMapping::generalCylinder(), Mapping::getClassName(), getCPU(), getTransformationMatrix(), GI_PLOT_THE_OBJECT_AND_EXIT, MappingInformation::graphXInterface, ReferenceCounting::incrementReferenceCount(), Mapping::map(), NurbsMapping::map(), mapInfoPointer, Mapping::mappingName, IgesReader::matrix(), NurbsMapping::matrixTransform(), NULL, IgesReader::parametricSplineSurface, params, IgesReader::plane, PlotIt::plot(), r, IgesReader::rationalBSplineSurface, IgesReader::readData(), readOneCurve(), GenericGraphicsInterface::redraw(), revCount, revCurveCount, IgesReader::sequenceToItem(), GraphicsParameters::set(), Mapping::setName(), NurbsMapping::shift(), sPrintF(), IgesReader::surfaceOfRevolution, IgesReader::tabulatedCylinder, IgesReader::trimmedSurface, TRUE, twoPi, and x.

Referenced by createBoundedSurface(), createTrimmedSurface(), readMappings(), and readSomeNurbs().

int MappingsFromCAD::createTrimmedSurface ( const int &  item, IgesReader &  iges, Mapping *&  mapPointer  )

protected

References assert, axis1, axis2, boundaryType, coons, coons13BottomTop, coons13LeftRight, coons24BottomTop, coons24LeftRight, createCurveOnAParametricSurface(), createSurface(), curveBound, IgesReader::curveOnAParametricSurface, Mapping::debug, ReferenceCounting::decrementReferenceCount(), End, IgesReader::entity(), IgesReader::entityName(), GenericGraphicsInterface::erase(), Mapping::functionPeriodic, Mapping::getClassName(), getCPU(), Mapping::getDomainDimension(), Mapping::getGridDimensions(), Mapping::getIsPeriodic(), GI_PLOT_THE_OBJECT_AND_EXIT, GI_TOP_LABEL, MappingInformation::graphXInterface, ReferenceCounting::incrementReferenceCount(), mapInfoPointer, max(), min(), NULL, Mapping::parameterSpace, params, PlotIt::plot(), IgesReader::readData(), GenericGraphicsInterface::redraw(), IgesReader::sequenceToItem(), GraphicsParameters::set(), Mapping::setGridDimensions(), Mapping::setRangeSpace(), simpleReparameterization, Start, and TRUE.

Referenced by createSurface().

void MappingsFromCAD::fileContents	(	aString	fileName,
		IgesReader *&	iges_,
		int &	numberOfNurbs,
		int &	numberOfFiniteElements,
		int &	numberOfNodes,
		int &	status
	)

References assert, IgesReader::boundary, IgesReader::boundedSurface, IgesReader::entity(), FALSE, IgesReader::finiteElement, IgesReader::fp, IgesReader::isIndependent(), isUntrimmedSurface(), IgesReader::isVisible(), IgesReader::node, NULL, IgesReader::numberOfEntities(), IgesReader::plane, IgesReader::readIgesFile(), IgesReader::trimmedSurface, and TRUE.

int MappingsFromCAD::getTransformationMatrix ( const int &  item, IgesReader &  iges, RealArray &  rotation, RealArray &  translation  )

static

References IgesReader::entity(), IgesReader::formData(), IgesReader::readData(), and IgesReader::transformationMatrix.

Referenced by createCurveOnAParametricSurface(), createSurface(), createSurfaceForAFace(), NurbsMapping::readFromIgesFile(), readOneCurve(), and readSomeNurbs().

int MappingsFromCAD::isUntrimmedSurface ( IgesReader &  iges, int  item  )

protected

References IgesReader::entity(), IgesReader::parametricSplineSurface, IgesReader::rationalBSplineSurface, IgesReader::surfaceOfRevolution, and IgesReader::tabulatedCylinder.

Referenced by fileContents(), readMappings(), and readSomeNurbs().

int MappingsFromCAD::readFiniteElements ( IgesReader &  iges )

protected

References ListOfMappingRC::addElement(), assert, ReferenceCounting::decrementReferenceCount(), IgesReader::entity(), IgesReader::finiteElement, ReferenceCounting::incrementReferenceCount(), mapInfoPointer, MappingInformation::mappingList, IgesReader::node, NULL, IgesReader::numberOfEntities(), IgesReader::parameterData(), R, IgesReader::readData(), IgesReader::readParameterData(), IgesReader::sequenceNumber(), UnstructuredMapping::setNodesAndConnectivity(), and x.

Referenced by readMappings().

int MappingsFromCAD::readMappings	(	MappingInformation &	mapInfo,
		aString	fName = nullString,
		bool	chooseAll = FALSE
	)

References CompositeSurface::add(), ListOfMappingRC::addElement(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, IgesReader::boundary, IgesReader::boundedSurface, GraphicsParameters::colourByGrid, createIgesReader(), createManifoldSolidBRepObject(), createSurface(), Mapping::debug, ReferenceCounting::decrementReferenceCount(), IgesReader::entity(), IgesReader::entityName(), FALSE, IgesReader::finiteElement, GenericGraphicsInterface::getColourName(), getCPU(), ListOfMappingRC::getLength(), GenericGraphicsInterface::getMenuItem(), IgesReader::getTolerance(), GenericGraphicsInterface::getValues(), GI_GRID_LINE_COLOUR_OPTION, GI_LABEL_GRIDS_AND_BOUNDARIES, GI_PLOT_SHADED_MAPPING_BOUNDARIES, GI_PLOT_THE_OBJECT_AND_EXIT, MappingInformation::graphXInterface, ReferenceCounting::incrementReferenceCount(), GenericGraphicsInterface::inputString(), IgesReader::isIndependent(), isUntrimmedSurface(), IgesReader::isVisible(), IgesReader::manifoldSolidB_RepObject, mapInfoPointer, MappingInformation::mappingList, Mapping::mappingName, max(), min(), IgesReader::node, NULL, nullString, IgesReader::numberOfEntities(), params, readFiniteElements(), GraphicsParameters::set(), CompositeSurface::setColour(), Mapping::setName(), CompositeSurface::setTolerance(), sPrintF(), sScanF(), GenericGraphicsInterface::stopReadingCommandFile(), IgesReader::surfaceOfRevolution, IgesReader::tabulatedCylinder, timeToMergeNurbs, timeToMergeNurbsAddSubCurve, timeToMergeNurbsArcLength, timeToMergeNurbsElevateDegree, timeToMergeNurbsOther, IgesReader::transformationMatrix, IgesReader::trimmedSurface, TRUE, GenericGraphicsInterface::unAppendTheDefaultPrompt(), CompositeSurface::update(), and UnstructuredMapping::update().

Referenced by createMappings().

int MappingsFromCAD::readOneCurve ( int  curve, IgesReader &  iges, Mapping *&  mapPointer, RealArray &  curveParameterScale  )

protected

References atan2(), c, NurbsMapping::circle(), IgesReader::circularArc, NurbsMapping::conic(), IgesReader::conicArc, Mapping::debug, display(), IgesReader::entity(), fabs(), IgesReader::formData(), getCPU(), getTransformationMatrix(), ReferenceCounting::incrementReferenceCount(), IgesReader::line, NurbsMapping::map(), IgesReader::matrix(), NurbsMapping::matrixTransform(), NULL, IgesReader::parametricSplineCurve, Pi, r, IgesReader::rationalBSplineCurve, IgesReader::readData(), IgesReader::sequenceToItem(), NurbsMapping::shift(), SQRT, twoPi, and x.

Referenced by createCurveOnAParametricSurface(), and createSurface().

int MappingsFromCAD::readOneCurveAsNURBS ( int  curve, IgesReader &  iges, NurbsMapping *&  mapPointer, RealArray &  curveParameterScale  )

protected

References axis1, IgesReader::circularArc, Mapping::debug, IgesReader::entity(), Mapping::getGridDimensions(), ReferenceCounting::incrementReferenceCount(), IgesReader::line, NULL, IgesReader::rationalBSplineCurve, IgesReader::readData(), and NurbsMapping::readFromIgesFile().

Referenced by createBoundaryEntity().

CompositeSurface * MappingsFromCAD::readSomeNurbs	(	MappingInformation &	mapInfo,
		IgesReader *	iges_,
		int	startMap,
		int	endMap,
		int	numberOfNurbs,
		int &	status
	)

References CompositeSurface::add(), ListOfMappingRC::addElement(), assert, IgesReader::boundedSurface, c, createSurface(), Mapping::debug, ReferenceCounting::decrementReferenceCount(), depth, IgesReader::entity(), IgesReader::entityName(), FALSE, Mapping::getClassName(), GenericGraphicsInterface::getColourName(), getCPU(), ListOfMappingRC::getLength(), getTransformationMatrix(), MappingInformation::graphXInterface, ReferenceCounting::incrementReferenceCount(), IgesReader::isIndependent(), isUntrimmedSurface(), IgesReader::isVisible(), mapInfoPointer, MappingInformation::mappingList, Mapping::mappingName, IgesReader::matrix(), max(), min(), NULL, IgesReader::numberOfEntities(), IgesReader::readData(), MatrixTransform::rotate(), S, IgesReader::sequenceToItem(), CompositeSurface::setColour(), TrimmedMapping::setCurves(), Mapping::setName(), TrimmedMapping::setUnInitialized(), MatrixTransform::shift(), IgesReader::singularSubfigureInstance, TrimmedMapping::surface, IgesReader::surfaceOfRevolution, IgesReader::tabulatedCylinder, IgesReader::trimmedSurface, and TRUE.

int MappingsFromCAD::scaleCurve ( Mapping &  mapping, Mapping &  surf, RealArray &  surfaceParameterScale  )

protected

References assert, Mapping::debug, FALSE, Mapping::getClassName(), NurbsMapping::getControlPoints(), RevolutionMapping::getRevolutionAngle(), NurbsMapping::parametricCurve(), NurbsMapping::scale(), NurbsMapping::shift(), and twoPi.

Referenced by createCompositeCurve(), and createCurveOnAParametricSurface().

Member Data Documentation

int MappingsFromCAD::axisLineCount

protected

Referenced by createSurface(), and MappingsFromCAD().

enum MappingsFromCAD::BoundaryTypes MappingsFromCAD::boundaryType

protected

Referenced by createCompositeCurve(), and createTrimmedSurface().

real MappingsFromCAD::curveBound[2][2]

protected

Referenced by createCompositeCurve(), and createTrimmedSurface().

IgesReader* MappingsFromCAD::igesPointer

protected

Referenced by MappingsFromCAD().

int* MappingsFromCAD::lineType

protected

Referenced by createCompositeCurve(), MappingsFromCAD(), and ~MappingsFromCAD().

MappingInformation* MappingsFromCAD::mapInfoPointer

protected

Referenced by createCompositeCurve(), createCurveOnAParametricSurface(), createSurface(), createTrimmedSurface(), MappingsFromCAD(), readFiniteElements(), readMappings(), and readSomeNurbs().

GraphicsParameters MappingsFromCAD::params

protected

Referenced by createCompositeCurve(), createCurveOnAParametricSurface(), createManifoldSolidBRepObject(), createSurface(), createTrimmedSurface(), and readMappings().

int MappingsFromCAD::revCount

protected

Referenced by createSurface(), and MappingsFromCAD().

int MappingsFromCAD::revCurveCount

protected

Referenced by createSurface(), and MappingsFromCAD().

real* MappingsFromCAD::subCurveBound[2]

protected

Referenced by createCompositeCurve(), MappingsFromCAD(), and ~MappingsFromCAD().

---

The documentation for this class was generated from the following files:

• MappingsFromCAD.h
• readMappings.C
