InterpolatePointsOnAGrid Class Reference

#include <InterpolatePointsOnAGrid.h>

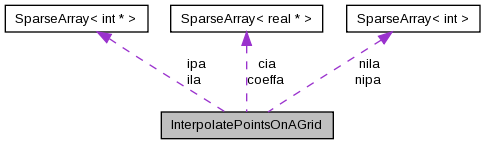

Collaboration diagram for InterpolatePointsOnAGrid:
Collaboration graph
[legend]

Public Types

enum  InterpolationStatusEnum { notInterpolated =0, extrapolated =1, interpolated =2 }

enum  { defaultNumberOfValidGhostPoints =-123456, interpolateAllGhostPoints =-234567 }

enum  ExplicitInterpolationStorageOptionEnum { precomputeAllCoefficients, precomputeSomeCoefficients, precomputeNoCoefficients }

enum  InterpolationTypeEnum { implicitInterpolation =0, explicitInterpolation }


Public Member Functions

 InterpolatePointsOnAGrid ()

 ~InterpolatePointsOnAGrid ()

int getMaximumRefinementLevelToInterpolate () const
 return the maximum refinement level to interpolate

int getNumberBackupInterpolation () const
 : return the number of points that were interpolated with backup rules (i.e. using a lower than

int getNumberExtrapolated () const
 : return the number of points that were extrapolated.

int getNumberInterpolated () const
 : return the number of points that were interpolated with the full interpolation width.

int getNumberUnassigned () const
 : return the number of points that were not assigned.

int getTotalNumberOfPointsAssigned (int grid)
 : Return the total number of points that are interpolate from a grid (sum across all processors).

int interpolatePoints (const RealArray &positionToInterpolate, const realCompositeGridFunction &u, RealArray &uInterpolated, const Range &R0=nullRange, const Range &R1=nullRange, const Range &R2=nullRange, const Range &R3=nullRange, const Range &R4=nullRange)

int interpolationCoefficients (const CompositeGrid &cg, RealArray &uInterpolationCoeff)

int interpolateAllPoints (const realCompositeGridFunction &uFrom, realCompositeGridFunction &uTo, const Range &componentsFrom=nullRange, const Range &componentsTo=nullRange, const int numberOfGhostPointsToInterpolate=interpolateAllGhostPoints)

int interpolateAllPoints (const realCompositeGridFunction &uFrom, realMappedGridFunction &uTo, const Range &componentsFrom=nullRange, const Range &componentsTo=nullRange, const int numberOfGhostPointsToInterpolate=interpolateAllGhostPoints)

int buildInterpolationInfo (const RealArray &positionToInterpolate, CompositeGrid &cg, RealArray *projectedPoints=NULL, IntegerArray *checkTheseGrids=NULL)

int interpolatePoints (const realCompositeGridFunction &u, RealArray &uInterpolated, const Range &R0=nullRange, const Range &R1=nullRange, const Range &R2=nullRange, const Range &R3=nullRange, const Range &R4=nullRange)

const IntegerArray & getStatus () const

int getInterpolationInfo (CompositeGrid &cg, IntegerArray &indexValues, IntegerArray &interpoleeGrid) const

int setAssignAllPoints (bool trueOrFalse=true)
 : Specify whether all points should be assigned, using extrapolation if necessary.

real sizeOf (FILE *file=NULL) const

int setExplicitInterpolationStorageOption (ExplicitInterpolationStorageOptionEnum option)

int setInfoLevel (int info)

int setInterpolationWidth (int width)
 : Set the width the interpolation stencil.

int setInterpolationOffset (real widthInGridLines)

int setInterpolationType (InterpolationTypeEnum interpType)

int setMaximumRefinementLevelToInterpolate (int maxLevelToInterpolate)
 Only interpolate grids on refinement levels that are less than or equal to a given level.

int setNumberOfValidGhostPoints (int numValidGhost=defaultNumberOfValidGhostPoints)
 : Set the number of valid ghost points that can be used when interpolating from a grid function


Static Public Member Functions

static int findNearestValidGridPoint (CompositeGrid &cg, const RealArray &x, IntegerArray &il, RealArray &ci)
 Find the nearest valid grid point on a CompositeGrid to given points in space, x(i,.). A valid point is one with mask(i1,i2,i3)!=0 . NOTE: This function currently assumes that the points x(i,.) could NOT interpolate and so we are finding the best guess for points that are outside the grid.

static int getInterpolationStencil (MappedGrid &mg, const int width, const real *rv, int *iv)
 Return the lower left corner of the interpolation stencil. (input) : interpolation stencil width (input) : rv[axis] : unit cube coordinates of the point (output) : iv[axis] : lower left corner of the stencil.


Static Public Attributes

static int debug =0


Protected Member Functions

int parallelInterpolate (RealArray &ui, const realCompositeGridFunction &u, const Range &C0=nullRange, const Range &C1=nullRange, const Range &C2=nullRange)
 Interpolate points.

int parallelSetup (CompositeGrid &cg, const RealArray &xp, const IntegerArray &numberOfInterpolationPoints, const RealArray *interpolationCoordinates, const IntegerArray *indirection, const IntegerArray *interpolationLocation, const IntegerArray *variableInterpolationWidth)
 Setup routine for the parallel interpolation of a list of points.

int initializeExplicitInterpolation (CompositeGrid &cg)

int internalInterpolate (RealArray &ui, const realCompositeGridFunction &u, const Range &C0, const Range &C1, const Range &C2)

int parallelInternalInterpolate (RealArray &ui, const realCompositeGridFunction &u, const Range &C0, const Range &C1, const Range &C2)
 Interpolate points.

int destroy ()


Protected Attributes

int interpolationIsInitialized

int numberOfBackupInterpolation

int numberOfExtrapolated

int numberOfInterpolated

int numberOfUnassigned

IntegerArray * indirection

IntegerArray * interpolationLocation

IntegerArray * variableInterpolationWidth

RealArray * interpolationCoordinates

IntegerArray numberOfInterpolationPoints

IntegerArray status

real interpolationOffset

int interpolationWidth

InterpolationTypeEnum interpolationType

int infoLevel

int numberOfValidGhostPoints

bool assignAllPoints

int totalNumToInterpolate

IntegerArray * pInterpAllIndirection

int * numToInterpolatePerGrid

FILE * logFile

FILE * plogFile

FILE * debugFile

ExplicitInterpolationStorageOptionEnum explicitInterpolationStorageOption

int numberOfDimensions

int numberOfComponentGrids

int numberOfBaseGrids

int maxInterpolationWidth

int coeffWidthDimension

int maximumRefinementLevelToInterpolate

SparseArray< int > nila

SparseArray< int > nipa

SparseArray< int * > ila

SparseArray< int * > ipa

SparseArray< real * > cia

SparseArray< real * > coeffa

int npr

int nps

int * pMapr

int * pMaps

bool allGridsHaveLocalData

bool onlyAmrGridsHaveLocalData

bool noGridsHaveLocalData

int POGI_COMM


Friends

class InterfaceTransfer


Member Enumeration Documentation

anonymous enum
Enumerator
defaultNumberOfValidGhostPoints
interpolateAllGhostPoints
enum InterpolatePointsOnAGrid::ExplicitInterpolationStorageOptionEnum
Enumerator
precomputeAllCoefficients
precomputeSomeCoefficients
precomputeNoCoefficients
enum InterpolatePointsOnAGrid::InterpolationStatusEnum
Enumerator
notInterpolated
extrapolated
interpolated
enum InterpolatePointsOnAGrid::InterpolationTypeEnum
Enumerator
implicitInterpolation
explicitInterpolation

Constructor & Destructor Documentation

InterpolatePointsOnAGrid::InterpolatePointsOnAGrid ( )

References allGridsHaveLocalData, assignAllPoints, coeffWidthDimension, debugFile, defaultNumberOfValidGhostPoints, explicitInterpolationStorageOption, implicitInterpolation, indirection, infoLevel, interpolationCoordinates, interpolationIsInitialized, interpolationLocation, interpolationOffset, interpolationType, interpolationWidth, logFile, maximumRefinementLevelToInterpolate, maxInterpolationWidth, noGridsHaveLocalData, npr, nps, NULL, numberOfBackupInterpolation, numberOfBaseGrids, numberOfComponentGrids, numberOfDimensions, numberOfExtrapolated, numberOfInterpolated, numberOfUnassigned, numberOfValidGhostPoints, numToInterpolatePerGrid, onlyAmrGridsHaveLocalData, Overture::OV_COMM, pInterpAllIndirection, plogFile, pMapr, pMaps, POGI_COMM, precomputeNoCoefficients, totalNumToInterpolate, and variableInterpolationWidth.

InterpolatePointsOnAGrid::~InterpolatePointsOnAGrid ( )

References debugFile, destroy(), indirection, interpolationCoordinates, interpolationLocation, NULL, numToInterpolatePerGrid, pInterpAllIndirection, and variableInterpolationWidth.

Member Function Documentation

int InterpolatePointsOnAGrid::buildInterpolationInfo ( const RealArray &  positionToInterpolate,
CompositeGrid &  cg,
RealArray *  projectedPoints = NULL,
IntegerArray *  checkTheseGrids = NULL
)

References assert, assignAllPoints, bb, Mapping::bogus, MappedGrid::boundingBox(), boundingBox, CanInterpolate::canInterpolate(), CI, ci, D, debug, delta, destroy(), dimension, MappedGrid::dimension(), discretizationWidth, display(), explicitInterpolation, extendedGridIndexRange(), extrapolated, fabs(), findNearestValidGridPoint(), getCPU(), MappedGrid::getGridType(), MappingRC::getMapping(), ParallelUtility::getMaxValue(), MappingProjectionParameters::getRealArray(), ParallelUtility::getSum(), MappedGrid::gridIndexRange(), gridSpacing, MappedGrid::gridSpacing(), ia, IA, IA0, CanInterpolate::CanInterpolateQueryData::id, IL, il, indexRange, MappedGrid::indexRange(), indirection, infoLevel, initializeExplicitInterpolation(), interpolationCoordinates, interpolationIsInitialized, interpolationLocation, interpolationOffset, CompositeGrid::interpolationOverlap, interpolationType, interpolationWidth, CompositeGrid::interpolationWidth, Mapping::inverseMap(), Mapping::inverseMapS(), ip, IP, MappedGrid::isAllVertexCentered(), isPeriodic, MappedGrid::isPeriodic(), logFile, MappedGrid::mapping(), mask, MappedGrid::mask(), max(), maxInterpolationWidth, notInterpolated, npr, nps, NULL, Overture::nullRealDistributedArray(), numberOfBackupInterpolation, numberOfBaseGrids, GenericGridCollection::numberOfBaseGrids(), numberOfComponentGrids, GenericGridCollection::numberOfComponentGrids(), numberOfDimensions, GridCollection::numberOfDimensions(), numberOfExtrapolated, numberOfInterpolated, numberOfInterpolationPoints, NUMBEROFINTERPOLATIONPOINTS, numberOfUnassigned, numberOfValidGhostPoints, OV_ABORT, parallelSetup(), plogFile, printF(), Mapping::project(), Mapping::projectS(), MappingProjectionParameters::r, R, RA, ra, rbb, REAL_EPSILON, RPROJECT, sPrintF(), status, STATUS, MappedGrid::THEboundingBox, MappedGrid::THEcenter, MappedGrid::THEvertex, GenericGrid::unstructuredGrid, CompositeGrid::update(), variableInterpolationWidth, viw, X, x, and XA.

Referenced by displayValuesAtAPoint(), ExposedPoints::interpolate(), interpolateAllPoints(), and interpolatePoints().

int InterpolatePointsOnAGrid::destroy ( )
protected

References cia, coeffa, coeffWidthDimension, SparseArray< T >::destroy(), ila, ipa, maxInterpolationWidth, nila, nipa, npr, nps, NULL, numberOfBaseGrids, numberOfComponentGrids, numberOfDimensions, pMapr, pMaps, and SparseArray< T >::size().

Referenced by buildInterpolationInfo(), and ~InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::findNearestValidGridPoint ( CompositeGrid &  cg,
const RealArray &  x,
IntegerArray &  il,
RealArray &  ci
)
static

Find the nearest valid grid point on a CompositeGrid to given points in space, x(i,.). A valid point is one with mask(i1,i2,i3)!=0 . NOTE: This function currently assumes that the points x(i,.) could NOT interpolate and so we are finding the best guess for points that are outside the grid.

Parameters
cg(input) : CompositeGrid to check for closest valid point.
x(input) : x(i,0:r-1) (r=rangeDimension) list of points to check (in parallel, each processor provides its own set of points).
il(output) : il(i,0:r) = (donor,i1,i2,i3) donor grid and index location of the closest valid point.
ci(output) : ci(i,0:r-1) are the r-coordinates of the closest pt in the donor grid.
Returns
0 for success.

x.....

References bb, Mapping::bogus, MappedGrid::boundingBox(), boundingBox, CanInterpolate::canInterpolate(), CI, DA, debug, DISTA, Mapping::findNearestGridPoint(), getCPU(), MappingRC::getMapping(), ia, IA, IB, IL, CompositeGrid::interpolationOverlap, interpolationWidth, CompositeGrid::interpolationWidth, MappedGrid::mapping(), max(), NULL, numberOfComponentGrids, GenericGridCollection::numberOfComponentGrids(), numberOfDimensions, GridCollection::numberOfDimensions(), numberOfValidGhostPoints, plogFile, px, R, RA, ra, REAL_MAX, sPrintF(), SQR, X, XA, and XC.

Referenced by buildInterpolationInfo().

int InterpolatePointsOnAGrid::getInterpolationInfo ( CompositeGrid &  cg,
IntegerArray &  indexValues,
IntegerArray &  interpoleeGrid
) const

References assert, ia, IA, interpoleeGrid, ip, IP, and NULL.

int InterpolatePointsOnAGrid::getInterpolationStencil ( MappedGrid &  mg,
const int  width,
const real *  rv,
int *  iv
)
static

Return the lower left corner of the interpolation stencil. (input) : interpolation stencil width (input) : rv[axis] : unit cube coordinates of the point (output) : iv[axis] : lower left corner of the stencil.

References MappedGrid::boundaryCondition(), End, MappedGrid::extendedIndexRange(), MappedGrid::gridSpacing(), MappedGrid::indexRange(), MappedGrid::isCellCentered(), MappedGrid::isPeriodic(), MappedGrid::numberOfDimensions(), and Start.

int InterpolatePointsOnAGrid::getMaximumRefinementLevelToInterpolate ( ) const

return the maximum refinement level to interpolate

References maximumRefinementLevelToInterpolate.

int InterpolatePointsOnAGrid::getNumberBackupInterpolation ( ) const

: return the number of points that were interpolated with backup rules (i.e. using a lower than

: The function returns info about the last interpolation operation such as interpolateAllPoints. In parallel this value corresponds to the current processor (not the sum over all processors)

References numberOfBackupInterpolation.

int InterpolatePointsOnAGrid::getNumberExtrapolated ( ) const

: return the number of points that were extrapolated.

: The function returns info about the last interpolation operation such as interpolateAllPoints. In parallel this value corresponds to the current processor (not the sum over all processors)

References numberOfExtrapolated.

int InterpolatePointsOnAGrid::getNumberInterpolated ( ) const

: return the number of points that were interpolated with the full interpolation width.

: The function returns info about the last interpolation operation such as interpolateAllPoints. In parallel this value corresponds to the current processor (not the sum over all processors)

References numberOfInterpolated.

int InterpolatePointsOnAGrid::getNumberUnassigned ( ) const

: return the number of points that were not assigned.

: The function returns info about the last interpolation operation such as interpolateAllPoints. In parallel this value corresponds to the current processor (not the sum over all processors)

References numberOfUnassigned.

const IntegerArray & InterpolatePointsOnAGrid::getStatus ( ) const

References status.

Referenced by displayValuesAtAPoint(), and ExposedPoints::interpolate().

int InterpolatePointsOnAGrid::getTotalNumberOfPointsAssigned ( int  grid)

: Return the total number of points that are interpolate from a grid (sum across all processors).

Parameters
(grid): donor grid
Returns
value : the number of points assigned or -1 means an error occured, invalid value for grid.

References ParallelUtility::getSum(), numberOfInterpolationPoints, and printF().

Referenced by ExposedPoints::interpolate().

int InterpolatePointsOnAGrid::initializeExplicitInterpolation ( CompositeGrid &  cg)
protected

References assert, aString, axis1, axis2, axis3, CI, ci, cia, coeffa, coeffg, coeffWidthDimension, debug, debugFile, dr, explicitInterpolationStorageOption, SparseArray< T >::get(), IL, ila, interpolationCoordinates, interpolationLocation, ip, ir, isCC, max(), maxInterpolationWidth, nila, nps, NULL, numberOfComponentGrids, numberOfDimensions, numberOfInterpolationPoints, precomputeNoCoefficients, printF(), px, q, Q11, Q12, Q21, Q22, Q32, SparseArray< T >::redim(), sPrintF(), Start, variableInterpolationWidth, VIW, and viw.

Referenced by buildInterpolationInfo(), and parallelSetup().

int InterpolatePointsOnAGrid::internalInterpolate ( RealArray &  ui,
const realCompositeGridFunction &  u,
const Range &  C0,
const Range &  C1,
const Range &  C2
)
protected

References Overture::abort(), assert, aString, axis1, axis2, axis3, c, cf, cfs, ci, coeffa, debug, debugFile, explicitInterpolationStorageOption, doubleGridCollectionFunction::getComponentBase(), doubleGridCollectionFunction::getComponentBound(), doubleCompositeGridFunction::getCompositeGrid(), getCPU(), getLocalArrayWithGhostBoundaries(), i2, ia, IA, IL1, il1, IL2, IL3, indirection, interpolationCoordinates, interpolationLocation, ip, IW5, mask, MASK, MappedGrid::mask(), max(), maxInterpolationWidth, NULL, nullRange, GenericGridCollectionData::numberOfBaseGrids, numberOfComponentGrids, numberOfDimensions, numberOfInterpolationPoints, OV_ABORT, precomputeAllCoefficients, precomputeNoCoefficients, printF(), q20, q21, q30, q31, q32, q40, q41, q42, q43, q50, q51, q52, q53, q54, sPrintF(), UI, variableInterpolationWidth, VIW, viw, and VS.

Referenced by interpolatePoints().

int InterpolatePointsOnAGrid::interpolateAllPoints ( const realCompositeGridFunction &  uFrom,
realCompositeGridFunction &  uTo,
const Range &  componentsFrom = nullRange,
const Range &  componentsTo = nullRange,
const int  numberOfGhostPointsToInterpolate = interpolateAllGhostPoints
)

References assert, buildInterpolationInfo(), MappedGrid::center(), CENTER, center, COORD0, COORD1, COORD2, debug, MappedGrid::dimension(), dx, extendedGridIndexRange(), FOR_3D, doubleGridCollectionFunction::getComponentBase(), doubleGridCollectionFunction::getComponentBound(), getIndex(), ParallelUtility::getLocalArrayBounds(), getLocalArrayWithGhostBoundaries(), MappedGrid::getRectangularGridParameters(), doubleGridCollectionFunction::gridCollection, MappedGrid::gridIndexRange(), i2, ia, IA, interpolateAllGhostPoints, interpolatePoints(), interpolationIsInitialized, MappedGrid::isRectangular(), mask, MASK, MappedGrid::mask(), max(), min(), NULL, nullRange, GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), MappedGrid::numberOfDimensions(), numToInterpolatePerGrid, OV_ABORT, doubleGridCollectionFunction::periodicUpdate(), pInterpAllIndirection, printF(), MappedGrid::THEcenter, MappedGrid::THEmask, MappedGrid::THEvertex, totalNumToInterpolate, U, uInterpolated, UINTERPOLATED, MappedGrid::update(), X, and x.

Referenced by main().

int InterpolatePointsOnAGrid::interpolateAllPoints ( const realCompositeGridFunction &  uFrom,
realMappedGridFunction &  uTo,
const Range &  componentsFrom = nullRange,
const Range &  componentsTo = nullRange,
const int  numberOfGhostPointsToInterpolate = interpolateAllGhostPoints
)

References OV_ABORT.

int InterpolatePointsOnAGrid::interpolatePoints ( const RealArray &  positionToInterpolate,
const realCompositeGridFunction &  u,
RealArray &  uInterpolated,
const Range &  R0 = nullRange,
const Range &  R1 = nullRange,
const Range &  R2 = nullRange,
const Range &  R3 = nullRange,
const Range &  R4 = nullRange
)

References buildInterpolationInfo(), doubleCompositeGridFunction::getCompositeGrid(), and interpolationIsInitialized.

Referenced by displayValuesAtAPoint(), ExposedPoints::interpolate(), and interpolateAllPoints().

int InterpolatePointsOnAGrid::interpolatePoints ( const realCompositeGridFunction &  u,
RealArray &  uInterpolated,
const Range &  R0 = nullRange,
const Range &  R1 = nullRange,
const Range &  R2 = nullRange,
const Range &  R3 = nullRange,
const Range &  R4 = nullRange
)

References Overture::abort(), doubleGridCollectionFunction::getComponentBase(), doubleGridCollectionFunction::getComponentBound(), doubleCompositeGridFunction::getCompositeGrid(), internalInterpolate(), numberOfComponentGrids, GenericGridCollection::numberOfComponentGrids(), numberOfDimensions, GridCollection::numberOfDimensions(), and parallelInterpolate().

int InterpolatePointsOnAGrid::interpolationCoefficients ( const CompositeGrid &  cg,
RealArray &  uInterpolationCoeff
)

References OV_ABORT.

int InterpolatePointsOnAGrid::parallelInternalInterpolate ( RealArray &  ui,
const realCompositeGridFunction &  u,
const Range &  C0,
const Range &  C1,
const Range &  C2
)
protected

Interpolate points.

This routine does the actual interpolation assuming the setup has already been done.

/u (input) : grid function to interpolate /C0,C1,C2 (input) : components to interpolate are u[grid](all,all,all,C0,C1,C2) /gridsToInterpolate_(input) : only interpolate points on grids with *gridsToInterpolate_(grid)!=0 (if non-NULL) /gridsToInterpolateFrom_(input) : only interpolate points FROM donor grids with *gridsToInterpolateFrom_(grid)!=0 (if non-NULL)

References Overture::abort(), assert, axis1, axis2, axis3, c, cf, cfs, cia, ciLocal, coeffa, debug, debugFile, explicitInterpolationStorageOption, doubleGridCollectionFunction::getComponentBase(), doubleGridCollectionFunction::getComponentBound(), doubleCompositeGridFunction::getCompositeGrid(), getLocalArrayWithGhostBoundaries(), ParallelUtility::getMaxValue(), ParallelUtility::getSum(), i2, IL1, il1, IL2, IL3, ila, ip0, ipa, IW5, mask, MASK, MappedGrid::mask(), max(), maxInterpolationWidth, MPI_Real, MPI_Wtime, nila, nipa, npr, nps, NULL, nullRange, GenericGridCollectionData::numberOfBaseGrids, numberOfComponentGrids, numberOfDimensions, OV_ABORT, pMapr, POGI_COMM, precomputeAllCoefficients, printF(), q20, q21, q30, q31, q32, q40, q41, q42, q43, q50, q51, q52, q53, q54, UI, VIW, and VS.

Referenced by parallelInterpolate().

int InterpolatePointsOnAGrid::parallelInterpolate ( RealArray &  ui,
const realCompositeGridFunction &  u,
const Range &  C0 = nullRange,
const Range &  C1 = nullRange,
const Range &  C2 = nullRange
)
protected

Interpolate points.

References parallelInternalInterpolate().

Referenced by interpolatePoints().

int InterpolatePointsOnAGrid::parallelSetup ( CompositeGrid &  cg,
const RealArray &  xp,
const IntegerArray &  numberOfInterpolationPoints,
const RealArray *  interpolationCoordinates,
const IntegerArray *  indirection,
const IntegerArray *  interpolationLocation,
const IntegerArray *  variableInterpolationWidth
)
protected

Setup routine for the parallel interpolation of a list of points.

References assert, aString, axis1, axis2, Overture::checkMemoryUsage(), ci, cia, SparseArray< T >::clear(), debug, debugFile, SparseArray< T >::destroy(), SparseArray< T >::get(), ParallelUtility::getMaxValue(), ia, il, ila, initializeExplicitInterpolation(), ipa, mask, max(), maxInterpolationWidth, MPI_Real, MPI_Wtime, nila, nipa, npr, nps, nr, NULL, numberOfBaseGrids, GenericGridCollection::numberOfBaseGrids(), numberOfComponentGrids, GenericGridCollection::numberOfComponentGrids(), numberOfDimensions, GridCollection::numberOfDimensions(), numberOfInterpolationPoints, OV_ABORT, pMapr, pMaps, POGI_COMM, printF(), SparseArray< T >::redim(), sPrintF(), status, and viw.

Referenced by buildInterpolationInfo().

int InterpolatePointsOnAGrid::setAssignAllPoints ( bool  trueOrFalse = true)

: Specify whether all points should be assigned, using extrapolation if necessary.

Parameters
trueOrFalse(input) : if true assign all points, using extrapolation if necessary. If false, there may be points left assigned that are outside the domain. : It may be more expensive to find a way to assign all points.

References assignAllPoints.

Referenced by displayValuesAtAPoint(), ExposedPoints::interpolate(), and main().

int InterpolatePointsOnAGrid::setExplicitInterpolationStorageOption ( ExplicitInterpolationStorageOptionEnum  option)

References explicitInterpolationStorageOption.

int InterpolatePointsOnAGrid::setInfoLevel ( int  info)

References infoLevel.

Referenced by displayValuesAtAPoint(), ExposedPoints::interpolate(), and main().

int InterpolatePointsOnAGrid::setInterpolationOffset ( real  widthInGridLines)

References interpolationOffset.

int InterpolatePointsOnAGrid::setInterpolationType ( InterpolationTypeEnum  interpType)

References interpolationType.

int InterpolatePointsOnAGrid::setInterpolationWidth ( int  width)

: Set the width the interpolation stencil.

References interpolationWidth.

Referenced by displayValuesAtAPoint(), ExposedPoints::interpolate(), and main().

int InterpolatePointsOnAGrid::setMaximumRefinementLevelToInterpolate ( int  maxLevelToInterpolate)

Only interpolate grids on refinement levels that are less than or equal to a given level.

This option is used by the error estimator.

References maximumRefinementLevelToInterpolate.

int InterpolatePointsOnAGrid::setNumberOfValidGhostPoints ( int  numValidGhost = defaultNumberOfValidGhostPoints)

: Set the number of valid ghost points that can be used when interpolating from a grid function

References numberOfValidGhostPoints.

Referenced by displayValuesAtAPoint(), ExposedPoints::interpolate(), and main().

real InterpolatePointsOnAGrid::sizeOf ( FILE *  file = NULL) const

Friends And Related Function Documentation

friend class InterfaceTransfer
friend

Member Data Documentation

bool InterpolatePointsOnAGrid::allGridsHaveLocalData
protected

Referenced by InterpolatePointsOnAGrid().

bool InterpolatePointsOnAGrid::assignAllPoints
protected

Referenced by buildInterpolationInfo(), InterpolatePointsOnAGrid(), and setAssignAllPoints().

SparseArray<real*> InterpolatePointsOnAGrid::cia
protected

Referenced by destroy(), initializeExplicitInterpolation(), parallelInternalInterpolate(), and parallelSetup().

SparseArray<real*> InterpolatePointsOnAGrid::coeffa
protected

Referenced by destroy(), initializeExplicitInterpolation(), internalInterpolate(), and parallelInternalInterpolate().

int InterpolatePointsOnAGrid::coeffWidthDimension
protected

Referenced by destroy(), initializeExplicitInterpolation(), and InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::debug =0
static

Referenced by buildInterpolationInfo(), findNearestValidGridPoint(), initializeExplicitInterpolation(), internalInterpolate(), interpolateAllPoints(), parallelInternalInterpolate(), and parallelSetup().

FILE* InterpolatePointsOnAGrid::debugFile
protected

Referenced by initializeExplicitInterpolation(), internalInterpolate(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), parallelSetup(), and ~InterpolatePointsOnAGrid().

ExplicitInterpolationStorageOptionEnum InterpolatePointsOnAGrid::explicitInterpolationStorageOption
protected

Referenced by initializeExplicitInterpolation(), internalInterpolate(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and setExplicitInterpolationStorageOption().

SparseArray<int*> InterpolatePointsOnAGrid::ila
protected

Referenced by destroy(), initializeExplicitInterpolation(), parallelInternalInterpolate(), and parallelSetup().

IntegerArray* InterpolatePointsOnAGrid::indirection
protected

Referenced by buildInterpolationInfo(), internalInterpolate(), InterpolatePointsOnAGrid(), and ~InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::infoLevel
protected

Referenced by buildInterpolationInfo(), InterpolatePointsOnAGrid(), and setInfoLevel().

RealArray* InterpolatePointsOnAGrid::interpolationCoordinates
protected

Referenced by buildInterpolationInfo(), initializeExplicitInterpolation(), internalInterpolate(), InterpolatePointsOnAGrid(), and ~InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::interpolationIsInitialized
protected

Referenced by buildInterpolationInfo(), interpolateAllPoints(), interpolatePoints(), and InterpolatePointsOnAGrid().

IntegerArray* InterpolatePointsOnAGrid::interpolationLocation
protected

Referenced by buildInterpolationInfo(), initializeExplicitInterpolation(), internalInterpolate(), InterpolatePointsOnAGrid(), and ~InterpolatePointsOnAGrid().

real InterpolatePointsOnAGrid::interpolationOffset
protected

Referenced by buildInterpolationInfo(), InterpolatePointsOnAGrid(), and setInterpolationOffset().

InterpolationTypeEnum InterpolatePointsOnAGrid::interpolationType
protected

Referenced by buildInterpolationInfo(), InterpolatePointsOnAGrid(), and setInterpolationType().

int InterpolatePointsOnAGrid::interpolationWidth
protected

Referenced by buildInterpolationInfo(), findNearestValidGridPoint(), InterpolatePointsOnAGrid(), and setInterpolationWidth().

SparseArray<int*> InterpolatePointsOnAGrid::ipa
protected

Referenced by destroy(), parallelInternalInterpolate(), and parallelSetup().

FILE* InterpolatePointsOnAGrid::logFile
protected

Referenced by buildInterpolationInfo(), and InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::maximumRefinementLevelToInterpolate
protected

Referenced by getMaximumRefinementLevelToInterpolate(), InterpolatePointsOnAGrid(), and setMaximumRefinementLevelToInterpolate().

int InterpolatePointsOnAGrid::maxInterpolationWidth
protected

Referenced by buildInterpolationInfo(), destroy(), initializeExplicitInterpolation(), internalInterpolate(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and parallelSetup().

SparseArray<int> InterpolatePointsOnAGrid::nila
protected

Referenced by destroy(), initializeExplicitInterpolation(), parallelInternalInterpolate(), and parallelSetup().

SparseArray<int> InterpolatePointsOnAGrid::nipa
protected

Referenced by destroy(), parallelInternalInterpolate(), and parallelSetup().

bool InterpolatePointsOnAGrid::noGridsHaveLocalData
protected

Referenced by InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::npr
protected

Referenced by buildInterpolationInfo(), destroy(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and parallelSetup().

int InterpolatePointsOnAGrid::nps
protected

Referenced by buildInterpolationInfo(), destroy(), initializeExplicitInterpolation(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and parallelSetup().

int InterpolatePointsOnAGrid::numberOfBackupInterpolation
protected

Referenced by buildInterpolationInfo(), getNumberBackupInterpolation(), and InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::numberOfBaseGrids
protected

Referenced by buildInterpolationInfo(), destroy(), InterpolatePointsOnAGrid(), and parallelSetup().

int InterpolatePointsOnAGrid::numberOfComponentGrids
protected

Referenced by buildInterpolationInfo(), destroy(), findNearestValidGridPoint(), initializeExplicitInterpolation(), internalInterpolate(), interpolatePoints(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and parallelSetup().

int InterpolatePointsOnAGrid::numberOfDimensions
protected

Referenced by buildInterpolationInfo(), destroy(), findNearestValidGridPoint(), initializeExplicitInterpolation(), internalInterpolate(), interpolatePoints(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and parallelSetup().

int InterpolatePointsOnAGrid::numberOfExtrapolated
protected

Referenced by buildInterpolationInfo(), getNumberExtrapolated(), and InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::numberOfInterpolated
protected

Referenced by buildInterpolationInfo(), getNumberInterpolated(), and InterpolatePointsOnAGrid().

IntegerArray InterpolatePointsOnAGrid::numberOfInterpolationPoints
protected

Referenced by buildInterpolationInfo(), getTotalNumberOfPointsAssigned(), initializeExplicitInterpolation(), internalInterpolate(), and parallelSetup().

int InterpolatePointsOnAGrid::numberOfUnassigned
protected

Referenced by buildInterpolationInfo(), getNumberUnassigned(), and InterpolatePointsOnAGrid().

int InterpolatePointsOnAGrid::numberOfValidGhostPoints
protected

Referenced by buildInterpolationInfo(), findNearestValidGridPoint(), InterpolatePointsOnAGrid(), and setNumberOfValidGhostPoints().

int* InterpolatePointsOnAGrid::numToInterpolatePerGrid
protected

Referenced by interpolateAllPoints(), InterpolatePointsOnAGrid(), and ~InterpolatePointsOnAGrid().

bool InterpolatePointsOnAGrid::onlyAmrGridsHaveLocalData
protected

Referenced by InterpolatePointsOnAGrid().

IntegerArray* InterpolatePointsOnAGrid::pInterpAllIndirection
protected

Referenced by interpolateAllPoints(), InterpolatePointsOnAGrid(), and ~InterpolatePointsOnAGrid().

FILE * InterpolatePointsOnAGrid::plogFile
protected

Referenced by buildInterpolationInfo(), findNearestValidGridPoint(), and InterpolatePointsOnAGrid().

int* InterpolatePointsOnAGrid::pMapr
protected

Referenced by destroy(), InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and parallelSetup().

int * InterpolatePointsOnAGrid::pMaps
protected

Referenced by destroy(), InterpolatePointsOnAGrid(), and parallelSetup().

int InterpolatePointsOnAGrid::POGI_COMM
protected

Referenced by InterpolatePointsOnAGrid(), parallelInternalInterpolate(), and parallelSetup().

IntegerArray InterpolatePointsOnAGrid::status
protected

Referenced by buildInterpolationInfo(), getStatus(), and parallelSetup().

int InterpolatePointsOnAGrid::totalNumToInterpolate
protected

Referenced by interpolateAllPoints(), and InterpolatePointsOnAGrid().

IntegerArray* InterpolatePointsOnAGrid::variableInterpolationWidth
protected

Referenced by buildInterpolationInfo(), initializeExplicitInterpolation(), internalInterpolate(), InterpolatePointsOnAGrid(), and ~InterpolatePointsOnAGrid().

The documentation for this class was generated from the following files:
Generated on Fri Jan 4 2013 10:18:09 for Overture by   doxygen 1.8.3
