MappingBuilder Class Reference

#include <MappingBuilder.h>

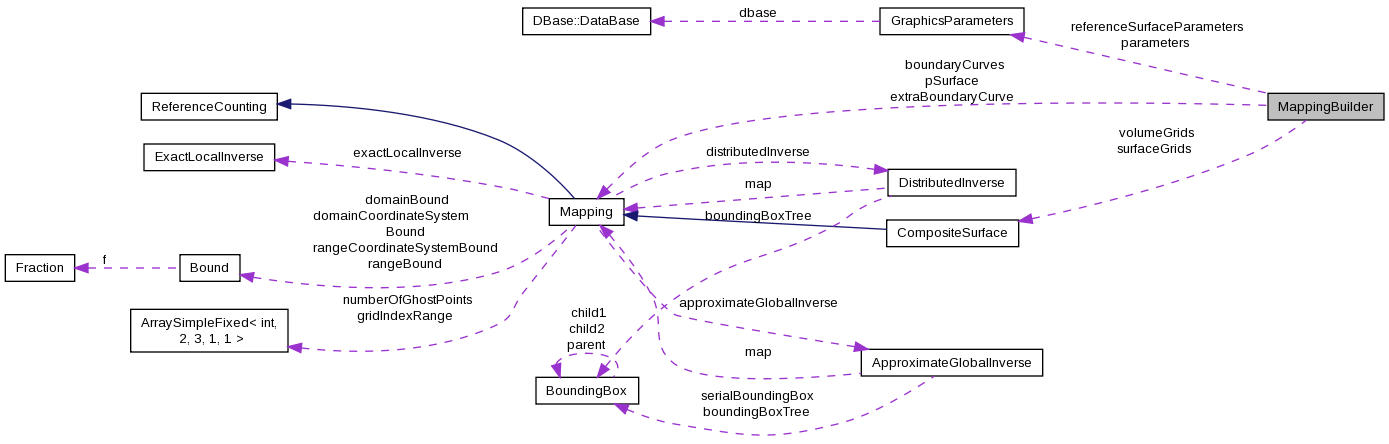

Collaboration diagram for MappingBuilder:

Public Types
enum	bcPlotOptionEnum { colourBoundariesByGridNumber, colourBoundariesByBCNumber, colourBoundariesByShareNumber }

Public Member Functions
	MappingBuilder ()
	~MappingBuilder ()
int	build (MappingInformation &mapInfo, Mapping *surface=NULL)

Protected Member Functions
int	assignBoundaryConditions (MappingInformation &mapInfo)
int	buildBoxGrid (MappingInformation &mapInfo)
int	buildCurveOnSurface (MappingInformation &mapInfo)
int	buildSurfacePatch (MappingInformation &mapInfo)
int	getBoundaryCurves ()
int	plot (MappingInformation &mapInfo)

Protected Attributes
bool	plotReferenceSurface
bool	choosePlotBoundsFromReferenceSurface
bool	plotSurfaceGrids
bool	plotVolumeGrids
bool	plotBoundaryConditionMappings
bool	plotBoundaryCurves
bool	plotNonPhysicalBoundaries
bool	plotEdgeCurves
bool	plotGhostPoints
int	numberOfGhostLinesToPlot
bool	plotBlockBoundaries
bool	plotGridLines
int	numberOfSurfaceGrids
int	numberOfVolumeGrids
int	numberOfBoxGrids
int	numberOfBoundaryCurves
bcPlotOptionEnum	bcPlotOption
real	targetGridSpacing [2]
int	numberOfExtraBoundaryCurves
int	maxNumberOfExtraBoundaryCurves
Mapping **	extraBoundaryCurve
Mapping **	boundaryCurves
CompositeSurface	surfaceGrids
CompositeSurface	volumeGrids
Mapping *	pSurface
GraphicsParameters	parameters
GraphicsParameters	referenceSurfaceParameters

Member Enumeration Documentation

enum MappingBuilder::bcPlotOptionEnum

Enumerator
colourBoundariesByGridNumber
colourBoundariesByBCNumber
colourBoundariesByShareNumber

Constructor & Destructor Documentation

MappingBuilder::MappingBuilder

(

)

References boundaryCurves, extraBoundaryCurve, maxNumberOfExtraBoundaryCurves, NULL, numberOfBoundaryCurves, numberOfExtraBoundaryCurves, plotEdgeCurves, CompositeSurface::plotGhostLines, pSurface, surfaceGrids, targetGridSpacing, and volumeGrids.

MappingBuilder::~MappingBuilder

(

)

References c, extraBoundaryCurve, NULL, and numberOfExtraBoundaryCurves.

Member Function Documentation

int MappingBuilder::assignBoundaryConditions ( MappingInformation &  mapInfo )

protected

References DialogData::addRadioBox(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, bcPlotOption, colourBoundariesByBCNumber, colourBoundariesByGridNumber, colourBoundariesByShareNumber, GraphicsParameters::colourByBoundaryCondition, GraphicsParameters::colourByGrid, GraphicsParameters::colourByShare, GenericGraphicsInterface::drawColouredSquares(), GenericGraphicsInterface::erase(), CompositeSurface::eraseCompositeSurface(), fabs(), GenericGraphicsInterface::getAnswer(), GraphicsParameters::getBoundaryColourOption(), Mapping::getBoundaryCondition(), Mapping::getDomainDimension(), ReferenceCounting::getGlobalID(), DialogData::getRadioBox(), Mapping::getShare(), GI_PLOT_NON_PHYSICAL_BOUNDARIES, GI_PLOT_SHADED_MAPPING_BOUNDARIES, MappingInformation::graphXInterface, ApproximateGlobalInverse::grid, Mapping::inverseMap(), SelectionInfo::nSelect, NULL, numberOfVolumeGrids, GenericGraphicsInterface::outputString(), GenericGraphicsInterface::outputToCommandFile(), parameters, PlotIt::plot(), plotNonPhysicalBoundaries, GenericGraphicsInterface::popGUI(), GenericGraphicsInterface::pushGUI(), r, REAL_MAX, GenericGraphicsInterface::savePickCommands(), SelectionInfo::selection, GraphicsParameters::set(), Mapping::setBoundaryCondition(), RadioBox::setCurrentChoice(), DialogData::setExitCommand(), CompositeSurface::setIsVisible(), DialogData::setPushButtons(), Mapping::setShare(), DialogData::setTextBoxes(), DialogData::setTextLabel(), DialogData::setToggleButtons(), DialogData::setToggleState(), DialogData::setWindowTitle(), share, sPrintF(), sScanF(), GenericGraphicsInterface::stopReadingCommandFile(), TRUE, GenericGraphicsInterface::unAppendTheDefaultPrompt(), volumeGrids, SelectionInfo::x, x, and SelectionInfo::zbMin.

Referenced by build().

int MappingBuilder::build	(	MappingInformation &	mapInfo,
		Mapping *	surface = NULL
	)

addPrefix(label,prefix,cmd,maxCommands);

addPrefix(label,prefix,cmd,maxCommands);

References CompositeSurface::add(), HyperbolicMapping::addBoundaryCurves(), ListOfMappingRC::addElement(), DialogData::addInfoLabel(), DialogData::addOptionMenu(), DialogData::addRadioBox(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, assignBoundaryConditions(), aString, axis1, bcPlotOption, boundaryCurves, buildBoxGrid(), GenericGraphicsInterface::buildCascadingMenu(), buildCurveOnSurface(), GUIState::buildPopup(), buildSurfacePatch(), choosePlotBoundsFromReferenceSurface, DialogData::closeDialog(), colourBoundariesByBCNumber, colourBoundariesByGridNumber, colourBoundariesByShareNumber, GraphicsParameters::colourByBoundaryCondition, GraphicsParameters::colourByGrid, GraphicsParameters::colourByShare, ReferenceCounting::decrementReferenceCount(), ListOfMappingRC::deleteElement(), HyperbolicMapping::distanceFromLinesAndSpacing, HyperbolicMapping::distanceToMarch, GenericGraphicsInterface::erase(), CompositeSurface::eraseCompositeSurface(), HyperbolicMapping::estimateMarchingParameters(), extraBoundaryCurve, FALSE, Mapping::functionPeriodic, HyperbolicMapping::generateNew(), GenericGraphicsInterface::getAnswer(), GraphicsParameters::getBoundaryColourOption(), ReferenceCounting::getClassName(), Mapping::getClassName(), GenericGraphicsInterface::getColourName(), MappingRC::getDomainDimension(), Mapping::getDomainDimension(), Mapping::getGridDimensions(), Mapping::getIsPeriodic(), ListOfMappingRC::getLength(), MappingRC::getMapping(), GenericGraphicsInterface::getMenuItem(), MappingRC::getName(), Mapping::getName(), DialogData::getRadioBox(), MappingRC::getRangeDimension(), Mapping::getRangeDimension(), DialogData::getTextValue(), GI_PLOT_LINES_ON_MAPPING_BOUNDARIES, GI_PLOT_SHADED_MAPPING_BOUNDARIES, GI_PLOT_THE_OBJECT_AND_EXIT, GI_PLOT_UNS_EDGES, GI_PLOT_UNS_FACES, MappingInformation::graphXInterface, ApproximateGlobalInverse::grid, HyperbolicMapping::growInTheReverseDirection, ReferenceCounting::incrementReferenceCount(), GenericGraphicsInterface::indexInCascadingMenu(), HyperbolicMapping::linesInTheNormalDirection, ApproximateGlobalInverse::map, MappingInformation::mappingList, Mapping::mappingName, HyperbolicMapping::matchToABoundaryCurve, max(), maxNumberOfExtraBoundaryCurves, HDF_DataBase::mount(), SelectionInfo::nSelect, NULL, numberOfBoundaryCurves, numberOfBoxGrids, numberOfExtraBoundaryCurves, numberOfGhostLinesToPlot, CompositeSurface::numberOfSubSurfaces(), numberOfSurfaceGrids, numberOfVolumeGrids, DialogData::openDialog(), GenericGraphicsInterface::outputString(), HyperbolicMapping::outwardSplay, parameters, HyperbolicMapping::periodic, plot(), plotBlockBoundaries, plotBoundaryConditionMappings, plotBoundaryCurves, plotGhostPoints, plotGridLines, plotNonPhysicalBoundaries, plotReferenceSurface, plotSurfaceGrids, plotVolumeGrids, GenericGraphicsInterface::popGUI(), printF(), HyperbolicMapping::projectGhostBoundaries, pSurface, GenericGraphicsInterface::pushGUI(), MappingRC::put(), Mapping::put(), ra, referenceSurfaceParameters, CompositeSurface::remove(), s, SelectionInfo::selection, GraphicsParameters::set(), HyperbolicMapping::setBoundaryCurves(), CompositeSurface::setColour(), RadioBox::setCurrentChoice(), DialogData::setExitCommand(), DialogData::setInfoLabel(), Mapping::setName(), DialogData::setOptionMenuColumns(), HyperbolicMapping::setParameters(), HyperbolicMapping::setPlotBoundsFromGlobalBounds, HyperbolicMapping::setPlotOption(), DialogData::setPushButtons(), HyperbolicMapping::setStartingCurve(), HyperbolicMapping::setSurface(), DialogData::setTextBoxes(), DialogData::setTextLabel(), DialogData::setToggleButtons(), DialogData::setToggleState(), DialogData::setWindowTitle(), sPrintF(), sScanF(), GenericGraphicsInterface::stopReadingCommandFile(), targetGridSpacing, HyperbolicMapping::THEboundaryConditions, HyperbolicMapping::THEinitialGridSpacing, HyperbolicMapping::THEspacingOption, HyperbolicMapping::THEtargetGridSpacing, TRUE, GenericGraphicsInterface::unAppendTheDefaultPrompt(), ReferenceCounting::uncountedReferencesMayExist(), HDF_DataBase::unmount(), Mapping::update(), and volumeGrids.

Referenced by createMappings().

int MappingBuilder::buildBoxGrid ( MappingInformation &  mapInfo )

protected

References CompositeSurface::add(), ListOfMappingRC::addElement(), DialogData::addRadioBox(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, ApproximateGlobalInverse::boundingBox, ReferenceCounting::decrementReferenceCount(), End, CompositeSurface::eraseCompositeSurface(), fabs(), GenericGraphicsInterface::getAnswer(), GenericGraphicsInterface::getColourName(), GUIState::getDialogSibling(), Mapping::getDomainDimension(), ReferenceCounting::getGlobalID(), Mapping::getGrid(), Mapping::getGridDimensions(), Mapping::getName(), DialogData::getRadioBox(), Mapping::getRangeBound(), Mapping::getRangeDimension(), SelectionInfo::globalID, MappingInformation::graphXInterface, ApproximateGlobalInverse::grid, GridStretcher::gridWasChanged, ReferenceCounting::incrementReferenceCount(), Mapping::inverseMap(), Bound::isFinite(), Mapping::map(), MappingInformation::mappingList, Mapping::mappingName, SelectionInfo::nSelect, NULL, numberOfBoxGrids, CompositeSurface::numberOfSubSurfaces(), numberOfVolumeGrids, GenericGraphicsInterface::outputToCommandFile(), plot(), plotVolumeGrids, GenericGraphicsInterface::popGUI(), Mapping::project(), pSurface, GenericGraphicsInterface::pushGUI(), r, REAL_MAX, CompositeSurface::remove(), GenericGraphicsInterface::savePickCommands(), CompositeSurface::setColour(), RadioBox::setCurrentChoice(), DialogData::setExitCommand(), Mapping::setGridDimensions(), StretchTransform::setMapping(), Mapping::setName(), DialogData::setPushButtons(), DialogData::setTextBoxes(), DialogData::setTextLabel(), DialogData::setToggleButtons(), DialogData::setToggleState(), BoxMapping::setVertices(), DialogData::setWindowTitle(), share, sPrintF(), sScanF(), Start, GenericGraphicsInterface::stopReadingCommandFile(), targetGridSpacing, GenericGraphicsInterface::unAppendTheDefaultPrompt(), BoxMapping::update(), volumeGrids, SelectionInfo::x, and x.

Referenced by build().

int MappingBuilder::buildCurveOnSurface ( MappingInformation &  mapInfo )

protected

References ListOfMappingRC::addElement(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, axis1, axis2, ApproximateGlobalInverse::boundingBox, IntersectionMapping::curve, End, GenericGraphicsInterface::erase(), extraBoundaryCurve, GenericGraphicsInterface::getAnswer(), Mapping::getClassName(), Mapping::getGrid(), Mapping::getRangeBound(), Mapping::getRangeDimension(), MappingInformation::graphXInterface, ReferenceCounting::incrementReferenceCount(), IntersectionMapping::intersect(), Bound::isFinite(), MappingInformation::mappingList, max(), maxNumberOfExtraBoundaryCurves, SelectionInfo::nSelect, NULL, numberOfExtraBoundaryCurves, NurbsMapping::numberOfSubCurves(), GenericGraphicsInterface::outputString(), parameters, PlotIt::plot(), plot(), GenericGraphicsInterface::popGUI(), printF(), pSurface, GenericGraphicsInterface::pushGUI(), DialogData::setExitCommand(), Mapping::setGridDimensions(), PlaneMapping::setPoints(), DialogData::setPushButtons(), DialogData::setTextBoxes(), DialogData::setTextLabel(), DialogData::setToggleButtons(), DialogData::setToggleState(), DialogData::setWindowTitle(), sPrintF(), sScanF(), Start, GenericGraphicsInterface::stopReadingCommandFile(), NurbsMapping::subCurve(), GenericGraphicsInterface::unAppendTheDefaultPrompt(), and Mapping::update().

Referenced by build().

int MappingBuilder::buildSurfacePatch ( MappingInformation &  mapInfo )

protected

References CompositeSurface::add(), DialogData::addRadioBox(), GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, boundaryCurves, GridStretcher::buildDialog(), GridSmoother::buildDialog(), c, GraphicsParameters::curveLineWidth, ReferenceCounting::decrementReferenceCount(), display(), ApproximateGlobalInverse::domainDimension, dr, CompositeSurface::eraseCompositeSurface(), extraBoundaryCurve, GraphicsParameters::get(), GenericGraphicsInterface::getAnswer(), Mapping::getArcLength(), getBoundaryCurves(), Mapping::getClassName(), CompositeSurface::getCompositeTopology(), GUIState::getDialogSibling(), Mapping::getDomainDimension(), CompositeTopology::getEdgeCurve(), ReferenceCounting::getGlobalID(), Mapping::getGrid(), Mapping::getGridDimensions(), getIndex(), MappingProjectionParameters::getIntArray(), Mapping::getIsPeriodic(), CompositeTopology::getNumberOfEdgeCurves(), NurbsMapping::getParameterBounds(), DialogData::getRadioBox(), GI_MAPPING_COLOUR, GI_NUMBER_OF_GHOST_LINES_TO_PLOT, GI_PLOT_MAPPING_EDGES, MappingInformation::graphXInterface, gridIndexRange, GridStretcher::gridWasChanged, DialogData::hideSibling(), i2, ReferenceCounting::incrementReferenceCount(), GenericGraphicsInterface::inputString(), Mapping::inverseMap(), Mapping::mapGrid(), Mapping::mappingName, max(), SelectionInfo::nSelect, NULL, numberOfBoundaryCurves, numberOfExtraBoundaryCurves, GenericGraphicsInterface::outputString(), GenericGraphicsInterface::outputToCommandFile(), parameters, plot(), PlotIt::plot(), plotBoundaryCurves, plotEdgeCurves, plotGhostPoints, plotReferenceSurface, plotSurfaceGrids, plotVolumeGrids, GridSmoother::pointsFixed, GenericGraphicsInterface::popGUI(), Mapping::project(), pSurface, GenericGraphicsInterface::pushGUI(), r, R, ra, ApproximateGlobalInverse::rangeDimension, referenceSurfaceParameters, GenericGraphicsInterface::savePickCommands(), SelectionInfo::selection, GraphicsParameters::set(), GridSmoother::setBoundaryConditions(), GridSmoother::setBoundaryMappings(), RadioBox::setCurrentChoice(), DataPointMapping::setDataPoints(), NurbsMapping::setDomainInterval(), DialogData::setExitCommand(), Mapping::setGridDimensions(), MappingProjectionParameters::setIsAMarchingAlgorithm(), Mapping::setIsPeriodic(), Mapping::setName(), DialogData::setPushButtons(), DialogData::setTextBoxes(), DialogData::setTextLabel(), DialogData::setToggleButtons(), DialogData::setToggleState(), DialogData::setWindowTitle(), DialogData::showSibling(), GridSmoother::smooth(), sPrintF(), SQR, sScanF(), GenericGraphicsInterface::stopReadingCommandFile(), targetGridSpacing, GenericGraphicsInterface::unAppendTheDefaultPrompt(), GridStretcher::update(), GridSmoother::updateOptions(), and x.

Referenced by build().

int MappingBuilder::getBoundaryCurves ( )

protected

References boundaryCurves, Mapping::getClassName(), NULL, numberOfBoundaryCurves, and pSurface.

Referenced by buildSurfacePatch().

int MappingBuilder::plot ( MappingInformation &  mapInfo )

protected

References assert, aString, boundaryCurves, GraphicsParameters::curveLineWidth, CompositeTopology::edgeCurveIsMerged, CompositeTopology::edgeCurveIsNotMerged, GenericGraphicsInterface::erase(), extraBoundaryCurve, FALSE, GraphicsParameters::get(), Mapping::getClassName(), GenericGraphicsInterface::getColourName(), CompositeSurface::getCompositeTopology(), CompositeTopology::getEdgeCurve(), CompositeTopology::getEdgeCurveStatus(), CompositeTopology::getNumberOfEdgeCurves(), Mapping::getRangeDimension(), GI_MAPPING_COLOUR, GI_NUMBER_OF_GHOST_LINES_TO_PLOT, GI_PLOT_END_POINTS_ON_CURVES, GI_PLOT_GRID_POINTS_ON_CURVES, GI_PLOT_LINES_ON_MAPPING_BOUNDARIES, GI_PLOT_MAPPING_EDGES, GI_PLOT_NON_PHYSICAL_BOUNDARIES, GI_PLOT_SHADED_MAPPING_BOUNDARIES, GI_PLOT_THE_OBJECT_AND_EXIT, GI_PLOT_UNS_EDGES, GI_POINT_SIZE, GI_SURFACE_OFFSET, MappingInformation::graphXInterface, NULL, numberOfBoundaryCurves, numberOfExtraBoundaryCurves, numberOfGhostLinesToPlot, parameters, PlotIt::plot(), plotBlockBoundaries, plotBoundaryCurves, plotEdgeCurves, plotGhostPoints, plotGridLines, plotNonPhysicalBoundaries, plotReferenceSurface, plotSurfaceGrids, plotVolumeGrids, printF(), pSurface, referenceSurfaceParameters, GraphicsParameters::set(), GenericGraphicsInterface::setAxesDimension(), TRUE, and volumeGrids.

Referenced by build(), buildBoxGrid(), buildCurveOnSurface(), and buildSurfacePatch().

Member Data Documentation

bcPlotOptionEnum MappingBuilder::bcPlotOption

protected

Referenced by assignBoundaryConditions(), and build().

Mapping** MappingBuilder::boundaryCurves

protected

Referenced by build(), buildSurfacePatch(), getBoundaryCurves(), MappingBuilder(), and plot().

bool MappingBuilder::choosePlotBoundsFromReferenceSurface

protected

Referenced by build().

Mapping** MappingBuilder::extraBoundaryCurve

protected

Referenced by build(), buildCurveOnSurface(), buildSurfacePatch(), MappingBuilder(), plot(), and ~MappingBuilder().

int MappingBuilder::maxNumberOfExtraBoundaryCurves

protected

Referenced by build(), buildCurveOnSurface(), and MappingBuilder().

int MappingBuilder::numberOfBoundaryCurves

protected

Referenced by build(), buildSurfacePatch(), getBoundaryCurves(), MappingBuilder(), and plot().

int MappingBuilder::numberOfBoxGrids

protected

Referenced by build(), and buildBoxGrid().

int MappingBuilder::numberOfExtraBoundaryCurves

protected

Referenced by build(), buildCurveOnSurface(), buildSurfacePatch(), MappingBuilder(), plot(), and ~MappingBuilder().

int MappingBuilder::numberOfGhostLinesToPlot

protected

Referenced by build(), and plot().

int MappingBuilder::numberOfSurfaceGrids

protected

Referenced by build().

int MappingBuilder::numberOfVolumeGrids

protected

Referenced by assignBoundaryConditions(), build(), and buildBoxGrid().

GraphicsParameters MappingBuilder::parameters

protected

Referenced by assignBoundaryConditions(), build(), buildCurveOnSurface(), buildSurfacePatch(), and plot().

bool MappingBuilder::plotBlockBoundaries

protected

Referenced by build(), and plot().

bool MappingBuilder::plotBoundaryConditionMappings

protected

Referenced by build().

bool MappingBuilder::plotBoundaryCurves

protected

Referenced by build(), buildSurfacePatch(), and plot().

bool MappingBuilder::plotEdgeCurves

protected

Referenced by buildSurfacePatch(), MappingBuilder(), and plot().

bool MappingBuilder::plotGhostPoints

protected

Referenced by build(), buildSurfacePatch(), and plot().

bool MappingBuilder::plotGridLines

protected

Referenced by build(), and plot().

bool MappingBuilder::plotNonPhysicalBoundaries

protected

Referenced by assignBoundaryConditions(), build(), and plot().

bool MappingBuilder::plotReferenceSurface

protected

Referenced by build(), buildSurfacePatch(), and plot().

bool MappingBuilder::plotSurfaceGrids

protected

Referenced by build(), buildSurfacePatch(), and plot().

bool MappingBuilder::plotVolumeGrids

protected

Referenced by build(), buildBoxGrid(), buildSurfacePatch(), and plot().

Mapping* MappingBuilder::pSurface

protected

Referenced by build(), buildBoxGrid(), buildCurveOnSurface(), buildSurfacePatch(), getBoundaryCurves(), MappingBuilder(), and plot().

GraphicsParameters MappingBuilder::referenceSurfaceParameters

protected

Referenced by build(), buildSurfacePatch(), and plot().

CompositeSurface MappingBuilder::surfaceGrids

protected

Referenced by MappingBuilder().

real MappingBuilder::targetGridSpacing[2]

protected

Referenced by build(), buildBoxGrid(), buildSurfacePatch(), and MappingBuilder().

CompositeSurface MappingBuilder::volumeGrids

protected

Referenced by assignBoundaryConditions(), build(), buildBoxGrid(), MappingBuilder(), and plot().

---

The documentation for this class was generated from the following files:

• MappingBuilder.h
• MappingBuilder.C
