SparseRepForMGF Class Reference

#include <SparseRep.h>

Inheritance diagram for SparseRepForMGF:

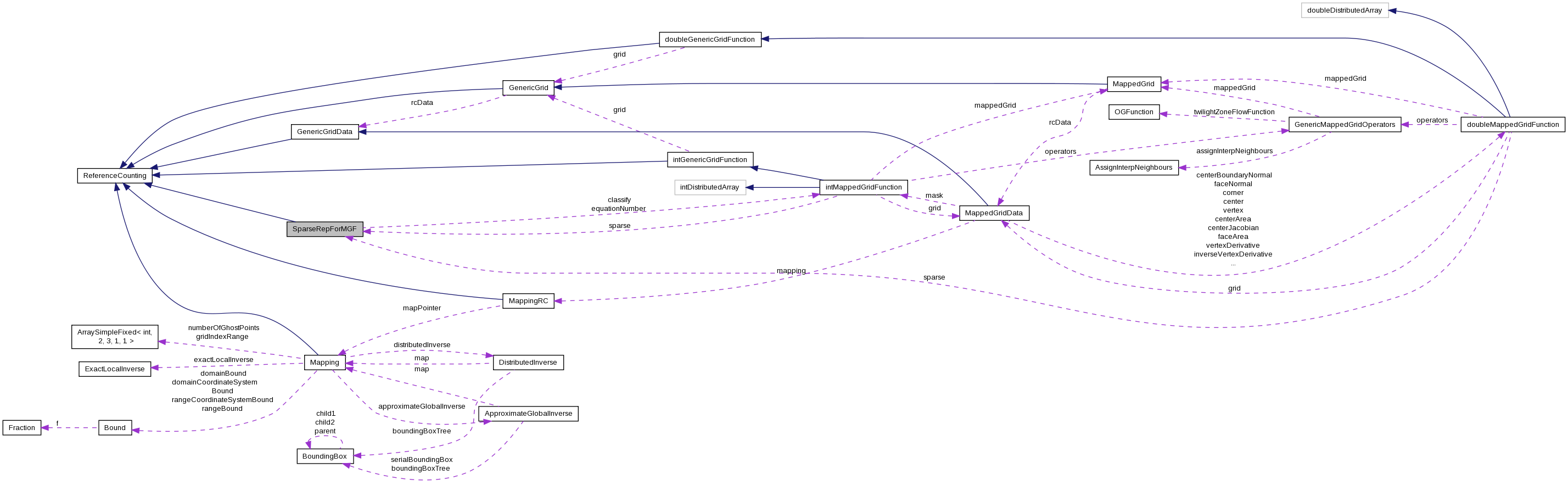

Collaboration diagram for SparseRepForMGF:

Public Types
enum	classifyTypes {   interior =1, boundary =2, ghost1 =3, ghost2 =4,   ghost3 =5, ghost4 =6, interpolation =-1, periodic =-2,   extrapolation =-3, unused =0 }

Public Member Functions
	SparseRepForMGF ()
	~SparseRepForMGF ()
	SparseRepForMGF (const SparseRepForMGF &rep)
SparseRepForMGF &	operator= (const SparseRepForMGF &rep)
ReferenceCounting &	operator= (const ReferenceCounting &x)
int	updateToMatchGrid (MappedGrid &mg, int stencilSize=9, int numberOfGhostLines=1, int numberOfComponents=1, int offset=0)
virtual void	setParameters (int stencilSize=9, int numberOfGhostLines=1, int numberOfComponents=1, int offset=0)
virtual int	setCoefficientIndex (const int &m, const int &na, const Index &I1a, const Index &I2a, const Index &I3a, const int &nb, const Index &I1b, const Index &I2b, const Index &I3b)
virtual int	setCoefficientIndex (const int &m, const int &na, const Index &I1a, const Index &I2a, const Index &I3a, const int &equationNumber)
virtual int	setClassify (const classifyTypes &type, const Index &I1, const Index &I2, const Index &I3, const Index &N=nullIndex)
virtual int	fixUpClassify (realMappedGridFunction &coeff)
virtual int	indexToEquation (int n, int i1, int i2, int i3)
virtual int	equationToIndex (const int eqnNo, int &n, int &i1, int &i2, int &i3)
virtual real	sizeOf (FILE *file=NULL) const
Public Member Functions inherited from ReferenceCounting
	ReferenceCounting ()
	ReferenceCounting (const ReferenceCounting &x, const CopyType ct=DEEP)
virtual	~ReferenceCounting ()
virtual void	reference (const ReferenceCounting &x)
virtual void	breakReference ()
virtual ReferenceCounting *	virtualConstructor (const CopyType ct=DEEP) const
Integer	incrementReferenceCount ()
Integer	decrementReferenceCount ()
Integer	getReferenceCount () const
Logical	uncountedReferencesMayExist ()
virtual aString	getClassName () const
Integer	getGlobalID () const
void	setGlobalID (int id)
virtual void	consistencyCheck () const

Public Attributes
intMappedGridFunction	equationNumber
intMappedGridFunction	classify
int	equationOffset
int	numberOfComponents
int	numberOfGhostLines
int	stencilSize

Static Public Attributes
static int	debug =0

Member Enumeration Documentation

enum SparseRepForMGF::classifyTypes

Enumerator
interior
boundary
ghost1
ghost2
ghost3
ghost4
interpolation
periodic
extrapolation
unused

Constructor & Destructor Documentation

SparseRepForMGF::SparseRepForMGF

(

)

References equationOffset, numberOfComponents, numberOfGhostLines, and stencilSize.

SparseRepForMGF::~SparseRepForMGF

(

)

SparseRepForMGF::SparseRepForMGF

(

const SparseRepForMGF &

rep

)

Member Function Documentation

int SparseRepForMGF::equationToIndex ( const int  eqnNo, int &  n, int &  i1, int &  i2, int &  i3  )

virtual

References equationNumber, equationOffset, and numberOfComponents.

int SparseRepForMGF::fixUpClassify ( realMappedGridFunction &  coeff )

virtual

References assert, MappedGrid::boundaryCondition(), c, classify, debug, MappedGrid::dimension(), display(), displayMask(), MappedGrid::extendedRange(), ForBoundary, getGhostIndex(), getIndex(), ParallelUtility::getLocalArrayBounds(), doubleMappedGridFunction::grid, MappedGrid::indexRange(), interpolation, doubleMappedGridFunction::mappedGrid, mask, MappedGrid::mask(), NULL, numberOfComponents, MappedGrid::numberOfDimensions(), numberOfGhostLines, periodic, R, and unused.

Referenced by GenericMappedGridOperators::finishBoundaryConditions(), and GenericMappedGridOperators::finishBoundaryConditionsOld().

int SparseRepForMGF::indexToEquation ( int  n, int  i1, int  i2, int  i3  )

virtual

References equationNumber, equationOffset, and numberOfComponents.

Referenced by GenericCompositeGridOperators::getInterpolationCoefficients(), interpolateRefinements(), and setCoefficientIndex().

SparseRepForMGF & SparseRepForMGF::operator=

(

const SparseRepForMGF &

rep

)

References classify, equationNumber, equationOffset, and numberOfComponents.

ReferenceCounting& SparseRepForMGF::operator= ( const ReferenceCounting &  x )

inlinevirtual

Reimplemented from ReferenceCounting.

int SparseRepForMGF::setClassify ( const classifyTypes &  type, const Index &  I1, const Index &  I2, const Index &  I3, const Index &  N = nullIndex  )

virtual

References classify, and ParallelUtility::getLocalArrayBounds().

Referenced by MappedGridOperators::applyBoundaryConditionCoefficients(), Ogmg::assignBoundaryConditionCoefficients(), interpolateRefinements(), Ogmg::operatorAveraging(), GenericMappedGridOperators::setExtrapolationCoefficients(), and GenericMappedGridOperators::setSymmetryCoefficients().

int SparseRepForMGF::setCoefficientIndex ( const int &  m, const int &  na, const Index &  I1a, const Index &  I2a, const Index &  I3a, const int &  nb, const Index &  I1b, const Index &  I2b, const Index &  I3b  )

virtual

References equationNumber, i2, indexToEquation(), max(), min(), and numberOfComponents.

Referenced by MappedGridOperators::applyBoundaryConditionCoefficients(), Ogmg::assignBoundaryConditionCoefficients(), GenericMappedGridOperators::finishBoundaryConditions(), GenericCompositeGridOperators::getInterpolationCoefficients(), interpolateRefinements(), Ogmg::operatorAveraging(), floatMappedGridFunction::setCoefficientIndex(), doubleMappedGridFunction::setCoefficientIndex(), intMappedGridFunction::setCoefficientIndex(), GenericMappedGridOperators::setExtrapolationCoefficients(), GenericMappedGridOperators::setPeriodicCoefficients(), GenericMappedGridOperators::setSymmetryCoefficients(), and updateToMatchGrid().

int SparseRepForMGF::setCoefficientIndex ( const int &  m, const int &  na, const Index &  I1a, const Index &  I2a, const Index &  I3a, const int &  equationNumber  )

virtual

References classify, equationNumber, and ParallelUtility::getLocalArrayBounds().

void SparseRepForMGF::setParameters ( int  stencilSize = 9, int  numberOfGhostLines = 1, int  numberOfComponents = 1, int  offset = 0  )

virtual

References equationOffset, numberOfComponents, numberOfGhostLines, and stencilSize.

Referenced by doubleMappedGridFunction::setIsACoefficientMatrix(), intMappedGridFunction::setIsACoefficientMatrix(), and floatMappedGridFunction::setIsACoefficientMatrix().

real SparseRepForMGF::sizeOf ( FILE *  file = NULL ) const

virtual

int SparseRepForMGF::updateToMatchGrid	(	MappedGrid &	mg,
		int	stencilSize = 9,
		int	numberOfGhostLines = 1,
		int	numberOfComponents = 1,
		int	offset = 0
	)

References assert, axis1, boundary, c, CE, classify, debug, Mapping::debug, MappedGrid::dimension(), End, equationNumber, equationOffset, extrapolation, ForStencil, getBoundaryIndex(), getGhostIndex(), getIndex(), ParallelUtility::getLocalArrayBounds(), MappedGrid::gridIndexRange(), MappedGrid::indexRange(), interior, MappedGrid::isAllCellCentered(), M123, M123CE, numberOfComponents, MappedGrid::numberOfDimensions(), numberOfGhostLines, pow(), REAL_EPSILON, setCoefficientIndex(), SQR, Start, stencilSize, unused, and intMappedGridFunction::updateToMatchGrid().

Referenced by doubleMappedGridFunction::setIsACoefficientMatrix(), intMappedGridFunction::setIsACoefficientMatrix(), and floatMappedGridFunction::setIsACoefficientMatrix().

Member Data Documentation

intMappedGridFunction SparseRepForMGF::classify

Referenced by Ogmg::applyBoundaryConditions(), GenericMappedGridOperators::finishBoundaryConditions(), GenericMappedGridOperators::finishBoundaryConditionsOld(), fixUpClassify(), Ogmg::initializeBoundaryConditions(), operator=(), setClassify(), setCoefficientIndex(), GenericMappedGridOperators::setPeriodicCoefficients(), and updateToMatchGrid().

int SparseRepForMGF::debug =0

static

Referenced by checkGrid(), fixUpClassify(), and updateToMatchGrid().

intMappedGridFunction SparseRepForMGF::equationNumber

Referenced by equationToIndex(), indexToEquation(), operator=(), setCoefficientIndex(), and updateToMatchGrid().

int SparseRepForMGF::equationOffset

Referenced by equationToIndex(), indexToEquation(), operator=(), setParameters(), SparseRepForMGF(), and updateToMatchGrid().

int SparseRepForMGF::numberOfComponents

Referenced by displayCoeff(), equationToIndex(), fixUpClassify(), GenericCompositeGridOperators::getInterpolationCoefficients(), indexToEquation(), interpolateRefinements(), operator=(), Oges::setCoefficientArray(), setCoefficientIndex(), setParameters(), GenericMappedGridOperators::setPeriodicCoefficients(), SparseRepForMGF(), and updateToMatchGrid().

int SparseRepForMGF::numberOfGhostLines

Referenced by displayCoeff(), GenericMappedGridOperators::finishBoundaryConditions(), GenericMappedGridOperators::finishBoundaryConditionsOld(), fixUpClassify(), setParameters(), GenericMappedGridOperators::setPeriodicCoefficients(), SparseRepForMGF(), and updateToMatchGrid().

int SparseRepForMGF::stencilSize

Referenced by displayCoeff(), GenericCompositeGridOperators::getInterpolationCoefficients(), interpolateRefinements(), Oges::setCoefficientArray(), setParameters(), GenericMappedGridOperators::setPeriodicCoefficients(), SparseRepForMGF(), and updateToMatchGrid().

---

The documentation for this class was generated from the following files:

• SparseRep.h
• SparseRep.C
