#include <DeformingBodyMotion.h>

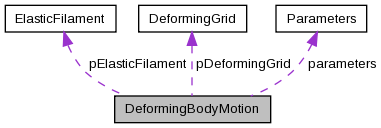

Collaboration diagram for DeformingBodyMotion:

Public Types
enum	DeformingBodyType { elasticFilament, elasticBody, userDefinedDeformingBody, unknownBody }

enum	InitialStateOptionEnum { initialPosition, initialVelocity, initialAcceleration }

Public Member Functions
	DeformingBodyMotion (Parameters &params, int numberOfTimeLevels=3, GenericGraphicsInterface *pGIDebug00=NULL, int debug00=0)
	Constructor: Set up grids, but do not initialize the mapping in the composite grid. And don't instantiate the `physics object' yet.

	~DeformingBodyMotion ()

int	correct (real t1, real t2, GridFunction &cgf1, GridFunction &cgf2)
	Corrector step for deforming grids.

int	defineBody (int numberOfFaces, IntegerArray &boundaryFaces)
	Define the deforming body in terms of faces on grids.

int	getAccelerationBC (const real time0, const int grid, const Index &I1, const Index &I2, const Index &I3, realSerialArray &bcAcceleration)
	Return the grid acceleration on boundary points.

int	getAccelerationOrderOfAccuracy () const
	return the order of accuracy used to compute the acceleration.

int	getInitialState (InitialStateOptionEnum stateOption, const real time, const int grid, const Index &I1, const Index &I2, const Index &I3, realSerialArray &state)
	return the initial state (e.g. position, velocity, acceleration)

int	getNumberOfGrids ()
	: return the number of grids that form the deforming body

int	getVelocity (const real time0, const int grid, CompositeGrid &cg, realArray &gridVelocity)
	Return the grid velocity.

int	getVelocityBC (const real time0, const int grid, const Index &I1, const Index &I2, const Index &I3, realSerialArray &bcVelocity)
	Return the grid velocity at specified points.

int	getVelocityOrderOfAccuracy () const
	return the order of accuracy used to compute the velocity.

int	initialize (CompositeGrid &cg, real t=0.)

int	initializeGrid (CompositeGrid &cg, real t=0.)
	This initialization routine will adjust the initial CompositeGrid so that it can be deformed. This usually means that we change the Mapping for the grid that deforms.

int	initializePast (real time00, real dt00, CompositeGrid &cg)
	Initialize past history of the grid so that the grid velocity can be computed at t=0.

int	integrate (real t1, real t2, real t3, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3, realCompositeGridFunction &stress)

void	printFilamentHyperbolicDimensions (CompositeGrid &cg00, int gridToMove00)

int	regenerateComponentGrids (const real newT, CompositeGrid &cg)
	: regenerate all the component grids associated with this deforming body.

void	registerDeformingComponentGrid (const int grid, CompositeGrid &cg)

int	setAccelerationOrderOfAccuracy (int order)
	set the order of accuracy used to compute the acceleration.

int	setVelocityOrderOfAccuracy (int order)
	set the order of accuracy used to compute the velocity.

int	setType (const DeformingBodyType bodyType)
	: Set the deforming body type. One of elasticFilament or userDefinedDeformingBody.

int	update (CompositeGrid &cg, GenericGraphicsInterface &gi)

int	update (GenericGraphicsInterface &gi)

int	userDefinedDeformingSurface (real t1, real t2, real t3, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3, int option)
	This function can be used by users to define the motion of a deforming surface which is defined by a set of data points.

Protected Member Functions
int	advanceElasticShell (real t1, real t2, real t3, GridFunction &cgf1, GridFunction &cgf2, GridFunction &cgf3, realCompositeGridFunction &stress, int option)
	Advance the elastic shell in time.

int	getFace (int grid) const
	Return the face number that corresponds to a given grid. This is a protected routine.

int	getPastLevelGrid (const int level, const int grid, CompositeGrid &cg, realArray &gridVelocity)

void	simpleGetVelocity (const real vTime, const int grid00, CompositeGrid &cg, realArray &gridVelocity)

Protected Attributes
ElasticFilament *	pElasticFilament

DeformingGrid *	pDeformingGrid

int	debug

GenericGraphicsInterface *	pGIDebug

MappingInformation *	pMapInfoDebug

Parameters &	parameters

DataBase	deformingBodyDataBase

Member Enumeration Documentation

enum DeformingBodyMotion::DeformingBodyType

Enumerator
elasticFilament
elasticBody
userDefinedDeformingBody
unknownBody

enum DeformingBodyMotion::InitialStateOptionEnum

Enumerator
initialPosition
initialVelocity
initialAcceleration

Constructor & Destructor Documentation

DeformingBodyMotion::DeformingBodyMotion	(	Parameters &	params,
		int	numberOfTimeLevels = `3`,
		GenericGraphicsInterface *	pGIDebug00 = `NULL`,
		int	debug00 = `0`
	)

Constructor: Set up grids, but do not initialize the mapping in the composite grid. And don't instantiate the `physics object' yet.

Parameters

params (input) : the DomainSolver Parameters object.

References GridEvolution::debug, debug, deformingBodyDataBase, elasticFilament, pDeformingGrid, pElasticFilament, pGIDebug, pMapInfoDebug, and printF().

DeformingBodyMotion::~DeformingBodyMotion ( )

References deformingBodyDataBase, i, pDeformingGrid, pElasticFilament, and pMapInfoDebug.

Member Function Documentation

int DeformingBodyMotion::advanceElasticShell	(	real	t1,
		real	t2,
		real	t3,
		GridFunction &	cgf1,
		GridFunction &	cgf2,
		GridFunction &	cgf3,
		realCompositeGridFunction &	stress,
		int	option
	)

protected

Advance the elastic shell in time.

Parameters

option : option=0 : predictor-step, option=1 corrector step.

References assert(), GridFunction::cg, cg, Parameters::dbase, GridFunction::dbase, debug, deformingBodyDataBase, dir, FOR_3D, i1, i2, i3, m, parameters, pc, printF(), GridFunction::u, uc, userDefinedDeformingBody, v, vc, wc, x, x2, and x3.

Referenced by integrate().

int DeformingBodyMotion::correct	(	real	t1,
		real	t2,
		GridFunction &	cgf1,
		GridFunction &	cgf2
	)

Corrector step for deforming grids.

This function is called at the corrector step to update the moving grids. the acceleration on the boundary ).

Parameters

t1,cgf1	(input) : solution at the old time
t2,cgf2	(input) : solution at the new time (these are valid values)

References debug, deformingBodyDataBase, elasticFilament, printF(), and userDefinedDeformingBody.

Referenced by MovingGrids::correctGrids().

int DeformingBodyMotion::defineBody	(	int	numberOfFaces_,
		IntegerArray &	boundaryFaces_
	)

Define the deforming body in terms of faces on grids.

Parameters

numberOfFaces	(input) :
boundaryFaces	(input) : boundaryFaces(0:2,f) = (side,axis,grid) for face f

References deformingBodyDataBase, elasticFilament, printF(), and userDefinedDeformingBody.

Referenced by MovingGrids::update().

int DeformingBodyMotion::getAccelerationBC	(	const real	time0,
		const int	grid,
		const Index &	I1,
		const Index &	I2,
		const Index &	I3,
		realSerialArray &	bcAcceleration
	)

Return the grid acceleration on boundary points.

References assert(), debug, deformingBodyDataBase, elasticFilament, ElasticFilament::getAccelerationBC(), getFace(), getInitialState(), initialAcceleration, pElasticFilament, printF(), and userDefinedDeformingBody.

Referenced by MovingGrids::getBoundaryAcceleration(), and MovingGrids::gridAccelerationBC().

int DeformingBodyMotion::getAccelerationOrderOfAccuracy ( ) const

return the order of accuracy used to compute the acceleration.

References deformingBodyDataBase.

int DeformingBodyMotion::getFace ( int grid ) const

protected

Return the face number that corresponds to a given grid. This is a protected routine.

References deformingBodyDataBase, f, and grid.

Referenced by getAccelerationBC(), getVelocity(), and getVelocityBC().

int DeformingBodyMotion::getInitialState	(	InitialStateOptionEnum	stateOption,
		const real	time,
		const int	grid,
		const Index &	I1,
		const Index &	I2,
		const Index &	I3,
		realSerialArray &	state
	)

return the initial state (e.g. position, velocity, acceleration)

return the initial state of the deforming grid.

References a0, axis, Parameters::dbase, debug, deformingBodyDataBase, elasticFilament, initialAcceleration, initialVelocity, OV_ABORT(), parameters, printF(), and userDefinedDeformingBody.

Referenced by getAccelerationBC(), getVelocity(), and getVelocityBC().

int DeformingBodyMotion::getNumberOfGrids ( )

: return the number of grids that form the deforming body

References deformingBodyDataBase.

Referenced by MovingGrids::getBoundaryAcceleration(), MovingGrids::getGridVelocity(), and MovingGrids::gridAccelerationBC().

int DeformingBodyMotion::getPastLevelGrid	(	const int	level,
		const int	grid,
		CompositeGrid &	cg,
		realArray &	gridVelocity
	)

protected

References assert(), debug, deformingBodyDataBase, elasticFilament, DeformingGrid::getPastLevelGrid(), pDeformingGrid, printF(), and userDefinedDeformingBody.

int DeformingBodyMotion::getVelocity	(	const real	time0,
		const int	grid,
		CompositeGrid &	cg,
		realArray &	gridVelocity
	)

Return the grid velocity.

This routine uses the GridEvolution class to compute the grid velocity. The GridEvolution class keeps a sequence of past grids and computes the time derivative of the grid motion using these grids.

References assert(), axis, debug, deformingBodyDataBase, dimension, display(), elasticFilament, getFace(), getIndex(), getInitialState(), DeformingGrid::getVelocity(), I1, I2, I3, initialVelocity, J1, J2, J3, OV_ABORT(), pDeformingGrid, printF(), and userDefinedDeformingBody.

Referenced by MovingGrids::getGridVelocity().

int DeformingBodyMotion::getVelocityBC	(	const real	time0,
		const int	grid,
		const Index &	I1,
		const Index &	I2,
		const Index &	I3,
		realSerialArray &	bcVelocity
	)

Return the grid velocity at specified points.

References assert(), debug, deformingBodyDataBase, elasticFilament, getFace(), getInitialState(), ElasticFilament::getVelocityBC(), initialVelocity, pElasticFilament, printF(), and userDefinedDeformingBody.

Referenced by MovingGrids::getGridVelocity().

int DeformingBodyMotion::getVelocityOrderOfAccuracy ( ) const

return the order of accuracy used to compute the velocity.

References deformingBodyDataBase.

int DeformingBodyMotion::initialize	(	CompositeGrid &	cg,
		real	t = `0.`
	)

References all, assert(), debug, deformingBodyDataBase, dx, elasticFilament, i, I1, i2, I2, ElasticFilament::initializeFromFilamentMapping(), initializeGrid(), isRectangular, pDeformingGrid, pElasticFilament, pGIDebug, printF(), printFilamentHyperbolicDimensions(), r, rad, theta, userDefinedDeformingBody, x2, and xab.

Referenced by MovingGrids::update().

int DeformingBodyMotion::initializeGrid	(	CompositeGrid &	cg,
		real	t = `0.`
	)

This initialization routine will adjust the initial CompositeGrid so that it can be deformed. This usually means that we change the Mapping for the grid that deforms.

Parameters

cg	(input) : CompositeGrid to use (input) : time

References assert(), debug, deformingBodyDataBase, init, printF(), and userDefinedDeformingBody.

Referenced by initialize().

int DeformingBodyMotion::initializePast	(	real	time00,
		real	dt00,
		CompositeGrid &	cg
	)

Initialize past history of the grid so that the grid velocity can be computed at t=0.

.. CALLED in the beginning of a computation to initialize the mapping history list with reasonable values so the grid velocity gets computed OK from the very first tstep

.. This will have to change once the surface gets it's own physics .. –> use x_t, x_tt at t=0 to find boundary curve at t= -dt, t=-2*dt

References assert(), ElasticFilament::copyBodyFittedMapping(), DeformingGrid::createMappingName(), debug, deformingBodyDataBase, elasticFilament, ElasticFilament::evaluateSurfaceAtTime(), DeformingGrid::getNewMapping(), grid, pDeformingGrid, pElasticFilament, pMapInfoDebug, printF(), ElasticFilament::referenceMap(), userDefinedDeformingBody, and x.

Referenced by MovingGrids::update().

int DeformingBodyMotion::integrate	(	real	t1,
		real	t2,
		real	t3,
		GridFunction &	cgf1,
		GridFunction &	cgf2,
		GridFunction &	cgf3,
		realCompositeGridFunction &	stress
	)

NOTES: The routine MovingGrids::movingGrids first calls DeformingBodyMotion::integrate to move the deforming body and then calls DeformingBodyMotion::regenerateComponentGrids to actually move the grid.

References advanceElasticShell(), assert(), GridFunction::cg, cg, Parameters::dbase, debug, deformingBodyDataBase, display(), elasticFilament, FOR_3D, Parameters::getBoundaryData(), i1, I1, i2, I2, i3, ElasticFilament::integrate(), m, parameters, pElasticFilament, printF(), GridFunction::u, u, u0, uc, userDefinedDeformingBody, userDefinedDeformingSurface(), vc, wc, x, x2, y, and z.

Referenced by MovingGrids::moveDeformingBodies().

void DeformingBodyMotion::printFilamentHyperbolicDimensions	(	CompositeGrid &	cg00,
		int	gridToMove00
	)

References assert(), debug, deformingBodyDataBase, elasticFilament, and pMapInfoDebug.

Referenced by initialize().

int DeformingBodyMotion::regenerateComponentGrids	(	const real	newT,
		CompositeGrid &	cg
	)

: regenerate all the component grids associated with this deforming body.

The routine MovingGrids::movingGrids first calls DeformingBodyMotion::integrate to move the deforming body and then calls DeformingBodyMotion::regenerateComponentGrids to actually generate the grid.

References a, a0, assert(), b0, c, ElasticFilament::copyBodyFittedMapping(), DeformingGrid::createMappingName(), debug, deformingBodyDataBase, display(), elasticFilament, ElasticFilament::evaluateSurfaceAtTime(), DeformingGrid::getNewMapping(), i, i1, I1, i2, I2, i3, init, ns, omega, pDeformingGrid, pElasticFilament, pMapInfoDebug, printF(), r, rad, ElasticFilament::referenceMap(), s, theta, userDefinedDeformingBody, x, x2, y, and z.

Referenced by MovingGrids::moveGrids().

void DeformingBodyMotion::registerDeformingComponentGrid	(	const int	grid,
		CompositeGrid &	cg
	)

int DeformingBodyMotion::setAccelerationOrderOfAccuracy ( int order )

set the order of accuracy used to compute the acceleration.

Parameters

order (input) : a positive integer

References deformingBodyDataBase.

int DeformingBodyMotion::setType ( const DeformingBodyType bodyType )

: Set the deforming body type. One of elasticFilament or userDefinedDeformingBody.

References deformingBodyDataBase.

int DeformingBodyMotion::setVelocityOrderOfAccuracy ( int order )

set the order of accuracy used to compute the velocity.

Parameters

order (input) : a positive integer

References deformingBodyDataBase.

void DeformingBodyMotion::simpleGetVelocity	(	const real	vTime,
		const int	grid00,
		CompositeGrid &	cg,
		realArray &	gridVelocity
	)

protected

References assert(), deformingBodyDataBase, elasticFilament, pDeformingGrid, printF(), DeformingGrid::simpleGetVelocity(), and userDefinedDeformingBody.

int DeformingBodyMotion::update	(	CompositeGrid &	cg,
		GenericGraphicsInterface &	gi
	)

References a0, assert(), debug, deformingBodyDataBase, elasticFilament, order, printF(), and userDefinedDeformingBody.

Referenced by DomainSolver::getMovingGridOption(), and MovingGrids::update().

int DeformingBodyMotion::update ( GenericGraphicsInterface & gi )

References assert(), deformingBodyDataBase, elasticFilament, pElasticFilament, printF(), ElasticFilament::update(), and userDefinedDeformingBody.

int DeformingBodyMotion::userDefinedDeformingSurface	(	real	t1,
		real	t2,
		real	t3,
		GridFunction &	cgf1,
		GridFunction &	cgf2,
		GridFunction &	cgf3,
		int	option
	)

This function can be used by users to define the motion of a deforming surface which is defined by a set of data points.

This function can be filled in to define the motion of a deforming surface which is defined by a set of data points. In general this function will be called by a predictor-corrector time stepping scheme. The parameter "option" indicates whether the function is being called by the predictor or corrector.

This function is intended to be changed by a user to define a new deforming body motion. The default implementation simply advects the interface with the current fluid velocity.

, cgf1, t2, cgf2, t3,cgf3 : Advance the solution from (t1,cgf1) to (t2,cgf2) using the solution at (t2,cgf2)

Parameters

option : option=0 : predictor-step, option=1 corrector step. The shape of the interface should always be advanced during the predictor step. The corrector step can be used to make small corrections to the shape that was computed from predictor step. This is sometimes needed to make the time-stepping stable.

References assert(), GridFunction::cg, cg, Parameters::dbase, debug, deformingBodyDataBase, FOR_3D, i1, i2, i3, parameters, printF(), GridFunction::u, u, u0, uc, vc, wc, x, y, and z.
