#include <UnstructuredMapping.h>

Inheritance diagram for UnstructuredMapping:

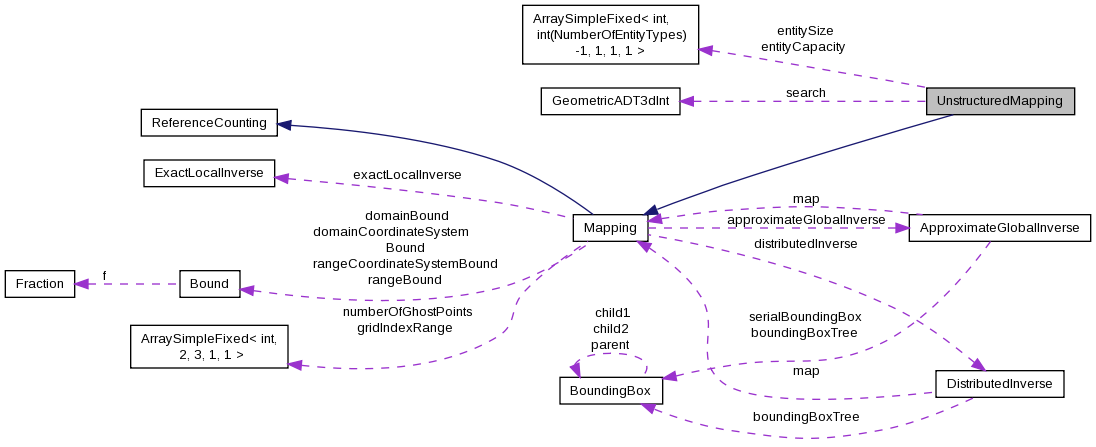

Collaboration diagram for UnstructuredMapping:

Classes
class	IDTuple

struct	TagError

Public Types
enum	EntityTypeEnum { Invalid =-1, Vertex =0, Edge, Face, Region, Mesh, NumberOfEntityTypes }

enum	ElementType { triangle, quadrilateral, tetrahedron, pyramid, triPrism, septahedron, hexahedron, other, boundary, NumberOfElementTypes }

enum	DisplayListProperty { nodeDL =0, edgeDL, boundaryEdgeDL, faceDL, faceNormalDL, numberOfDLProperties }

enum	EntityInfoMask { NullEntityInfo = 0x0, HoleInEntityData = 0x1, GhostEntity = HoleInEntityData<<1, BCEntity = GhostEntity<<1 }

typedef std::list< EntityTag * > ::iterator	entity_tag_iterator
	iterator for going through the tags in a specific entity

typedef std::list< EntityTag * > ::const_iterator	const_entity_tag_iterator

typedef std::list< IDTuple > ::iterator	tag_entity_iterator
	iterator for going throught the entities with a specific tag

typedef std::list< IDTuple > ::const_iterator	const_tag_entity_iterator

Public Types inherited from Mapping
enum	mappingSpace { parameterSpace, cartesianSpace }

enum	coordinateSystem { cartesian, spherical, cylindrical, polar, toroidal, numberOfCoordinateSystems }

enum	coordinateSingularity { noCoordinateSingularity, polarSingularity }

enum	mappingCoordinateSystem { rectangular, conformal, orthogonal, general }

enum	periodicType { notPeriodic, derivativePeriodic, functionPeriodic }

enum	topologyEnum { topologyIsNotPeriodic =0, topologyIsPeriodic, topologyIsPartiallyPeriodic }

enum	mappingItemName { mappingName, domainName, rangeName, domainAxis1Name, domainAxis2Name, domainAxis3Name, rangeAxis1Name, rangeAxis2Name, rangeAxis3Name, numberOfMappingItemNames }

enum	basicInverseOptions { canDoNothing, canDetermineOutside, canInvert, canInvertWithGoodGuess }

typedef ArraySimpleFixed< int, 2, 3, 1, 1 >	IndexRangeType

Public Member Functions
	UnstructuredMapping ()

	UnstructuredMapping (int domainDimension_, int rangeDimension_, mappingSpace domainSpace_, mappingSpace rangeSpace_)

	UnstructuredMapping (const UnstructuredMapping &, const CopyType copyType=DEEP)

	~UnstructuredMapping ()

UnstructuredMapping &	operator= (const UnstructuredMapping &X0)

void	addGhostElements (bool trueOrFalse=true)

virtual const realArray &	getGrid (MappingParameters &params=Overture::nullMappingParameters(), bool includeGhost=false)

int	getNumberOfNodes () const

int	getNumberOfElements () const

int	getNumberOfFaces () const

int	getNumberOfEdges () const

int	getMaxNumberOfNodesPerElement () const

int	getMaxNumberOfFacesPerElement () const

int	getMaxNumberOfNodesPerFace () const

int	getNumberOfBoundaryFaces () const

int	size (EntityTypeEnum t) const

int	capacity (EntityTypeEnum t) const

int	reserve (EntityTypeEnum, int)

void	setPreferTriangles (bool trueOrFalse=true)

void	setElementDensityTolerance (real tol)

const realArray &	getNodes () const

const intArray &	getElements () const

const intArray &	getFaces ()

const intArray &	getFaceElements ()

const intArray &	getEdges ()

const intArray &	getTags ()

const intArray &	getElementFaces ()

const intArray &	getBoundaryFace ()

const intArray &	getBoundaryFaceTags ()

const intArray &	getEntities (EntityTypeEnum)

const intArray &	getEntityAdjacencyIndices (EntityTypeEnum from, EntityTypeEnum to, intArray &offsets)

const intArray &	getGhostElements () const

const intArray &	getMask (EntityTypeEnum entityType) const

void	createNodeElementList (intArray &nodeElementList)

int	getNumberOfNodesThisElement (int element) const

int	getNumberOfNodesThisFace (int face_) const

int	getBoundaryFace (int bdyface_) const

int	getBoundaryFaceTag (int bdyface_) const

int	elementGlobalVertex (int element, int vertex) const

int	faceGlobalVertex (int face, int vertex) const

int	getNumberOfFacesThisElement (int element_) const

UnstructuredMappingIterator	begin (EntityTypeEnum entityType_, bool skipGhostEntities=false) const

UnstructuredMappingIterator	end (EntityTypeEnum entityType_, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_begin (EntityTypeEnum fromT, int fromE, EntityTypeEnum to, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_end (EntityTypeEnum fromT, int fromE, EntityTypeEnum to, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_begin (UnstructuredMappingIterator from, EntityTypeEnum to, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_end (UnstructuredMappingIterator from, EntityTypeEnum to, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_begin (UnstructuredMappingAdjacencyIterator from, EntityTypeEnum to, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_end (UnstructuredMappingAdjacencyIterator from, EntityTypeEnum to, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_begin (IDTuple from, EntityTypeEnum to, bool skipGhostEntities=false) const

UnstructuredMappingAdjacencyIterator	adjacency_end (IDTuple from, EntityTypeEnum to, bool skipGhostEntities=false) const

int	setNodesAndConnectivity (const realArray &nodes, const intArray &elements, int domainDimension=-1, bool buildConnectivity=true)

int	setNodesAndConnectivity (const realArray &nodes, const intArray &elements, const intArray &faces, const intArray &faceElements, const intArray &elementFaces, int numberOfFaces=-1, int numberOfBoundaryFaces=-1, int domainDimension=-1, bool constantNumberOfNodesPerElement=false)

int	setNodesElementsAndNeighbours (const realArray &nodes, const intArray &elements, const intArray &neighbours, int numberOfFaces=-1, int numberOfBoundaryFaces=-1, int domainDimension=-1)

void	setTags (const intArray &new_tags)

int	splitElement (int e, int relativeEdge, real *x)

int	insideOrOutside (realArray &x, IntegerArray &inside)

virtual int	intersects (Mapping &map2, const int &side1=-1, const int &axis1=-1, const int &side2=-1, const int &axis2=-1, const real &tol=0.) const

int	project (realArray &x, MappingProjectionParameters &mpParameters)

int	findClosestEntity (UnstructuredMapping::EntityTypeEnum etype, real x, real y, real z=0.)

int	printConnectivity (FILE *file=stdout)

int	printStatistics (FILE *file=stdout)

int	checkConnectivity (bool printResults=true, IntegerArray *pBadElements=NULL)

void	getNormal (int e, real *normalVector)

intArray	buildFromAMapping (Mapping &map, intArray &maskin=Overture::nullIntegerDistributedArray())

int	buildFromARegularMapping (Mapping &map, ElementType elementTypePreferred=triangle)

int	buildUnstructuredGrid (Mapping &map, int numberOfGridPoints[2])

void	buildFromACompositeGrid (CompositeGrid &cg)

int	buildFromACompositeSurface (CompositeSurface &mapping)

int	findBoundaryCurves (int &numberOfBoundaryCurves, Mapping **&boundaryCurves)

virtual int	get (const GenericDataBase &dir, const aString &name)

virtual int	put (GenericDataBase &dir, const aString &name) const

virtual int	get (const aString &fileName)

virtual int	put (const aString &fileName=nullString) const

Mapping *	make (const aString &mappingClassName)

int	update (MappingInformation &mapInfo)

ElementType	getElementType (int e) const

virtual aString	getClassName () const

aString	getColour () const

int	setColour (const aString &colour)

int	getDisplayList (DisplayListProperty d)

void	setDisplayList (DisplayListProperty d, int l)

void	eraseUnstructuredMapping (GenericGraphicsInterface &gi)

bool	dumpTags () const

bool	dumpTags (bool dt)

EntityTag &	addTag (const EntityTypeEnum entityType, const int entityIndex, const std::string tagName, const void *tagData, const bool copyTag=false, const int tagSize=0)

int	deleteTag (const EntityTypeEnum entityType, const int entityIndex, const EntityTag &tagToDelete)

int	deleteTag (const EntityTypeEnum entityType, const int entityIndex, const std::string tagToDelete)

bool	hasTag (const EntityTypeEnum entityType, const int entityIndex, const std::string tag)

EntityTag &	getTag (const EntityTypeEnum entityType, const int entityIndex, const std::string tagName)

void *	getTagData (const EntityTypeEnum entityType, const int entityIndex, const std::string tag)

int	setTag (const EntityTypeEnum entityType, const int entityIndex, const EntityTag &newTag)

int	setTagData (const EntityTypeEnum entityType, const int entityIndex, const std::string tagName, const void *data, const bool copyData=false, const int tagSize=0)

void	maintainTagToEntityMap (bool v)

bool	maintainsTagToEntityMap () const

entity_tag_iterator	entity_tag_begin (EntityTypeEnum et, int index)
	return the beginning of the tags for an entity specified with et and index

const_entity_tag_iterator	entity_tag_begin (EntityTypeEnum et, int index) const

entity_tag_iterator	entity_tag_end (EntityTypeEnum et, int index)
	return the end of the tags for an entity specified with et and index

const_entity_tag_iterator	entity_tag_end (EntityTypeEnum et, int index) const

tag_entity_iterator	tag_entity_begin (std::string tagName)
	return the beginning of the entities with the tag tagName; note this inverse mapping will be built if it does not already exist

tag_entity_iterator	tag_entity_end (std::string tagName)
	return the end of the entities with the tag tagName; note this inverse mapping will be built if it does not already exist

int	maxVerticesInEntity (EntityTypeEnum type)
	get the max number of vertices in a given entity type

ElementType	computeElementType (EntityTypeEnum type, int e)

int	numberOfVertices (EntityTypeEnum, int)
	get the number of vertices in a given entity

bool	entitiesAreEquivalent (EntityTypeEnum type, int entity, ArraySimple< int > &verticies)
	compare the vertices of an entity to a list of vertices, return true if the list specifies the entity

std::string	tagPrefix (EntityTypeEnum type, EntityInfoMask info)
	tagPrefix returns the prefix associated with builtin tag conventions

void	setAsGhost (EntityTypeEnum type, int entity)
	setAsGhost takes an entity and adjusts the data structures to make it a ghost

bool	isGhost (EntityTypeEnum type, int entity) const
	isGhost returns true if a given entity is a ghost (it returns false if no ghost entity info exists)

void	setBC (EntityTypeEnum type, int entity, int bc)
	setBC assigns a boundary condition number to a particular entity, if the entity==-1 then the the bc is removed

bool	hasBC (EntityTypeEnum type, int entity)
	hasBC returns true if the given {type,entity} has a boundary condition specified

long	getBC (EntityTypeEnum type, int entity)
	getBC returns the boundary condition number associated with {type,entity} or returns -1 if no bc is specified

bool	specifyVertices (const realArray &verts)
	provide an array containing the vertices in for this mapping

bool	buildEntity (EntityTypeEnum type, bool rebuild=false, bool keepDownward=true, bool keepUpward=true)
	buildEntity directs the construction of the entity arrays stored in entities and entityMasks

bool	specifyEntity (const EntityTypeEnum type, const intArray &entity)
	provide a list of verticies identifying each entity of a particular type

int	addVertex (real x, real y, real z=0.)
	add a vertex to the mapping, return the index into the "node" array

int	addEntity (EntityTypeEnum type, ArraySimple< int > &newEntVerts)
	add a "type" entity to the mesh; specify the entity with the vertices in newEntVerts; return the new entity's index

bool	buildConnectivity (EntityTypeEnum from, EntityTypeEnum to, bool rebuild=false)
	buildConnectivity directs the construction of the connectivity arrays, it returns true if successfull

bool	specifyConnectivity (const EntityTypeEnum from, const EntityTypeEnum to, const intArray &index, const char *orientation, const intArray &offset=Overture::nullIntegerDistributedArray())
	specifyConnectivity tells the mapping to use the given connectivity information rather than building it

bool	connectivityExists (EntityTypeEnum from, EntityTypeEnum to) const
	return true if the requested adjacency information exists

void	deleteConnectivity (EntityTypeEnum from, EntityTypeEnum to)
	delete specific connectivity information

void	deleteConnectivity (EntityTypeEnum type)
	delete all connectivity referring to a particular entity type

void	deleteConnectivity ()
	delete ALL thet connectivity information

void	expandGhostBoundary (int bc=-1)
	expand the ghost boundary by a layer

Public Member Functions inherited from Mapping
	Mapping (int domainDimension=3, int rangeDimension=3, mappingSpace domainSpace=parameterSpace, mappingSpace rangeSpace=cartesianSpace, coordinateSystem domainCoordinateSystem=cartesian, coordinateSystem rangeCoordinateSystem=cartesian)

	Mapping (const Mapping &, const CopyType copyType=DEEP)

Mapping &	operator= (const Mapping &X)

virtual	~Mapping ()

void	reference (const Mapping &map)

void	breakReference ()

virtual void	inverseMap (const realArray &x, realArray &r, realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	basicInverse (const realArray &x, realArray &r, realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	mapC (const realArray &r, const realArray &x, const realArray &xr=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	inverseMapC (const realArray &x, const realArray &r, const realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	mapGrid (const realArray &r, realArray &x, realArray &xr=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	inverseMapGrid (const realArray &x, realArray &r, realArray &rx=Overture::nullRealDistributedArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	mapS (const RealArray &r, RealArray &x, RealArray &xr=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	inverseMapS (const RealArray &x, RealArray &r, RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	basicInverseS (const RealArray &x, RealArray &r, RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	mapCS (const RealArray &r, const RealArray &x, const RealArray &xr=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	inverseMapCS (const RealArray &x, const RealArray &r, const RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	mapGridS (const RealArray &r, RealArray &x, RealArray &xr=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual void	inverseMapGridS (const RealArray &x, RealArray &r, RealArray &rx=Overture::nullRealArray(), MappingParameters &params=Overture::nullMappingParameters())

virtual int	projectS (RealArray &x, MappingProjectionParameters &mpParams)

virtual real	sizeOf (FILE *file=NULL) const

virtual bool	updateWithCommand (MappingInformation &mapInfo, const aString &command)

virtual int	interactiveUpdate (GenericGraphicsInterface &gi)

virtual void	display (const aString &label=blankString) const

int	checkMapping ()

void	reinitialize ()

int	determineResolution (int numberOfGridPoints[], bool collapsedEdge[2][3], real averageArclength[], real elementDensityTolerance=.05)

void	secondOrderDerivative (const Index &I, const realArray &r, realArray &xrr, const int axis, const int &rAxis)

int	findNearestGridPoint (RealArray &x, RealArray &r, RealArray &dista, RealArray &xa)
	Find the nearest grid point to each of a given set of points x(i,.)

real	getArcLength ()

basicInverseOptions	getBasicInverseOption () const

int	getBoundaryCondition (const int side, const int axis) const

virtual RealArray	getBoundingBox (const int &side=-1, const int &axis=-1) const

virtual int	getBoundingBox (const IntegerArray &indexRange, const IntegerArray &gridIndexRange, RealArray &xBounds, bool local=false) const

virtual int	getBoundingBox (const RealArray &rBounds, RealArray &xBounds) const

const BoundingBox &	getBoundingBoxTree (const int &side, const int &axis) const

int	getCoordinateEvaluationType (const coordinateSystem type) const

Bound	getDomainBound (const int side, const int axis) const

int	getDomainDimension () const

coordinateSystem	getDomainCoordinateSystem () const

Bound	getDomainCoordinateSystemBound (const int side, const int axis) const

mappingSpace	getDomainSpace () const

int	getGridDimensions (const int axis) const

virtual const RealArray &	getGridSerial (MappingParameters &params=Overture::nullMappingParameters(), bool includeGhost=false)

int	getID () const

int	getInvertible () const

periodicType	getIsPeriodic (const int axis) const

mappingCoordinateSystem	getMappingCoordinateSystem () const

aString	getName (const mappingItemName item) const

int	getGridIndexRange (int side, int axis)

int	getNumberOfGhostPoints (int side, int axis)

real	getParameter (const MappingParameters::realParameter &param) const

int	getParameter (const MappingParameters::intParameter &param) const

real	getPeriodVector (const int axis, const int direction) const

Bound	getRangeBound (const int side, const int axis) const

coordinateSystem	getRangeCoordinateSystem () const

Bound	getRangeCoordinateSystemBound (const int side, const int axis) const

int	getRangeDimension () const

mappingSpace	getRangeSpace () const

int	getShare (const int side, const int axis) const

real	getSignForJacobian () const

topologyEnum	getTopology (const int side, const int axis) const

coordinateSingularity	getTypeOfCoordinateSingularity (const int side, const int axis) const

bool	gridIsValid () const

int	hasACoordinateSingularity () const

intArray &	topologyMask ()

void	setArcLength (real length)

virtual void	setBasicInverseOption (const basicInverseOptions option)

virtual void	setBoundaryCondition (const int side, const int axis, const int bc)

virtual void	setCoordinateEvaluationType (const coordinateSystem type, const int trueOrFalse)

virtual void	setDomainBound (const int side, const int axis, const Bound domainBound)

virtual void	setDomainCoordinateSystem (const coordinateSystem domainCoordinateSystem)

virtual void	setDomainCoordinateSystemBound (const int side, const int axis, const Bound domainCoordinateSystemBound)

virtual void	setDomainDimension (const int domainDimension)

virtual void	setDomainSpace (const mappingSpace domainSpace)

virtual void	setGrid (realArray &grid, IntegerArray &gridIndexRange)

virtual void	setGridDimensions (const int axis, const int dim)

virtual void	setInvertible (const int invertible)

void	setID ()

virtual void	setIsPeriodic (const int axis, const periodicType isPeriodic)

virtual void	setMappingCoordinateSystem (const mappingCoordinateSystem mappingCoordinateSystem0)

virtual void	setName (const mappingItemName item, const aString &name)

void	setGridIndexRange (int side, int axis, int num)

void	setNumberOfGhostPoints (int side, int axis, int numGhost)

virtual void	setParameter (const MappingParameters::realParameter &param, const real &value)

virtual void	setParameter (const MappingParameters::intParameter &param, const int &value)

void	setPartition (Partitioning_Type &partition)

virtual void	setPeriodVector (const int axis, const int direction, const real periodVectorComponent)

virtual void	setRangeBound (const int side, const int axis, const Bound rangeBound)

virtual void	setRangeCoordinateSystem (const coordinateSystem rangeCoordinateSystem)

virtual void	setRangeCoordinateSystemBound (const int side, const int axis, const Bound rangeCoordinateSystemBound)

virtual void	setRangeDimension (const int rangeDimension)

virtual void	setRangeSpace (const mappingSpace rangeSpace)

virtual void	setShare (const int side, const int axis, const int share)

void	setSignForJacobian (const real signForJac)

virtual void	setTopology (const int side, const int axis, const topologyEnum topo)

virtual void	setTypeOfCoordinateSingularity (const int side, const int axis, const coordinateSingularity)

bool	usesDistributedInverse () const

bool	usesDistributedMap () const

virtual void	useRobustInverse (const bool trueOrFalse=TRUE)

bool	usingRobustInverse () const
	Return true if the robust inverse is used.

virtual int	outside (const realArray &x)

virtual int	setNumberOfGhostLines (IndexRangeType &numberOfGhostLinesNew)

void	setNumberOfDistributedGhostLines (int numGhost)

void	periodicShift (realArray &r, const Index &I)

Index	getIndex (const realArray &r, realArray &x, const realArray &xr, int &base, int &bound, int &computeMap, int &computeMapDerivative)

Public Member Functions inherited from ReferenceCounting
	ReferenceCounting ()

	ReferenceCounting (const ReferenceCounting &x, const CopyType ct=DEEP)

virtual	~ReferenceCounting ()

Integer	incrementReferenceCount ()

Integer	decrementReferenceCount ()

Integer	getReferenceCount () const

Logical	uncountedReferencesMayExist ()

Integer	getGlobalID () const

void	setGlobalID (int id)

virtual void	consistencyCheck () const

Static Public Member Functions
static bool	projectOnTriangle (real x0, real x1, real x2, real xa, real xb, real xt, int &intersectionFace, int &intersectionFace2, real &r0, real &s0, real *normal=NULL)

Static Public Member Functions inherited from Mapping
static void	openDebugFiles ()

static void	closeDebugFiles ()

static real	epsilon ()

static void	setMinimumNumberOfDistributedGhostLines (int numGhost)

static int	getGridMinAndMax (const realArray &u, const Range &R1, const Range &R2, const Range &R3, real uMin[3], real uMax[3], bool local=false)

static Mapping *	makeMapping (const aString &mappingClassName)

static MappingLinkedList &	staticMapList ()

Static Public Attributes
static aString	EntityTypeStrings []
	an array usefull for diagnostics involving EntityTypeEnum

static aString	ElementTypeStrings []
	an array usefull for diagnostics involving ElementType

Static Public Attributes inherited from Mapping
static int	useInitialGuessForInverse =TRUE

static int	debug =0

static FILE *	debugFile =NULL

static FILE *	pDebugFile =NULL

static const real	bogus =10.

Protected Types
enum	TimingsEnum { totalTime =0, timeForBuildingSubSurfaces, timeForConnectivity, timeForProjectGlobalSearch, timeForProjectLocalSearch, timeForStitch, timeForInsideOrOutside, numberOfTimings }

Protected Member Functions
int	buildConnectivityLists ()

void	initMapping ()

int	FEZComputeElementTypes ()

IntegerArray	getElementFaceNodes (int element_, int faceOffset) const

int	FEZInitializeConnectivity ()

int	addNodeToInterface (int s1, int &i1, int &j1, int &e1m, int &e1p, IntegerArray &connectionInfo1, int s2, int &i2, int &j2, int &e2m, int &e2p, IntegerArray &connectionInfo2, const intArray &elementface2, intArray *bNodep, IntegerArray &faceOffset, IntegerArray &elementOffset, int maxNumberOfElements, int maxNumberOfFaces)

int	buildSearchTree ()

int	computeConnection (int s, int s2, intArray bNodep, IntegerArray &numberOfBoundaryNodes, UnstructuredMapping boundaryp, real epsx, IntegerArray &connectionInfo)

bool	isDuplicateNode (int i, int n, int e, int s, int s2, real &r0, real &r1, realArray &x, real epsDup, intArray &bNode, intArray &nodeInfo, int &localEdge, real &dist0, real &dist1, real &dist2, int debugFlag)

void	replaceNode (int n, int n0, intArray &nodeInfo, intArray &ef)

bool	validStitch (int n, realArray &x0, realArray &x, intArray &nodeInfo, real tol, int debug)

Protected Member Functions inherited from Mapping
int	buildMappingParametersDialog (DialogData &dialog)

int	getMappingParametersOption (const aString &answer, DialogData &dialog, GenericGraphicsInterface &gi)
	: Look for a change to one of the mapping parameters.

int	updateMappingParametersDialog (DialogData &dialog)

void	initializePartition ()

int	mappingHasChanged ()

void	setGridIsValid ()

void	setDefaultMappingBounds (const mappingSpace ms, Bound mappingBound[3][2])

void	setDefaultCoordinateSystemBounds (const coordinateSystem cs, Bound csBound[3][2])

int	validSide (const int side) const

int	validAxis (const int axis) const

void	mappingError (const aString &subName, const int side, const int axis) const

Protected Attributes
intArray *	entities [int(NumberOfEntityTypes)-1]
	entities maintains the node/vertex ID lists for each entity

intArray *	entityMasks [int(NumberOfEntityTypes)-1]
	entity identification array that determines if an entity index refers to an internal, ghost or null entity

std::vector< int >	entityDataStructureHoles [int(NumberOfEntityTypes)-1]
	lists of holes in the entity arrays

intArray *	indexLists [int(NumberOfEntityTypes)-1][int(NumberOfEntityTypes)-1]
	entity adjacencies, the array is read [From][To]

char *	adjacencyOrientation [int(NumberOfEntityTypes)-1][int(NumberOfEntityTypes)-1]
	entity adjacency orientations

intArray *	upwardOffsets [int(NumberOfEntityTypes)-1][int(NumberOfEntityTypes)-1]
	upwardOffsets allows random access into the upward adjacencies for a given entity

ArraySimpleFixed< int, int(NumberOfEntityTypes)-1, 1, 1, 1 >	entitySize
	entitySize maintains the current number of entities of a given type

ArraySimpleFixed< int, int(NumberOfEntityTypes)-1, 1, 1, 1 >	entityCapacity
	entityCapacity maintains the current allocated size of the container arrays for a particular entity

int	dList [numberOfDLProperties]

int	numberOfNodes

int	numberOfElements

int	numberOfFaces

int	numberOfEdges

int	maxNumberOfNodesPerElement

int	maxNumberOfNodesPerFace

int	maxNumberOfFacesPerElement

bool	numberOfNodesPerElementIsConstant

int	numberOfInternalElements

int	numberOfInternalFaces

int	numberOfBoundaryElements

int	numberOfBoundaryFaces

bool	preferTriangles

real	elementDensityTolerance

real	stitchingTolerance

real	absoluteStitchingTolerance

int	debugs

GeometricADT3dInt *	search

realArray	node

intArray	element

intArray	face

intArray	bdyFace

intArray	faceElements

intArray	edge

intArray	bdyFaceTags

intArray *	elementFaces

bool	includeGhostElements

intArray *	elementMask

intArray *	faceMask

intArray *	edgeMask

intArray *	nodeMask

intArray *	ghostElements

real	timing [numberOfTimings]

int	numberOfElementTypes

IntegerArray	numberOfFacesThisElementType

IntegerArray	numberOfNodesThisElementType

IntegerArray	numberOfNodesThisElementFaceType

IntegerArray	elementMasterTemplate

intArray	elementType

intArray	faceZ1Offset

intArray	tags

bool	maintainsTagEntities

std::map< IDTuple, std::list < EntityTag * > >	entityTags

std::map< std::string, std::list< IDTuple > , std::less< std::string > >	tagEntities

bool	dumpTagsToHDF

Protected Attributes inherited from Mapping
int	dataBaseID

aString	className

int	domainDimension

int	rangeDimension

int	bc [2][3]

int	share [2][3]

periodicType	isPeriodic [3]

real	periodVector [3][3]

int	invertible

basicInverseOptions	basicInverseOption

int	periodicityOfSpace

coordinateSingularity	typeOfCoordinateSingularity [2][3]

int	coordinateEvaluationType [numberOfCoordinateSystems]

IndexRangeType	gridIndexRange

IndexRangeType	numberOfGhostPoints

realArray	grid

bool	inverseIsDistributed

bool	mapIsDistributed

int	numberOfDistributedGhostLines

bool	partitionInitialized

Partitioning_Type	partition

mappingSpace	domainSpace

mappingSpace	rangeSpace

coordinateSystem	domainCoordinateSystem

coordinateSystem	rangeCoordinateSystem

mappingCoordinateSystem	mappingCoordinateSystem0

Bound	domainBound [3][2]

Bound	rangeBound [3][2]

Bound	domainCoordinateSystemBound [3][2]

Bound	rangeCoordinateSystemBound [3][2]

topologyEnum	topology [3][2]

intArray *	topologyMaskPointer

real	arcLength

bool	remakeGrid

bool	remakeGridSerial

Friends
class	UnstructuredMappingIterator

class	UnstructuredMappingAdjacencyIterator

Additional Inherited Members
Public Attributes inherited from Mapping
int	computeMap

int	computeMapDerivative

int	base

int	bound

real	signForJacobian

ApproximateGlobalInverse *	approximateGlobalInverse

ExactLocalInverse *	exactLocalInverse

DistributedInverse *	distributedInverse

Static Protected Attributes inherited from Mapping
static int	defaultNumberOfGhostPoints =0

static int	minimumNumberOfDistributedGhostLines =1

Member Typedef Documentation

typedef std::list<EntityTag*>::const_iterator UnstructuredMapping::const_entity_tag_iterator

typedef std::list<IDTuple>::const_iterator UnstructuredMapping::const_tag_entity_iterator

typedef std::list<EntityTag*>::iterator UnstructuredMapping::entity_tag_iterator

iterator for going through the tags in a specific entity

typedef std::list<IDTuple>::iterator UnstructuredMapping::tag_entity_iterator

iterator for going throught the entities with a specific tag

Member Enumeration Documentation

enum UnstructuredMapping::DisplayListProperty

Enumerator
nodeDL
edgeDL
boundaryEdgeDL
faceDL
faceNormalDL
numberOfDLProperties

enum UnstructuredMapping::ElementType

Enumerator
triangle
quadrilateral
tetrahedron
pyramid
triPrism
septahedron
hexahedron
other
boundary
NumberOfElementTypes

enum UnstructuredMapping::EntityInfoMask

Enumerator
NullEntityInfo
HoleInEntityData
GhostEntity
BCEntity

enum UnstructuredMapping::EntityTypeEnum

Enumerator
Invalid
Vertex
Edge
Face
Region
Mesh
NumberOfEntityTypes

enum UnstructuredMapping::TimingsEnum

protected

Enumerator
totalTime
timeForBuildingSubSurfaces
timeForConnectivity
timeForProjectGlobalSearch
timeForProjectLocalSearch
timeForStitch
timeForInsideOrOutside
numberOfTimings

Constructor & Destructor Documentation

UnstructuredMapping::UnstructuredMapping ( )

References absoluteStitchingTolerance, dumpTagsToHDF, edgeMask, elementDensityTolerance, elementFaces, elementMask, faceMask, ghostElements, includeGhostElements, initMapping(), Mapping::mappingName, nodeMask, NULL, preferTriangles, REAL_MAX, search, Mapping::setName(), and stitchingTolerance.

Referenced by buildFromACompositeSurface(), and make().

UnstructuredMapping::UnstructuredMapping	(	int	domainDimension_,
		int	rangeDimension_,
		mappingSpace	domainSpace_,
		mappingSpace	rangeSpace_
	)

References absoluteStitchingTolerance, dumpTagsToHDF, edgeMask, elementDensityTolerance, elementFaces, elementMask, faceMask, ghostElements, includeGhostElements, initMapping(), Mapping::mappingName, nodeMask, NULL, preferTriangles, REAL_MAX, search, Mapping::setName(), and stitchingTolerance.

UnstructuredMapping::UnstructuredMapping	(	const UnstructuredMapping &	map,
		const CopyType	copyType = `DEEP`
	)

References DEEP, and initMapping().

UnstructuredMapping::~UnstructuredMapping ( )

Member Function Documentation

int UnstructuredMapping::addEntity	(	EntityTypeEnum	type,
		ArraySimple< int > &	newEntVerts
	)

add a "type" entity to the mesh; specify the entity with the vertices in newEntVerts; return the new entity's index

References capacity(), Mapping::domainDimension, entities, entityMasks, entitySize, EntityTypeStrings, maxVerticesInEntity(), numberOfElements, reserve(), size(), and ArraySimple< T >::size().

Referenced by expandGhostBoundary(), and CompositeGrid::setHybridConnectivity().

void UnstructuredMapping::addGhostElements ( bool trueOrFalse = true )

References includeGhostElements.

Referenced by buildFromACompositeGrid().

int UnstructuredMapping::addNodeToInterface	(	int	s1,
		int &	i1,
		int &	j1,
		int &	e1m,
		int &	e1p,
		IntegerArray &	connectionInfo1,
		int	s2,
		int &	i2,
		int &	j2,
		int &	e2m,
		int &	e2p,
		IntegerArray &	connectionInfo2,
		const intArray &	elementface2,
		intArray *	bNodep,
		IntegerArray &	faceOffset,
		IntegerArray &	elementOffset,
		int	maxNumberOfElements,
		int	maxNumberOfFaces
	)

protected

References assert, element, face, faceElements, i2, numberOfElements, and numberOfFaces.

EntityTag & UnstructuredMapping::addTag	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const std::string	tagName,
		const void *	tagData,
		const bool	copyTag = `false`,
		const int	tagSize = `0`
	)

References assert, entityTags, maintainsTagEntities, and tagEntities.

Referenced by buildFromAMapping(), buildFromARegularMapping(), expandGhostBoundary(), get(), operator=(), setAsGhost(), and setBC().

int UnstructuredMapping::addVertex	(	real	x,
		real	y,
		real	z = `0.`
	)

add a vertex to the mapping, return the index into the "node" array

References capacity(), entitySize, node, numberOfNodes, Mapping::rangeDimension, reserve(), size(), and Vertex.

Referenced by expandGhostBoundary().

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_begin	(	EntityTypeEnum	fromT,
		int	fromE,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_begin	(	UnstructuredMappingIterator	from,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

References connectivityExists(), and UnstructuredMappingAdjacencyIterator.

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_begin	(	UnstructuredMappingAdjacencyIterator	from,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

References connectivityExists(), and UnstructuredMappingAdjacencyIterator.

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_begin	(	IDTuple	from,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

References connectivityExists(), UnstructuredMapping::IDTuple::e, UnstructuredMapping::IDTuple::et, and UnstructuredMappingAdjacencyIterator.

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_end	(	EntityTypeEnum	fromT,
		int	fromE,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_end	(	UnstructuredMappingIterator	from,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

References connectivityExists(), and UnstructuredMappingAdjacencyIterator.

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_end	(	UnstructuredMappingAdjacencyIterator	from,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

References connectivityExists(), and UnstructuredMappingAdjacencyIterator.

UnstructuredMappingAdjacencyIterator UnstructuredMapping::adjacency_end	(	IDTuple	from,
		EntityTypeEnum	to,
		bool	skipGhostEntities = `false`
	)		const

inline

References connectivityExists(), UnstructuredMapping::IDTuple::e, UnstructuredMapping::IDTuple::et, and UnstructuredMappingAdjacencyIterator.

UnstructuredMappingIterator UnstructuredMapping::begin	(	EntityTypeEnum	entityType_,
		bool	skipGhostEntities = `false`
	)		const

inline

bool UnstructuredMapping::buildConnectivity	(	EntityTypeEnum	from,
		EntityTypeEnum	to,
		bool	rebuild = `false`
	)

buildConnectivity directs the construction of the connectivity arrays, it returns true if successfull

connectivityBuilder directs the construction of the connectivity arrays, it returns true if successfull

we always have this if there are Regions

References adjacency_begin(), adjacency_end(), adjacencyOrientation, assert, begin(), buildEntity(), connectivityExists(), constructFace2EdgeFromRegions(), constructUpwardAdjacenciesFromDownward(), deleteConnectivity(), end(), entities, indexLists, UnstructuredMappingAdjacencyIterator::orientation(), size(), upwardOffsets, and Vertex.

Referenced by getEntityAdjacencyIndices().

int UnstructuredMapping::buildConnectivityLists ( )

protected

bool UnstructuredMapping::buildEntity	(	EntityTypeEnum	type,
		bool	rebuild = `false`,
		bool	keepDownward = `true`,
		bool	keepUpward = `true`
	)

buildEntity directs the construction of the entity arrays stored in entities and entityMasks

References adjacencyOrientation, capacity(), constructEdgeEntityFromEntity(), constructFaceEntityFromRegion(), deleteConnectivity(), Mapping::domainDimension, Edge, edge, entities, entityCapacity, entityMasks, entitySize, Face, face, indexLists, maxNumberOfNodesPerFace, maxVerticesInEntity(), Region, size(), upwardOffsets, and Vertex.

Referenced by buildConnectivity(), UnstructuredGeometry::computeGeometry(), expandGhostBoundary(), findClosestEntity(), getEntities(), and CompositeGrid::setHybridConnectivity().

void UnstructuredMapping::buildFromACompositeGrid ( CompositeGrid & cg )

References addGhostElements(), axis1, bdyFaceTags, buildConnectivityLists(), buildFromAMapping(), Mapping::domainDimension, element, End, face, getBoundaryFace(), getBoundaryFaceTag(), Mapping::getDomainDimension(), getElements(), getFaces(), CompositeGrid::getHybridConnectivity(), Mapping::getIndex(), getNodes(), getNumberOfBoundaryFaces(), getNumberOfElements(), getNumberOfNodes(), getNumberOfNodesThisFace(), CompositeGridHybridConnectivity::getUnstructuredGridIndex(), CompositeGridHybridConnectivity::getUVertex2GridIndex(), Mapping::gridIndexRange, i2, initMapping(), isGhost(), mask, MappedGrid::mask(), max(), maxNumberOfNodesPerElement, min(), node, GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), numberOfElements, numberOfNodes, R, Mapping::rangeDimension, Mapping::setGrid(), Mapping::setGridDimensions(), Mapping::setRangeBound(), Start, tags, MappedGrid::THEmask, CompositeGrid::update(), and Vertex.

Referenced by DataFormats::writeIngrid().

int UnstructuredMapping::buildFromACompositeSurface ( CompositeSurface & mapping )

References abs(), absoluteStitchingTolerance, assert, bdyFace, boundingBox, buildConnectivityLists(), buildFromARegularMapping(), closerSurfaceFound(), Mapping::debug, debugs, ReferenceCounting::decrementReferenceCount(), Mapping::display(), Mapping::domainDimension, edge, element, elementDensityTolerance, elementFaces, End, F, fabs(), face, faceElements, getBoundaryFace(), CompositeSurface::getClassName(), getClassName(), Mapping::getClassName(), getCPU(), Mapping::getDomainDimension(), getElementFaces(), getElements(), getFaces(), Mapping::getGrid(), MappingProjectionParameters::getIntArray(), getNodes(), getNumberOfBoundaryFaces(), getNumberOfElements(), getNumberOfFaces(), getNumberOfNodes(), Mapping::getRangeBound(), Mapping::getRangeDimension(), MappingProjectionParameters::getRealArray(), TrimmedMapping::getTriangulation(), i2, ReferenceCounting::incrementReferenceCount(), intersects(), isDuplicateNode(), Bound::isFinite(), max(), maxNumberOfFacesPerElement, maxNumberOfNodesPerElement, maxNumberOfNodesPerFace, min(), node, nr, NULL, numberOfBoundaryFaces, numberOfEdges, numberOfElements, numberOfFaces, numberOfNodes, CompositeSurface::numberOfSubSurfaces(), printConnectivity(), printStatistics(), project(), r, MappingProjectionParameters::r, R, Mapping::rangeDimension, REAL_EPSILON, REAL_MAX, REAL_MIN, replaceNode(), s, setElementDensityTolerance(), setPreferTriangles(), Mapping::setRangeBound(), MappingProjectionParameters::setSearchBoundingBoxSize(), SQR, SQRT, Start, stitchingTolerance, MappingProjectionParameters::subSurfaceIndex, tags, timeForBuildingSubSurfaces, timeForProjectGlobalSearch, timeForProjectLocalSearch, timeForStitch, timing, totalTime, UnstructuredMapping(), and x.

Referenced by update().

intArray UnstructuredMapping::buildFromAMapping	(	Mapping &	map,
		intArray &	maskin = `Overture::nullIntegerDistributedArray()`
	)

References abs(), addTag(), axis1, axis2, axis3, capacity(), Mapping::domainDimension, dr, End, entityCapacity, entityMasks, entitySize, EntityTypeStrings, Mapping::functionPeriodic, Mapping::getBoundaryCondition(), Mapping::getClassName(), Mapping::getDomainDimension(), Mapping::getGrid(), Mapping::getGridDimensions(), Mapping::getIsPeriodic(), getNumberOfNodes(), Mapping::getRangeDimension(), Mapping::getTypeOfCoordinateSingularity(), hasTag(), i2, includeGhostElements, initMapping(), isGhost(), Mapping::mapGrid(), max(), min(), node, Overture::nullIntArray(), numberOfElements, numberOfNodes, Mapping::polarSingularity, r, R, Mapping::rangeDimension, REAL_EPSILON, setAsGhost(), Mapping::setDomainDimension(), Mapping::setGridDimensions(), Mapping::setRangeBound(), Mapping::setRangeDimension(), size(), specifyEntity(), Start, Vertex, and x.

Referenced by buildFromACompositeGrid(), update(), and DataFormats::writeIngrid().

int UnstructuredMapping::buildFromARegularMapping	(	Mapping &	map,
		ElementType	elementTypePreferred = `triangle`
	)

References addTag(), adjacencyOrientation, assert, axis1, axis2, axis3, bdyFace, bdyFaceTags, buildUnstructuredGrid(), capacity(), checkConnectivity(), Mapping::debug, deleteConnectivity(), Mapping::derivativePeriodic, Mapping::determineResolution(), Mapping::domainDimension, dr, Edge, edge, edgeMask, element, elementDensityTolerance, elementFaces, elementMask, End, entityCapacity, entityMasks, entitySize, EntityTypeStrings, fabs(), Face, face, faceElements, faceMask, Mapping::functionPeriodic, Mapping::getBoundaryCondition(), getCPU(), Mapping::getDomainDimension(), getElementFaces(), Mapping::getGrid(), Mapping::getGridDimensions(), Mapping::getIsPeriodic(), getNormal(), Mapping::getRangeBound(), Mapping::getRangeDimension(), ghostElements, i2, includeGhostElements, initMapping(), LOCAL_NODE_NUMBER, Mapping::mapGrid(), max(), min(), node, nodeMask, NULL, numberOfBoundaryFaces, numberOfEdges, numberOfElements, numberOfFaces, numberOfNodes, numberOfNodesPerElementIsConstant, printConnectivity(), quadrilateral, r, Mapping::rangeDimension, REAL_MIN, Region, setAsGhost(), Mapping::setGridDimensions(), Mapping::setIsPeriodic(), Mapping::setRangeBound(), specifyConnectivity(), specifyEntity(), SQR, SQRT, Start, tags, triangle, Vertex, and x.

Referenced by buildFromACompositeSurface(), and update().

int UnstructuredMapping::buildSearchTree ( )

protected

References GeometricADT3dInt::addElement(), adjacency_begin(), adjacency_end(), assert, bb, begin(), boundingBox, element, End, end(), fabs(), getCPU(), Mapping::getDomainDimension(), Mapping::getRangeBound(), max(), min(), node, NULL, numberOfElements, Mapping::rangeDimension, REAL_EPSILON, REAL_MAX, search, Start, and Vertex.

Referenced by findClosestEntity(), insideOrOutside(), and project().

int UnstructuredMapping::buildUnstructuredGrid	(	Mapping &	map,
		int	numberOfGridPoints[2]
	)

int UnstructuredMapping::capacity ( EntityTypeEnum t ) const

inline

References entityCapacity, and Mesh.

Referenced by addEntity(), addVertex(), buildEntity(), buildFromAMapping(), buildFromARegularMapping(), get(), reserve(), setNodesAndConnectivity(), setNodesElementsAndNeighbours(), specifyEntity(), specifyVertices(), UnstructuredMappingAdjacencyIterator::UnstructuredMappingAdjacencyIterator(), and UNSTRUCTURED_OPS_FV2::xixj_uFV2().

int UnstructuredMapping::checkConnectivity	(	bool	printResults = `true`,
		IntegerArray *	pBadElements = `NULL`
	)

References element, face, faceElements, getElementFaces(), getNumberOfFacesThisElement(), getNumberOfNodesThisElement(), getNumberOfNodesThisFace(), Mapping::isPeriodic, max(), Mapping::notPeriodic, Overture::nullIntArray(), numberOfElements, numberOfFaces, and numberOfNodes.

Referenced by buildFromARegularMapping(), CompositeTopology::buildTriangulationForVisibleSurfaces(), CompositeTopology::computeTopology(), CompositeTopology::triangulateCompositeSurface(), and CompositeTopology::update().

int UnstructuredMapping::computeConnection	(	int	s,
		int	s2,
		intArray *	bNodep,
		IntegerArray &	numberOfBoundaryNodes,
		UnstructuredMapping *	boundaryp,
		real	epsx,
		IntegerArray &	connectionInfo
	)

protected

UnstructuredMapping::ElementType UnstructuredMapping::computeElementType	(	EntityTypeEnum	type,
		int	e
	)

inline

References hexahedron, numberOfVertices(), other, pyramid, quadrilateral, septahedron, tetrahedron, triangle, and triPrism.

Referenced by MeshQualityMetrics::computeMetric(), and verifyUnstructuredConnectivity().

bool UnstructuredMapping::connectivityExists	(	EntityTypeEnum	from,
		EntityTypeEnum	to
	)		const

inline

return true if the requested adjacency information exists

References entities, indexLists, and Vertex.

Referenced by adjacency_begin(), adjacency_end(), and buildConnectivity().

void UnstructuredMapping::createNodeElementList ( intArray & nodeElementList )

References element, getNumberOfNodesThisElement(), numberOfElements, and numberOfNodes.

void UnstructuredMapping::deleteConnectivity	(	EntityTypeEnum	from,
		EntityTypeEnum	to
	)

delete specific connectivity information

References adjacencyOrientation, indexLists, and upwardOffsets.

Referenced by CompositeGrid::setHybridConnectivity().

void UnstructuredMapping::deleteConnectivity ( EntityTypeEnum type )

delete all connectivity referring to a particular entity type

delete all connectivity information for a specific entity type

References adjacencyOrientation, deleteTag(), entities, entity_tag_begin(), entity_tag_end(), entityCapacity, entityMasks, entitySize, indexLists, Region, size(), upwardOffsets, and Vertex.

void UnstructuredMapping::deleteConnectivity ( )

delete ALL thet connectivity information

delete ALL the connectivity information

References begin(), deleteTag(), end(), entity_tag_begin(), entity_tag_end(), entityTags, maintainTagToEntityMap(), Mesh, Region, size(), and Vertex.

Referenced by buildConnectivity(), buildEntity(), buildFromARegularMapping(), expandGhostBoundary(), operator=(), setNodesAndConnectivity(), setNodesElementsAndNeighbours(), specifyConnectivity(), specifyEntity(), and ~UnstructuredMapping().

int UnstructuredMapping::deleteTag	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const EntityTag &	tagToDelete
	)

References EntityTag::getName().

Referenced by deleteConnectivity(), expandGhostBoundary(), setBC(), and ~UnstructuredMapping().

int UnstructuredMapping::deleteTag	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const std::string	tagToDelete
	)

References begin(), end(), entity_tag_begin(), entity_tag_end(), entityTags, maintainsTagEntities, NULL, size(), and tagEntities.

bool UnstructuredMapping::dumpTags ( ) const

inline

References dumpTagsToHDF.

bool UnstructuredMapping::dumpTags ( bool dt )

inline

References dumpTagsToHDF.

int UnstructuredMapping::elementGlobalVertex	(	int	element,
		int	vertex
	)		const

inline

References element.

UnstructuredMappingIterator UnstructuredMapping::end	(	EntityTypeEnum	entityType_,
		bool	skipGhostEntities = `false`
	)		const

inline

bool UnstructuredMapping::entitiesAreEquivalent	(	EntityTypeEnum	type,
		int	entity,
		ArraySimple< int > &	verticies
	)

compare the vertices of an entity to a list of vertices, return true if the list specifies the entity

References entities, numberOfVertices(), size(), and ArraySimple< T >::size().

entity_tag_iterator UnstructuredMapping::entity_tag_begin	(	EntityTypeEnum	et,
		int	index
	)

inline

return the beginning of the tags for an entity specified with et and index

References entityTags.

Referenced by deleteConnectivity(), deleteTag(), getTag(), hasTag(), operator=(), and ~UnstructuredMapping().

const_entity_tag_iterator UnstructuredMapping::entity_tag_begin	(	EntityTypeEnum	et,
		int	index
	)		const

inline

References entityTags.

entity_tag_iterator UnstructuredMapping::entity_tag_end	(	EntityTypeEnum	et,
		int	index
	)

inline

return the end of the tags for an entity specified with et and index

References entityTags.

Referenced by deleteConnectivity(), deleteTag(), getTag(), hasTag(), operator=(), and ~UnstructuredMapping().

const_entity_tag_iterator UnstructuredMapping::entity_tag_end	(	EntityTypeEnum	et,
		int	index
	)		const

inline

References entityTags.

void UnstructuredMapping::eraseUnstructuredMapping ( GenericGraphicsInterface & gi )

References boundaryEdgeDL, GenericGraphicsInterface::deleteList(), dList, edgeDL, faceDL, faceNormalDL, nodeDL, and GenericGraphicsInterface::redraw().

Referenced by PlotIt::plotUM(), CompositeTopology::update(), and update().

void UnstructuredMapping::expandGhostBoundary ( int bc = -1 )

expand the ghost boundary by a layer

References addEntity(), addTag(), addVertex(), adjacency_begin(), adjacency_end(), Mapping::bc, buildEntity(), deleteConnectivity(), deleteTag(), Mapping::domainDimension, edge, End, entities, EntityTypeStrings, FEZComputeElementTypes(), getBC(), getEntities(), getTagData(), hasTag(), maintainTagToEntityMap(), max(), maxVerticesInEntity(), Mesh, min(), UnstructuredMappingAdjacencyIterator::nAdjacent(), node, normal, numberOfElements, UnstructuredMappingAdjacencyIterator::orientation(), R, Mapping::rangeDimension, reserve(), setAsGhost(), setBC(), Mapping::setRangeBound(), setTagData(), size(), Start, tag_entity_begin(), tag_entity_end(), tagEntities, tagPrefix(), tags, and Vertex.

Referenced by update().

int UnstructuredMapping::faceGlobalVertex	(	int	face,
		int	vertex
	)		const

inline

References element, elementMasterTemplate, elementType, face, and faceZ1Offset.

int UnstructuredMapping::FEZComputeElementTypes ( )

protected

References Mapping::domainDimension, elementType, hexahedron, numberOfElements, other, pyramid, quadrilateral, tetrahedron, triangle, and triPrism.

Referenced by buildConnectivityLists(), expandGhostBoundary(), get(), and setNodesAndConnectivity().

int UnstructuredMapping::FEZInitializeConnectivity ( )

protected

int UnstructuredMapping::findBoundaryCurves	(	int &	numberOfBoundaryCurves,
		Mapping **&	boundaryCurves
	)

int UnstructuredMapping::findClosestEntity	(	UnstructuredMapping::EntityTypeEnum	etype,
		real	x,
		real	y,
		real	z = `0.`
	)

References adjacency_begin(), adjacency_end(), bb, buildEntity(), buildSearchTree(), Mapping::getDomainDimension(), GeometricADTTraversor3dInt::isFinished(), node, Mapping::rangeDimension, REAL_MAX, search, GeometricADTTraversor3dInt::setTarget(), size(), SQR, and Vertex.

int UnstructuredMapping::get	(	const GenericDataBase &	dir,
		const aString &	name
	)

virtual

Reimplemented from Mapping.

References addTag(), assert, aString, bdyFace, bdyFaceTags, capacity(), Mapping::debug, Mapping::domainDimension, dumpTagsToHDF, edge, elementDensityTolerance, elementFaces, elementType, entities, entityCapacity, entityMasks, entitySize, EntityTypeStrings, face, faceElements, faceZ1Offset, FEZComputeElementTypes(), FEZInitializeConnectivity(), GenericDataBase::find(), GenericDataBase::get(), Mapping::get(), GenericDataBase::getDistributed(), GhostEntity, Mapping::mappingHasChanged(), maxNumberOfFacesPerElement, maxNumberOfNodesPerFace, node, NULL, numberOfBoundaryElements, numberOfBoundaryFaces, numberOfEdges, numberOfElements, numberOfElementTypes, numberOfFaces, numberOfInternalElements, numberOfInternalFaces, numberOfNodes, setAsGhost(), size(), specifyEntity(), tags, Vertex, and GenericDataBase::virtualConstructor().

Referenced by CompositeTopology::get(), CompositeGridData::get(), and TrimmedMapping::get().

int UnstructuredMapping::get ( const aString & fileName )

virtual

References capacity(), Mapping::domainDimension, entityCapacity, entityMasks, entitySize, node, DataFormats::readIngrid(), specifyEntity(), and Vertex.

long UnstructuredMapping::getBC	(	EntityTypeEnum	type,
		int	entity
	)

inline

getBC returns the boundary condition number associated with {type,entity} or returns -1 if no bc is specified

References BCEntity, getTagData(), hasBC(), and tagPrefix().

Referenced by expandGhostBoundary(), and PlotIt::plotUnstructured().

const intArray & UnstructuredMapping::getBoundaryFace ( )

References bdyFace.

Referenced by buildFromACompositeGrid(), buildFromACompositeSurface(), findBoundaryCurves(), optimize(), and refineTriangulation().

int UnstructuredMapping::getBoundaryFace ( int bdyface_ ) const

inline

References bdyFace.

int UnstructuredMapping::getBoundaryFaceTag ( int bdyface_ ) const

inline

References bdyFaceTags.

Referenced by buildFromACompositeGrid().

const intArray & UnstructuredMapping::getBoundaryFaceTags ( )

References bdyFaceTags.

virtual aString UnstructuredMapping::getClassName ( void ) const

inlinevirtual

Reimplemented from Mapping.

Referenced by buildFromACompositeSurface(), operator=(), and update().

aString UnstructuredMapping::getColour ( ) const

Referenced by PlotIt::plotUnstructured().

int UnstructuredMapping::getDisplayList ( DisplayListProperty d )

inline

References dList, and numberOfDLProperties.

Referenced by PlotIt::plotUM().

const intArray & UnstructuredMapping::getEdges ( )

References buildConnectivityLists(), and edge.

Referenced by computeDeviation(), MeshQualityMetrics::outputHistogram(), and refineTriangulation().

IntegerArray UnstructuredMapping::getElementFaceNodes	(	int	element_,
		int	faceOffset
	)		const

inlineprotected

References assert, element, elementMasterTemplate, elementType, ia, numberOfElements, and numberOfNodesThisElementFaceType.

Referenced by buildConnectivityLists().

const intArray & UnstructuredMapping::getElementFaces ( )

const intArray & UnstructuredMapping::getElements ( ) const

References element.

Referenced by buildFromACompositeGrid(), buildFromACompositeSurface(), CompositeTopology::buildTriangulationForVisibleSurfaces(), computeDeviation(), MeshQualityMetrics::computeJacobianProperties(), PlotIt::contourOpt2d(), HyperbolicMapping::correctProjectionOfInitialCurve(), evaluateDeviation(), MeshQualityMetrics::plot(), refineTriangulation(), Ugen::sealHoles3D(), CompositeTopology::triangulateCompositeSurface(), CompositeTopology::update(), and DataFormats::writeIngrid().

UnstructuredMapping::ElementType UnstructuredMapping::getElementType ( int e ) const

inline

References elementType, maxNumberOfNodesPerElement, and triangle.

Referenced by MeshQualityMetrics::computeJacobianProperties().

const intArray & UnstructuredMapping::getEntities ( EntityTypeEnum type )

References buildEntity(), and entities.

Referenced by Integrate::computeStitchedSurfaceWeights(), Integrate::computeStitchedSurfaceWeightsOld(), expandGhostBoundary(), main(), numberOfVertices(), optimize(), optimize_one(), PlotIt::plotUM(), PlotIt::plotUnstructured(), and verifyUnstructuredConnectivity().

const intArray & UnstructuredMapping::getEntityAdjacencyIndices	(	EntityTypeEnum	from,
		EntityTypeEnum	to,
		intArray &	offsets
	)

References buildConnectivity(), entities, indexLists, upwardOffsets, and Vertex.

const intArray & UnstructuredMapping::getFaceElements ( )

References buildConnectivityLists(), and faceElements.

Referenced by CompositeTopology::buildTriangulationForVisibleSurfaces(), HyperbolicMapping::correctProjectionOfInitialCurve(), MeshQualityMetrics::plot(), refineTriangulation(), CompositeTopology::triangulateCompositeSurface(), and CompositeTopology::update().

const intArray & UnstructuredMapping::getFaces ( )

References buildConnectivityLists(), and face.

Referenced by buildFromACompositeGrid(), buildFromACompositeSurface(), CompositeTopology::buildTriangulationForVisibleSurfaces(), PlotIt::contourOpt2d(), HyperbolicMapping::correctProjectionOfInitialCurve(), MeshQualityMetrics::plot(), refineTriangulation(), CompositeTopology::triangulateCompositeSurface(), and CompositeTopology::update().

const intArray & UnstructuredMapping::getGhostElements ( ) const

References ghostElements, NULL, and Overture::nullIntegerDistributedArray().

virtual const realArray& UnstructuredMapping::getGrid	(	MappingParameters &	params = `Overture::nullMappingParameters()`,
		bool	includeGhost = `false`
	)

inlinevirtual

Reimplemented from Mapping.

References node.

const intArray & UnstructuredMapping::getMask ( EntityTypeEnum entityType ) const

References NULL, and Overture::nullIntegerDistributedArray().

int UnstructuredMapping::getMaxNumberOfFacesPerElement ( ) const

References maxNumberOfNodesPerElement.

int UnstructuredMapping::getMaxNumberOfNodesPerElement ( ) const

References maxNumberOfNodesPerElement.

Referenced by MeshQualityMetrics::computeJacobianProperties(), PlotIt::contourOpt2d(), optimize(), optimize_one(), and DataFormats::writeIngrid().

int UnstructuredMapping::getMaxNumberOfNodesPerFace ( ) const

References maxNumberOfNodesPerFace.

const realArray & UnstructuredMapping::getNodes ( ) const

References node.

Referenced by buildFromACompositeGrid(), buildFromACompositeSurface(), CompositeTopology::buildSubSurfaceTriangulation(), CompositeTopology::buildTriangulationForVisibleSurfaces(), UnstructuredGeometry::computeCellCenters(), computeDeviation(), UnstructuredGeometry::computeGeometry(), MeshQualityMetrics::computeJacobianProperties(), MeshQualityMetrics::computeMetric(), Integrate::computeStitchedSurfaceWeights(), Integrate::computeStitchedSurfaceWeightsOld(), MappingGeometry::computeVolumeIntegrals(), PlotIt::contourOpt2d(), HyperbolicMapping::correctProjectionOfInitialCurve(), evaluateDeviation(), Ugen::generateWithAdvancingFront(), main(), optimize(), optimize_one(), MeshQualityMetrics::outputHistogram(), MeshQualityMetrics::plot(), PlotIt::plotUM(), PlotIt::plotUnstructured(), refineTriangulation(), Ugen::sealHoles3D(), CompositeTopology::triangulateCompositeSurface(), UNSTRUCTURED_OPS_FV2::u_xixj_uFV2(), CompositeTopology::update(), verifyUnstructuredConnectivity(), DataFormats::writeIngrid(), and UNSTRUCTURED_OPS_FV2::xixj_uFV2().

void UnstructuredMapping::getNormal	(	int	e,
		real *	normalVector
	)

References element, node, SQR, and SQRT.

Referenced by buildFromARegularMapping(), project(), and validStitch().

int UnstructuredMapping::getNumberOfBoundaryFaces ( ) const

References numberOfBoundaryFaces.

Referenced by buildFromACompositeGrid(), buildFromACompositeSurface(), computeConnection(), findBoundaryCurves(), optimize(), refineTriangulation(), and CompositeTopology::triangulateCompositeSurface().

int UnstructuredMapping::getNumberOfEdges ( ) const

References numberOfEdges.

Referenced by computeDeviation(), MeshQualityMetrics::outputHistogram(), refineTriangulation(), and UnstructuredMappingIterator::UnstructuredMappingIterator().

int UnstructuredMapping::getNumberOfElements ( ) const

int UnstructuredMapping::getNumberOfFaces ( ) const

References Mapping::domainDimension, numberOfFaces, and size().

Referenced by buildFromACompositeSurface(), CompositeTopology::buildSubSurfaceTriangulation(), CompositeTopology::buildTriangulationForVisibleSurfaces(), PlotIt::contourOpt2d(), MeshQualityMetrics::plot(), CompositeTopology::triangulateCompositeSurface(), and UnstructuredMappingIterator::UnstructuredMappingIterator().

int UnstructuredMapping::getNumberOfFacesThisElement ( int element_ ) const

inline

References assert, elementType, maxNumberOfNodesPerElement, numberOfFacesThisElementType, and numberOfNodesPerElementIsConstant.

Referenced by buildConnectivityLists(), checkConnectivity(), and printConnectivity().

int UnstructuredMapping::getNumberOfNodes ( ) const

References numberOfNodes, size(), and Vertex.

Referenced by buildFromACompositeGrid(), buildFromACompositeSurface(), buildFromAMapping(), CompositeTopology::buildSubSurfaceTriangulation(), CompositeTopology::buildTriangulationForVisibleSurfaces(), PlotIt::contourOpt2d(), refineTriangulation(), Ugen::sealHoles3D(), CompositeTopology::triangulateCompositeSurface(), UnstructuredMappingIterator::UnstructuredMappingIterator(), CompositeTopology::update(), and DataFormats::writeIngrid().

int UnstructuredMapping::getNumberOfNodesThisElement ( int element ) const

inline

References assert, elementType, maxNumberOfNodesPerElement, numberOfNodesPerElementIsConstant, and numberOfNodesThisElementType.

Referenced by checkConnectivity(), MeshQualityMetrics::computeJacobianProperties(), createNodeElementList(), getElementFaces(), MeshQualityMetrics::plot(), and printConnectivity().

int UnstructuredMapping::getNumberOfNodesThisFace ( int face_ ) const

inline

References assert, Mapping::domainDimension, elementType, faceElements, faceZ1Offset, maxNumberOfNodesPerElement, and numberOfNodesThisElementFaceType.

Referenced by buildConnectivityLists(), buildFromACompositeGrid(), checkConnectivity(), optimize(), and MeshQualityMetrics::plot().

EntityTag & UnstructuredMapping::getTag	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const std::string	tagName
	)

References entity_tag_begin(), and entity_tag_end().

Referenced by getTagData(), and setTagData().

void * UnstructuredMapping::getTagData	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const std::string	tag
	)

References EntityTag::getData(), and getTag().

Referenced by expandGhostBoundary(), getBC(), MappedGridData::getUnstructuredBCInfo(), and MappedGridData::getUnstructuredPeriodicBC().

const intArray & UnstructuredMapping::getTags ( )

References tags.

Referenced by CompositeTopology::buildTriangulationForVisibleSurfaces(), HyperbolicMapping::correctProjectionOfInitialCurve(), HyperbolicMapping::matchToCurve(), CompositeSurface::project(), HyperbolicMapping::project(), CompositeTopology::update(), and DataFormats::writeIngrid().

bool UnstructuredMapping::hasBC	(	EntityTypeEnum	type,
		int	entity
	)

inline

hasBC returns true if the given {type,entity} has a boundary condition specified

References BCEntity, and entityMasks.

Referenced by getBC(), and PlotIt::plotUnstructured().

bool UnstructuredMapping::hasTag	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const std::string	tag
	)

References entity_tag_begin(), and entity_tag_end().

Referenced by buildFromAMapping(), expandGhostBoundary(), MappedGridData::getUnstructuredPeriodicBC(), optimize(), optimize_one(), setAsGhost(), setBC(), and CompositeGrid::setHybridConnectivity().

void UnstructuredMapping::initMapping ( )

protected

int UnstructuredMapping::insideOrOutside	(	realArray &	x,
		IntegerArray &	inside
	)

int UnstructuredMapping::intersects	(	Mapping &	map2,
		const int &	side1 = `-1`,
		const int &	axis1 = `-1`,
		const int &	side2 = `-1`,
		const int &	axis2 = `-1`,
		const real &	tol = `0.`
	)		const

virtual

Reimplemented from Mapping.

References End, and Start.

Referenced by buildFromACompositeSurface().

bool UnstructuredMapping::isDuplicateNode	(	int	i,
		int	n,
		int	e,
		int	s,
		int	s2,
		real &	r0,
		real &	r1,
		realArray &	x,
		real	epsDup,
		intArray &	bNode,
		intArray &	nodeInfo,
		int &	localEdge,
		real &	dist0,
		real &	dist1,
		real &	dist2,
		int	debugFlag
	)

protected

References assert, c, duplicateNodeFound(), element, fabs(), max(), min(), node, and SQR.

Referenced by buildFromACompositeSurface().

bool UnstructuredMapping::isGhost	(	EntityTypeEnum	type,
		int	entity
	)		const

inline

isGhost returns true if a given entity is a ghost (it returns false if no ghost entity info exists)

References entityMasks, and GhostEntity.

Referenced by buildFromACompositeGrid(), buildFromAMapping(), and PlotIt::plotUnstructured().

bool UnstructuredMapping::maintainsTagToEntityMap ( ) const

References maintainsTagEntities.

void UnstructuredMapping::maintainTagToEntityMap ( bool v )

References entityTags, maintainsTagEntities, and tagEntities.

Referenced by deleteConnectivity(), expandGhostBoundary(), initMapping(), tag_entity_begin(), tag_entity_end(), and ~UnstructuredMapping().

Mapping * UnstructuredMapping::make ( const aString & mappingClassName )

virtual

Reimplemented from Mapping.

References UnstructuredMapping().

int UnstructuredMapping::maxVerticesInEntity ( EntityTypeEnum type )

inline

get the max number of vertices in a given entity type

References Vertex.

Referenced by addEntity(), buildEntity(), expandGhostBoundary(), PlotIt::plotUnstructured(), reserve(), and CompositeGrid::setHybridConnectivity().

int UnstructuredMapping::numberOfVertices	(	EntityTypeEnum	type,
		int	entity
	)

inline

get the number of vertices in a given entity

References getEntities(), and Vertex.

Referenced by computeElementType(), PlotIt::contourOpt2d(), and entitiesAreEquivalent().

UnstructuredMapping & UnstructuredMapping::operator= ( const UnstructuredMapping & X0 )

References absoluteStitchingTolerance, addTag(), adjacencyOrientation, bdyFace, bdyFaceTags, begin(), EntityTag::copiesData(), deleteConnectivity(), dumpTagsToHDF, edge, element, elementDensityTolerance, elementFaces, elementMasterTemplate, elementType, end(), entities, entity_tag_begin(), entity_tag_end(), entityCapacity, entityDataStructureHoles, entityMasks, entitySize, face, faceElements, faceZ1Offset, getClassName(), EntityTag::getData(), EntityTag::getDataSize(), EntityTag::getName(), indexLists, maxNumberOfFacesPerElement, maxNumberOfNodesPerElement, maxNumberOfNodesPerFace, Mesh, node, NULL, numberOfBoundaryElements, numberOfBoundaryFaces, numberOfEdges, numberOfElements, numberOfFaces, numberOfFacesThisElementType, numberOfInternalElements, numberOfInternalFaces, numberOfNodes, numberOfNodesThisElementFaceType, numberOfNodesThisElementType, Mapping::operator=(), preferTriangles, reserve(), search, size(), specifyConnectivity(), stitchingTolerance, tagEntities, tags, upwardOffsets, and Vertex.

int UnstructuredMapping::printConnectivity ( FILE * file = stdout )

References element, face, faceElements, getElementFaces(), getNumberOfFacesThisElement(), getNumberOfNodesThisElement(), numberOfElements, numberOfFaces, and numberOfNodes.

Referenced by buildFromACompositeSurface(), buildFromARegularMapping(), setNodesElementsAndNeighbours(), CompositeTopology::triangulateCompositeSurface(), and update().

int UnstructuredMapping::printStatistics ( FILE * file = stdout )

References aString, max(), numberOfElements, numberOfFaces, numberOfNodes, numberOfTimings, REAL_MIN, timing, and totalTime.

Referenced by buildFromACompositeSurface(), and CompositeSurface::printStatistics().

int UnstructuredMapping::project	(	realArray &	x,
		MappingProjectionParameters &	mpParameters
	)

virtual

Reimplemented from Mapping.

References MappingProjectionParameters::adjustForCornersWhenMarching(), assert, bb, buildSearchTree(), debugs, delta, Mapping::display(), Mapping::domainDimension, element, End, Mapping::epsilon(), fabs(), faceElements, getCPU(), getElementFaces(), MappingProjectionParameters::getIntArray(), getNormal(), Mapping::getRangeBound(), MappingProjectionParameters::getRealArray(), GeometricADTTraversor3dInt::isFinished(), max(), min(), node, normal, NULL, numberOfElements, numberOfNodes, MappingProjectionParameters::onlyChangePointsAdjustedForCornersWhenMarching(), projectOnTriangle(), r, R, Mapping::rangeDimension, REAL_EPSILON, REAL_MAX, s, search, MappingProjectionParameters::searchBoundingBoxMaximumSize, MappingProjectionParameters::searchBoundingBoxSize, GeometricADTTraversor3dInt::setTarget(), SQR, SQRT, Start, timeForProjectGlobalSearch, timeForProjectLocalSearch, timing, and totalTime.

Referenced by buildFromACompositeSurface(), closerSurfaceFound(), computeConnection(), CompositeSurface::project(), HyperbolicMapping::project(), CompositeTopology::update(), and update().

bool UnstructuredMapping::projectOnTriangle	(	real *	x0,
		real *	x1,
		real *	x2,
		real *	xa,
		real *	xb,
		real *	xt,
		int &	intersectionFace,
		int &	intersectionFace2,
		real &	r0,
		real &	s0,
		real *	normal = `NULL`
	)

static

References bb, fabs(), max(), min(), r, and s.

Referenced by HyperbolicMapping::correctProjectionOfInitialCurve(), and project().

int UnstructuredMapping::put	(	GenericDataBase &	dir,
		const aString &	name
	)		const

virtual

int UnstructuredMapping::put ( const aString & fileName = nullString ) const

virtual

References DataFormats::writeIngrid().

void UnstructuredMapping::replaceNode	(	int	n,
		int	n0,
		intArray &	nodeInfo,
		intArray &	ef
	)

protected

References element, face, and faceElements.

Referenced by buildFromACompositeSurface().

int UnstructuredMapping::reserve	(	EntityTypeEnum	type,
		int	amt
	)

References capacity(), entities, entityCapacity, entityMasks, maxVerticesInEntity(), node, NullEntityInfo, Mapping::rangeDimension, size(), and Vertex.

Referenced by addEntity(), addVertex(), expandGhostBoundary(), operator=(), and CompositeGrid::setHybridConnectivity().

void UnstructuredMapping::setAsGhost	(	EntityTypeEnum	type,
		int	entity
	)

setAsGhost takes an entity and adjusts the data structures to make it a ghost

References addTag(), entityMasks, EntityTypeStrings, GhostEntity, and hasTag().

Referenced by buildFromAMapping(), buildFromARegularMapping(), expandGhostBoundary(), get(), and CompositeGrid::setHybridConnectivity().

void UnstructuredMapping::setBC	(	EntityTypeEnum	type,
		int	entity,
		int	bc
	)

setBC assigns a boundary condition number to a particular entity, if the entity==-1 then the the bc is removed

setBC assigns a boundary condition number to a particular entity, if the entity==-1 the the bc is removed

References addTag(), BCEntity, deleteTag(), entityMasks, hasTag(), setTagData(), and tagPrefix().

Referenced by expandGhostBoundary(), and CompositeGrid::setHybridConnectivity().

int UnstructuredMapping::setColour ( const aString & colour )

Referenced by PlotIt::plotUM(), and CompositeTopology::update().

void UnstructuredMapping::setDisplayList	(	DisplayListProperty	d,
		int	l
	)

inline

References dList.

Referenced by PlotIt::plotUM().

void UnstructuredMapping::setElementDensityTolerance ( real tol )

References elementDensityTolerance.

Referenced by buildFromACompositeSurface(), and update().

int UnstructuredMapping::setNodesAndConnectivity	(	const realArray &	nodes,
		const intArray &	elements,
		int	domainDimension = `-1`,
		bool	buildConnectivity = `true`
	)

References axis1, buildConnectivityLists(), capacity(), deleteConnectivity(), Mapping::domainDimension, element, End, entityCapacity, entityMasks, entitySize, FEZComputeElementTypes(), initMapping(), max(), maxNumberOfNodesPerElement, min(), node, NULL, numberOfElements, numberOfNodes, R, Mapping::rangeDimension, search, Mapping::setGridDimensions(), Mapping::setRangeBound(), specifyEntity(), Start, tags, and Vertex.

Referenced by Ugen::buildHybridInterfaceMappings(), Ugen::generateWithAdvancingFront(), Ugen::generateWithTriangle(), Ugen::getUnstructuredMapping(), main(), DataFormats::readCart3dTri(), MappingsFromCAD::readFiniteElements(), DataFormats::readIngrid(), DataFormats::readPly(), DataFormats::readSTL(), DataFormats::readTecplot(), refineTriangulation(), CompositeTopology::triangulateCompositeSurface(), and update().

int UnstructuredMapping::setNodesAndConnectivity	(	const realArray &	nodes,
		const intArray &	elements,
		const intArray &	faces,
		const intArray &	faceElements,
		const intArray &	elementFaces,
		int	numberOfFaces = `-1`,
		int	numberOfBoundaryFaces = `-1`,
		int	domainDimension = `-1`,
		bool	constantNumberOfNodesPerElement = `false`
	)

int UnstructuredMapping::setNodesElementsAndNeighbours	(	const realArray &	nodes,
		const intArray &	elements,
		const intArray &	neighbours,
		int	numberOfFaces = `-1`,
		int	numberOfBoundaryFaces = `-1`,
		int	domainDimension = `-1`
	)

void UnstructuredMapping::setPreferTriangles ( bool trueOrFalse = true )

inline

References preferTriangles.

Referenced by buildFromACompositeSurface(), and update().

int UnstructuredMapping::setTag	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const EntityTag &	newTag
	)

int UnstructuredMapping::setTagData	(	const EntityTypeEnum	entityType,
		const int	entityIndex,
		const std::string	tagName,
		const void *	data,
		const bool	copyData = `false`,
		const int	tagSize = `0`
	)

References getTag(), and EntityTag::setData().

Referenced by expandGhostBoundary(), and setBC().

void UnstructuredMapping::setTags ( const intArray & new_tags )

References assert, numberOfElements, and tags.

Referenced by CompositeTopology::buildTriangulationForVisibleSurfaces(), DataFormats::readCart3dTri(), DataFormats::readIngrid(), DataFormats::readPly(), DataFormats::readTecplot(), and CompositeTopology::triangulateCompositeSurface().

int UnstructuredMapping::size ( EntityTypeEnum t ) const

inline

References entitySize, and Mesh.

Referenced by addEntity(), addVertex(), buildConnectivity(), buildEntity(), buildFromAMapping(), Ugen::buildHybridInterfaceMappings(), UnstructuredGeometry::computeGeometry(), MeshQualityMetrics::computeMetric(), Integrate::computeStitchedSurfaceWeights(), Integrate::computeStitchedSurfaceWeightsOld(), deleteConnectivity(), deleteTag(), entitiesAreEquivalent(), expandGhostBoundary(), findClosestEntity(), get(), getIndex(), getNumberOfElements(), getNumberOfFaces(), getNumberOfNodes(), MappedGridData::getUnstructuredPeriodicBC(), main(), operator=(), optimize(), optimize_one(), PlotIt::plotUM(), PlotIt::plotUnstructured(), reserve(), CompositeGrid::setHybridConnectivity(), UNSTRUCTURED_OPS_FV2::u_xi_uFV2(), UNSTRUCTURED_OPS_FV2::u_xixj_uFV2(), UnstructuredMappingIterator::UnstructuredMappingIterator(), verifyUnstructuredConnectivity(), and ~UnstructuredMapping().

bool UnstructuredMapping::specifyConnectivity	(	const EntityTypeEnum	from,
		const EntityTypeEnum	to,
		const intArray &	index,
		const char *	orientation,
		const intArray &	offset = `Overture::nullIntegerDistributedArray()`
	)

specifyConnectivity tells the mapping to use the given connectivity information rather than building it

References adjacencyOrientation, deleteConnectivity(), indexLists, Overture::nullIntArray(), and upwardOffsets.

Referenced by buildFromARegularMapping(), and operator=().

bool UnstructuredMapping::specifyEntity	(	const EntityTypeEnum	type,
		const intArray &	entity
	)

provide a list of verticies identifying each entity of a particular type

References capacity(), deleteConnectivity(), Mapping::domainDimension, E, entities, entityCapacity, entityMasks, entitySize, indexLists, R, and Vertex.

Referenced by buildFromAMapping(), buildFromARegularMapping(), get(), setNodesAndConnectivity(), setNodesElementsAndNeighbours(), and CompositeTopology::update().

bool UnstructuredMapping::specifyVertices ( const realArray & verts )

provide an array containing the vertices in for this mapping

References capacity(), entityCapacity, entityMasks, entitySize, node, and Vertex.

int UnstructuredMapping::splitElement	(	int	e,
		int	relativeEdge,
		real *	x
	)

References assert, Mapping::domainDimension, element, faceElements, getElementFaces(), node, numberOfElements, numberOfFaces, numberOfNodes, and Mapping::rangeDimension.

tag_entity_iterator UnstructuredMapping::tag_entity_begin ( std::string tagName )

inline

return the beginning of the entities with the tag tagName; note this inverse mapping will be built if it does not already exist

References maintainTagToEntityMap(), and tagEntities.

Referenced by expandGhostBoundary(), MappedGridData::getUnstructuredBCInfo(), MappedGridData::getUnstructuredPeriodicBC(), PlotIt::plotUnstructured(), and CompositeGrid::setHybridConnectivity().

tag_entity_iterator UnstructuredMapping::tag_entity_end ( std::string tagName )

inline

return the end of the entities with the tag tagName; note this inverse mapping will be built if it does not already exist

References maintainTagToEntityMap(), and tagEntities.

Referenced by expandGhostBoundary(), MappedGridData::getUnstructuredBCInfo(), MappedGridData::getUnstructuredPeriodicBC(), PlotIt::plotUnstructured(), and CompositeGrid::setHybridConnectivity().

std::string UnstructuredMapping::tagPrefix	(	EntityTypeEnum	type,
		EntityInfoMask	info
	)

tagPrefix returns the prefix associated with builtin tag conventions

References BCEntity, EntityTypeStrings, GhostEntity, and s.

Referenced by expandGhostBoundary(), getBC(), and setBC().

int UnstructuredMapping::update ( MappingInformation & mapInfo )

virtual

Reimplemented from Mapping.

Referenced by MappingsFromCAD::readMappings(), CompositeTopology::update(), and HyperbolicMapping::update().

bool UnstructuredMapping::validStitch	(	int	n,
		realArray &	x0,
		realArray &	x,
		intArray &	nodeInfo,
		real	tol,
		int	debug
	)

protected

References assert, element, face, faceElements, getNormal(), max(), node, REAL_MIN, SQR, and SQRT.

Friends And Related Function Documentation

friend class UnstructuredMappingAdjacencyIterator

friend

Referenced by adjacency_begin(), and adjacency_end().

friend class UnstructuredMappingIterator

friend

Referenced by begin(), and end().

Member Data Documentation

real UnstructuredMapping::absoluteStitchingTolerance

protected

Referenced by buildFromACompositeSurface(), operator=(), UnstructuredMapping(), and update().

char* UnstructuredMapping::adjacencyOrientation[int(NumberOfEntityTypes)-1][int(NumberOfEntityTypes)-1]

protected

entity adjacency orientations

Referenced by buildConnectivity(), buildEntity(), buildFromARegularMapping(), deleteConnectivity(), initMapping(), operator=(), specifyConnectivity(), and UnstructuredMappingAdjacencyIterator::UnstructuredMappingAdjacencyIterator().

intArray UnstructuredMapping::bdyFace

protected

Referenced by buildConnectivityLists(), buildFromACompositeSurface(), buildFromARegularMapping(), computeConnection(), get(), getBoundaryFace(), operator=(), put(), setNodesAndConnectivity(), and setNodesElementsAndNeighbours().

intArray UnstructuredMapping::bdyFaceTags

protected

Referenced by buildConnectivityLists(), buildFromACompositeGrid(), buildFromARegularMapping(), get(), getBoundaryFaceTag(), getBoundaryFaceTags(), operator=(), put(), setNodesAndConnectivity(), and setNodesElementsAndNeighbours().

int UnstructuredMapping::debugs

protected

Referenced by buildFromACompositeSurface(), initMapping(), project(), and update().

int UnstructuredMapping::dList[numberOfDLProperties]

protected

Referenced by eraseUnstructuredMapping(), getDisplayList(), initMapping(), and setDisplayList().

bool UnstructuredMapping::dumpTagsToHDF

protected

Referenced by dumpTags(), get(), operator=(), put(), UnstructuredMapping(), and ~UnstructuredMapping().

intArray UnstructuredMapping::edge

protected

Referenced by buildConnectivityLists(), buildEntity(), buildFromACompositeSurface(), buildFromARegularMapping(), expandGhostBoundary(), get(), getEdges(), operator=(), put(), setNodesAndConnectivity(), and setNodesElementsAndNeighbours().

intArray * UnstructuredMapping::edgeMask

protected

Referenced by buildFromARegularMapping(), initMapping(), UnstructuredMapping(), UnstructuredMappingIterator::UnstructuredMappingIterator(), and ~UnstructuredMapping().

intArray UnstructuredMapping::element

protected

real UnstructuredMapping::elementDensityTolerance

protected

Referenced by buildFromACompositeSurface(), buildFromARegularMapping(), get(), operator=(), put(), setElementDensityTolerance(), UnstructuredMapping(), and update().

intArray* UnstructuredMapping::elementFaces

protected

Referenced by buildConnectivityLists(), buildFromACompositeSurface(), buildFromARegularMapping(), get(), getElementFaces(), initMapping(), operator=(), put(), setNodesAndConnectivity(), setNodesElementsAndNeighbours(), UnstructuredMapping(), and ~UnstructuredMapping().

intArray* UnstructuredMapping::elementMask

protected

Referenced by buildFromARegularMapping(), initMapping(), UnstructuredMapping(), UnstructuredMappingIterator::UnstructuredMappingIterator(), and ~UnstructuredMapping().

IntegerArray UnstructuredMapping::elementMasterTemplate

protected

Referenced by faceGlobalVertex(), FEZInitializeConnectivity(), getElementFaceNodes(), and operator=().

intArray UnstructuredMapping::elementType

protected

Referenced by faceGlobalVertex(), FEZComputeElementTypes(), get(), getElementFaceNodes(), getElementType(), getNumberOfFacesThisElement(), getNumberOfNodesThisElement(), getNumberOfNodesThisFace(), operator=(), and put().

aString UnstructuredMapping::ElementTypeStrings

static

Initial value:

= { "triangle",
                                                      "quadrilateral",
                                                      "tetrahedron",
                                                      "pyramid",
                                                      "triPrism",
                                                      "septahedron",
                                                      "hexahedron",
                                                      "other",
                                                      "boundary" }

an array usefull for diagnostics involving ElementType

Referenced by verifyUnstructuredConnectivity().

intArray* UnstructuredMapping::entities[int(NumberOfEntityTypes)-1]

protected

entities maintains the node/vertex ID lists for each entity

Referenced by addEntity(), begin(), buildConnectivity(), buildEntity(), connectivityExists(), deleteConnectivity(), end(), entitiesAreEquivalent(), expandGhostBoundary(), get(), getEntities(), getEntityAdjacencyIndices(), initMapping(), operator=(), put(), reserve(), and specifyEntity().

ArraySimpleFixed<int,int(NumberOfEntityTypes)-1,1,1,1> UnstructuredMapping::entityCapacity

protected

entityCapacity maintains the current allocated size of the container arrays for a particular entity

Referenced by buildEntity(), buildFromAMapping(), buildFromARegularMapping(), capacity(), deleteConnectivity(), get(), initMapping(), operator=(), reserve(), setNodesAndConnectivity(), setNodesElementsAndNeighbours(), specifyEntity(), and specifyVertices().

std::vector<int> UnstructuredMapping::entityDataStructureHoles[int(NumberOfEntityTypes)-1]

protected

lists of holes in the entity arrays

Referenced by operator=().

intArray* UnstructuredMapping::entityMasks[int(NumberOfEntityTypes)-1]

protected

entity identification array that determines if an entity index refers to an internal, ghost or null entity

Referenced by addEntity(), buildEntity(), buildFromAMapping(), buildFromARegularMapping(), deleteConnectivity(), get(), hasBC(), initMapping(), isGhost(), operator=(), put(), reserve(), setAsGhost(), setBC(), setNodesAndConnectivity(), setNodesElementsAndNeighbours(), specifyEntity(), specifyVertices(), UnstructuredMappingAdjacencyIterator::UnstructuredMappingAdjacencyIterator(), and UnstructuredMappingIterator::UnstructuredMappingIterator().

ArraySimpleFixed<int,int(NumberOfEntityTypes)-1,1,1,1> UnstructuredMapping::entitySize

protected

entitySize maintains the current number of entities of a given type

Referenced by addEntity(), addVertex(), buildEntity(), buildFromAMapping(), buildFromARegularMapping(), deleteConnectivity(), get(), initMapping(), operator=(), put(), setNodesAndConnectivity(), setNodesElementsAndNeighbours(), size(), specifyEntity(), and specifyVertices().

std::map<IDTuple, std::list<EntityTag*> > UnstructuredMapping::entityTags

mutableprotected

Referenced by addTag(), deleteConnectivity(), deleteTag(), entity_tag_begin(), entity_tag_end(), maintainTagToEntityMap(), put(), and ~UnstructuredMapping().

aString UnstructuredMapping::EntityTypeStrings

static

Initial value:

= { "Vertex",
                                                     "Edge",
                                                     "Face",
                                                     "Region",
                                                     "Mesh" }

an array usefull for diagnostics involving EntityTypeEnum

Referenced by addEntity(), buildFromAMapping(), buildFromARegularMapping(), Ugen::buildHybridInterfaceMappings(), expandGhostBoundary(), get(), MappedGridData::getUnstructuredBCInfo(), MappedGridData::getUnstructuredPeriodicBC(), optimize(), optimize_one(), PlotIt::plotUM(), PlotIt::plotUnstructured(), put(), setAsGhost(), CompositeGrid::setHybridConnectivity(), tagPrefix(), and verifyUnstructuredConnectivity().
