Ugen Class Reference

#include <Ugen.h>

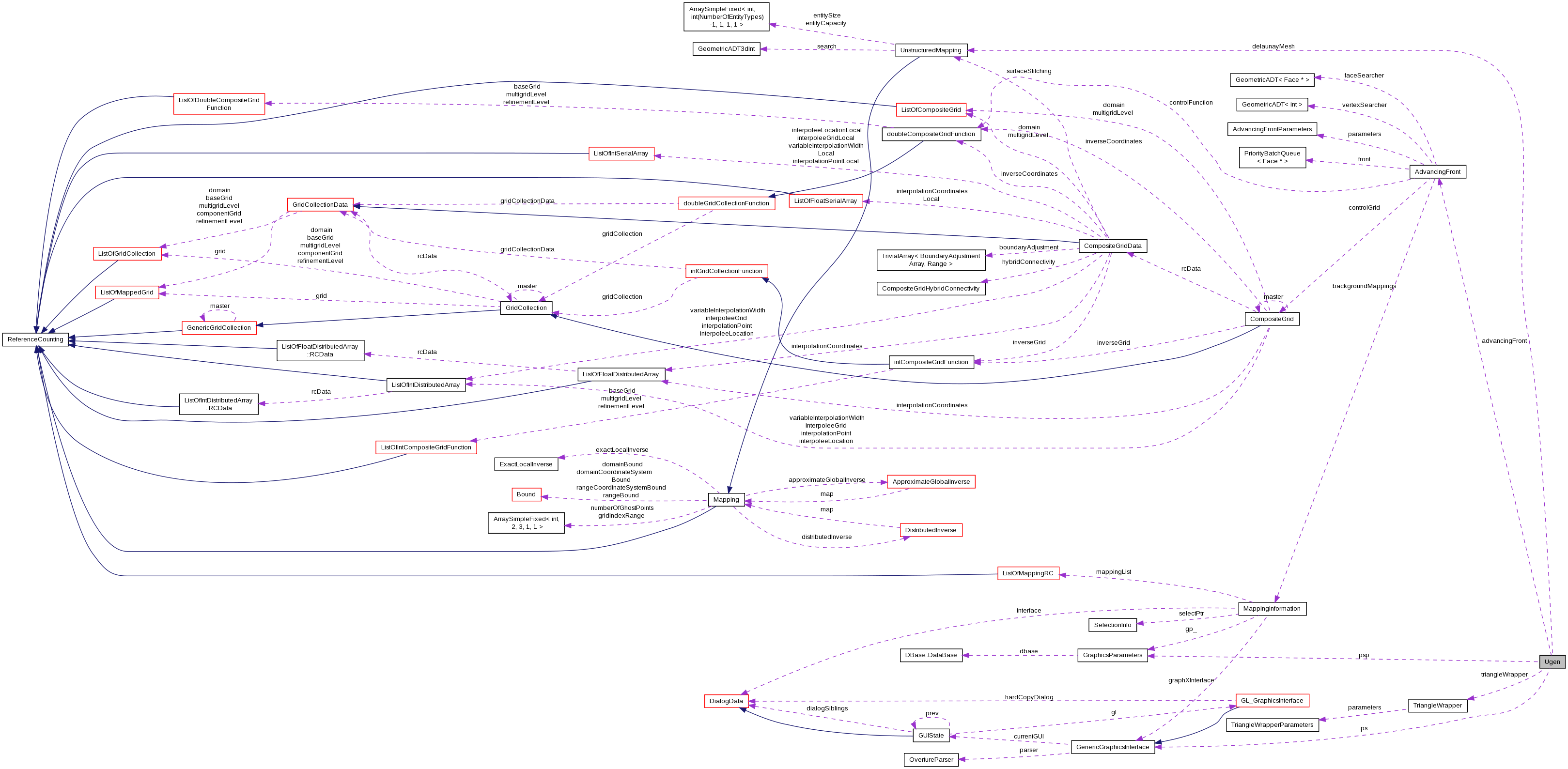

Collaboration diagram for Ugen:

Public Types
enum	GeneratorType { TriWrap, AdvFront }

Public Member Functions
	Ugen ()
	Ugen (GenericGraphicsInterface &ps_)
	~Ugen ()
void	updateHybrid (CompositeGrid &cg, MappingInformation &mapInfo)
void	updateHybrid (CompositeGrid &cg)
void	buildHybridInterfaceMappings (MappingInformation &mapInfo, CompositeGrid &cg, Ugen::GeneratorType genWith, intArray *&gridIndex2UnstructuredVertex, intArray &unstructuredVertex2GridIndex, intArray *&gridVertex2UnstructuredVertex, intArray &initialFaceZones)
UnstructuredMapping *	getUnstructuredMapping () const

Protected Member Functions
int	initialize ()
void	plot (const aString &title, CompositeGrid &cg, bool plotComponentGrids, bool plotTriangle, bool plotAdvFront)
void	preprocessCompositeGridMasks (CompositeGrid &cg)
void	initializeGeneration (CompositeGrid &cg, intArray *vertexIndex, intArray &numberOfVertices, intArray *vertexIDMap, intArray &vertexGridIndexMap, intArray *gridIndexVertexMap, intArray &initialFaces, intArray &initialFaceZones, realArray &xyz_initial)
void	removeHangingFaces (CompositeGrid &cg)
void	buildHybridVertexMappings (CompositeGrid &cg, intArray *vertexIndex, intArray &numberOfVertices, intArray *vertexIDMap, intArray &vertexGridIndexMap, intArray *gridIndexVertexMap, realArray &xyz_initial)
void	generateInitialFaceList (CompositeGrid &cg, intArray *vertexIndex, intArray &numberOfVertices, intArray *vertexIDMap, intArray &vertexGridIndexMap, intArray *gridIndexVertexMap, intArray &initialFaces, intArray &initialFaceZones)
void	computeZoneMasks (CompositeGrid &cg, intArray *&zoneMasks, intArray &numberOfMaskedZones)
void	generateSpacingControlMesh (CompositeGrid &cg, const intArray &initialFaceZones, const realArray &xyz_initial)
void	generateSpacingControlMeshForSurface (const intArray &initialFaces, const realArray &initial_vertices)
void	enlargeHole (CompositeGrid &cg, intArray &vertexGridIndexMap, int egrd=-1)
void	generateHoleLists (CompositeGrid &cg, intArray *vertexIndex, intArray &numberOfVertices)
void	sealHoles (CompositeGrid &cg, intArray *gridIndexVertexMap, intArray &initialFaces, realArray &xyz_initial, intArray &initialSurfaceMapping)
void	generateWithAdvancingFront ()
void	generateWithTriangle ()
void	sealHoles3D (CompositeGrid &cg, intArray *gridIndexVertexMap, intArray &boundaryHoleVertices, intArray &initialFaces, realArray &xyz_initial)

Protected Attributes
AdvancingFront	advancingFront
TriangleWrapper	triangleWrapper
UnstructuredMapping	delaunayMesh
GenericGraphicsInterface *	ps
GraphicsParameters	psp

Member Enumeration Documentation

enum Ugen::GeneratorType

Enumerator
TriWrap
AdvFront

Constructor & Destructor Documentation

Ugen::Ugen

(

)

References initialize(), NULL, and ps.

Ugen::Ugen

(

GenericGraphicsInterface &

ps_

)

References initialize(), and ps.

Ugen::~Ugen

(

)

Member Function Documentation

void Ugen::buildHybridInterfaceMappings	(	MappingInformation &	mapInfo,
		CompositeGrid &	cg,
		Ugen::GeneratorType	genWith,
		intArray *&	gridIndex2UnstructuredVertex,
		intArray &	unstructuredVertex2GridIndex,
		intArray *&	gridVertex2UnstructuredVertex,
		intArray &	initialFaceZones
	)

References CompositeGrid::add(), ListOfMappingRC::addElement(), advancingFront, AdvFront, Mapping::cartesianSpace, UnstructuredMapping::EntityTypeStrings, TriangleWrapper::generateElementList(), AdvancingFront::generateElementList(), AdvancingFront::getDomainDimension(), AdvancingFront::getFaces(), TriangleWrapper::getInitialFaces2TriangleMapping(), AdvancingFront::getNumberOfVertices(), TriangleWrapper::getPoints(), AdvancingFront::getVertices(), MappingInformation::mappingList, GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), Mapping::parameterSpace, R, UnstructuredMapping::Region, CompositeGrid::setHybridConnectivity(), UnstructuredMapping::setNodesAndConnectivity(), UnstructuredMapping::size(), MappedGrid::THEmask, triangleWrapper, TriWrap, and CompositeGrid::update().

Referenced by updateHybrid().

void Ugen::buildHybridVertexMappings ( CompositeGrid &  cg, intArray *  vertexIndex, intArray &  numberOfVertices, intArray *  vertexIDMap, intArray &  vertexGridIndexMap, intArray *  gridIndexVertexMap, realArray &  xyz_initial  )

protected

References generateHoleLists(), MappingRC::getDomainDimension(), getIndex(), MappingRC::getTypeOfCoordinateSingularity(), MappedGrid::gridIndexRange(), MappedGrid::mapping(), GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), Mapping::polarSingularity, MappedGrid::THEvertex, and CompositeGrid::update().

Referenced by initializeGeneration().

void Ugen::computeZoneMasks ( CompositeGrid &  cg, intArray *&  zoneMasks, intArray &  numberOfMaskedZones  )

protected

References debug_Ugen, getIndex(), MappedGrid::gridIndexRange(), i2, MappedGrid::mask(), NULL, GenericGridCollection::numberOfComponentGrids(), and GridCollection::numberOfDimensions().

Referenced by generateInitialFaceList().

void Ugen::enlargeHole ( CompositeGrid &  cg, intArray &  vertexGridIndexMap, int  egrd = -1  )

protected

References MappedGrid::domainDimension(), getIndex(), MappingRC::getMapping(), Mapping::getTypeOfCoordinateSingularity(), MappedGrid::gridIndexRange(), i2, MappedGrid::isPeriodic(), MappedGrid::mapping(), MappedGrid::mask(), notPeriodic, GridCollection::numberOfDimensions(), and Mapping::polarSingularity.

Referenced by updateHybrid().

void Ugen::generateHoleLists ( CompositeGrid &  cg, intArray *  vertexIndex, intArray &  numberOfVertices  )

protected

References AssertException(), debug_Ugen, MappedGrid::domainDimension(), getIndex(), MappedGrid::gridIndexRange(), i2, ia, ip1, MappedGrid::isPeriodic(), MappedGrid::mask(), NULL, and GenericGridCollection::numberOfComponentGrids().

Referenced by buildHybridVertexMappings().

void Ugen::generateInitialFaceList ( CompositeGrid &  cg, intArray *  vertexIndex, intArray &  numberOfVertices, intArray *  vertexIDMap, intArray &  vertexGridIndexMap, intArray *  gridIndexVertexMap, intArray &  initialFaces, intArray &  initialFaceZones  )

protected

References computeZoneMasks(), Mapping::getClassName(), getIndex(), MappingRC::getMapping(), Mapping::getSignForJacobian(), MappedGrid::gridIndexRange(), i2, MappedGrid::isPeriodic(), MappedGrid::mapping(), NULL, GenericGridCollection::numberOfComponentGrids(), and GridCollection::numberOfDimensions().

Referenced by initializeGeneration().

void Ugen::generateSpacingControlMesh ( CompositeGrid &  cg, const intArray &  initialFaceZones, const realArray &  xyz_initial  )

protected

References advancingFront, center, cf, ReferenceCounting::decrementReferenceCount(), getIndex(), getSignForJacobian(), gridIndexRange, i2, ReferenceCounting::incrementReferenceCount(), max(), min(), GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), doubleGridCollectionFunction::periodicUpdate(), pow(), REAL_MAX, CompositeGrid::reference(), Mapping::reinitialize(), AdvancingFront::setControlFunction(), Mapping::setGridDimensions(), doubleCompositeGridFunction::setOperators(), MappedGrid::THEcenter, MappedGrid::THEvertex, MappedGrid::THEvertexDerivative, CompositeGrid::update(), MappedGrid::update(), and CompositeGrid::updateReferences().

Referenced by initializeGeneration().

void Ugen::generateSpacingControlMeshForSurface ( const intArray &  initialFaces, const realArray &  initial_vertices  )

protected

References advancingFront, ReferenceCounting::decrementReferenceCount(), getIndex(), gridIndexRange, ReferenceCounting::incrementReferenceCount(), max(), min(), REAL_MAX, CompositeGrid::reference(), Mapping::reinitialize(), AdvancingFront::setControlFunction(), Mapping::setGridDimensions(), MappedGrid::THEcenter, MappedGrid::THEvertex, MappedGrid::update(), and CompositeGrid::updateReferences().

Referenced by initializeGeneration().

void Ugen::generateWithAdvancingFront ( )

protected

References AdvancingFront::advanceFront(), advancingFront, AbstractException::debug_print(), GeometricADTError::debug_print(), AdvancingFrontError::debug_print(), AdvancingFront::generateElementList(), AdvancingFront::getControlFunction(), getCPU(), AdvancingFront::getDomainDimension(), UnstructuredMapping::getNodes(), AdvancingFront::getNumberOfElements(), AdvancingFront::getNumberOfFaces(), AdvancingFront::getNumberOfVertices(), AdvancingFront::getRangeDimension(), AdvancingFront::getVertices(), AdvancingFront::isFrontEmpty(), optimize(), MeshQualityMetrics::outputHistogram(), ps, R, UnstructuredMapping::setNodesAndConnectivity(), and MeshQualityMetrics::setReferenceTransformation().

Referenced by updateHybrid().

void Ugen::generateWithTriangle ( )

protected

References delaunayMesh, TriangleWrapper::generate(), TriangleWrapper::generateElementList(), TriangleWrapper::getPoints(), points(), UnstructuredMapping::setNodesAndConnectivity(), and triangleWrapper.

Referenced by updateHybrid().

UnstructuredMapping* Ugen::getUnstructuredMapping ( ) const

inline

References advancingFront, AdvancingFront::getNumberOfVertices(), AdvancingFront::getRangeDimension(), AdvancingFront::getVertices(), NULL, R, and UnstructuredMapping::setNodesAndConnectivity().

Referenced by SurfaceStitcher::getUnstructuredGrid().

int Ugen::initialize ( )

protected

Referenced by Ugen().

void Ugen::initializeGeneration ( CompositeGrid &  cg, intArray *  vertexIndex, intArray &  numberOfVertices, intArray *  vertexIDMap, intArray &  vertexGridIndexMap, intArray *  gridIndexVertexMap, intArray &  initialFaces, intArray &  initialFaceZones, realArray &  xyz_initial  )

protected

References advancingFront, buildHybridVertexMappings(), center, AbstractException::debug_print(), AdvancingFrontError::debug_print(), debug_Ugen, dimension, generateInitialFaceList(), generateSpacingControlMesh(), generateSpacingControlMeshForSurface(), AdvancingFront::getControlFunction(), TriangleWrapperParameters::getFreezeSegments(), TriangleWrapper::getParameters(), TriangleWrapperParameters::getVoronoi(), AdvancingFront::initialize(), TriangleWrapper::initialize(), max(), GridCollection::numberOfDimensions(), doubleGridCollectionFunction::numberOfGrids(), GenericGridCollection::numberOfGrids(), ps, removeHangingFaces(), sealHoles(), TriangleWrapper::setHoles(), TriangleWrapperParameters::toggleFreezeSegments(), TriangleWrapperParameters::toggleVoronoi(), and triangleWrapper.

Referenced by updateHybrid().

void Ugen::plot ( const aString &  title, CompositeGrid &  cg, bool  plotComponentGrids, bool  plotTriangle, bool  plotAdvFront  )

protected

References advancingFront, delaunayMesh, GenericGraphicsInterface::erase(), GI_PLOT_THE_OBJECT_AND_EXIT, GI_TOP_LABEL, PlotIt::plot(), ps, psp, GraphicsParameters::set(), and TRUE.

Referenced by updateHybrid().

void Ugen::preprocessCompositeGridMasks ( CompositeGrid &  cg )

protected

References c, mask, MappedGrid::mask(), and GenericGridCollection::numberOfComponentGrids().

Referenced by updateHybrid().

void Ugen::removeHangingFaces ( CompositeGrid &  cg )

protected

References getIndex(), MappedGrid::gridIndexRange(), i2, MappedGrid::isPeriodic(), MappedGrid::mask(), and GenericGridCollection::numberOfComponentGrids().

Referenced by initializeGeneration().

void Ugen::sealHoles ( CompositeGrid &  cg, intArray *  gridIndexVertexMap, intArray &  initialFaces, realArray &  xyz_initial, intArray &  initialSurfaceMapping  )

protected

References advancingFront, axis1, axis2, FALSE, AdvancingFront::getParameters(), GI_PLOT_THE_OBJECT_AND_EXIT, IntersectionMapping::intersectCurves(), Mapping::intersects(), MappedGrid::mixedPhysicalInterpolationBoundary, NULL, GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), MappedGrid::physicalBoundary, GenericGraphicsInterface::plotPoints(), ps, psp, sealHoles3D(), GraphicsParameters::set(), TRUE, and AdvancingFrontParameters::usingControlFunction().

Referenced by initializeGeneration().

void Ugen::sealHoles3D ( CompositeGrid &  cg, intArray *  gridIndexVertexMap, intArray &  boundaryHoleVertices, intArray &  initialFaces, realArray &  xyz_initial  )

protected

References CompositeGrid::add(), MappedGrid::boundaryFlag(), ReferenceCounting::decrementReferenceCount(), MappedGrid::domainDimension(), getBoundaryIndex(), UnstructuredMapping::getElements(), Overture::getGraphicsInterface(), CompositeGrid::getHybridConnectivity(), UnstructuredMapping::getNodes(), UnstructuredMapping::getNumberOfElements(), UnstructuredMapping::getNumberOfNodes(), Mapping::getSignForJacobian(), CompositeGridHybridConnectivity::getUnstructuredGridIndex(), CompositeGridHybridConnectivity::getUVertex2GridIndex(), MappingInformation::graphXInterface, MappedGrid::gridIndexRange(), ReferenceCounting::incrementReferenceCount(), CompositeGridData::initialize(), MappedGrid::mapping(), MappingRC::mapPointer, MappedGrid::mask(), MappedGrid::mixedPhysicalInterpolationBoundary, GridCollection::numberOfDimensions(), GenericGridCollection::numberOfGrids(), MappedGrid::physicalBoundary, ArraySimple< T >::redim(), MappedGrid::sharedBoundaryFlag(), MappedGrid::THEboundingBox, MappingParameters::THEboundingBoxExtensionFactor, MappedGridData::THEmask, MappingParameters::THEstencilWalkBoundingBoxExtensionFactor, MappedGrid::THEvertex, CompositeGrid::update(), and updateHybrid().

Referenced by sealHoles().

void Ugen::updateHybrid	(	CompositeGrid &	cg,
		MappingInformation &	mapInfo
	)

References advancingFront, AdvFront, GenericGraphicsInterface::appendToTheDefaultPrompt(), assert, aString, buildHybridInterfaceMappings(), GenericGraphicsInterface::createWindow(), AbstractException::debug_print(), debug_Ugen, delaunayMesh, AdvancingFront::destroyFront(), enlargeHole(), GenericGraphicsInterface::erase(), AdvancingFront::expandFront(), FALSE, generateWithAdvancingFront(), generateWithTriangle(), GenericGraphicsInterface::getAnswer(), GUIState::getDialogSibling(), AdvancingFrontParameters::getEdgeGrowthFactor(), AdvancingFront::getFaces(), TriangleWrapperParameters::getMaximumArea(), AdvancingFrontParameters::getMaxNeighborAngle(), TriangleWrapperParameters::getMinimumAngle(), AdvancingFrontParameters::getNumberOfAdvances(), AdvancingFront::getNumberOfElements(), AdvancingFront::getNumberOfFaces(), DialogData::getOptionMenu(), AdvancingFront::getParameters(), TriangleWrapper::getParameters(), GI_PLOT_THE_OBJECT_AND_EXIT, GenericGraphicsInterface::graphicsIsOn(), MappingInformation::graphXInterface, DialogData::hideSibling(), AdvancingFrontParameters::highlightFace(), initializeGeneration(), GenericGraphicsInterface::inputString(), AdvancingFrontParameters::meshEdges, AdvancingFrontParameters::meshFaces, NULL, GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), GenericGridCollection::numberOfGrids(), numberOfVertices, GenericGraphicsInterface::outputString(), PlotIt::plot(), plot(), GenericGraphicsInterface::popGUI(), preprocessCompositeGridMasks(), ps, psp, GenericGraphicsInterface::pushGUI(), GraphicsParameters::set(), OptionMenu::setCurrentChoice(), AdvancingFrontParameters::setEdgeGrowthFactor(), DialogData::setExitCommand(), TriangleWrapperParameters::setMaximumArea(), AdvancingFrontParameters::setMaxNeighborAngle(), TriangleWrapperParameters::setMinimumAngle(), AdvancingFrontParameters::setNumberOfAdvances(), AdvancingFrontParameters::setQualityTolerance(), DialogData::setSensitive(), DialogData::setTextLabel(), DialogData::setWindowTitle(), DialogData::showSibling(), sPrintF(), sScanF(), AdvancingFrontParameters::toggle(), triangleWrapper, TriWrap, TRUE, and GenericGraphicsInterface::unAppendTheDefaultPrompt().

Referenced by ogen(), sealHoles3D(), SurfaceStitcher::stitchSurfaceCompositeGrid(), and updateHybrid().

void Ugen::updateHybrid

(

CompositeGrid &

cg

)

References ListOfMappingRC::addElement(), advancingFront, AdvFront, buildHybridInterfaceMappings(), debug_Ugen, generateWithAdvancingFront(), Overture::getGraphicsInterface(), AdvancingFront::getNumberOfElements(), AdvancingFront::getParameters(), TriangleWrapper::getParameters(), MappingInformation::graphXInterface, initializeGeneration(), MappingInformation::mappingList, GenericGridCollection::numberOfComponentGrids(), GridCollection::numberOfDimensions(), GenericGridCollection::numberOfGrids(), numberOfVertices, preprocessCompositeGridMasks(), triangleWrapper, and updateHybrid().

Member Data Documentation

AdvancingFront Ugen::advancingFront

mutableprotected

Referenced by buildHybridInterfaceMappings(), generateSpacingControlMesh(), generateSpacingControlMeshForSurface(), generateWithAdvancingFront(), getUnstructuredMapping(), initializeGeneration(), plot(), sealHoles(), and updateHybrid().

UnstructuredMapping Ugen::delaunayMesh

protected

Referenced by generateWithTriangle(), plot(), and updateHybrid().

GenericGraphicsInterface* Ugen::ps

protected

Referenced by generateWithAdvancingFront(), initializeGeneration(), plot(), sealHoles(), Ugen(), and updateHybrid().

GraphicsParameters Ugen::psp

protected

Referenced by plot(), sealHoles(), and updateHybrid().

TriangleWrapper Ugen::triangleWrapper

protected

Referenced by buildHybridInterfaceMappings(), generateWithTriangle(), initializeGeneration(), and updateHybrid().

---

The documentation for this class was generated from the following files:

• Ugen.h
• sealHoles.C
• Ugen.C
